HDSP-5301: DescriptionSmart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.2mm, DIP-10; CategoryLED optoelectronic/LED photoelectric; File Size319KB，8 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric Compare View All

HDSP-5301 Overview

Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.2mm, DIP-10

HDSP-5301 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hewlett Packard Co.
package instruction	DIP-10
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.025 A
Maximum forward voltage	2 V
JESD-609 code	e0
Number of characters	1
Number of functions	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	655 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

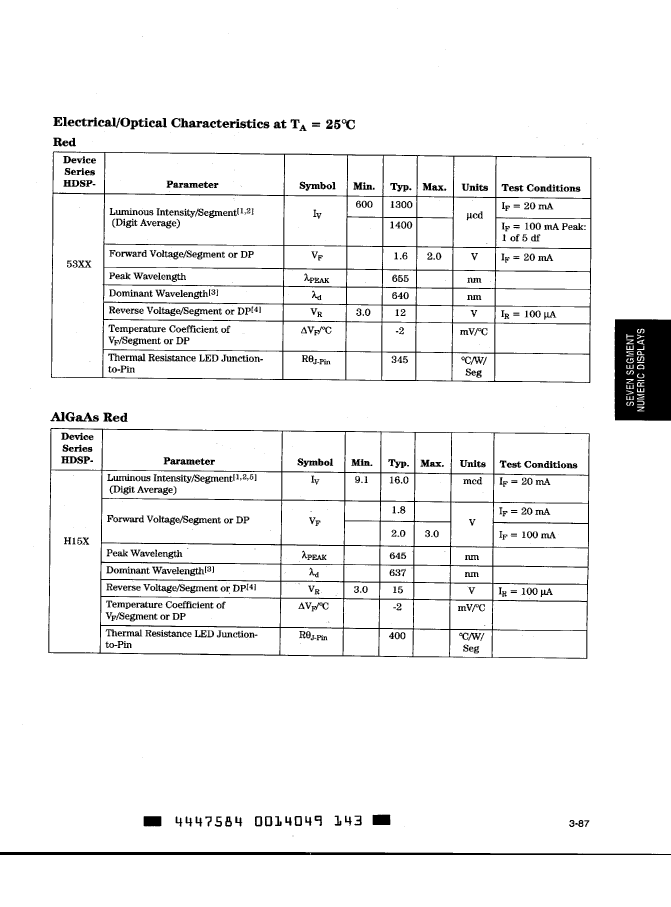

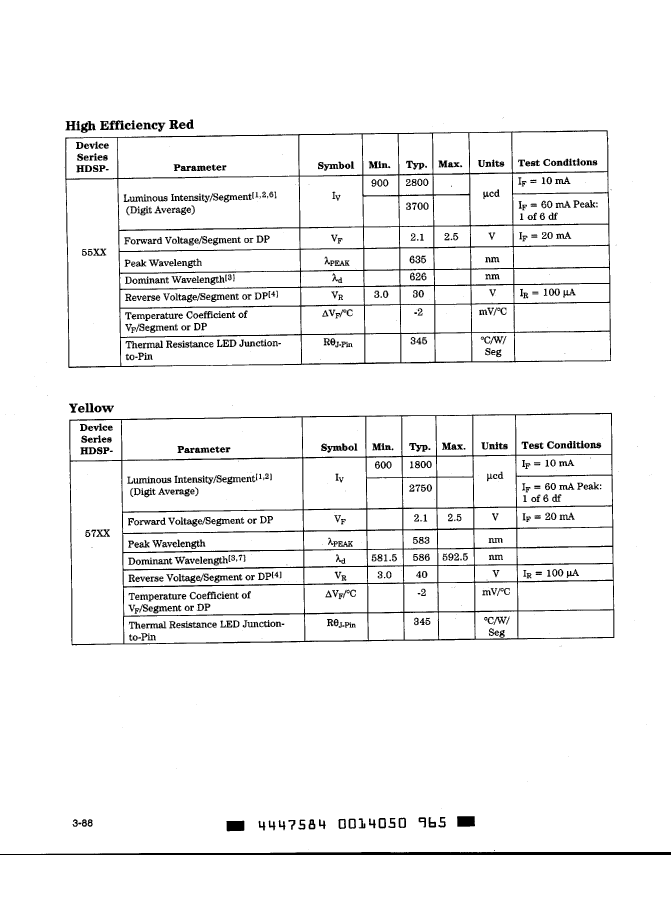

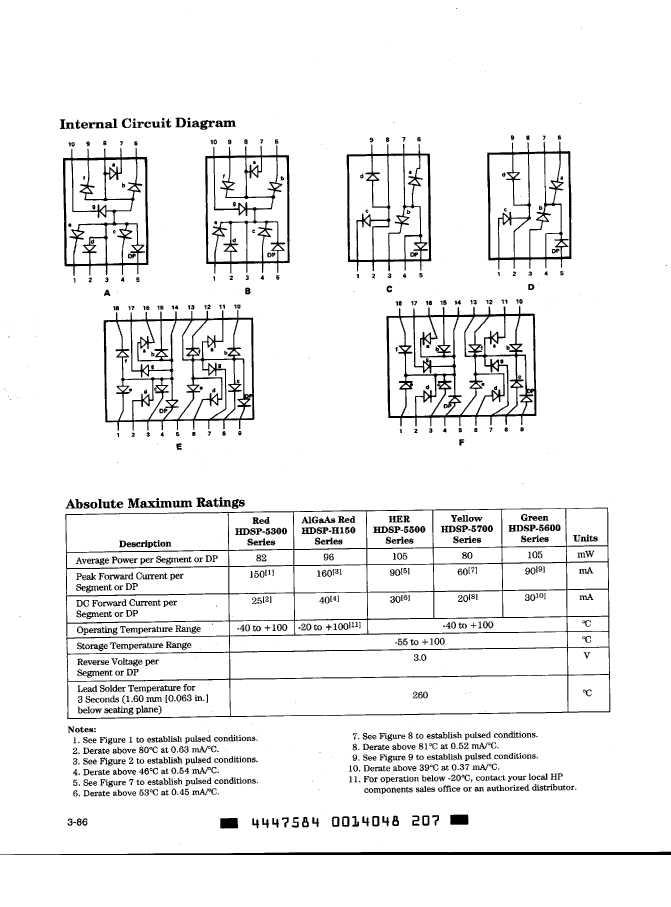

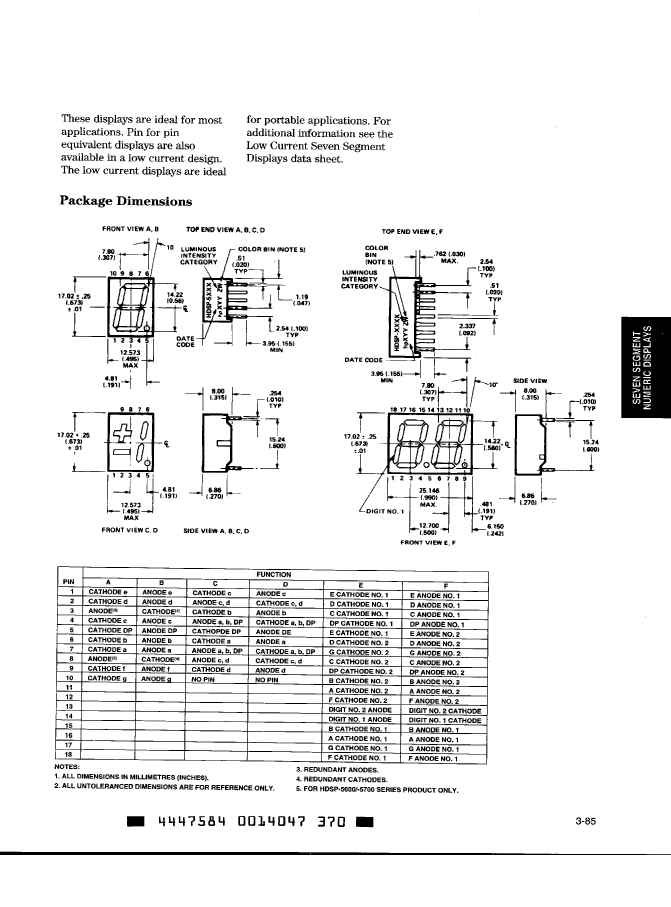

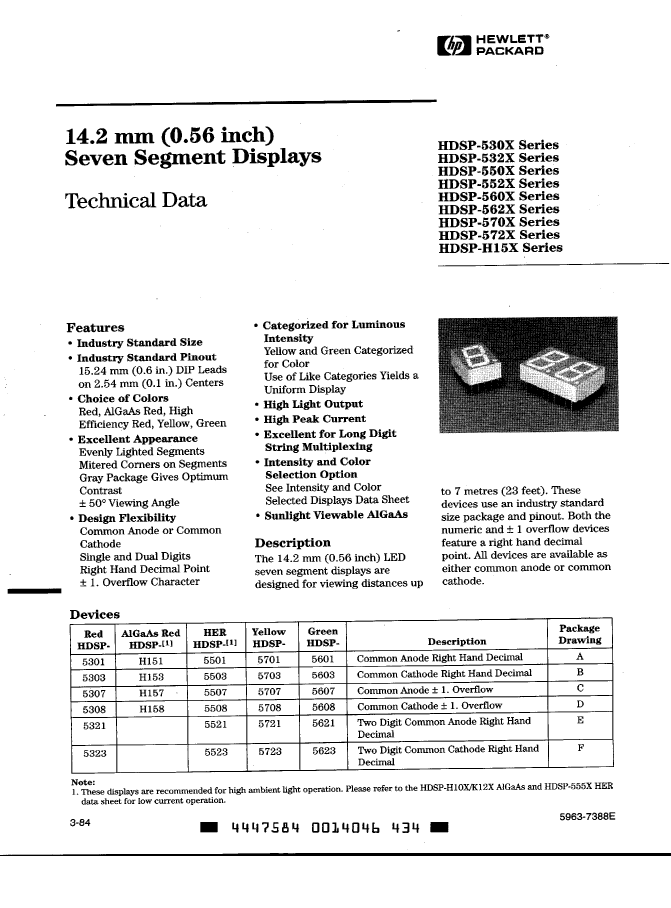

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

HDSP-5301 Related Products

	HDSP-5301	HDSP-5307	HDSP-5323	HDSP-5321	HDSP-5303	HDSP-5523
Description	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.2mm, DIP-10	Smart/Normal 7 Seg Numeric LED Display, Red, 14.2mm, DIP-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 14.2mm, DIP-18	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 14.2mm, DIP-18	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.2mm, DIP-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, High Efficiency Red, 14.2mm, DIP-18
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.
package instruction	DIP-10	DIP-10	DIP-18	DIP-18	DIP-10	DIP-18
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	RED	RED	RED	RED	RED	HIGH EFFICIENCY RED
color@wavelength	Red	Red	Red	Red	Red	Red
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT
Display height	14.2 mm	14.2 mm	14.2 mm	14.2 mm	14.2 mm	14.2 mm
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.03 A
Maximum forward voltage	2 V	2 V	2 V	2 V	2 V	2.5 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	0.5	2	2	1	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	655 nm	655 nm	655 nm	655 nm	655 nm	635 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Number of characters	1	-	2	2	1	2
Base Number Matches	1	1	1	1	1	-
