BN-200.000MBE-B datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> BN-200.000MBE-B

BN-200.000MBE-B: DescriptionOscillator, 60MHz Min, 200MHz Max, 200MHz Nom,; CategoryPassive components oscillator; File Size946KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

BN-200.000MBE-B Overview

Oscillator, 60MHz Min, 200MHz Max, 200MHz Nom,

BN-200.000MBE-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7221412327
package instruction	DILCC6,.2
Reach Compliance Code	unknown
Maximum control voltage	3.3 V
Minimum control voltage
Frequency offset/pull rate	50 ppm
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	200 MHz
Minimum operating frequency	60 MHz
Nominal operating frequency	200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
Certification status	Not Qualified
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Think of Frequency Think of

come visit our site http://www.txccorp.com

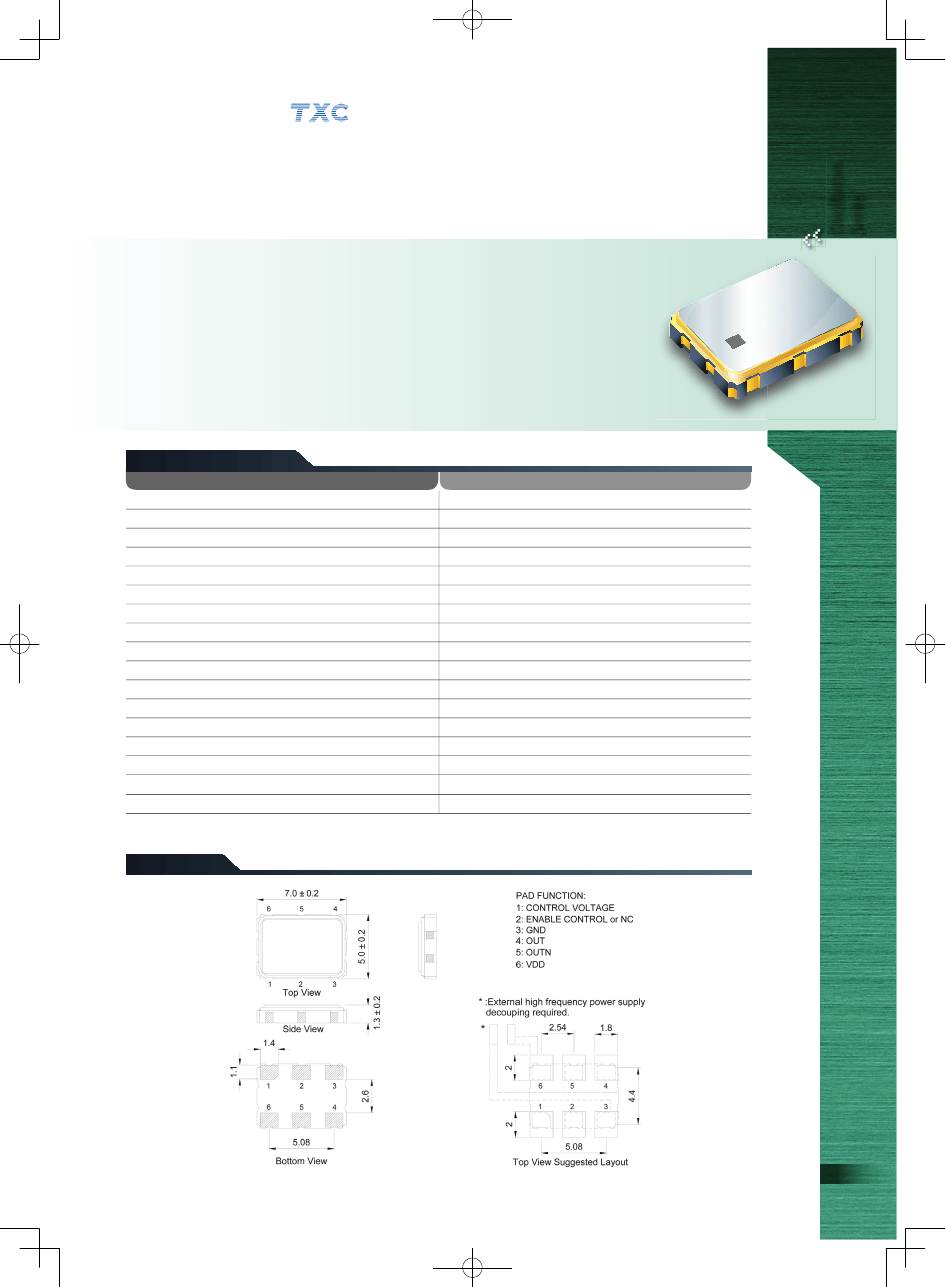

Features

．

Voltage Controlled Crystal Oscillator (VCXO).

．

Fundamental solution.

．

LVDS output ,output frequencies 50 MHz to 200 MHz.

．

Wide pull range and good linearity.

．

Low phase noise, low jitter.

．

Tri-State function available.

．

Applications : SDH / SONET, Ethernet, Base Stations.

．

RoHS Compliant / Pb Free.

Y1 5

BN .437

TX 669

Electrical Speciﬁcations

Item / Type

Output Type

Output Load

Oscillation Mode

Supply Voltage (VDD)

Frequency Range

Operating Temperature Range

Storage Temperature Range

Voltage Vol ( Min. ) / Voh ( Max. )

Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )

Supply Current

Symmetry

Start-up Time

Absolute Pulling Range ( APR ) *

Nominal Control Voltage

Control Voltage Range

Linearity

Phase Jitter ( 12 KHz ~ 20 MHz )

LVDS

100

Fundamental

3.3 V

50 ~ 200 MHz

-10 ~ + 70

℃

, - 40 ~ + 85

℃

, or specify

- 55 ~ + 125

℃

0.9 V / 1.6 V

1 nS Max.

80 mA

45 ~ 55 %

10 mS Max.

50 ppm Min. , or specify

0.5 VDD

0 ~ VDD

10 % Max.

1 pS Max.

* APR=(Pull Range) - (Frequency tolerance at 25

℃

, variation over temperature, supply voltage variation, and aging.)

Dimensions

Units: mm

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

Oscillators

Series

SMD LVDS VCXO -

Differential Output

7.0 x 5.0 x 1.3 mm BN Series
