BR-200.000MBA-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> BR-200.000MBA-T

BR-200.000MBA-T: DescriptionCMOS Output Clock Oscillator, 60MHz Min, 200MHz Max, 200MHz Nom,; CategoryPassive components oscillator; File Size959KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

BR-200.000MBA-T Overview

CMOS Output Clock Oscillator, 60MHz Min, 200MHz Max, 200MHz Nom,

BR-200.000MBA-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7008241771
package instruction	DILCC6,.2
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	25%
linearity	10%
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7mm x 5mm x 1.3mm
Certification status	Not Qualified
longest rise time	5 ns
Maximum slew rate	60 mA
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Think of Frequency Think of

come visit our site http://www.txccorp.com

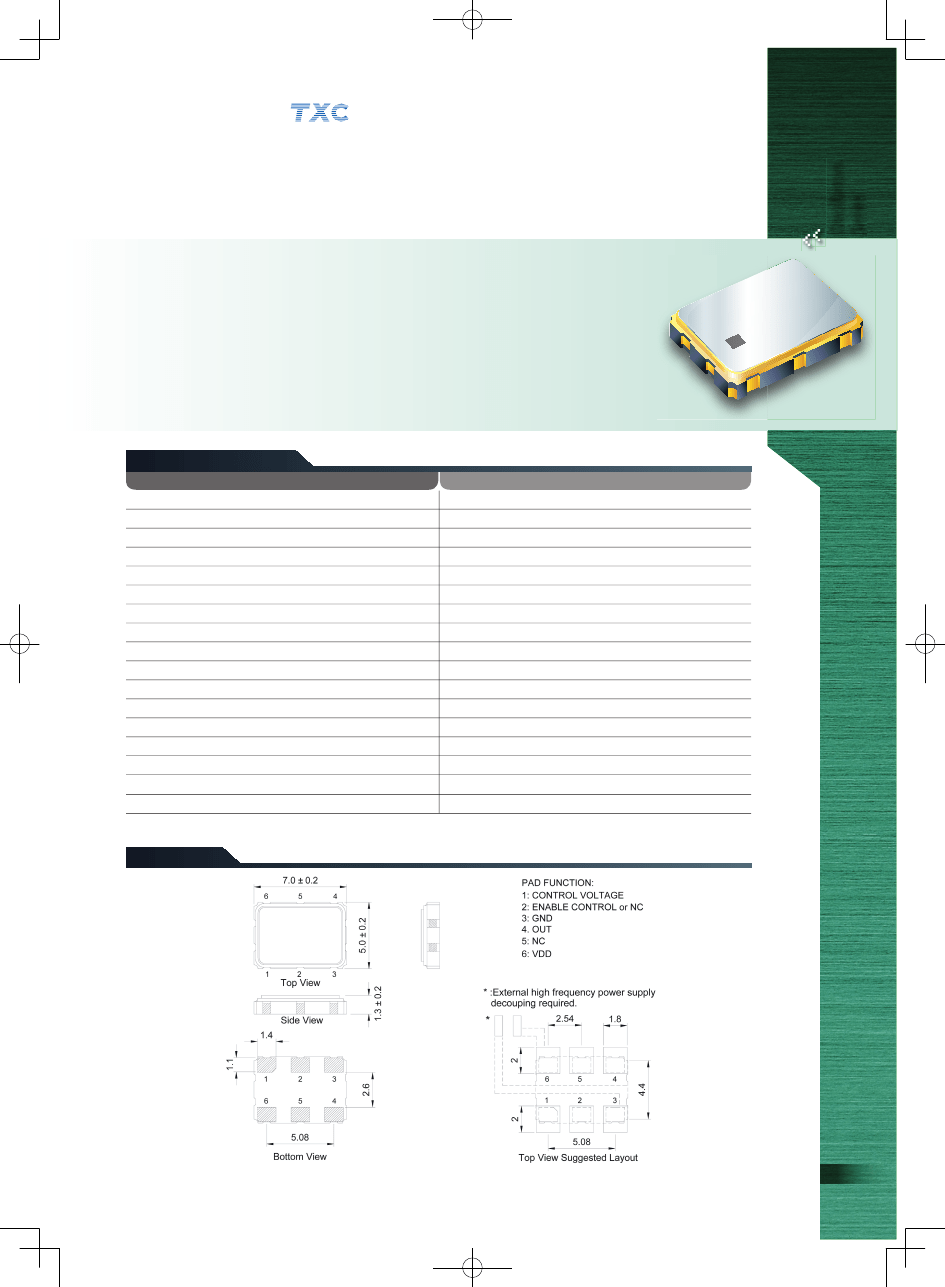

Features

．

Voltage Controlled Crystal Oscillator (VCXO).

．

Fundamental solution.

．

CMOS output, output frequencies 50 MHz to 200 MHz.

．

Wide pull range and good linearity.

．

Excellent low phase noise and jitter.

．

Tri-State function available.

．

Main applications : SDH/ SONET, Ethernet, Base Stations.

．

RoHS Compliant / Pb Free.

CY 00

C B 3.60

TX 15

Electrical Speciﬁcations

Item / Type

Output Type

Output Load

Oscillation Mode

Supply Voltage (VDD)

Frequency Range

Operating Temperature Range

Storage Temperature Range

Voltage Vol ( Max. ) / Voh ( Min. )

Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )

Supply Current

Symmetry

Start-up Time

Absolute Pulling Range ( APR ) *

Nominal Control Voltage

Control Voltage Range

Linearity

Phase Jitter ( 12 KHz ~ 20 MHz )

CMOS

15 pF, or specify

Fundamental

3.3 V

50 ~ 200 MHz

- 10 ~ +70

℃

, - 40 ~ + 85

℃

, or specify

- 55 ~ + 125

℃

0.1 VDD / 0.9 VDD

5 nS Max.

60 mA Max.

45 ~ 55 %

10 mS Max.

50 ppm Min , or specify

0.5 VDD

0 ~ VDD

10% Max.

1pS Max.

* APR=(Pull Range) - (Frequency tolerance at 25

℃

, variation over temperature, supply voltage variation, and aging.)

Dimensions

Units: mm

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

Oscillators

Series

SMD CMOS VCXO -

Single End Output

7.0 x 5.0 x 1.3 mm BR Series
