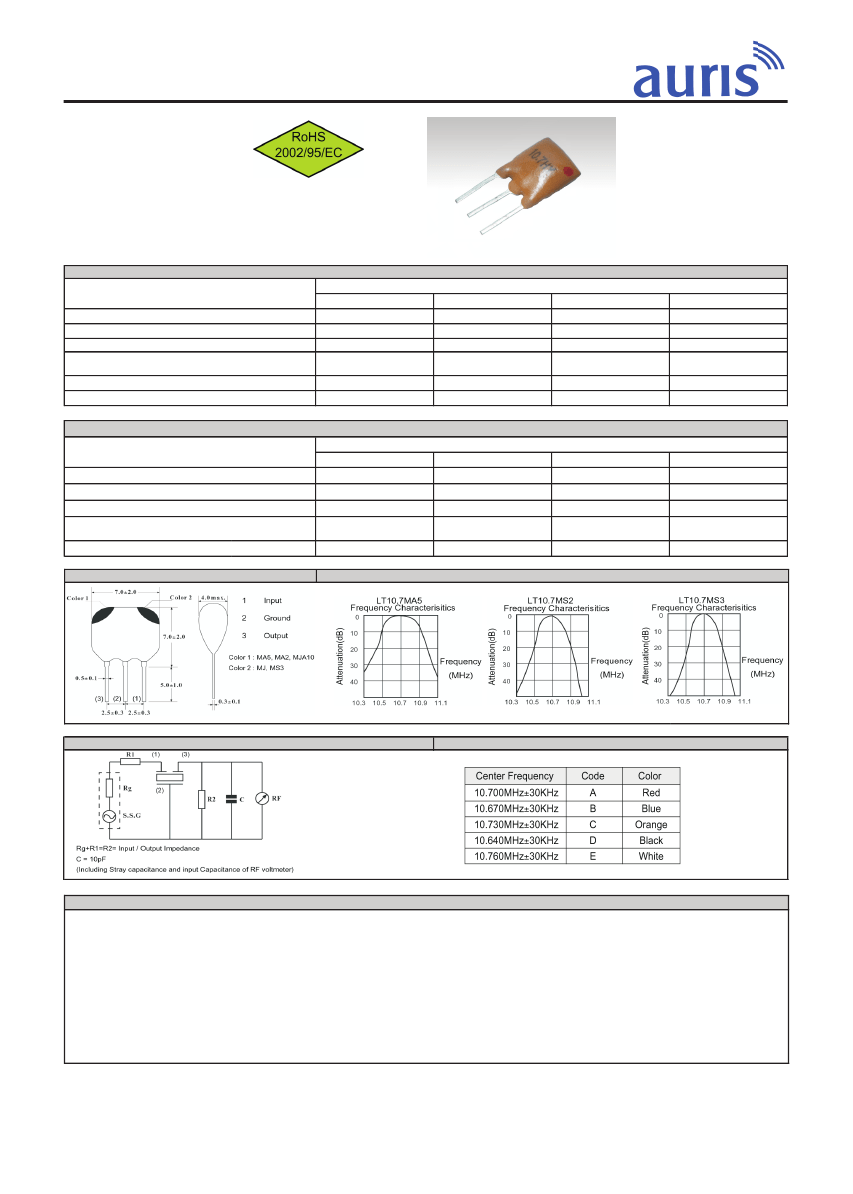

Filter THT, Ceramic
LT
Features:
- Series LT or LT A10
- Consumer electronics
- Individual specification: A5, S2, S3 or J
Specifications
Part
3db band width (kHz)
20db band width (kHz) max
Insertion loss (dB) max
Spurious attenuation ( 9 ~ 12MHz)
(dB) min
Input/output impedance (Ohm)
LT/A10
LT
A5-
280 ±50
650
6
30
330
S2-
230 ±50
600
6
40
330
S3-
180 ±40
520
7
40
330
J-
150 ±40
400
10
38
330
Specifications
Part
3db band width (kHz)
20db band width (kHz) max
Insertion loss (dB) max
Spurious attenuation ( 9 ~ 12MHz)
(dB) min
Input/output impedance (Ohm)
Drawing
LT/A10
A10-A5
280 ±50
590
2.5 ±2.0
30
330
Characteristics
A10-S2
230 ±50
520
3.0 ±2.0
35
330
A10-S3
180 ±40
470
3.5 ±1.5
35
330
A10-J
150 ±40
360
4.5 ±2.0
35
330
Dimensions in mm
Test circuit
Color code
Order key
F
Part
- LT
Package
- A5
Individual specification
- 10.700 M
Center frequency
M = MHz. K = KHz
-
Option
F= Ceramic filter
LT
LT/A10
A5
S2
S3
J
10.700 MHz (= A = Red)
10.670 MHz (= B = Blue)
10.730 MHz (= C = Orange)
10.640 MHz (= D = Black)
10.760 MHz (= E = White)
450 ~ XXX ~ 470 KHz
blank = standard
X=Special options
auris-GmbH
office@auris-gmbh.de www.auris-gmbh.de
All specifications are subject to change without notice.
