251-055-0040P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 251-055-0040P

Preview

251-055-0040P: DescriptionRF SMA Connector, Female, Panel Mount, Jack; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

251-055-0040P Overview

RF SMA Connector, Female, Panel Mount, Jack

251-055-0040P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	25
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

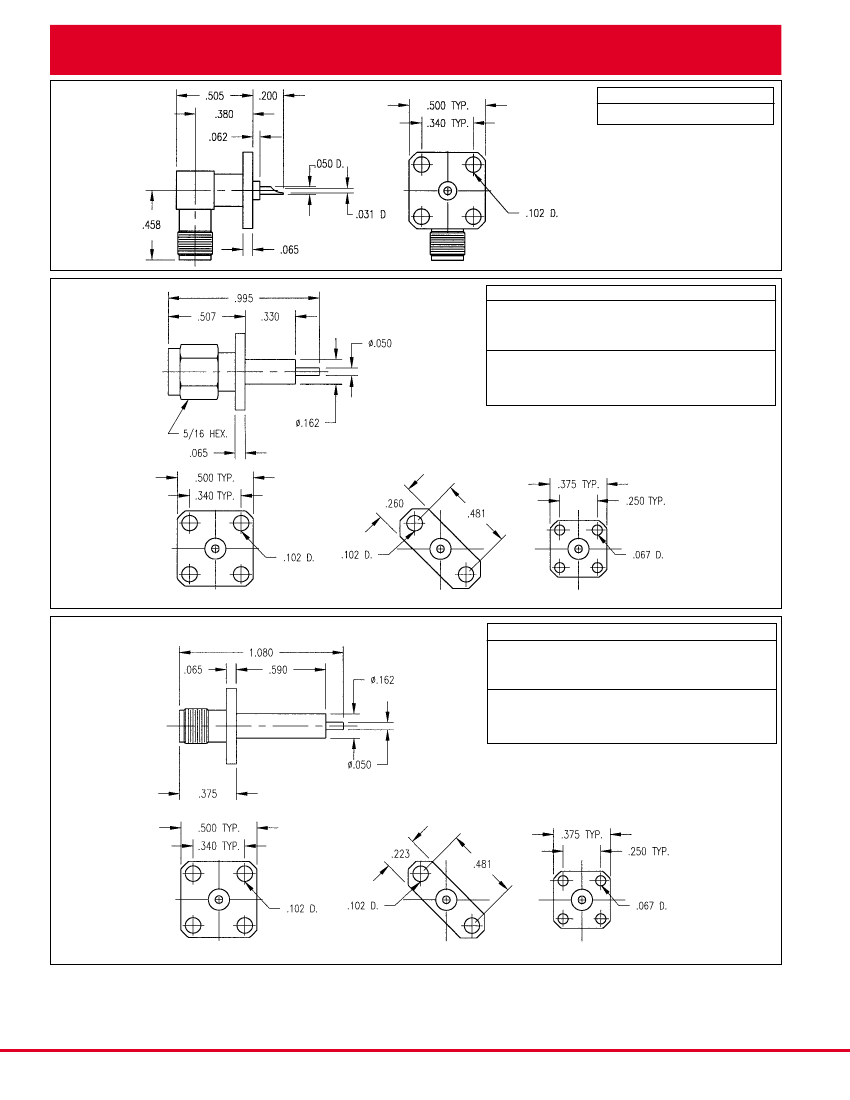

SMA STAINLESS STEEL:

Right

Angle

Jack

Flange

Mount

Flange Mount Receptacle

Part Number

Mounting Hole

253-065-0000G

No. 065

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Straight

Plug

Flange

Mount

Straight

Contact

Part Number Mounting Hole

250-065-0040G

No. 065

250-066-0040G

No. 066

250-055-0040G

No. 055

250-065-0041G

No. 065

250-066-0041G

No. 066

250-055-0041G

No. 055

Contact

Figure

captivated

1

captivated

2

captivated

3

non-captivated 1

non-captivated 2

non-captivated 3

Figure 2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 1

Figure 3

Straight

Jack

Flange

Mount

Straight

Contact

Part Number Mounting Hole

251-065-0040G

No. 065

251-066-0040G

No. 066

251-055-0040G

No. 055

251-065-0041G

No. 065

251-066-0041G

No. 066

251-055-0041G

No. 055

Contact

Figure

captivated

1

captivated

2

captivated

3

non-captivated 1

non-captivated 2

non-captivated 3

Figure 2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 1

Figure 3

Note: Dimensions shown in inches.

Winchester/Retconn

RF/10

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
