7006S45L68 datasheet, PDF - EEWORLD Datasheet

7006S45L68: DescriptionMulti-Port SRAM, 16KX8, 45ns, CMOS, CQCC68; Categorystorage storage; File Size1MB，20 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

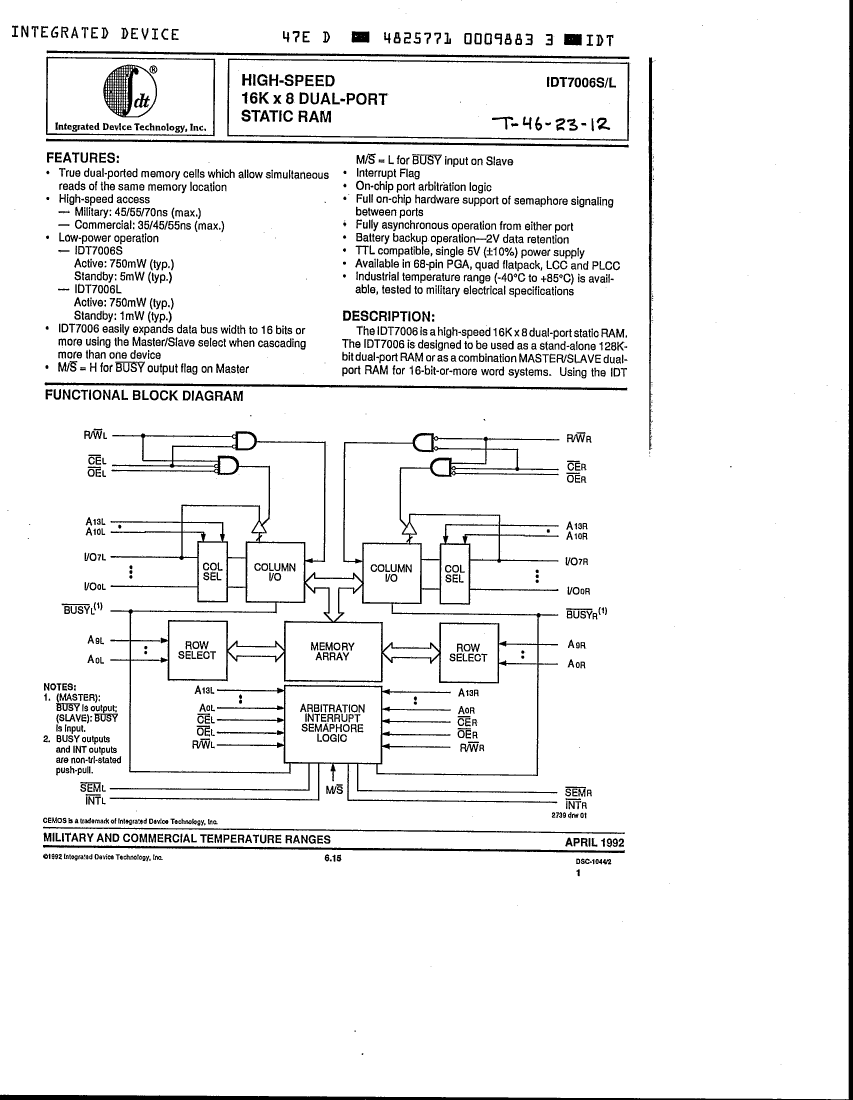

7006S45L68 Overview

Multi-Port SRAM, 16KX8, 45ns, CMOS, CQCC68

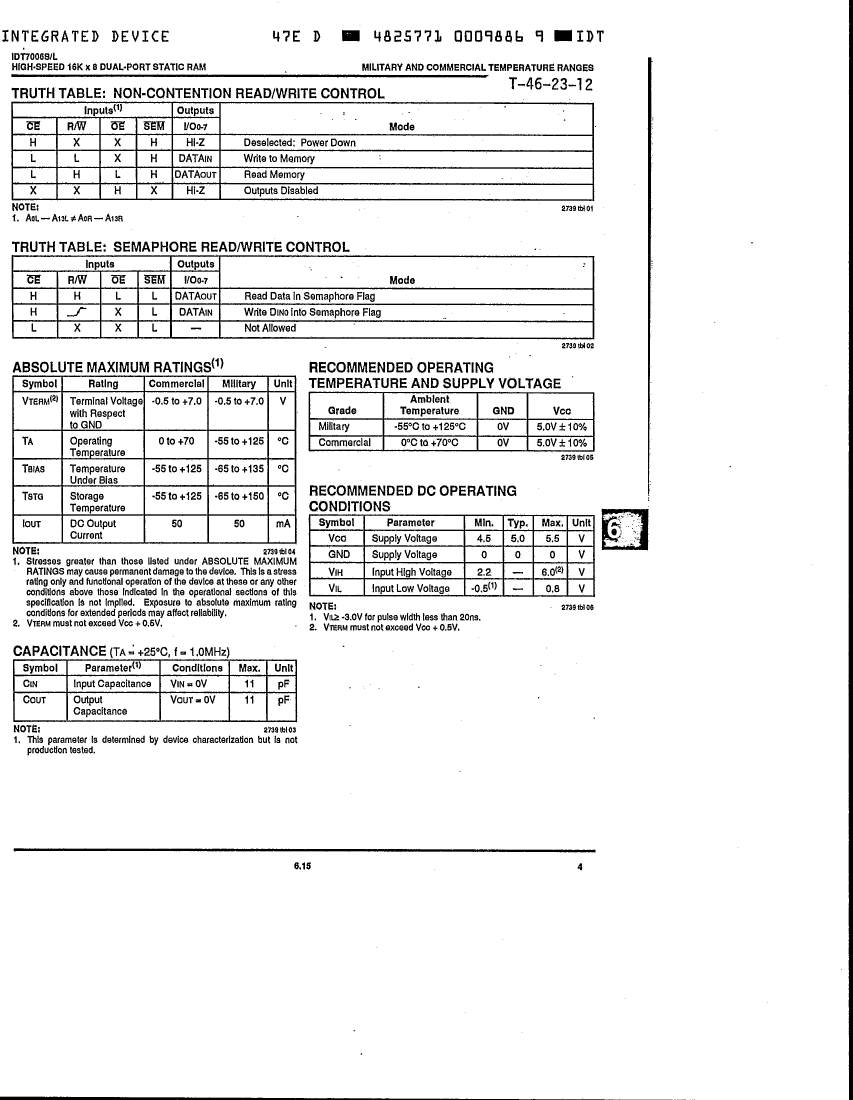

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	QCCN, LCC68,.95SQ
Reach Compliance Code	not_compliant
Maximum access time	45 ns
I/O type	COMMON
JESD-30 code	S-XQCC-N68
JESD-609 code	e0
memory density	131072 bit
Memory IC Type	MULTI-PORT SRAM
memory width	8
Number of ports	2

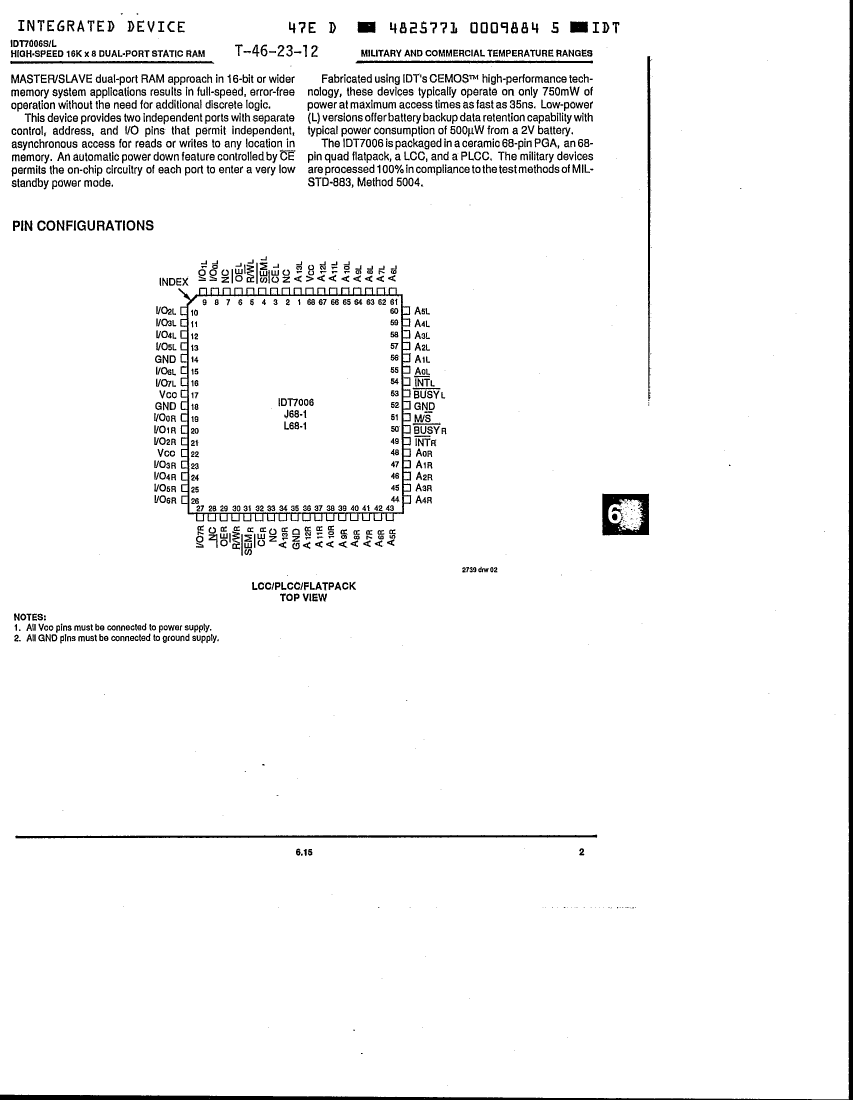

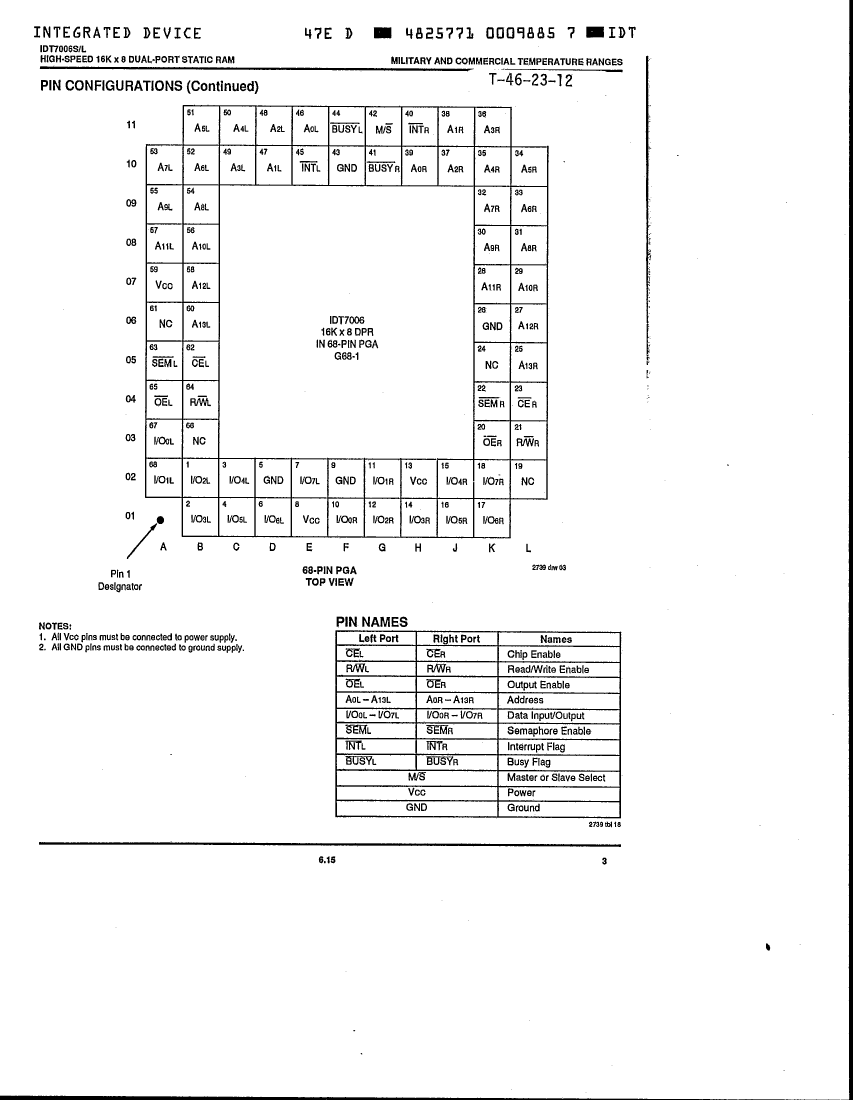

Number of terminals	68
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC68,.95SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified

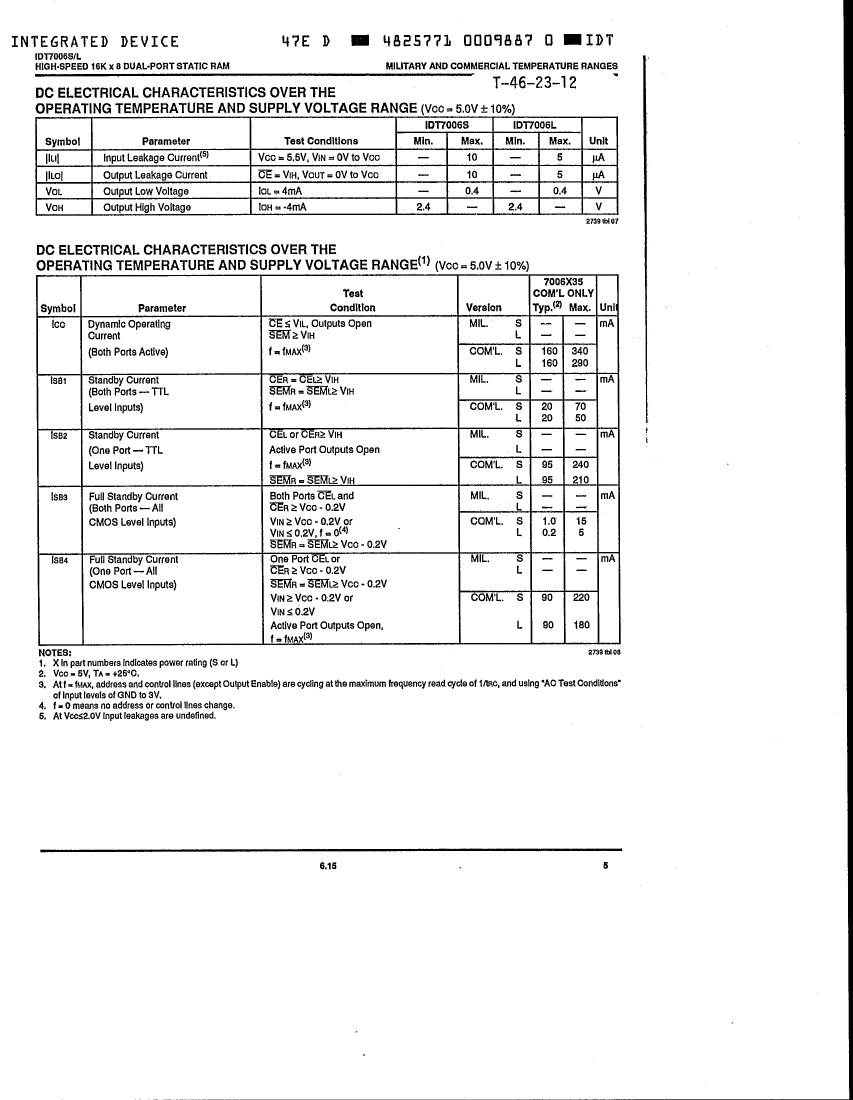

Maximum standby current	0.015 A
Minimum standby current	4.5 V
Maximum slew rate	0.34 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
Base Number Matches	1

	7006S45L68	7006L45L68
Description	Multi-Port SRAM, 16KX8, 45ns, CMOS, CQCC68	Multi-Port SRAM, 16KX8, 45ns, CMOS, CQCC68
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
package instruction	QCCN, LCC68,.95SQ	QCCN, LCC68,.95SQ
Reach Compliance Code	not_compliant	not_compliant
Maximum access time	45 ns	45 ns
I/O type	COMMON	COMMON
JESD-30 code	S-XQCC-N68	S-XQCC-N68
JESD-609 code	e0	e0
memory density	131072 bit	131072 bit
Memory IC Type	MULTI-PORT SRAM	MULTI-PORT SRAM
memory width	8	8
Number of ports	2	2
Number of terminals	68	68
word count	16384 words	16384 words
character code	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	16KX8	16KX8
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN
Encapsulate equivalent code	LCC68,.95SQ	LCC68,.95SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.015 A	0.0015 A
Minimum standby current	4.5 V	2 V
Maximum slew rate	0.34 mA	0.29 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	30
Base Number Matches	1	1
