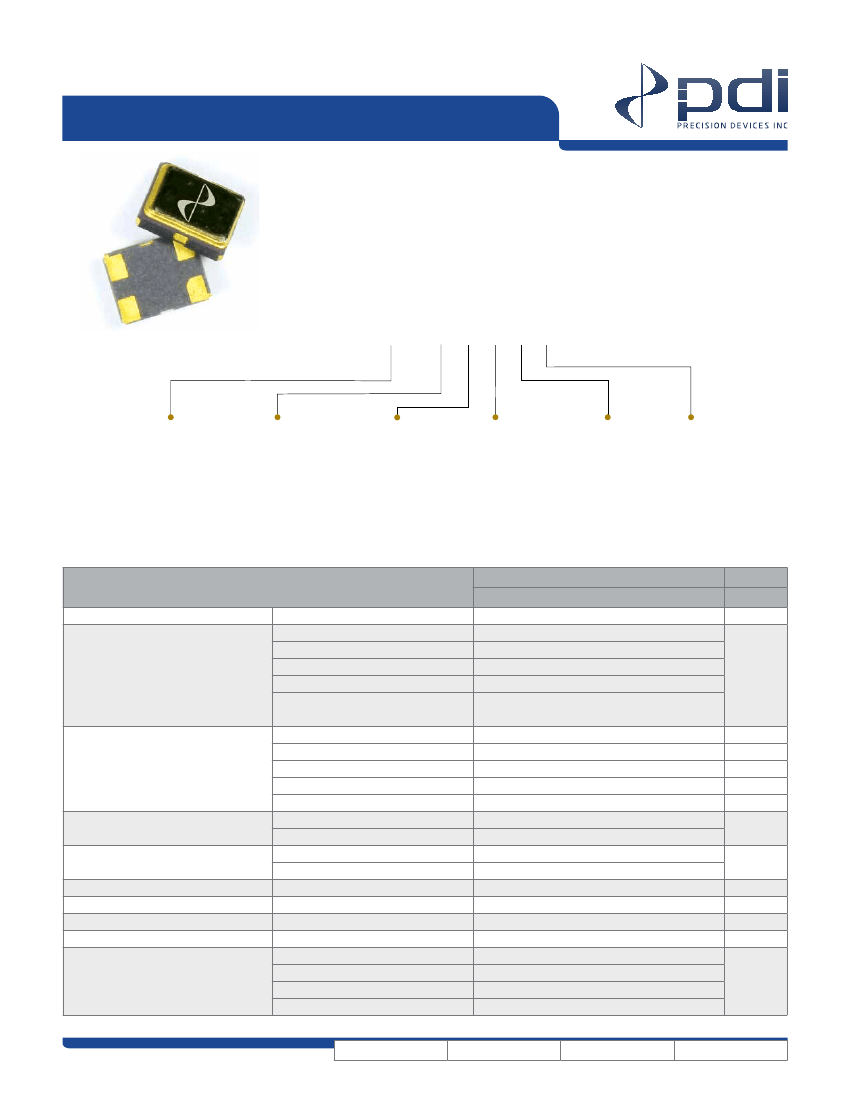

TV02-Series Specifications
2.50L x 2.00W x 0.80H (mm)
PDI
TV02-Series
Voltage Controled Temperature Compensated Crystal Oscillator
(VCTCXO) ensures a precise frequency under demanding circumstances. With
ultra-low phase noise, low jitter, and excellent performance in high vibration
environments this VCTCXO is available, in both standard and custom frequencies.
PDI provides fast sampling for your proto-typing needs, mass production
capability, and competitive pricing.
ex)
TV02—25000X—W—N—D—3—R—X
*
FREQUENCY
10000X-52000X
=
10.000MHz –
52.000MHz
OUTPUT
W
= Clipped Sine
FREQUENCY
STABILITY
K
= +/-0.5
L
= +/-1.0
M
= +/-2.0
N
= +/-2.5
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
SUPPLY
VOLTAGE
1
= 1.8
2
= 2.5
F
= 3.0
3
= 3.3
PACKAGE
R
= Tape & Reel
* - for standard or assigned for customization.
Parameter
Frequency Range
*1
vs Temperature (Max.)
vs Supply Voltage (Max.)
vs Load (Max.)
vs Aging (Max. 1st year)
Calibration (@ +25°C)
1 Hour After Refow (Max.)
Frequency Adjustment
(Positive Slope)
Control Voltage Range
Pull Range
Linearity (Max)
Input Impedance (Min)
Modulation Bandwidth (@-3dB)
Operating
Storage
10.00000 to 25.999999 MHz
26.000000 to 52.000000 MHz
Peak to Peak
Supply Voltage
*1
Range (±5%)
1.8 to 3.3
10.000000 to 52.000000
Per Option
±0.2
±0.2
±1
±2
10 to 90
±5 to ±15
10
500K
10.0
Per Option
-55 to +125
2.0
2.5
Clipped Sinewave
0.8
10 kΩ//10pF
2.0
-110
-132
-147
-151
SIZE:
A
CAGE:
0S4G1
Units
V
MHz
Frequency Stability
*1
ppm
%Vcc
ppm
%
Ω
KHz
°C
mA
V
ms
dBc/Hz
Temperature Range
*1
Supply Current (Maximum)
Waveform
Output (Minimum)
Load
Start Up Time (Maximum)
Phase Noise (Typical) (For 26.0 MHz)
@ 100 Hz
@ 1 kHz
@ 10 kHz
@ 100KHz
REV:
NA
*1 - Not all Frequency/Temperature/Voltage combinations are available.
1
of
3

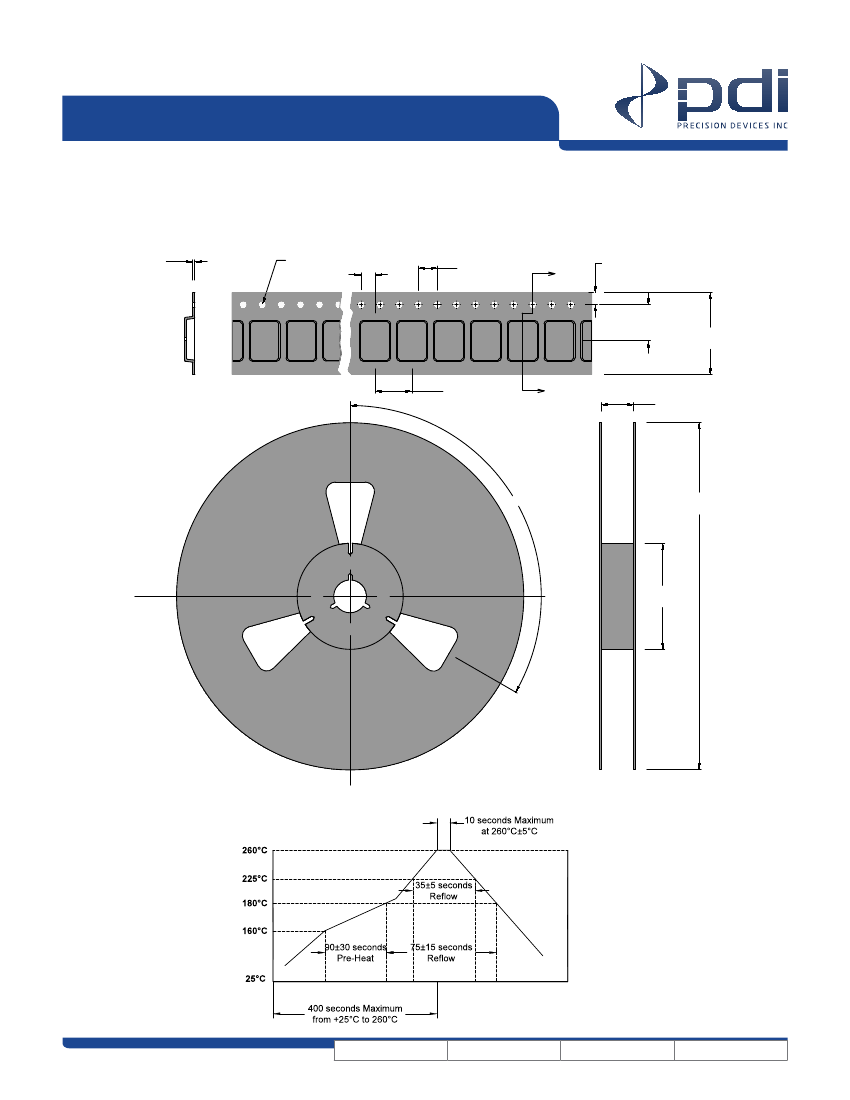

TV02-Series
2.50 x 2.00 x 0.80
(mm)

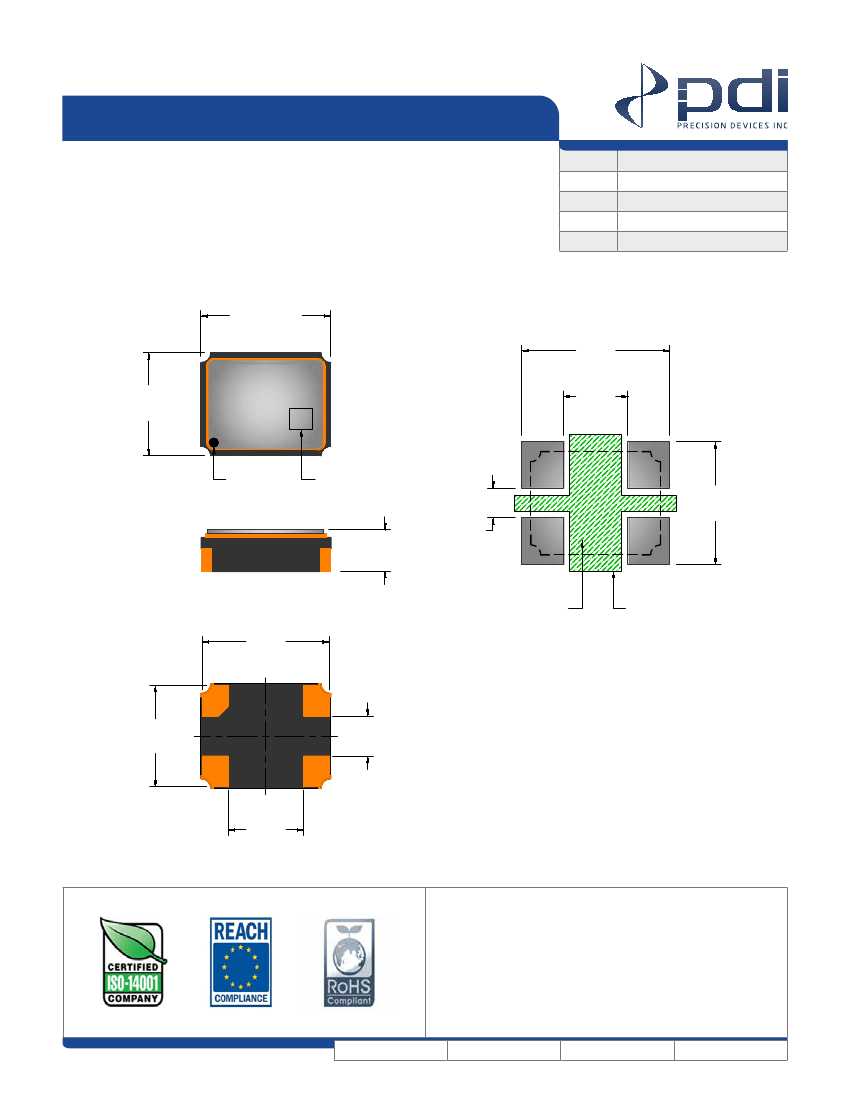

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
PIN
1
2
3
4
CONNECTION
Voltage Control
Ground/Case
Output
Supply Voltage
Top View:
.098 ±.006
[2.50 ±.15]
.112
[2.85]
.049
[1.25]
.078 ±.006
[2.00 ±.15]
D/C
P FKA
Pin 1
Traceability Code
.022
[.55]
.093
[2.35]
.031 Max
[.80 Max]
.096
[2.45]
1
.077
[1.95]
4
Bottom View:
.057
[1.45]
3
2
.030
[.75]
Do not run traces
under device
Solder Mask
Recommended Land Pattern
(Top View)
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
0S4G1
2
of
3
TV02-Series
2.50 x 2.00 x 0.80
(mm)
1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008.
3.
Camber in compliance with EIA 481.
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.157 Typ.
[4.00 Typ.]
.069
[1.75]
.079
[2.00]
A
.207
[5.25]
.315 ±.012
[8.00 ±.30]
Section A-A
.157 Typ.
[4.00 Typ.]
A
.319
[8.10]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
0S4G1
3
of
3
