Product Specifications
240PNF- B H - CR
Type N Female Bulkhead for CNT240 braided cable
CHARACTERISTICS
General Specifications
Interface
Body Style
N Female
Bulkhead
Electrical Specifications
Operating Frequency Band
3rd Order IMD Test Method
Average Power
Cable Impedance
Connector Impedance
dc Test Voltage
Inner Contact Resistance
Insertion Loss, typical
Insulation Resistance, minimum
Outer Contact Resistance
Peak Power, maximum
RF Operating Voltage, maximum (vrms)
Shielding Effectiveness
3rd Order IMD
0 – 6000 MHz
Two +43 dBm Carriers
260.0 W @ 900 MHz
50 ohm
50 ohm
1500 V
1.00 mOhm
0.05 dB
5000 MOhm
0.25 mOhm
5.60 kW
529.00 V
90 dB
75 dBm @ 910 MHz
From North America, toll free
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
Outside North America
Telephone: +1-708-873-2307
Fax: +1-779-435-8579
© 2008 CommScope, Inc. All rights reserved.
All specifications are subject to change. Please see
www.andrew.com for the most current information.
page 1 of 3
2/18/2008
Product Specifications

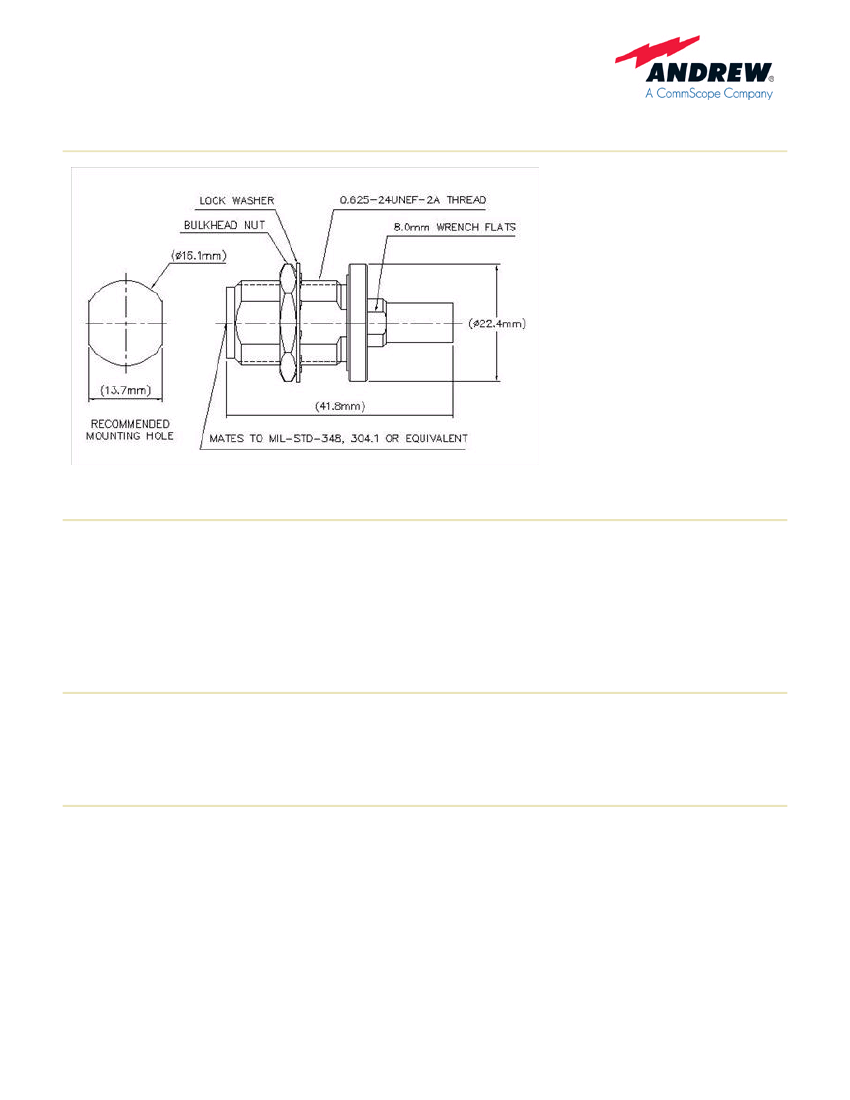

Outline Drawing
Mechanical Specifications
Connector Retention Tensile Force
Connector Retention Torque
Inner Contact Attachment Method
Insertion Force
Insertion Force Method
Interface Durability
Interface Durability Method
Outer Contact Attachment Method
Pressurizable
134 N | 30 lbf
0 Nm | 0 ft lb
Solder
28.00 N | 6.29 lbf
IEC 16916:9.3.5
500 cycles
IEC 16916:9.5
Crimp
No
Dimensions
Nominal Size
Diameter, maximum
Length
Weight
Width
0.240 in
22.35 mm | 0.88 in
49.65 mm | 1.95 in
52.00 g | 0.11 lb
22.35 mm | 0.88 in
Environmental Specifications
Climatic Sequence Test Method
Corrosion Test Method
Damp Heat Steady State Test Method
Mechanical Shock Test Method
Operating Temperature
Storage Temperature
Thermal Shock Test Method
Vibration Test Method
IEC 600681
IEC 60068211
IEC 6006823
IEC 60068227
55 °C to +85 °C (67 °F to +185 °F)
65 °C to +125 °C (85 °F to +257 °F)
IEC 60068214
IEC 6006826
From North America, toll free
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
Outside North America
Telephone: +1-708-873-2307
Fax: +1-779-435-8579
© 2008 CommScope, Inc. All rights reserved.
All specifications are subject to change. Please see
www.andrew.com for the most current information.
page 2 of 3
2/18/2008
Product Specifications
Standard Conditions
Attenuation, Ambient Temperature
Average Power, Ambient Temperature
Average Power, Inner Conductor Temperature
20 °C | 68 °F
40 °C | 104 °F
100 °C | 212 °F
* Footnotes
Insertion Loss, typical
0.05√¯freq (GHz) (not applicable for elliptical waveguide)
From North America, toll free
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
Outside North America
Telephone: +1-708-873-2307
Fax: +1-779-435-8579
© 2008 CommScope, Inc. All rights reserved.
All specifications are subject to change. Please see
www.andrew.com for the most current information.
page 3 of 3
2/18/2008
