450MMK225JH7: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 450V, 2.2uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size529KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

450MMK225JH7 Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 450V, 2.2uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

450MMK225JH7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1604501835
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	2.2 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	450 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

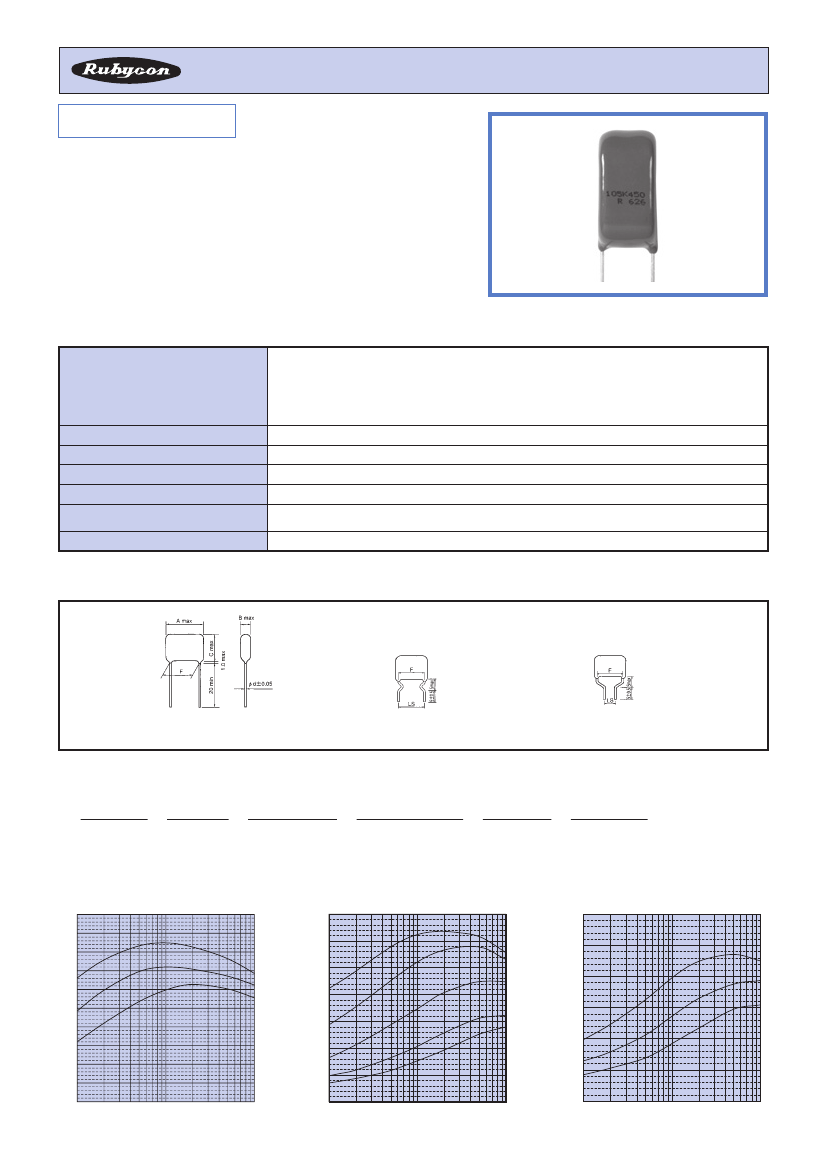

金属熔射型聚酯塑胶薄膜电容器

METALLIZED POLYESTER FILM CAPACITORS

MMK

◆特

•

系列

SERIES

长／

FEATURES

将MMW-HP系列小型化的系列。

最适合SW电源、逆变器等高频率、大电流电路。

外包装½用难燃性

(UL94 V-0)

环氧树脂，有优良的安全性。

RoHS指令对应品。

Smaller version of MMW-HP series.

For applications where high frequency, high current are required.

(Switching power supply, lighting inverter, etc)

Coated with flame-retardant (UL94 V-0) epoxy resin.

RoHS compliance.

◆规

格／

SPECIFICATIONS

－40℃½＋105℃

(在超过85℃时，请进行½用注意事项所记½½的电压降½内容。)

(Derate the voltage as shown in the "CAUTION FOR PROPER USE OF FILM CAPACITORS"

when using the capacitor beyond 85℃.)

工½温度/

Category Temperature

额定电压/

Rated Voltage (U

R

)

静电容量允许差/

Capacitance Tolerance

损失角正切值/

tan

δ

耐电压/

Voltage Proof

绝缘电阻/

Insulation Resistance

标准规格/

Reference Standard

100VDC, 450VDC, 630VDC

±5%(J), ±10%(K)

0.01max at 1kHz

U

R

×150%

60s

C≤0.33µF : 9000MΩmin

C＞0.33µF : 3000ΩFmin

JIS C 5101-2, JIS C 5101-1

◆½状图

／OUTLINE

(mm)

Blank

H7,Y7,17

S7,W7,Q7

◆产品型号½系／

PART NUMBER

□□□

额定电压

Rated Voltage

MMK

系列名称

Series

□□□

额定静电容量

Rated Capacitance

□

静电容量允许差

Capacitance Tolerance

□□□

副记号

Option

□□

引线加工记号

Lead Forming

◆相对于频率的允许电流／

PERMISSIBLE CURRENT FOR FREQUENCY

100MMK

10

9

6

8

475

225

5

105

7

450MMK

6

630MMK

Permissible current

(Arsm)

Permissible current

(Arsm)

226

106

475

Permissible current

(Arsm)

7

6

5

4

3

2

5

105

4

474

3

224

4

474

274

3

2

1

0

10

100

Frequency (kHz)

1000

0

10

100

Frequency (kHz)

1000

0

10

100

Frequency (kHz)

1000
