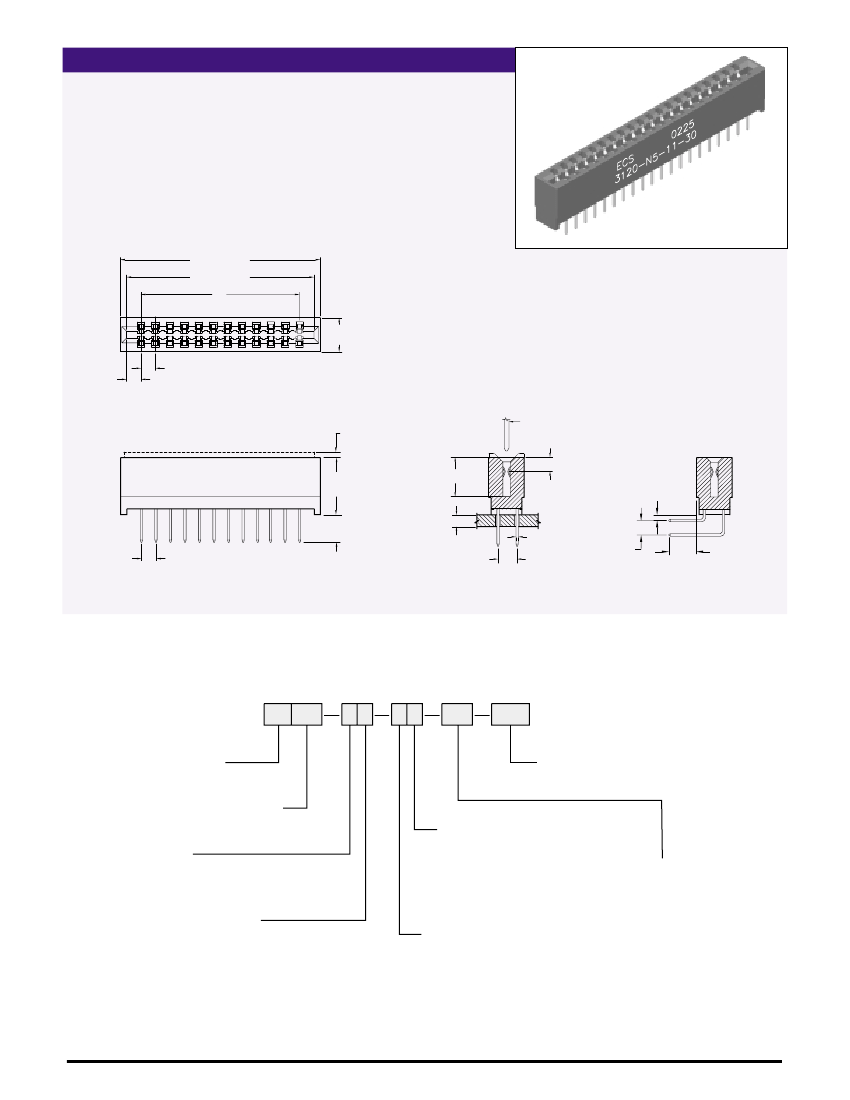

3100 Series Card Edge Connector
.156” X .200” Contact Spacing
Features
•
•
•
•
•
Extra large chamfered entry
Conforms to Bell-core spec TR-TSY-00078
Extended card scoops available
Replaceable contacts
Molded in polarization available between
contact, or on contact position.
• De-population of contacts per
customer specification.
• Available in selective gold plate at contact point
• Many other custom options available, including,
but not limited to:
• Single or Both Ends Open
• Shorting Contacts
Specifications
Insulator Material: Glass filled polyester, type PBT,
94 V-O, UL Rated.
Contact Material: Phosphor Bronze Alloy
Contact Plating: Gold and/or Tin over .000050” Nickel,
(See Contact Plating Options).
Current Rating:
5 amp at 30°C
Contact Resistance:
Contact to Daughter Card:
10 m
W
max.
Insulation Resistance:
5000 M
W
min.
Dielectric Withstand Voltage:
1800 V AC
Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick
gage.
Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick
gage.
Operating Temperature:
-54
B
C to +125
B
C
R
C
R
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
File Numbers: E146967 and E176234
For drawings, technical data or samples,
contact E.C.S. at (714) 895-6351
POS. / CONTACTS
06/12
10/20
12/24
15/30
18/36
20/40
22/44
25/50
28/56
30/60
31/62
35/70
36/72
40/80
43/86
A
1.228 [31.19]
1.852 [47.04]
2.164 [54.97]
2.632 [66.85]
3.100 [78.74]
3.412 [86.67]
3.724 [94.59]
4.192 [106.48]
4.660 [118.36]
4.972 [126.29]
5.128 [130.25]
5.752 [146.10]
5.908 [150.06]
6.532 [165.91]
7.000 [177.80]
B
1.092 [27.74]
1.716 [43.59]
2.028 [51.51]
2.496 [63.40]
2.964 [75.29]
3.276 [83.21]
3.588 [91.14]
4.056 [103.02]
4.524 [114.91]
4.836 [122.83]
4.992 [126.80]
5.616 [142.65]
5.772 [146.61]
6.396 [162.46]
6.864 [174.35]
C
0.780 [19.81]
1.404 [35.66]
1.716 [43.59]
2.184 [55.47]
2.652 [67.36]
2.964 [75.29]
3.276 [83.21]
3.744 [95.10]
4.212 [106.99]
4.524 [114.91]
4.680 [118.87]
5.304 [137.72]
5.460 [138.68]
6.084 [154.53]
6.552 [166.42]
Dimensions are in inch [mm]
For reference only, can go 1 through 43 positions.
MOUNTING STYLE
.250
[6.35]
.180
[4.57]
.610
[15.49]
.250
[6.35]
1
= Clearance Hole
2
= #4-40 Threaded Insert
3
= Flush Mount
4
= #4-40 Threaded Insert
5
= No Mounting Ear
6
= Side Mounting
ELECTRONIC CONNECTOR SERVICE INC.
11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858
WWW.ECSCONN.COM
.156” x .200” Contact Spacing
A
±.010[.25]
B
±.005[.13]
C
.370
[9.40]
.156
[3.96]
TYPICAL
.156
[3.96]
ACCEPTS
.054 - .071
[1.37 - 1.80]
P.C. BOARD
SCOOPS
OPTIONAL .050
[1.27]
CARD SLOT DEPTH
.150
[3.81]
.610
[15.49]
.030
[0.76]
TAIL LENGTH
±.010[.25]
.156
[3.96]
REF.
P.C. BOARD
.025
[.64]
SQ.
.200
[5.08]
.150
[3.81]
TAIL LENGTH
RIGHT ANGLE
DIP SOLDER
Dimensions are in inch [mm]
31 XX
SERIES CODE
PART NUMBERING
XX
XX
XX
XXX
CUSTOM VARIATION
CONSULT FACTORY
.156 x .200 Centers Card Edge
NO. CONTACT PAIRS
01
-
43
TAIL LENGTH
0
= .130
1
= .190
2
= .315
3
= .405
4
= .565
5
= .650
[3.30]
[4.83]
[8.00]
[10.29]
[14.35]
[16.51]
6
= .100
[2.54] Right Angle
7
= .180
[4.57] Right Angle
8
= .250
[6.35] Right Angle
SCOOPS
S
= With
N
= Without
50µ” Nickel Underplate
10
= 10µ” Au
20
= 15µ” Au
30
= 30µ” Au
40
= 10µ” Au
50
= 15µ” Au
60
= 30µ” Au
PLATING
CONTACT
MOUNTING STYLE
1
= Clearance Hole
2
= #4-40 Threaded Insert
3
= Flush Mount
4
= Flush Mount / #4-40 Threaded Insert
5
= No Mounting Ear
6
= Side Mounting
CARD SLOT DEPTH
1
= .415
[10.54]
2
= .350
[8.89]
3
= .300
[7.62]
100µ” Sn
100µ” Sn
100µ” Sn
5µ” Au
5µ” Au
5µ” Au
TAIL
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
