B082-0122-118-Z: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size211KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B082-0122-118-Z Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

B082-0122-118-Z Parametric

Parameter Name	Attribute value
Objectid	304390157
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.134 inch
body length	0.312 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.102 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

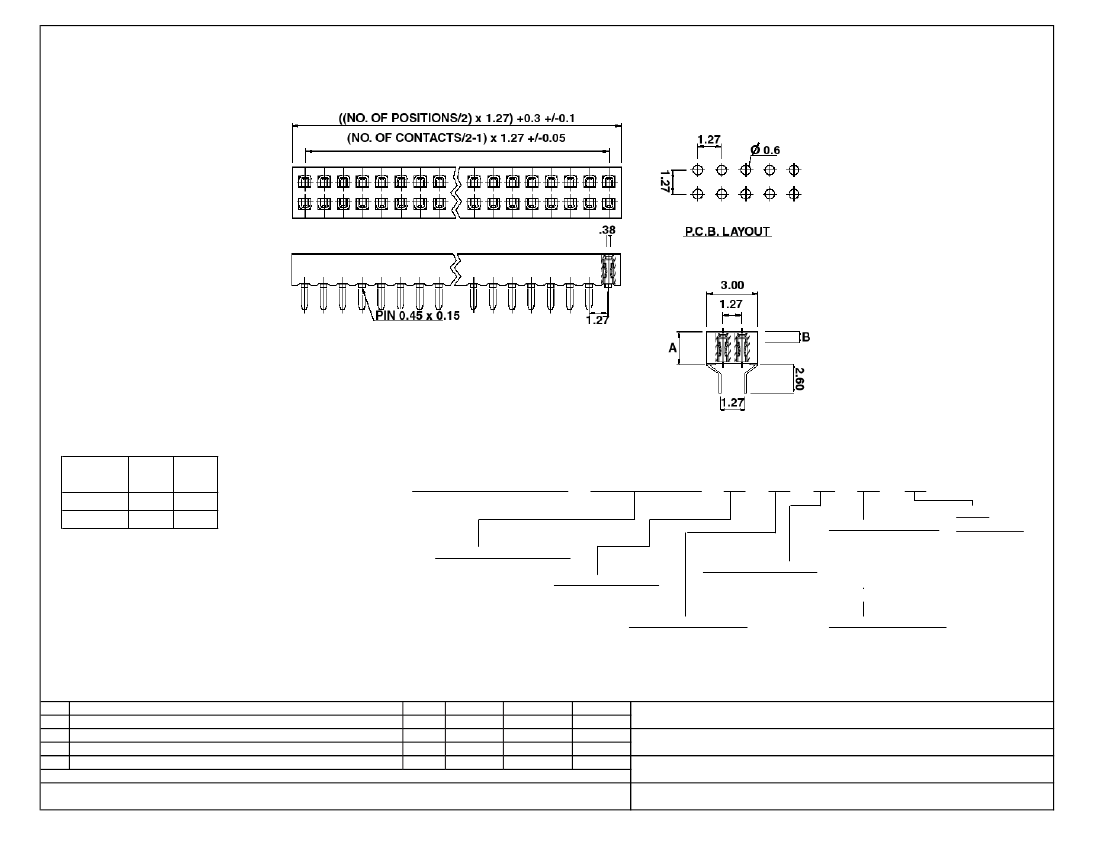

DIMENSION(mm)

DIMENSION

NUMBER

1

2

A

3.40

4.30

B

1.00

1.90

NUMBER OF CONTACTS:

006 thru 100

NUMBER OF ROWS:

2 - DOUBLE ROW

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

DIMENSION NUMBER:

3 - 10u" Au

SEE DIMENSION

4 - 15u" Au

NUMBER ABOVE

5 - 30u" Au

HOW TO ORDER:

B

O

8

2

-

X

2

-

1

X

-

Z

RoHS

COMPLIANT

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

PIN STYLE CONTACT:

1 - CANTILEVER BEAM

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: PHOSPHOR BRONZE

Rev

0

Issued

A Revised for RoHS Compliance

SCALE

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/- 0.15

Drawn Checked

S.M.

S.E.

B.S.

S.M.

FINISH

ANGLE +/-

UNIT: mm

Date

Appproved

2/1/96

S.M.

12/15/06

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

RECEPTACLE ASSEMBLY, 1.27mm Pitch, Top Entry

SERIES: B082

Pg: 1
