TTMM54C20D/883C datasheet, PDF

TTMM54C20D/883C: DescriptionNAND Gate, CMOS, CDIP14; Categorylogic logic; File Size281KB，4 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

TTMM54C20D/883C Overview

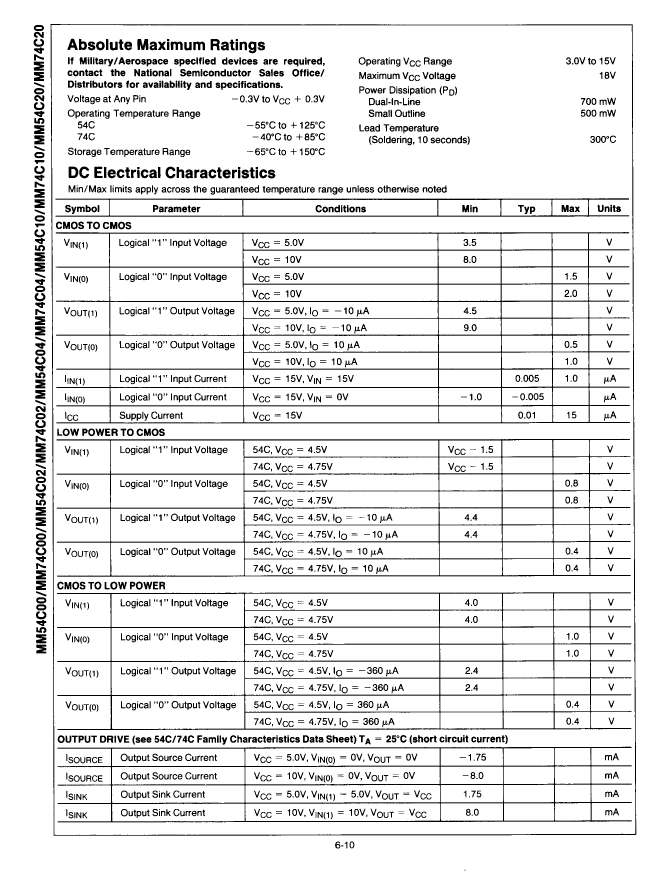

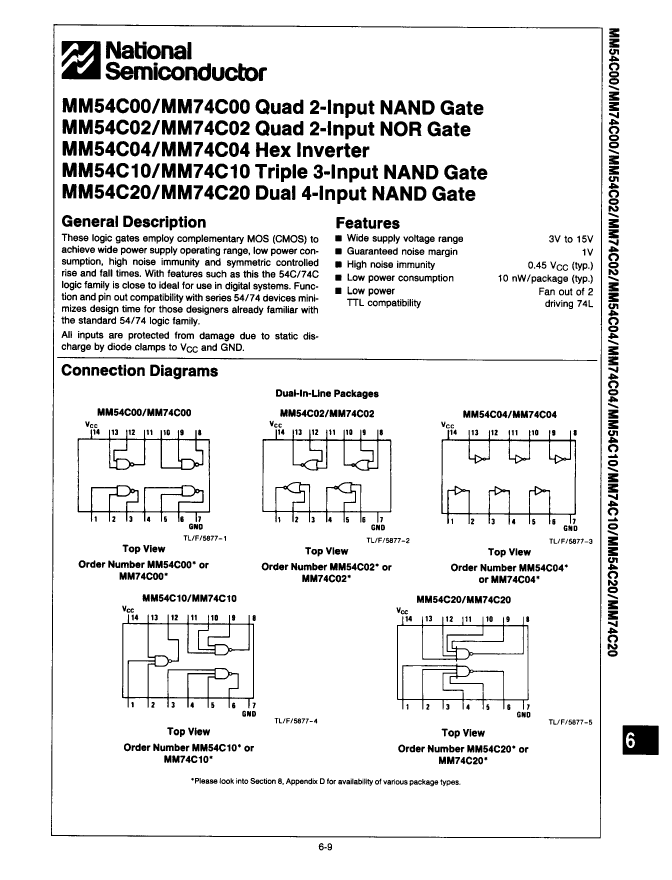

NAND Gate, CMOS, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	113188321
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
series	CMOS
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	NAND GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE

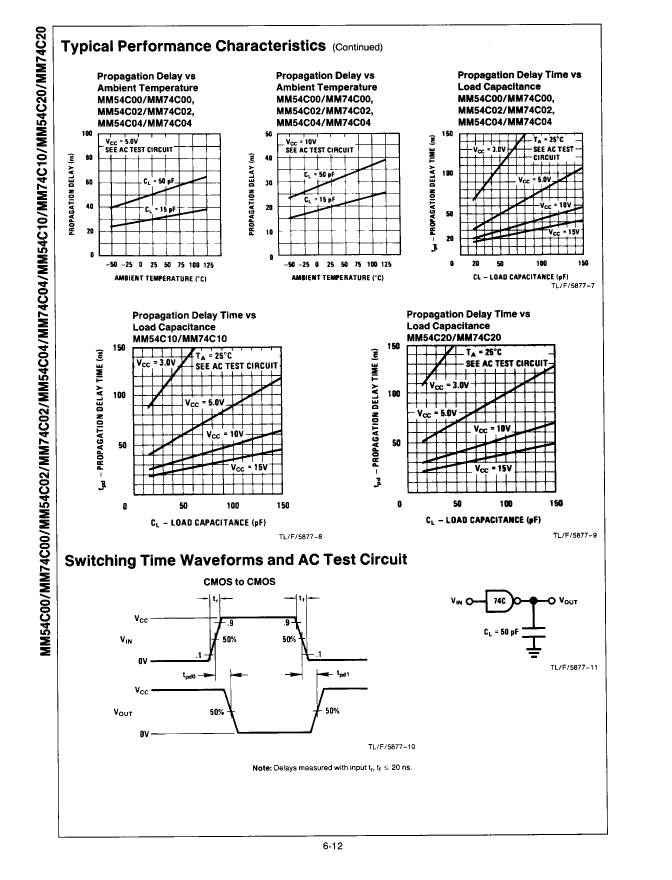

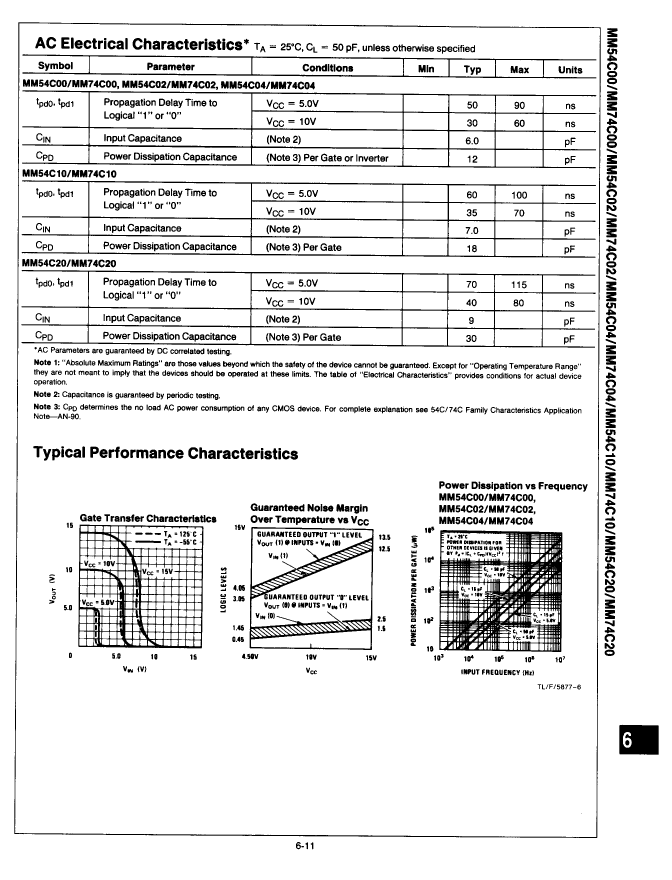

propagation delay (tpd)	115 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-STD-883 Class C
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
