3-641118-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-641118-4

3-641118-4: DescriptionCONNECTOR, 4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size314KB，21 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-641118-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-641118-4	-	-	View	Buy Now

3-641118-4 Overview

CONNECTOR, 4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT

3-641118-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	641118
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

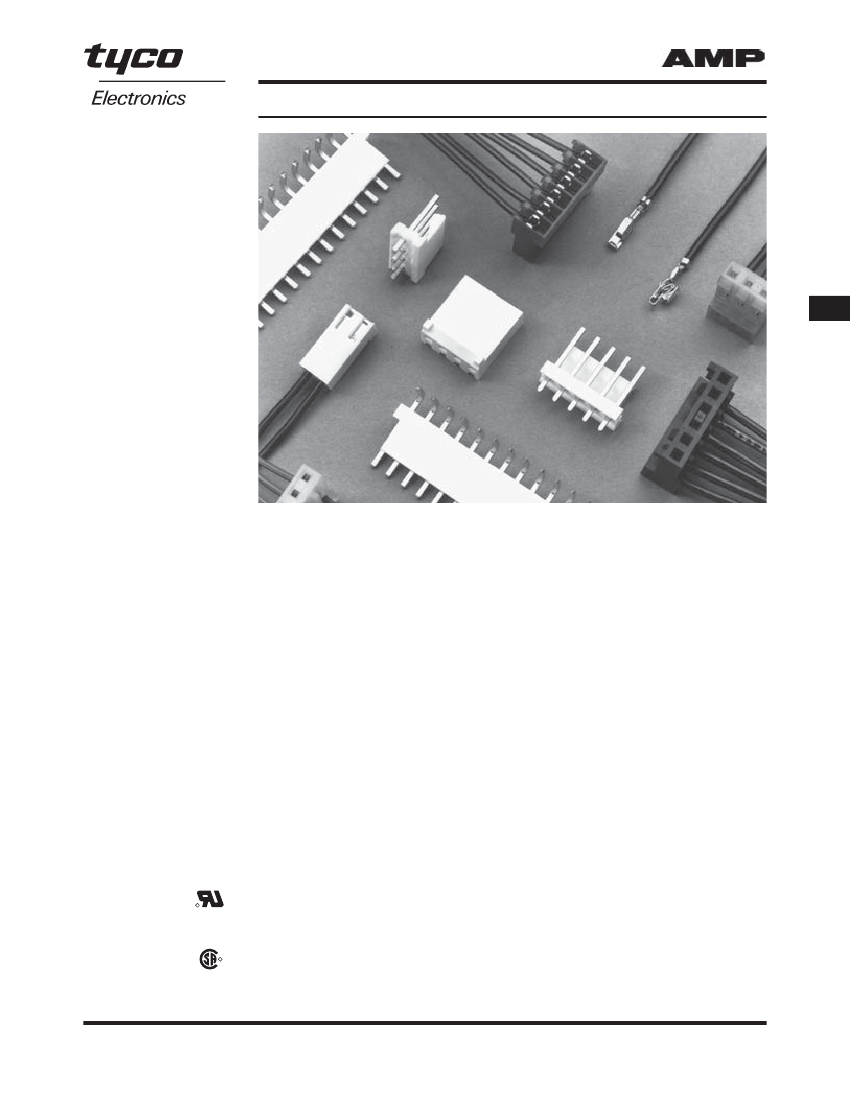

MTA, CST-100 II, SL-156 and

AMP Economy Power (EP) Connectors

.156 [3.96]

(Continued)

Page_Head Centerline MTA-156 IDC Connectors and Headers

Product Facts

■

Connectors and headers for

2 through 24 positions; wire

sizes of 18, 20, 22, 24 and

26 AWG [0 .9– 0.12 mm

]

Connectors and headers,

except shrouded headers,

are end-to-end stackable

Quad Connectors for higher

current rating (page 54)

Posted connectors for 2, 3,

4, 6, 9,12,15 and 24 posi-

tions

Card edge connectors for

3, 6, 9,12,15,18 and 20

through 24 positions

Connectors preloaded with

IDC contacts

All contacts are slotted for

insulation displacement

(IDC) termination technique

Connector styles include

both closed end and feed-

thru, with and without lock-

ing ramps and polarizing

tabs

Molded ribs on housing do

not allow reverse mating

Contacts are lubricated for

fretting corrosion protection

Benefits derived from the

MTA-156 system include

increases quality and ease

of handling such as —

■

One-step assembly

■

No wire stripping

■

No contact damage

■

Reduced wiring errors

■

Simpler tooling

■

Simple maintenance

and repair

Meets the material require-

ments of Table 23.1 of

UL 1410 Standards for

Television Receiver and

Video Products (wire-to-

post connectors only)

Recognized under the

Component Program of

Underwriters

Laboratories Inc.,

File No. E28476

■

MTA-156

.156 [3.96]

■

MTA-156 connectors

accept discrete and ribbon

cable wire sizes ranging

from 18 – 26 AWG

[0.9– 0.12 mm

] with maxi-

mum insulation outside

diameter.095 [2.41] for sin-

gle wire and .070 [1.78] for

mass termination of wires.

Tin plated solid, fused

stranded or stranded (7, 16,

and 19 strands) wire with

PVC insulation can be used

on 18 AWG [0.8 – 0.9 mm

]

MTA-156 connectors; 7, 10,

and 19 stranded wire on

20 AWG [0.5 – 0.6 mm

]

MTA-156 connectors; and 7

and 19 stranded wire on

22 – 26 AWG [0.4 – 0.12 mm

]

MTA-156 connectors.

Only one wire to be termi-

nated into an IDC contact

slot.

Mass termination of wire

provides the lowest applied

cost because it drastically

reduces the labor content

of virtually any cable or har-

ness assembly required.

The wire-to-post connector

housing material is flame

retardant thermoplastic,

either UL94V-2 or UL94V-0

rated.

A full line of .156 [3.96]

centerline headers com-

pletes the system. Headers

are available with straight

or right-angle posts, in flat

friction lock and shrouded

styles. Headers are available

in 2 through 24 positions.

Performance Data*

Voltage Rating

— 600 vac

Current Rating

—

7 amp max. for MTA-156 Connector

Low-Level Resistance

—

3.0 m max. initial

Dielectric Withstanding Voltage

—

2200 vac/1 min.

Insulation Resistance

—

5000 M min. initial

Operating Temperature

—

55 C to 105 C

*Refer to the Product Specification

for additional electrical, mechanical

and environmental performance

tests and requirements.

Technical Documents

Product Specification

108-1051 MTA-156 Connectors

Application Specifications

114-1020 MTA-156 Connectors,

Posted Connectors and

Card Edge Connectors

Note:

Refer to page 70 for approved

wire listings.

■

Certified by Canadian

Standards

Association,

File No. LR7189

114-1032

MTA-156 Ribbon Cable

Assembly

Catalog 82056

Revised 4-05

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

3-641118-4 Related Products

	3-641118-4	3-641118-2	3-641118-5	3-641118-9	3-641118-6	3-641118-3	3-641118-8
Description	CONNECTOR, 4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 2 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 9 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 6 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 8 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	2	5	9	6	3	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	641118	-	641118	641118	641118	641118	641118
Base Number Matches	1	-	1	1	1	1	1
