Part Number

Search

52917150

Description
Board Connector, 17 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size219KB,1 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

52917150 Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Plug

52917150 Parametric

Parameter NameAttribute value
Objectid304380434
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.1 inch
subject depth0.559 inch
body length1.7 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Filter functionNO
Insulation resistance1000000000 Ω
insulator materialPOLYETHYLENE
Plug contact pitch0.1 inch
Mixed contactsNO
Installation typeCABLE
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Rated current (signal)3 A
GuidelineUL
Termination typeCRIMP
Total number of contacts17
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG

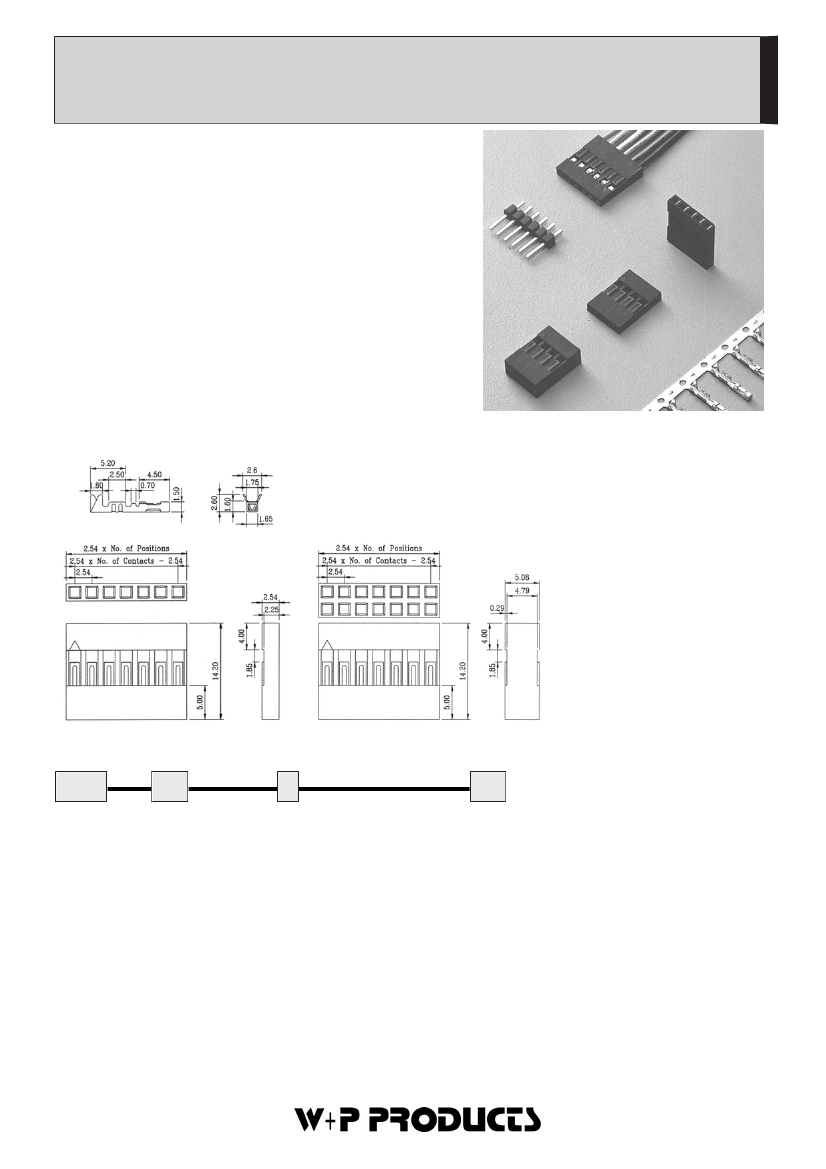

529
Crimp-Gehäuse und Kontakte - RM 2,54mm
Crimp-Housing and Contacts - Pitch 2,54mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing
Contact Material
Brass
Aderquerschnitt
AWG 22 ... 28
Applicable wire Gauge
AWG 22 ... 28
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
1000V
AC
Test Voltage
1000V
AC
Nennspannung
250V
AC/DC
max.
Voltage Rating
250V
AC/DC
max.
Nennstrom
3A
Current Rating
3A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Für Vierkantstift 0,635mm.
For square pin 0,635mm.
Series
Contacts
*
Type
*
Plating
*
529
10
02-20
Einreihig
Single row
04-40
Zweireihig
Double row
3
1
Buchsengehäuse einreihig
Housing single row
2
Buchsengehäuse zweireihig
Housing double row
3
Kontakte
Contacts
50
50
Verzinnt (Standard) (für Gehäuse nicht erforderlich)
Tin plated (Standard) (not necessary for housings)
00
Vergoldet (auf Anfrage)
Gold plated (by request)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
© W+P PRODUCTS
