87533-1020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87533-1020

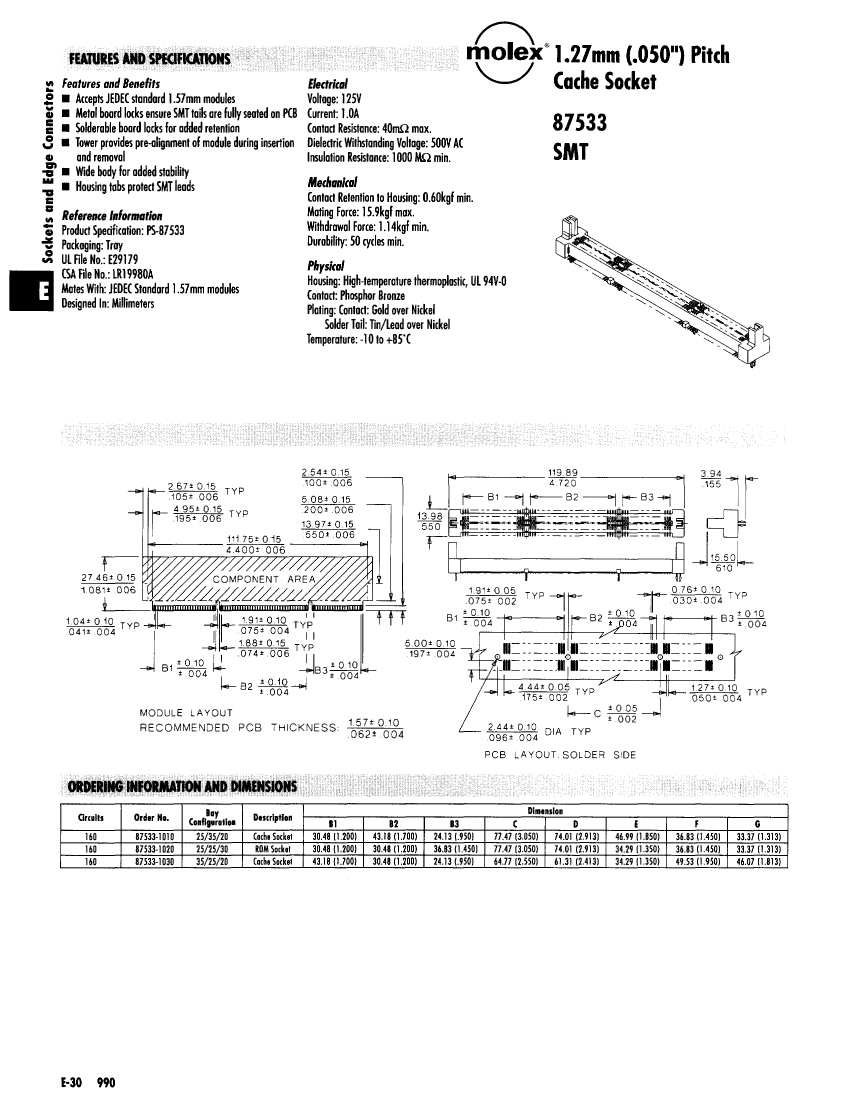

87533-1020: DescriptionCard Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Socket; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87533-1020 Overview

Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Socket

87533-1020 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.55 inch
subject depth	0.61 inch
body length	4.72 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.6124 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	87533
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	160
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

87533-1020 Related Products

	87533-1020	87533-1030	87533-1010
Description	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Socket	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Socket	Card Edge Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Socket
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.55 inch	0.55 inch	0.55 inch
subject depth	0.61 inch	0.61 inch	0.61 inch
body length	4.72 inch	4.72 inch	4.72 inch
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Durability	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	1.6124 N	1.6124 N	1.6124 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	NO
Manufacturer's serial number	87533	87533	87533
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Mixed contacts	NO	NO	NO
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	160	160	160
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N
Base Number Matches	1	1	-
