Film capacitors – AC capacitors
Motor run capacitors
420 V; class B; 70 °C / 450 V; class C; 70 °C
Series/Type:
B32330/B32332 – Super MotorCap
Ordering code:
Date:
Version:
March 2008
2.0
Content of inside pages of data sheet. Data will be automatically entered into headers and footers.
Please fill in the table and then change the color to “White”. This ensures that the table disappears for
the customer PDF.
Identification/Classification 1:
(header 1)
Identification/Classification 2:
(header 2)
Ordering code:
Series/Type:
Preliminary data (optional):
(if necessary)
Department:
Date:
FK PC PM AC
March 2008
B32330/B32332 – Super MotorCap
Film capacitors – AC capacitors
Motor run capacitors
©
EPCOS AG 2008. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS' prior express consent is prohibited.

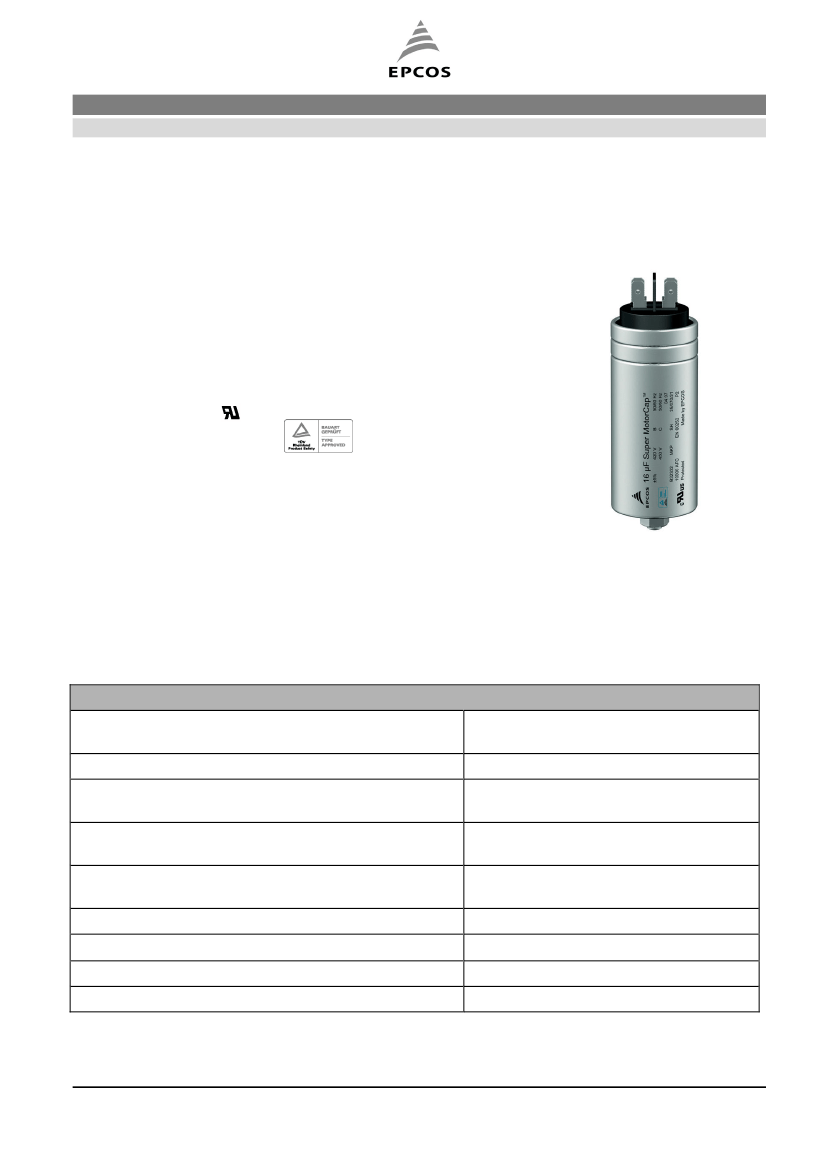

Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – Super MotorCap
Construction
Dielectric: polypropylene film
Aluminum can
Soft polyurethane resin
Features
Self-healing properties
Low dissipation factor
Overpressure disconnection device
Highest safety level P2 to IEC 60252-1 2001-02
High insulation resistance
UL approval
C US
TÜV approval
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
B32330 – single fast-on: 6.3 × 0.8 mm
B32332 – double fast-on: 6.3 × 0.8 mm
Mounting parts
Threaded stud at bottom of can (M8, max. torque = 5 Nm) as option
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
TÜV approval
UL 810 file E106388
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
IEC 60252-1 2001-02 / EN 60252 2001 /
UL 810
P2
420 V:
450 V:
420 V:
450 V:
10000 h (class B)
3000 h (class C)
10000 h (class B)
3000 h (class C)
Approved component 10000 AFC
protected
1.0 ... 60.0 µF
±5%
420 V AC, 450 V AC
50/60 Hz
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 2 of 6
March 2008
Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – Super MotorCap
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
Test data
AC test voltage terminal to terminal V
TT
Insulation voltage terminals to case
Insulation resistance R
ins
or time constant
τ
at 20 °C, rel. Humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Ball pressure test to IEC 60309-1 sec. 27.3
Top disk material
Option A:
UL 94 V2 compatible
Glow wire test to
IEC 60695-2-1/1
Test temperature 550 °C for I
R
≤
0.5 A
Test temperature 850 °C for I
R
> 0.5 A
Option B:
UL 94 V2/V0 compatible
Glow wire test to
IEC60335-1 / IEC 60695-2-1/1
Test temperature 550 °C / 750 °C
Part is compatible to EN 60335-1
Tracking test to IEC 60112 solution A
> 250 V
Self-extinguishing within 2 seconds of
withdrawing glow wire
Self-extinguishing within 30 seconds of
withdrawing glow wire
25/070/21 to IEC 60068-1
–25 °C
+70 °C
21 days
20 N at 125°C
2 · V
R
, 2 s (routine test)
2 · V
R
, 60 s (type test)
2000 V AC, 60 s (type test)
2000 V AC, 2 s (routine test)
3000 s
1.1 · V
R
1.3 · I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
≤
1.0 · 10
-3
(120 Hz)
10 V/μs
Mechanical and thermal properties of terminal top disk material
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 6
March 2008
Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – Super MotorCap
Compatibility to RoHS
Compliance to directive 2002/95/EC
Approvals
C
TÜV
420 V/70 °C:
450 V/70 °C:
10000 h (class B)
3000 h (class C)
Approved
Approved
US
UL 810 files E106388
See table for approved ratings
Approved Component 10000 AFC
protected
See table for approved ratings

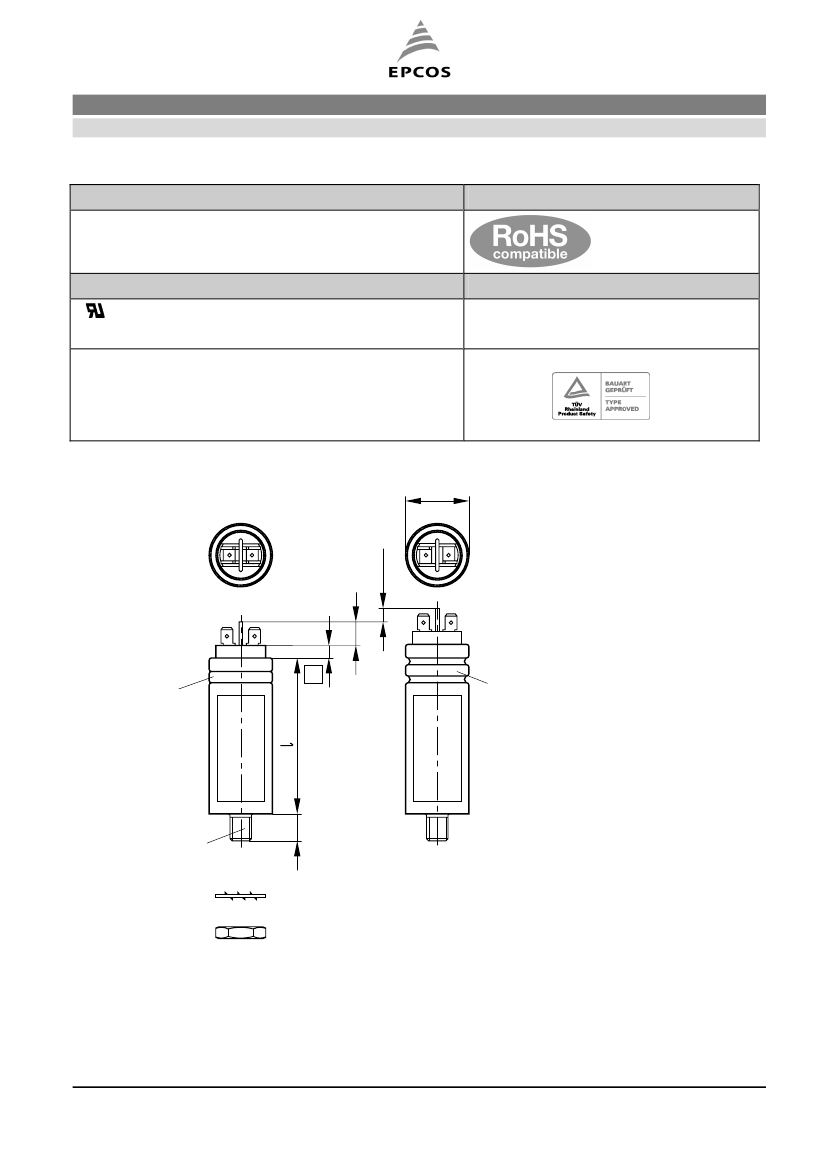

Dimensional drawings B32330/B32332
d±1
Before Safety
Device Operation
Marking
±2
A
13
16 max.
After Safety
Device Operation
Marking
M8 for ø30-53 mm
M12 for ø63.5 mm
According to DIN 6797-A
According to DIN 934
M8 bolt:
M12 bolt:
L
= 12 mm
L
= 16 mm
KMK1156-A-E
A = 5 mm for diameters d = 30, 35, 40, 45 mm
A = 0 mm for diameters d = 50, 53, 63.5 mm
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 6
March 2008
L
Film capacitors – AC capacitors
Motor run capacitors
B32330/B32332 – Super MotorCap
Ordering codes and packing units
V
R
V AC
420 / 450
C
R
μF
1.0
2.0
2.5
3.0
3.5
4.0
5.0
6.0
7.0
3.0
3.5
4.0
5.0
6.0
7.0
8.0
10.0
12.0
15.0
16.0
18.0
20.0
22.0
25.0
30.0
35.0
35.0
36.0
40.0
45.0
50.0
55.0
55.0
60.0
60.0
Max. dimensions
d×l
mm
30 × 52
30 × 52
30 × 52
30 × 52
30 × 52
30 × 52
30 × 52
30 × 52
30 × 52
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
30 × 68
30 × 78
30 × 78
30 × 78
35 × 78
35 × 78
35 × 78
40 × 78
40 × 78
40 × 103
45 × 103
40 × 103
40 × 103
40 × 103
45 × 103
45 × 103
53 × 78
45 × 103
53 × 78
B3233*I5105J0#2
B3233*I5205J0#2
B3233*I5255J0#2
B3233*I5305J0#2
B3233*I5355J0#2
B3233*I5405J0#2
B3233*I5505J0#2
B3233*I5605J0#2
B3233*I5705J0#2
B3233*I5305J0#1
B3233*I5355J0#1
B3233*I5405J0#1
B3233*I5505J0#1
B3233*I5605J0#1
B3233*I5705J0#1
B3233*I5805J0#1
B3233*I5106J0#1
B3233*I5126J0#1
B3233*I5156J0#1
B3233*I5166J0#1
B3233*I5186J0#1
B3233*I5206J0#1
B3233*I5226J0#1
B3233*I5256J0#1
B3233*I5306J0#1
B3233*I5356J0#1
B3233*I5356J0#3
B3233*I5366J0#1
B3233*I5406J0#1
B3233*I5456J0#1
B3233*I5506J0#1
B3233*I5556J0#1
B3233*I5556J0#2
B3233*I5606J0#1
B3233*I5606J0#2
Ordering code
Packing units
pcs.
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
TÜV approval
UL approval
C
US
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Composition of ordering code:
*: terminals
0
single fast-on terminals
2
double fast-on terminals
#: construction of can and plastic top
5
aluminum can, Option A: UL 94 V2 top
6
aluminum can, Option B: UL 94 V2/V0 top/IEC 60335-1
7
aluminum can with M 8 bolt, Option A: UL 94 V2 top
8
aluminum can with M 8 bolt, Option B: UL 94 V2/V0 top/IEC 60335-1
U
Please read “Applications warning, installation and maintenance instructions” and the “General Safety Data Sheet for Power
Capacitors” issued by ZVEI, which are available on the Internet at
www.epcos.com/ac_capacitors,
to ensure optimum performance and to
prevent products from failing, and in worst case, bursting and fire. Information given in the data sheet reflects typical specifications. You are
kindly requested to approve our product specifications or request our approval for your specification before ordering.
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 5 of 6
March 2008
