233-345ME00152ACVT datasheet, PDF

Datasheet> All Categories > The connector> The connector> 233-345ME00152ACVT

233-345ME00152ACVT: DescriptionRectangular Connector; CategoryThe connector The connector; File Size347KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

233-345ME00152ACVT Overview

Rectangular Connector

233-345ME00152ACVT Parametric

Parameter Name	Attribute value
Objectid	1379006278
Reach Compliance Code	compliant
Other features	POLARIZED, STANDARD: MIL-DTL-38999
subject depth	2.23 inch
Body/casing type	RECEPTACLE-RECEPTACLE
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
empty shell	NO
Filter function	NO
Mixed contacts	NO
触点数量:侧 1	4
触点数量:侧 2	4
Options	GENERAL PURPOSE
Guideline	MIL
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
direct connection	YES

Preview

Download Datasheet

View All

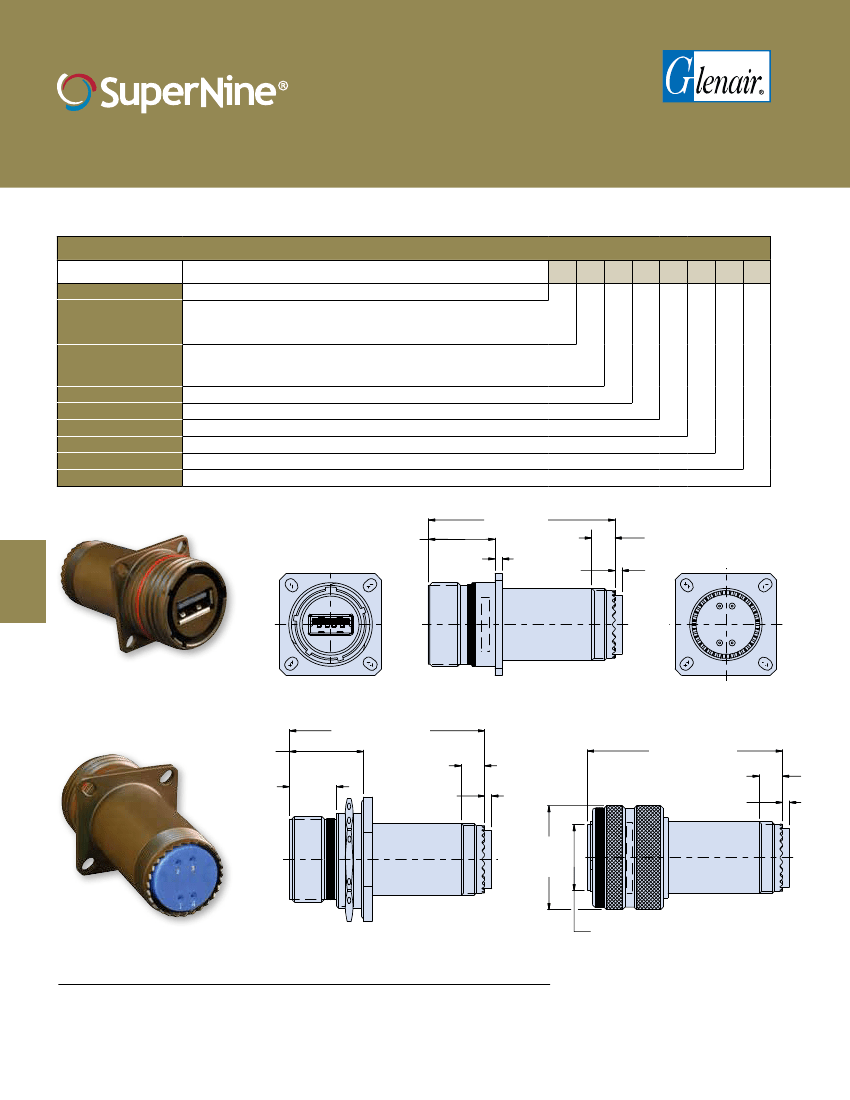

SERIES 23

233-345 Hi-temp crimp removable contacts to USB type A

MIL-DTL-38999 Series III type

RJ45 and USB connectors

How To Order 233-345

Sample Part Number

Series / Basic Part No.

Finish

233-345

SuperSeal® USB 2.0 Connector

= Cadmium Olive Drab

= Electroless Nickel

= Nickel PTFE

= Square Flange Receptacle with Slotted Holes

= Jam Nut Receptacle

= Plug

= USB Performance 2.0

= USB Type A Interface

A, B, C, D, E, N

= Normal; Per MIL-DTL-38999

= Horizontal

= Vertical

= Shrink Boot Part No. 770-028 (Omit for None)

For panel cut-out dimensions, electrical specifications and RJ45 Orientation Options see page E-3

.823 (20.90)

.768 (19.50)

2.230 Max

.280 (7.11) Min

Full Thd.

.085 Max

Grommet

Connector Style

Shell Size

USB Performance

USB Rear Interface

Alternate Key Position

USB Orientation

Shrink Boot

Square Flange Receptacle

Front View

.098 (2.49)

.083 (2.11)

Square Flange Receptacle

2.230 (56.642) Max

.890 (2.26)

Max

.579 (14.70)

.555 (14.09)

.280 (7.11) Min

Full Thd.

.085 (2.15) Max

Grommet

2.350 (59.69) Max

.280 (7.11) Min

Full Thd.

.085 (2.16) Max

Grommet

Ø1.280

(32.51)

Max

Square Flange Receptacle

Back View

.803 (20.39)

Ø .797 (20.24)

Jam Nut

Plug

NOTES

1. All external dimensions, features, etc. compliant with D38999/20, /24 & /26.

2. Consult factory for additional information.

E-18
