USB 2.0 TYPE A
Series 801, 804 and 805 Mighty Mouse
805-342 Receptacle with
USB Female Interface to PC Tail Termination
How To Order
Sample Part Number
Series
805-342
= PC Tail
NF
= Aluminum/Cadmium, Olive Drab
M
= Aluminum/Electroless Nickel
MT
= Aluminum/Nickel PTFE
ZNU
= Aluminum/Black Zinc Nickel
02
= Front or Rear Panel Mount Square Flange Receptacle
12
= Rear Panel Mount Square Flange Receptacle with “Non-Locking” Clinch Nuts
22
= Rear Panel Mount Square Flange Receptacle with “Locking” Clinch Nuts
07
= Rear Panel Mount Jam Nut Receptacle
18
= Shell Size 18
2
= USB 2.0
A
= Type A
A, B, C, D, E, F
H
= Horizontal
V
= Vertical
805-342
NF
07
-18
2
A
A
H
4
1
Series 805 Triple Start
Material and Finish
1
Shell Style
1
Shell Size
USB Performance
USB Type
Aternate Key Positions
1
USB Orientation
USB 2.0 Wiring
Pin
1
2
3
4
Name
(V Bus)
(D-)
(D+)
(GND)
Cable Color
(USB)
Red
White
Green
Black
Description
+5 V
Data -
Data +
Ground
Recommended Wire Size
(AWG)
22
28
28
22

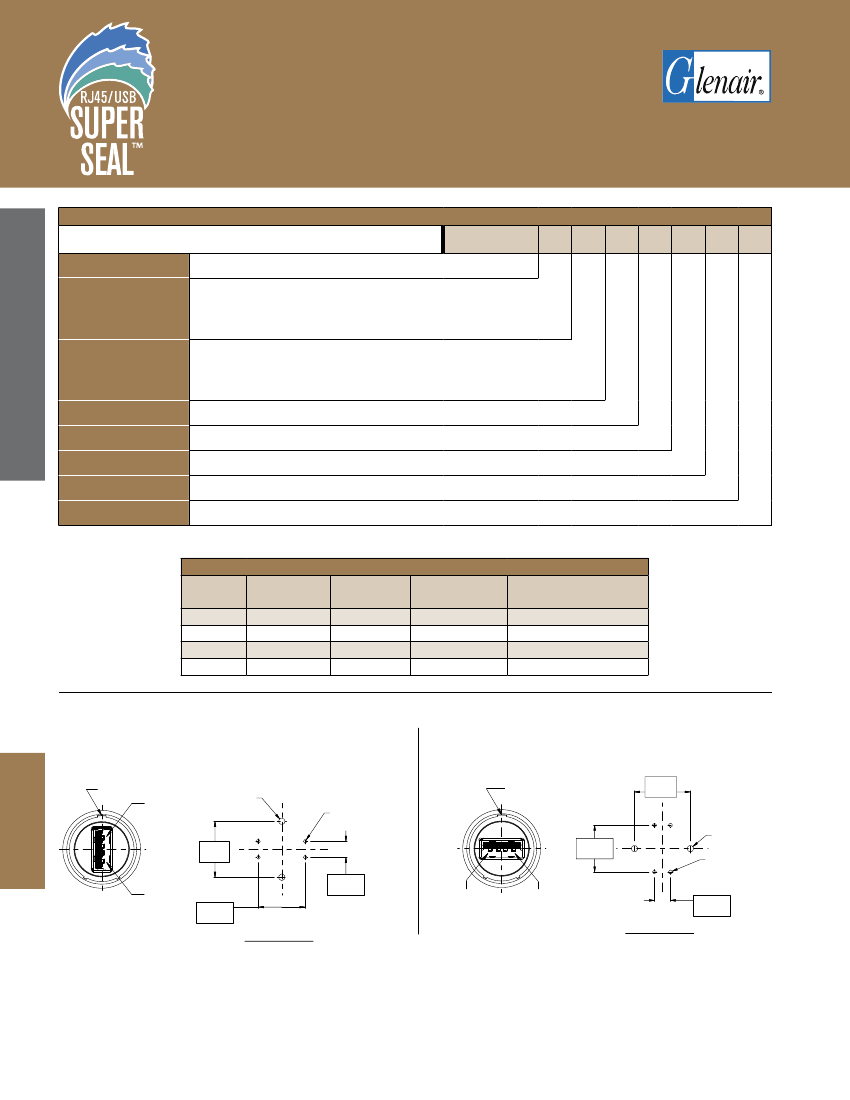

USB 2.0 RECEPTACLE ORIENTATION OPTIONS AND PCB FOOTPRINT (PARTIAL VIEWS SHOWN)
V (VERTICAL)
Master Keyway
Pin 4
2x Ø.060±.005
(1.52±.127)
4
3
1
4
H (HORIZONTAL)
Master Keyway
4x Ø.035±.005
(.89±.127)
2x .440
(11.18)
4
Pin 1
Pin 4
Recommended
(Solder Side)
1
.526
(13.36)
3
2
2x Ø.060±.005
(1.52±.13)
4x Ø.035±.005
(.89±.13)
2x .150
(3.81)
L
.526
(13.36)
1
2
Pin 1
2x .440
(11.18)
Recommended
(Solder Side)
2x .150
(3.81)
L-18
Rev. 03.16.18
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
USB 2.0 TYPE A
Series 801, 804 and 805 Mighty Mouse
805-342 Receptacle with
USB Female Interface to PC Tail Termination

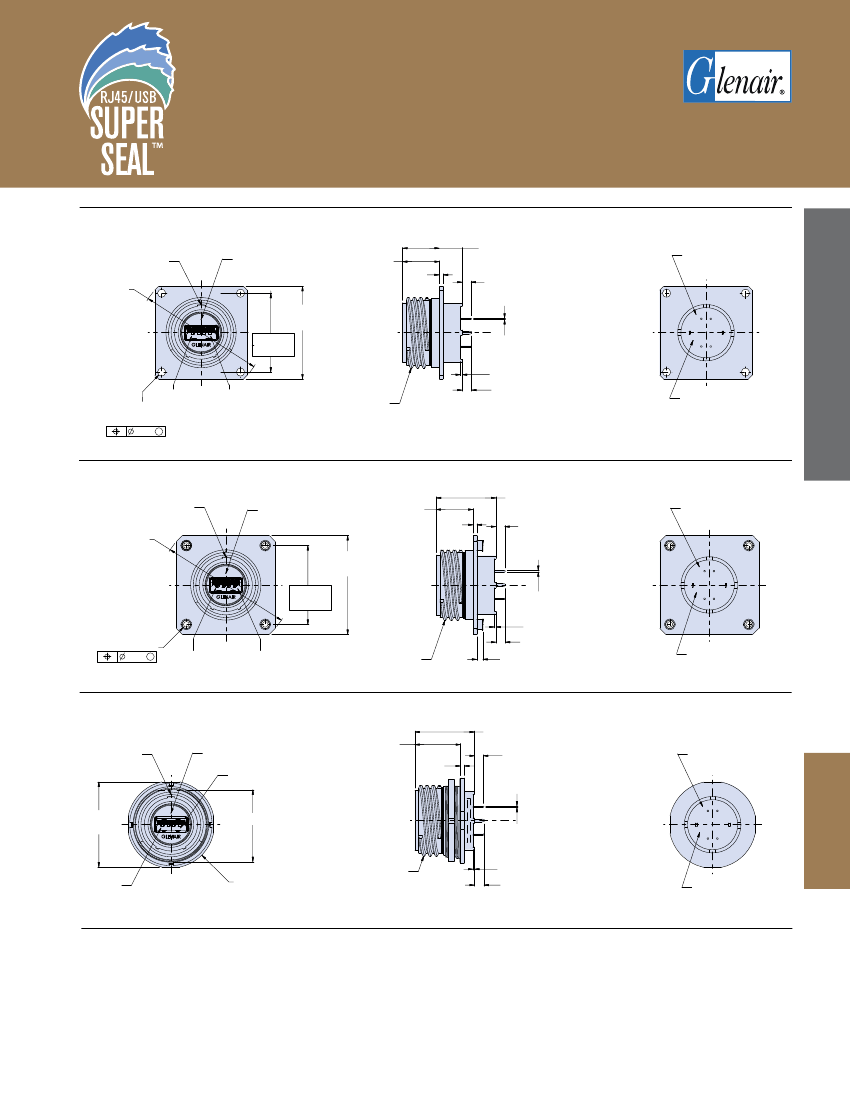

SHELL STYLE 02 FRONT OR REAR PANEL MOUNT SQUARE FLANGE RECEPTACLE
.060
(1.52)
Ø2.000
(50.8)
1
4
4x .120±.010
3
2
1.475
(37.47) Sq.
2x 1.255
(31.88)
4x Ø .030 (.76)
.022 (.56)
4x .025 (.64)
2x .130±.010
(3.30±.25)
4
1
Pin 1
.130 (3.30)
4x Ø
.126 (3.20)
.005 M
Pin 4
1.1250-.1P-.3L-TS-2A
Potting Compound
SHELL STYLE 12 AND 22 REAR PANEL MOUNT SQUARE FLANGE RECEPTACLE WITH CLINCH NUTS
Master Keyway
Ø2.096
(53.24)
USB 2.0 Type A
Female Shown
.600 (15.24) Max
.060
(1.52)
.970 (24.64) Max
4x .120±.010
(3.048±.254)
Characters are Shown
for Reference Only
1.575
(40.01)sq.
1
3 2
.030 (.76)
4x Ø .022 (.56)
4x .025 (.64)
2x .130±.010 (3.30±.25)
4x .095 (2.41) Max
Clinch Nut
4 1
4
2x 1.255
(31.88)
4X #4-40 UNC-2B
.005 M
Clinch Nut
Pin 1
Pin 4
1.1250-.1P-.3L-TS-2A
Potting Compound
SHELL STYLE 07 JAM NUT
Master
Keyway
USB 2.0 Type A
Female Shown
Pin 4
.755 (19.17) Max
.060
(1.52)
.975 (24.77) Max
4x .120±.010
(3.048±.25)
Characters are Shown
for Reference Only
2x 1.359
(34.52)
3
1
4
2
1.147 (29.13) Flat
.030 (.76)
4x Ø .022 (.56)
4x .025 (.64)
2x .130±.010
(3.30±.25)
4
1
Pin 1
Ø1.389 (35.28)
1.1250-.1P-.3L-TS-2A
Potting Compound
NOTES
1. See Section A for recommended panel
cutout dimensions, additional finishes
and alternate keyway positions.
2. Meets IP67 sealing requirement in
unmated condition
3. Material/finish
• Shell, jam nut: al alloy or cres
• Seal/o-ring: fluorosilicone
• Sealant: RTV
L-19
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
Series 805 Triple Start
Master
Keyway
USB 2.0 Type A
Female Shown
.600
(15.24)
Max
.970 (24.63) Max
Characters are Shown
for Reference Only
L
