FME009S101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> FME009S101

FME009S101: DescriptionConnector Accessory, Contact; CategoryThe connector Connector bracket; File Size113KB，1 Pages; ManufacturerFCT electronic; Environmental Compliance

Download Datasheet Parametric Compare View All

FME009S101 Overview

Connector Accessory, Contact

FME009S101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FCT electronic
Reach Compliance Code	compliant
Other features	TERMINATION PLATING: GOLD (8)
Assembly name	CONTACT
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
Contact style	COAX
DIN compliance	NO
designed usage	COAXIAL
Finished thickness	8
IEC compliance	NO
MIL compliance	NO
Installation method	RIGHT ANGLE
Terminal type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

FME Koaxialkontakte, 50 Ohm, abgewinkelter Leiterplattenanschluss, 5 Anschlüsse

FME Coaxial Contacts,50 Ohm, Right Angled PCB Termination, 5 Pins

Oberflächen /

Platings

Steckbereich

Anschlussbereich

Mating Area

Termination Area

Bestellnummer

Außenleiter

Innenleiter

Außenleiter

Ausführung

Innenleiter

Steckdose

Stecker

Order Number

Type

Inner Conductor Outer Conductor Inner Conductor Outer Conductor

Receptacles

Plug

standard

1,3 µm Au

0,8 µm Au

1,3 µm Au

0,2 µm Au

FME009S102

FME009P102

low cost

0,2 µm Au

5 µm Sn

FME009S101

FME009P101

1,3 µm Au

0,8 µm Au

1,3 µm Au

5 µm Au

FME009S108

FME009P108

Andere Oberflächen auf Anfrage /

Other platings on request

≈

1,3 µm = 50 microinches

≈

0,2 µm = 8 microinches

≈

5 µm = 200 microinches

≈

0,8 µm = 30 microinches

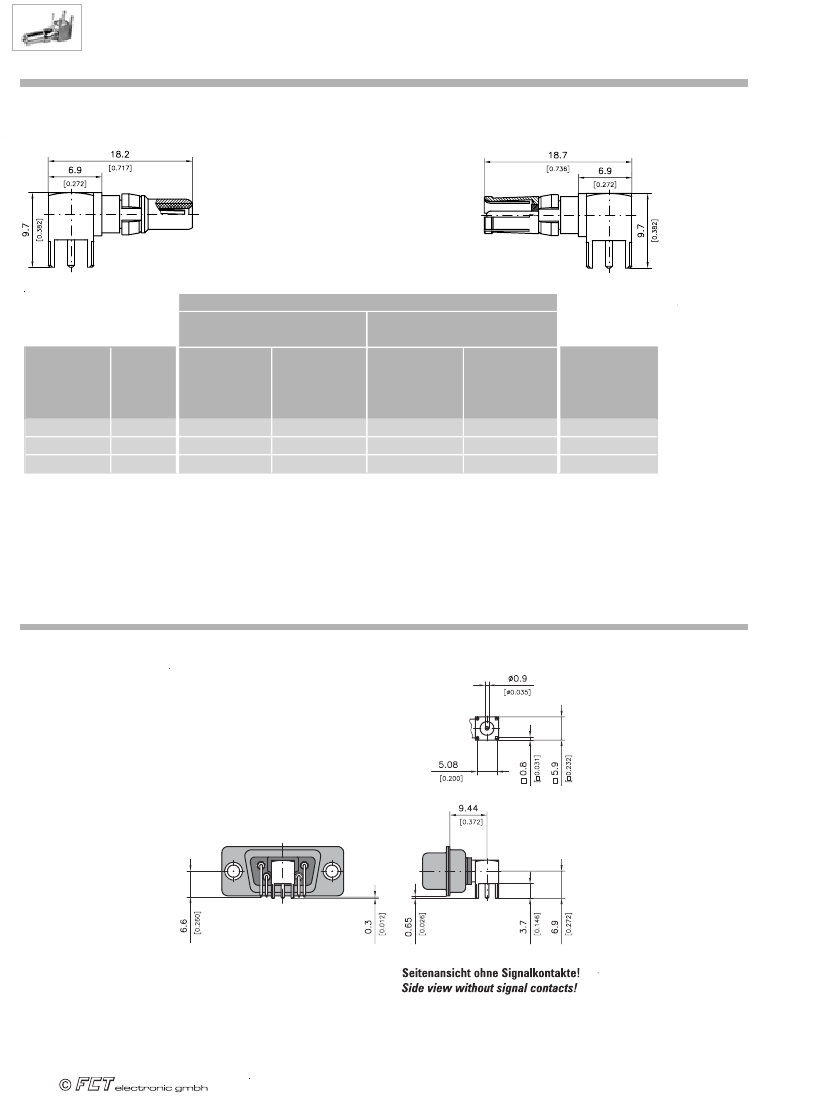

Abmessungen am Beispiel Steckverbinder mit Koaxialkontakt FME009P... und Signalkontakten P45

Dimensions on an Example Connector with Coaxial Contact FME009P... and Signal Contacts P45

M L 07/ 2 0 03

TECHNISCHE ÄNDERUNGEN VORBEHALTEN - MAßE IN MILLIMETER (INCHES IN KLAMMERN)

FME009S101 Related Products

	FME009S101	FME009S108	FME009P102	FME009P101
Description	Connector Accessory, Contact	Connector Accessory, Contact	Connector Accessory, Contact	Connector Accessory, Contact
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	FCT electronic	FCT electronic	FCT electronic	FCT electronic
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	TERMINATION PLATING: GOLD (8)	TERMINATION PLATING: GOLD (50)	TERMINATION PLATING: GOLD (50)	TERMINATION PLATING: GOLD (8)
Assembly name	CONTACT	CONTACT	CONTACT	CONTACT
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	FEMALE	FEMALE	MALE	MALE
Contact style	COAX	COAX	COAX	COAX
DIN compliance	NO	NO	NO	NO
designed usage	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Finished thickness	8	50	50	8
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Terminal type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1
