FCC17A15PEED0

Description
D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle,
CategoryThe connector    The connector
File Size210KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

FCC17A15PEED0 Overview

D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle,

FCC17A15PEED0 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid7017436416
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Other featuresFILTER CAPACITANCE=50pF
body width0.494 inch
subject depth0.25 inch
body length1.541 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance15 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage600VAC V
Filter functionYES
Insulation resistance3000000000 Ω
insulator materialPOLYETHYLENE
JESD-609 codee0
Plug contact pitch0.108 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .115-.125
Installation option 2INSERT
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness15u inch
Rated current (signal)5 A
GuidelineUL, CSA
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.15 inch
Terminal pitch2.7432 mm
Termination typeSOLDER
Total number of contacts15

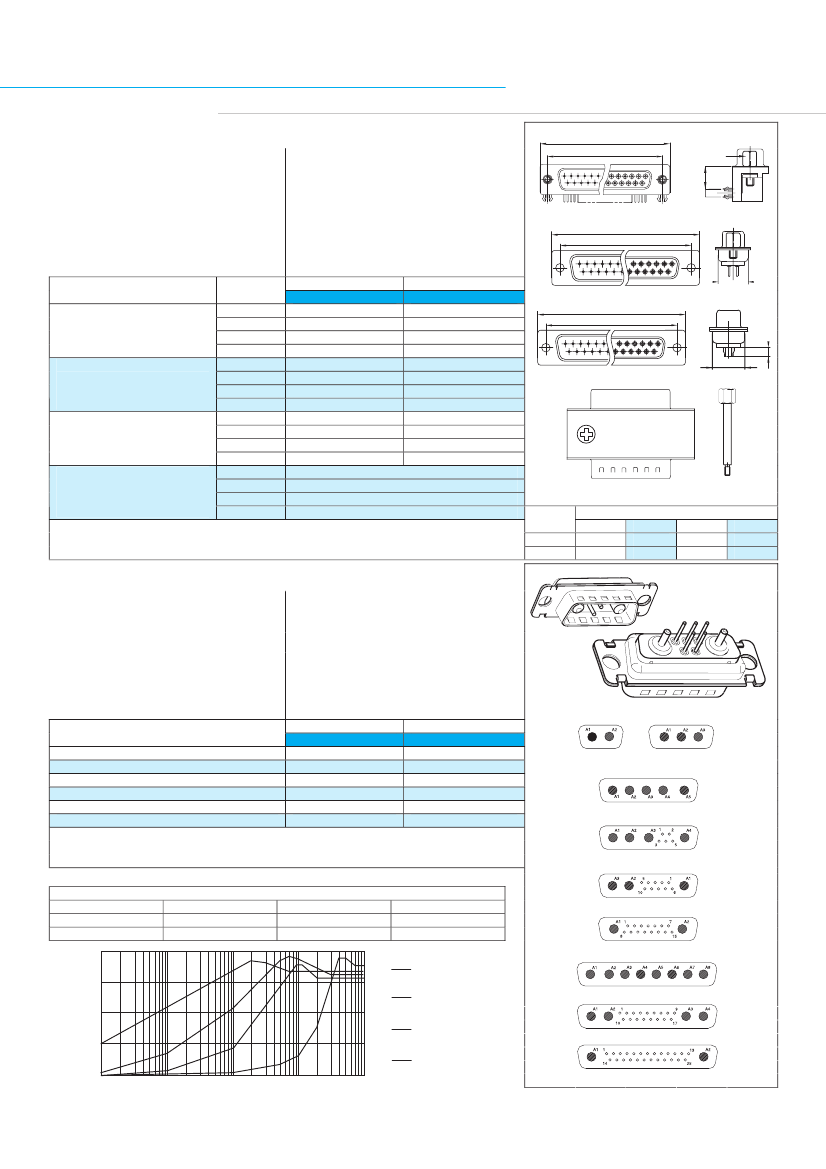

Amphenol
D Subminiature Interconnects
Filtered DSubs
Series FCC17 Commercial Grade
A filtered connector is the combination of
capacitors mounted inside the connector between
each of the contacts and the connector ground
shell that can filter unwanted EMI.
A±0.38 (.015)
B±0.13 (.005)
Flange Mount
#4-40 screwlock
Footprint
8.08 (.32)
Mechanical
Durability
Temperature
– 200 Cycles
– -40°C to +85°C
– Stamped Steel
– Tinned
UL94V-0 thermoplastic
– Phosphor Bronze
– See Below
Electrical
Current
– 5A DC max
– 2A RF Filtered max
Contact Resistance – 15mΩ
Voltage
See Capacitance
Chart below
Materials
Shell
Finish
Insulator
Contacts
Finish
Right Angle PCB Mount
A±0.38 (.015)
B±0.13 (.005)
Male
Female
Part Number:
Part Number:
9 way
FCC17E09 PAE
x
0
FCC17E09 SAE
x
0
Right Angle PCB Mount
15 way
FCC17A15 PAE
x
0
FCC17A15 SAE
x
0
8.08mm FootPrint 4-40 Jack
Socket Supplied Loose Arrow
25 way
FCC17B25 PAE
x
0
FCC17B25 SAE
x
0
BoardLock 15µ” Gold
37 way
FCC17C37 PAE
x
0
FCC17C37 SAE
x
0
9 way
FCC17E09 PEE
x
0
FCC17E09 SEE
x
0
Straight PCB Mount
4-40 Jack Socket Supplied
15 way
FCC17A15 PEE
x
0
FCC17A15 SEE
x
0
Loose Arrow BoardLock 15µ”
25 way
FCC17B25 PEE
x
0
FCC17B25 SEE
x
0
Gold Plated
37 way
FCC17C37 PEE
x
0
FCC17C37 SEE
x
0
9 way
FCC17E09 PM2
x
0
FCC17E09 SM2
x
0
Solder-Cup
15 way
FCC17A15 PM2
x
0
FCC17A15 SM2
x
0
3.05mm Mounting Hole
25 way
FCC17B25 PM2
x
0
FCC17B25 SM2
x
0
15µ” Gold Plated
37 way
FCC17C37 PM2
x
0
FCC17C37 SM2
x
0
9 way
FCC17E09 AD2
x
0
Pin/Socket Adapter
3.05mm Mounting Hole
15 way
FCC17A15 AD2
x
0
4-40 Jack-Screw Supplied
25 way
FCC17B25 AD2
x
0
15µ” Gold Plated
37 way
FCC17C37 AD2
x
0
Replace
x
with a Capacitance value listed at the bottom of this page
Add suffix
L
for Standard Connector with added FERRITE BLOCK
Additional Plating, Mounting, Termination and Capacitors Options available upon request
Description
Positions
10.72
Straight PCB Mount
10.72
Solder-Cup
Amphenol
Adapters
Dim
(mm)
A
B
9
30.81
24.99
Positions
15
25
39.14
53.04
33.32
47.04
37
69.32
63.50
Filtered Hybrids
Series FCC17 Commercial Grade
A filtered connector is the combination of
capacitors mounted inside the connector between
each of the contacts and the connector ground
shell that can filter unwanted EMI.
Mechanical
Durability
Temperature
– 200 Cycles
– -40°C to +85°C
– Stamped Steel
– Tinned
UL94V-0 Thermoplastic
– Phosphor Bronze
– See Below
Electrical
– 5A DC max
– 2A RF Filtered max
– 20~40A
Power Contacts
Contact Resistance – 15mΩ
Voltage
– See Chart Below
Current
Materials
Shell
Finish
Insulator
Contacts
Finish
Insert Arrangements
Male
Female
Description
Part Number:
Part Number:
Pin/Socket Adapter
FCC17(xx)PD2
x
0
FCC17(xx)SD2
x
0
PC Tail
3.22mmØ, 4.45mm(L) 40A
FCC17(xx)PEE
x
0
FCC17(xx)SEE
x
0
Solder Cup
10A Wire Size 16
FCC17(xx)PKE
x
0
FCC17(xx)SKE
x
0
Solder Cup
20A Wire Size 12
FCC17(xx)PLE
x
0
FCC17(xx)SLE
x
0
Solder Cup
40A Wire Size 8
FCC17(xx)PME
x
0
FCC17(xx)SME
x
0
Press-Fit
3.68mm(L) 3.2mmHoleØ 20A
FCC17(xx)PR2
x
0
FCC17(xx)SR2
x
0
Replace
x
with a Capacitance value listed at the bottom of this page
Replace
(xx)
with Insert Arrangement Listed adjacent
Additional Plating, Mounting, and Capacitor Options available upon request
Choosing the RIGHT Capacitance See Graph below
Filter Capacitance
(Working Voltage)
Replace
x
D
: 50pF
(300VDC)
F
: 330pF
(300VDC)
5
: 1,000pF
(200VDC)
B
: 100pF
(300VDC)
1
: 470pF
(300VDC)
7
: 1,200pF
(200VDC)
0
: 180pF
(300VDC)
4
: 820pF
(200VDC)
E
: 2,200pF
(200VDC)
40
E2W2
A3W3
B5W5
B9W4
9
: 5,600pF
(200VDC)
8
: 47,000pF
(50VDC)
More Options, Consult Factory
B13W3
B17W2
50
pF
30
Insertion Loss (dB)
1200
pF
20
C8W8
2200
pF
10
C21WA4
47000
pF
0
0.1
1.0
10
Frequency (MHz)
100
1000
C27W2
F-13
ACC –
for Cathy
3 (.118)
A±0.38 (.015)
B±0.13 (.005)
