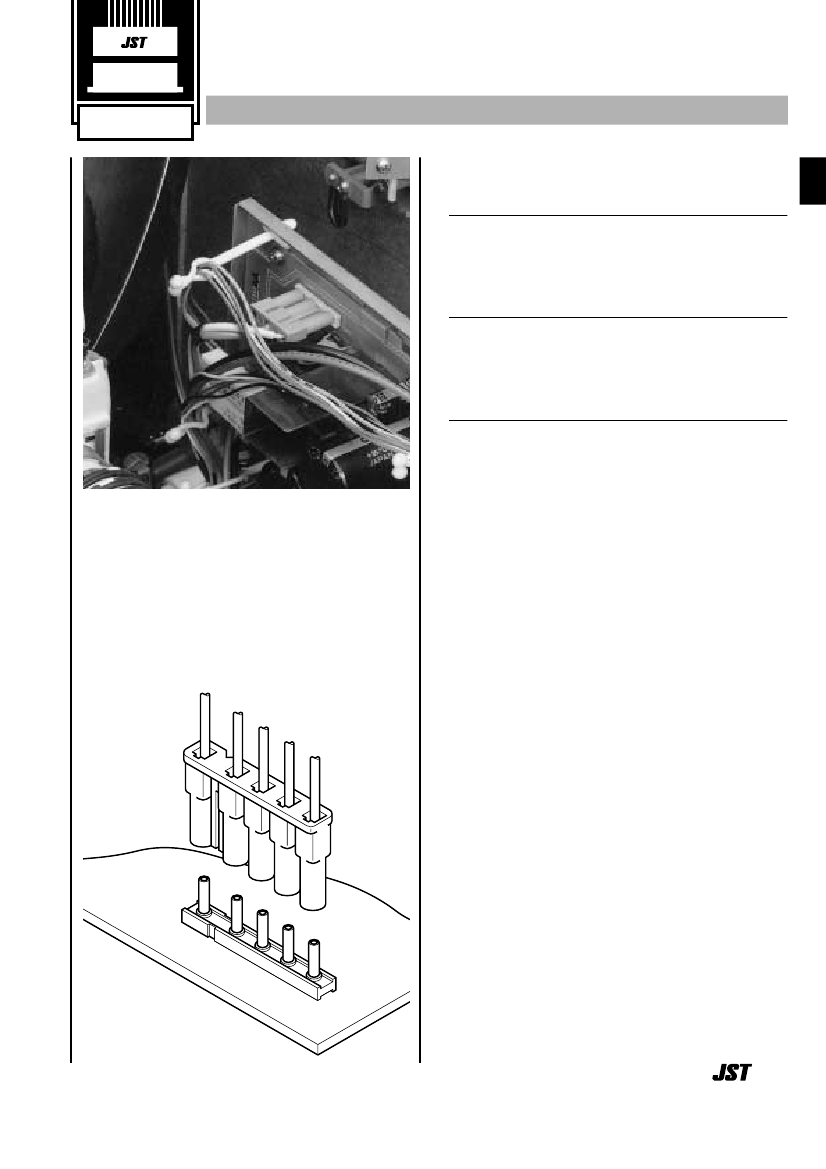

Crimp
LV
CONNECTOR
8.0mm
(.315") pitch
Disconnectable Crimp style connectors for 2.36 (.093") diameter pins
Features ––––––––––––––––––––––––
• Three-point contact
The mating section of the contact has a triangular configuration
so that the terminal grips the round mating pin at three points.
Furthermore, this contact keeps its high force after mating and
unmating many times, thus assuring high reliability.
• Anti-misinsertion construction
The pitch between positions 1 and 2 of the housings and the
headers having three or more circuits is 10.0mm (.394"), while
the pitch of the other circuits is 8.0mm (.315"). This provides
polarization which in turn prevents mismating the connector.
• Flux entry prevention
The solder side of the header pins are closed so as to
completely prevent flux or solder from entering. The tight
press-fit of the pin into the header insulator also prevents flux
from coming up the pin.
This connector can be connected to
headers having 2.36mm (.093") diameter
pins. Since the pitch between circuits is
large, 8.0mm (.315"), this connector is
ideally suited for the power supply circuits
of TVs, stereo systems and VCRs.
Specifications –––––––––––––––––––
1
• Current rating:
3
SVF-01T-2.36N: 5A AC, DC (AWG #20)
SVF-01T-2.36LN: 7A AC, DC (AWG #18)
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: SVF-01T-2.36N: AWG #24 to #20
SVF-01T-2.36LN: AWG#24 to #18
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
JS
T
JS
T
2
4
5
Standards ––––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R75121
179
LV
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
Model No.
SVF-01T-2.36N
SVF-01T-2.36LN
mm
2
0.2 to 0.5
0.2 to 0.83
AWG #
24 to 20
24 to 18
Insulation O.D.
mm(in.)
1.4 to 2.7(.055 to .106)
1.4 to 2.9(.055 to .114)
Q'ty /
reel
15,000
5,000
Material and Finish
Phosphor bronze, tin-plated
3.0
(.118)
7.0 15.0
(.276) (.591)
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(1 circuit)
(2 circuits)
(3 to 6 circuits)
7.2
(.283)dia.
B
B
23.0(.906)
3.0
(.118)
8.0 10.0
(.315) (.394)
A
7.4
(.291)
20.0(.787)
6.2
(.244)
5.5
(.217)
3.0
(.118)
A
Cir-
cuits
1
2
3
4
5
6
Model No.
Noryl
S1P-LV
2P-LV
3P-LV
4P-LV
5P-LV
6P-LV
PBT
S1P-LV-P
2P-LV-P
3P-LV-P
4P-LV-P
5P-LV-P
6P-LV-P
Material
Dimensions mm(in.)
A
–
B
–
Q’ty /
bag
1,000
1,000
500
500
500
500
10.0( .394) 16.0( .630)
18.0( .709) 24.0( .945)
26.0(1.024) 32.0(1.260)
34.0(1.339) 40.0(1.575)
42.0(1.654) 48.0(1.890)
S1P-LV, ( )P-LV: Noryl, UL94V-1, natural (gray)
S1P-LV-P, ( )P-LV: PBT, UL94V-0, natural (black)
Precautions:
When using the housing made of noryl, it has poor chemical resistance against
oils and organic solvents. Do not allow the housing to come into contact with oil.
Do not clean any printed circuit board while the housing is attached.
180
7.6
(.299)
23.0(.906)
LV
CONNECTOR
Header ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(1 circuit)
2.36
(.093)dia.
2.36
(.093)dia.
Applicable
contact
Cir-
cuits
1
Model No.
B1P-LV-TA
B1P-LV-TN
B2P-LV-TA
B2P-LV-TN
Dimensions mm(in.)
A
–
B
–
Finish
Q'ty /
box
1,000
6.5
8.7
(.256) (.343)
15.9(.626)
9.1
(.358)
15.9(.626)
2
SVF-01T-2.36N
3
4
5
6
1
2
Copper-undercoated,
tin/lead-plated
Copper-undercoated,
nickel plated
Copper-undercoated,
tin/lead-plated
10.0( .394) 18.0( .709)
Copper-undercoated,
nickel plated
500
500
B3P-LV-TN
18.0( .709) 26.0(1.024)
B4P-LV-TN
26.0(1.024) 34.0(1.339)
B5P-LV-TN
34.0(1.339) 42.0(1.654)
B6P-LV-TN
42.0(1.654) 50.0(1.969)
B1P-LV-TA
–
–
Copper-undercoated,
nickel plated
4.2
(.165)
8.0
(.315)
5.5
(.217)
250
200
1,000
500
B2P-LV-TA
10.0( .394) 18.0( .709)
B3P-LV-TA
18.0( .709) 26.0(1.024)
B4P-LV-TA
26.0(1.024) 34.0(1.339)
B5P-LV-TA
34.0(1.339) 42.0(1.654)
B6P-LV-TA
42.0(1.654) 50.0(1.969)
Material
Copper-undercoated,
tin/lead-plated
SVF-01T-2.36LN
3
4
5
(2 to 6 circuits)
9.1
(.358)
15.9(.626)
2.36
(.093)dia.
250
200
6
Pin: Brass
Wafer: Glass filled nylon 66, UL04V-0, natural (ivory)
8.0
10.0
(.315) (.394)
A
B
5.5
(.217)
4.0
(.157)
4.2
(.165)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2P-LV-TA-o o-
(blank)…natural (ivory)
BK…black
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
2.46±0.05
(.097±.002)dia.
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SVF-01T-2.36LN
Contact
SVF-01T-2.36N
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SVF01-236LN
APLNC SVF01-236LN
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
1 circuits:Approx.22.6(.890)
2 to 6 circuits:Approx.
25.6(1.008)
8.0
10.0 4.0
min.
(.315) (.394) (.157)
3.0(.118)
min.
1 circuit:
7.2(.283)dia.
2 circuits:
7.6(.299)dia.
3 to 6 circuits: 7.4(.291)dia.
Strip-crimp applicator MKS-SC
with safety cover
–
Crimp applicator MK-L
with safety cover
without safety cover
APLMK SVF01-236N
APLNC SVF01-236N
181
