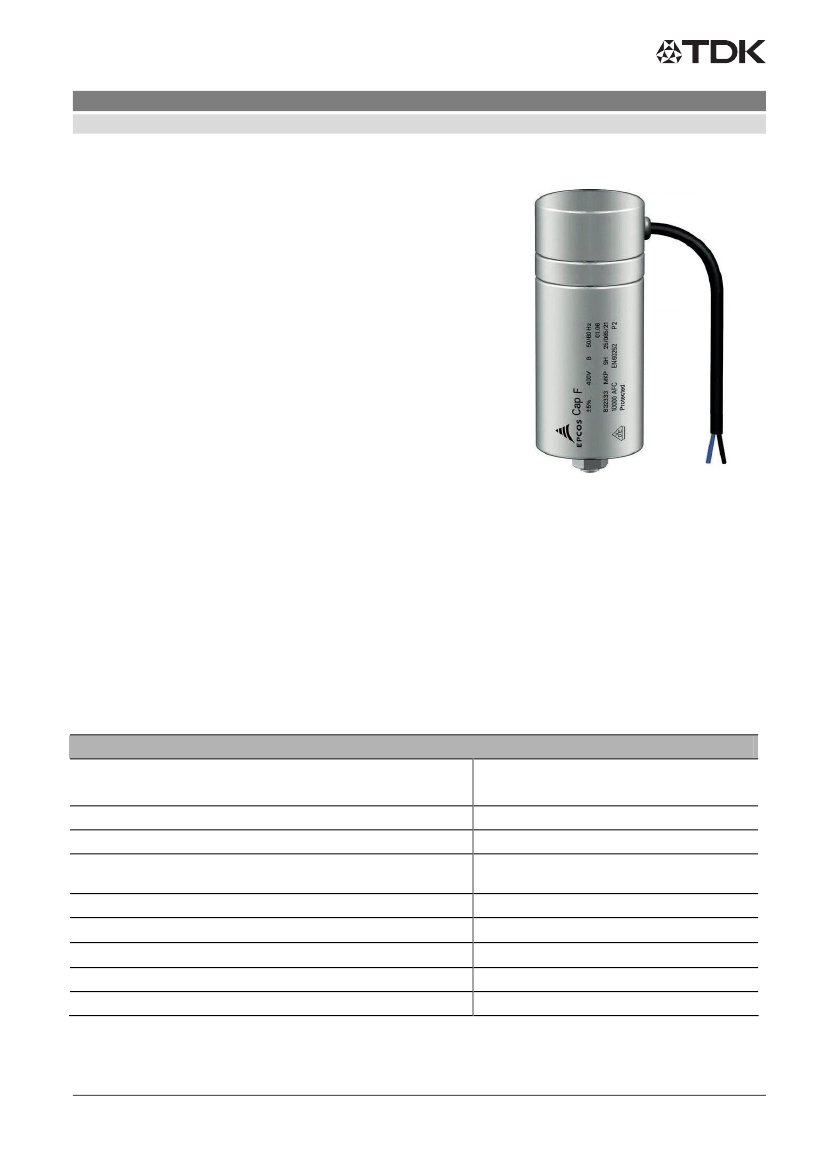

Film Capacitors – AC Capacitors
Motor run capacitors
B32333
B32333 – Super MotorCap™, 450 V
Construction
Metallized polypropylene film
Aluminum can with protective aluminum cover
Soft polyurethane resin
Applications
For general sine wave applications, mainly as
motor run capacitor, e.g. compressor motor application
Features
Self-healing properties
Low dissipation factor
Highest safety level P2 to IEC 60252-1 2001-02
Overpressure disconnection device
High insulation resistance
EN 60335-1 compliance on request
Terminals
Twin core cable, double insulated, (H05V2V2F)
Twin core cable UL style on request
Receptacles on request
Compliance to IEC60112
Mounting parts (optional)
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Technical data and specifications
Reference standards
Life expectance to IEC 60252 2001
Safety class according to IEC 60252-1 2001-02
UL 810 file E 106388
Rated capacitance C
R
Tolerance
Permitted capacitance
∆C/C
Rated voltage V
R
Rated frequency f
R
IEC 60252-1 2001-02, EN 60252 2001
UL 810
450 V: 30000 h (class A)
P2
Approved Component
10000 AFC protected up to 450 V
See table ordering codes, page 6
±5%
≤3%
450 V AC
50/60 Hz
FILM AC R&D
.
Page 2 of 7
Nov 2013
Film Capacitors – AC Capacitors
Motor run capacitors
B32333
B32333 – Super MotorCap™, 450 V
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
Test data
AC test voltage terminal to terminal V
TT
AC test voltage terminals to can V
TC
Insulation resistance R
ins
or time constant
τ
at 20 °
C,
Rel. humidity max. value 85%, annual means
≤
65%
Dissipation factor tan
δ
at 20 °
C
Maximum rate of voltage rise dv/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
Option A:
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/1
Test temperature 550 ° for I
R
0.5 A
C
Test temperature 850 ° for I
R
> 0.5 A
C
Option B:
UL 94 V2/V0 compatible
Glow wire test to IEC 60335-1 / IEC 60695-2-1/1
Test temperature 550 ° / 750 °
C
C
Part is compatible to EN 60335-1
Tracking test to IEC 60112 solution A
Protection class acc. IEC 60529 2001
>250 V
IP 55
Self-extinguish within 2 seconds of withdrawing
glow wire
Self extinguish within 30 seconds of
withdrawing the glow
At 125 °C
See option A or option B
25/085/21 to IEC 60068-1
–25 °
C
+85 °
C
21 days
2 V
R
, 2 s (routine test)
2 V
R
, 60 s (type test)
2 kV AC, 2 s (routine test)
2 kV AC, 60 s (type test)
3000 s
≤1.0
10 (120 Hz)
10 V/µs
-3
1.1 V
R
1.3 I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
FILM AC R&D
.
Page 3 of 7
Nov 2013
Film Capacitors – AC Capacitors
Motor run capacitors
B32333
B32333 – Super MotorCap™, 450 V
Compatibility to RoHS
Compliance to directive 2002/95/EC
Approvals
VDE EN 60252-1
450 V / 85 °C:
TÜV
450 V / 85 °C:
UL 810 E106388
C
US
30000 h (class A)
Approved up to 50 µF
Approved component 10000 AFC,
protected up to 450 V
Approved on request
Logistics
Delivery mode
EU palette as standard
Cardboard tape on palette
Pack unit, see dimension table
30000 h (class A)
Approved up to 20 µF
Display of ordering codes for EPCOS products
The ordering code for one and the same product can be represented differently in data sheets, data books, other
publications and the website of EPCOS, or in order-related documents such as shipping notes, order confirmations and
product labels.
The varying representations of the ordering codes are due to different processes employed and do
not affect the specifications of the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes
Cautions and warnings
Please read “Applications warning, installation and maintenance instructions” and the “General Safety Data Sheet for
Power Capacitors” issued by ZVEI, which are available on the internet at
www.epcos.com/ac_capacitors,
to ensure
optimum performance and to prevent products from failing, and in worst case, bursting and fire. Information given in the data
sheet reflects typical specifications. You are kindly requested to approve our product specifications or request our approval
for your specification before ordering.
FILM AC R&D
.
Page 4 of 7
Nov 2013
Film Capacitors – AC Capacitors
Motor run capacitors

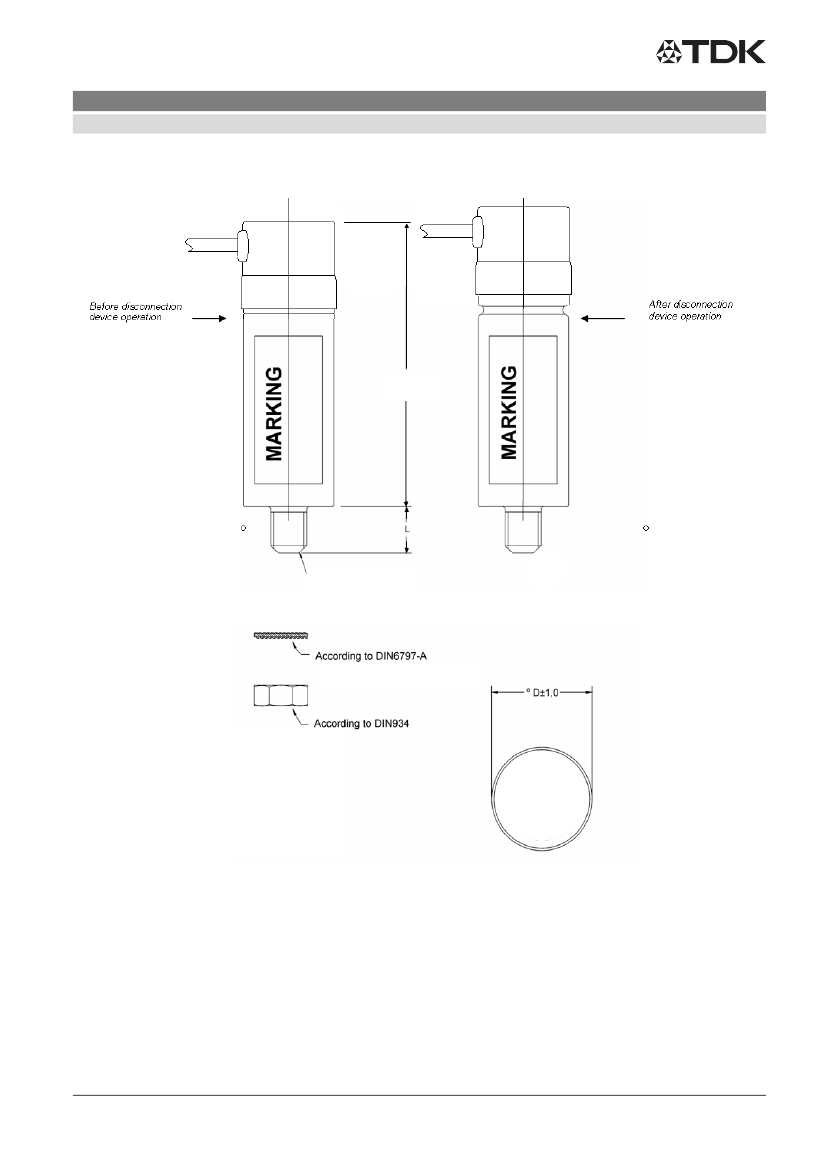

Dimensional drawing
B32333
B32333 – Super MotorCap™, 450 V
H± 3
M8 L = 10mm
FILM AC R&D
.
Page 5 of 7
Nov 2013
