F68B00CP datasheet, PDF - EEWORLD Datasheet

F68B00CP: DescriptionMicroprocessor, 8-Bit, 2MHz, MOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，39 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

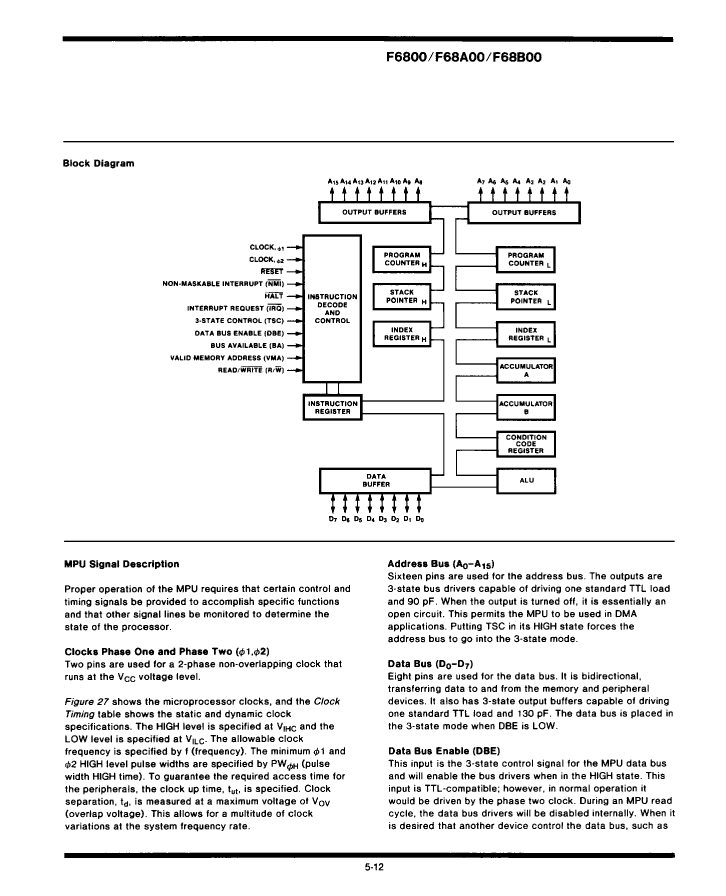

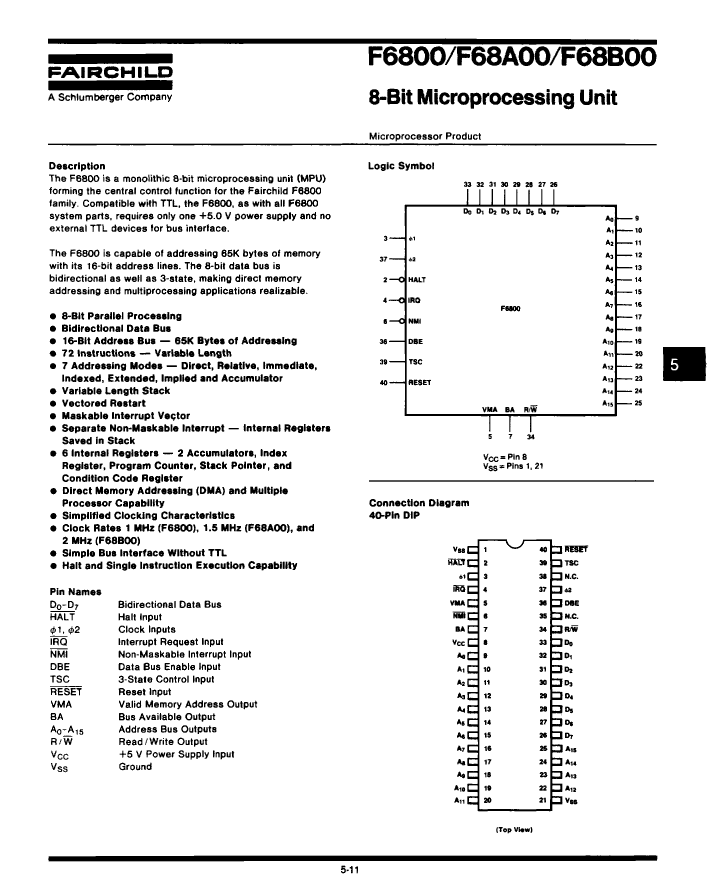

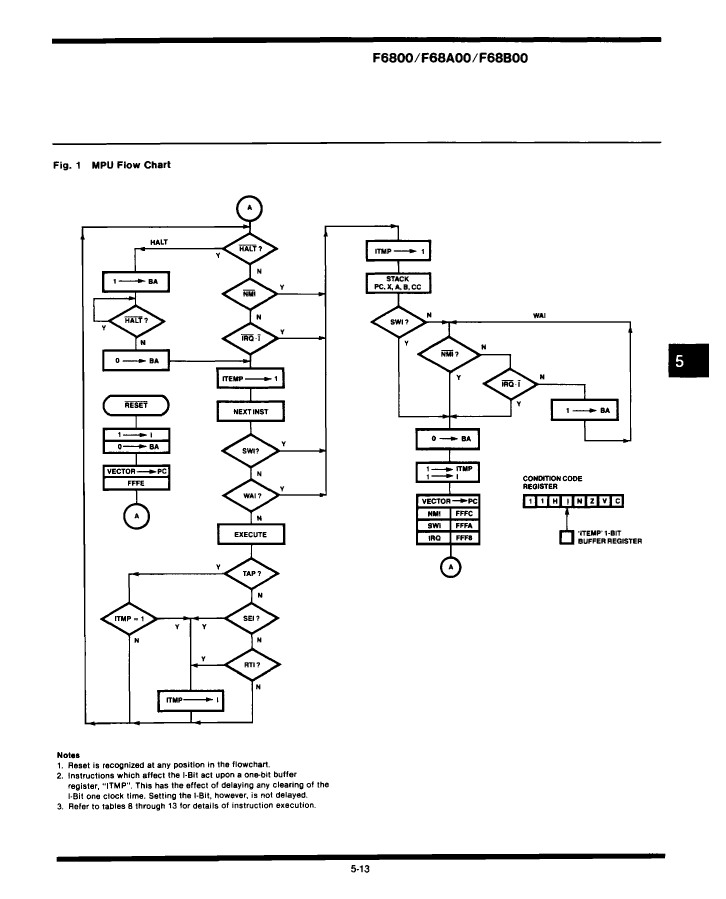

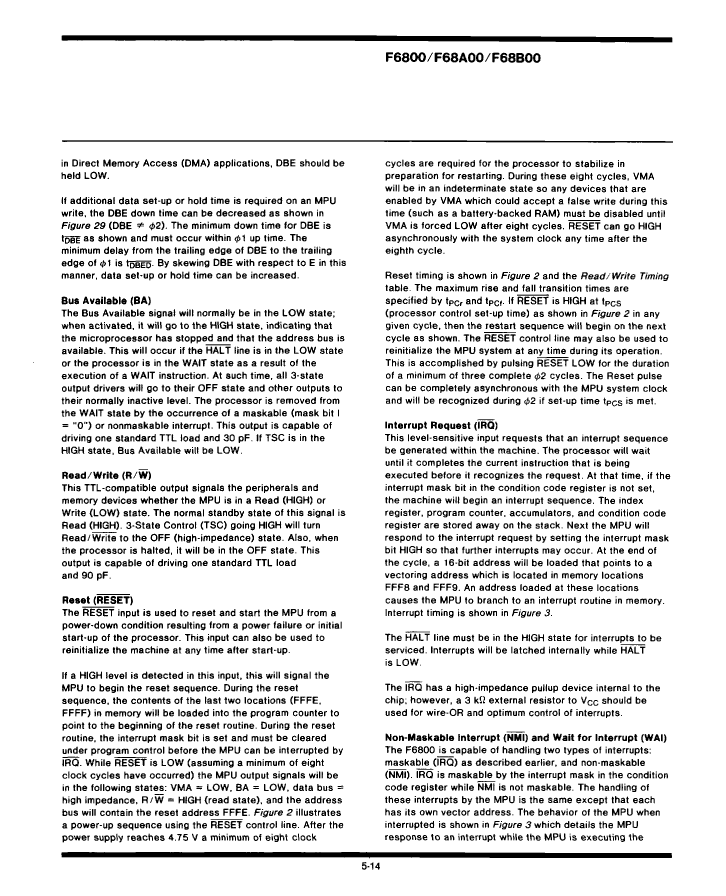

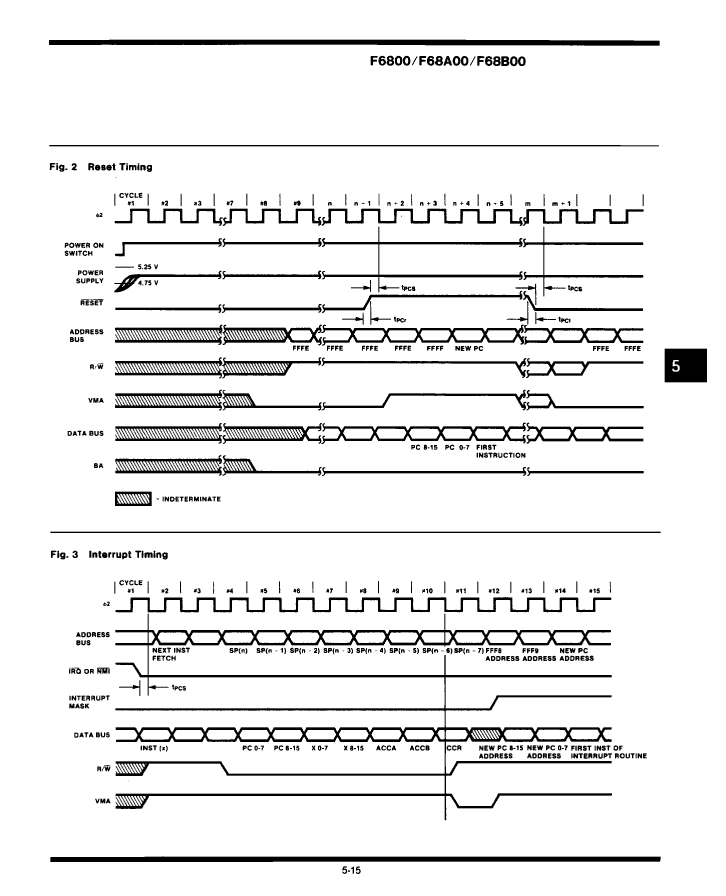

F68B00CP Overview

Microprocessor, 8-Bit, 2MHz, MOS, PDIP40, PLASTIC, DIP-40

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	2 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
length	52.07 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	0
speed	2 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

	F68B00CP	F68A00CP
Description	Microprocessor, 8-Bit, 2MHz, MOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 1.5MHz, MOS, PDIP40, PLASTIC, DIP-40
Maker	Fairchild	Fairchild
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP, DIP40,.6
Contacts	40	40
Reach Compliance Code	unknown	unknown
Address bus width	16	16
bit size	8	8
boundary scan	NO	NO
maximum clock frequency	2 MHz	1.5 MHz
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	R-PDIP-T40	R-PDIP-T40
length	52.07 mm	52.07 mm
low power mode	YES	YES
Number of external interrupt devices	2	2
Number of terminals	40	40
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
speed	2 MHz	1.5 MHz
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	MOS	MOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR
Base Number Matches	1	1
