DF25L-36P-0.5H(51) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF25L-36P-0.5H(51)

DF25L-36P-0.5H(51): DescriptionCard Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size338KB，11 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF25L-36P-0.5H(51) Overview

Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle

DF25L-36P-0.5H(51) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

NEW

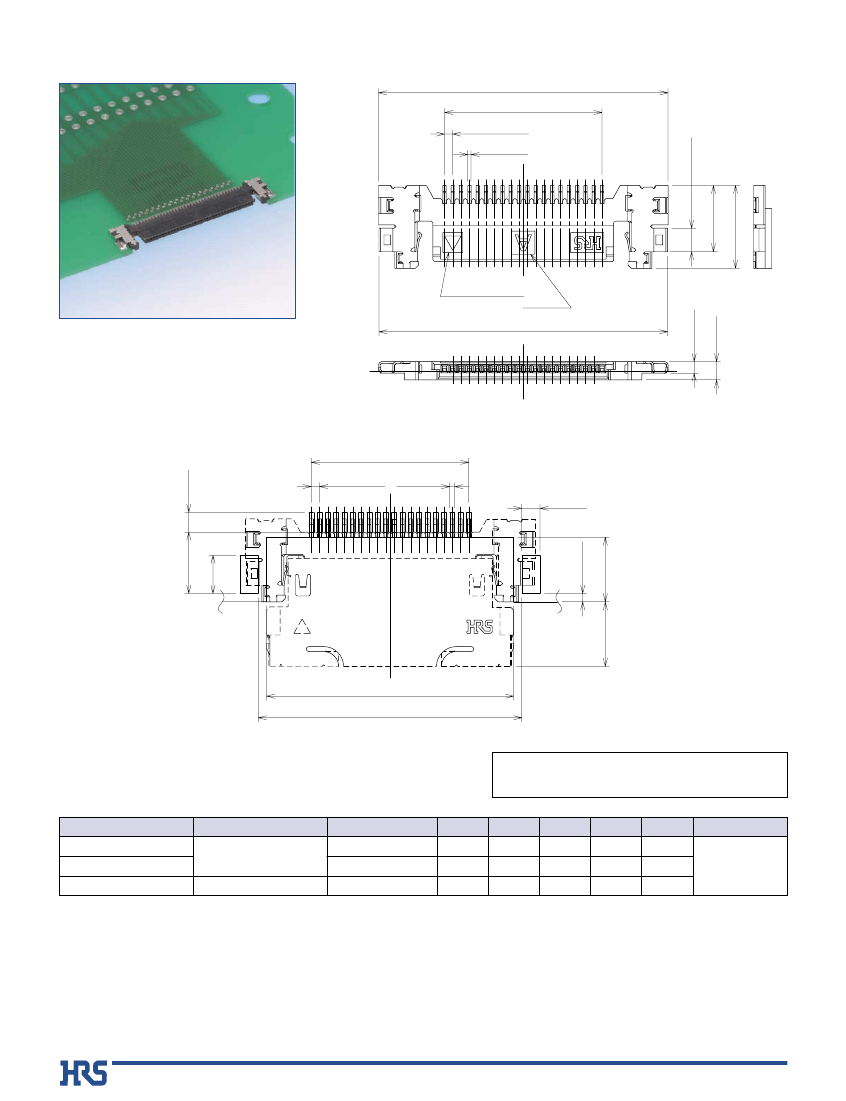

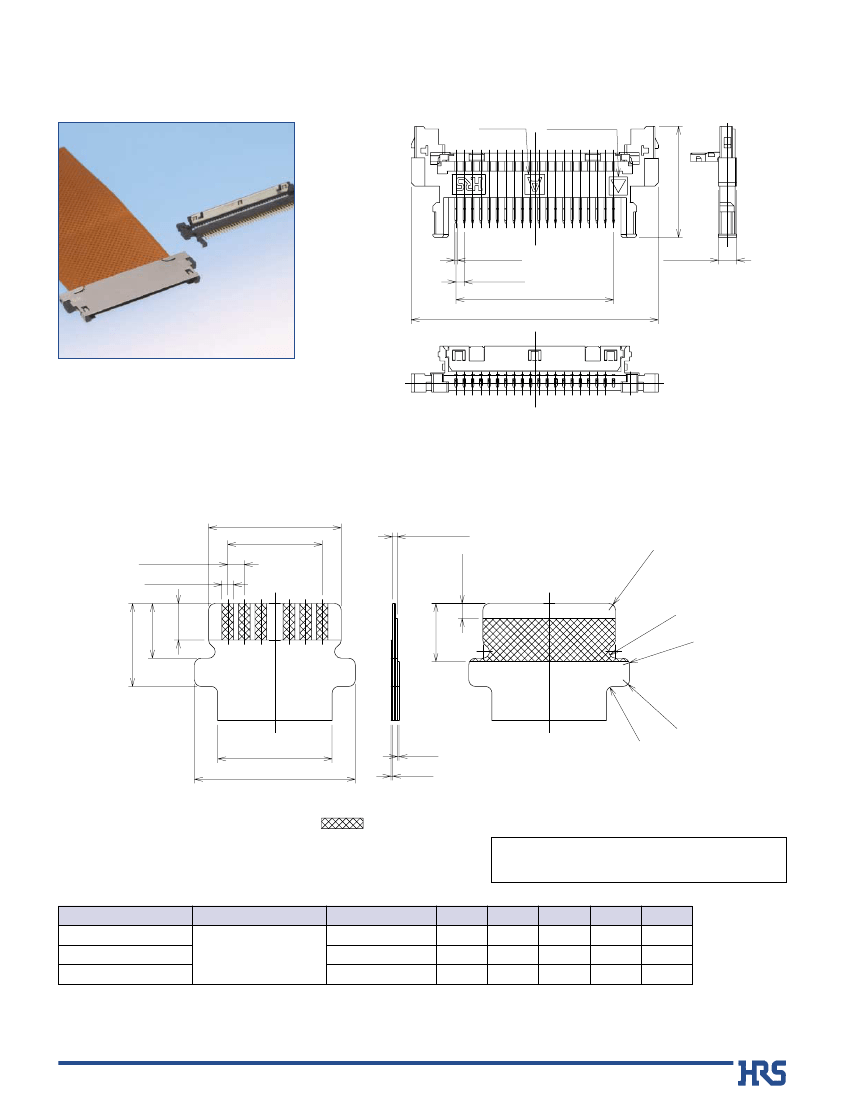

0.5 mm Contact Pitch, Board-to-FPC, Board-to-Fine Coaxial Ribbon Cable

DF25 Series

(8.9)

(1.1)

DF25G-*S-0.5SD

FPC

(1.1)

(8.9)

Board

(0.7)

Board

DF25G-*S-0.5F

Features

1. Supports High Speed Data Transfer

Typical Data Transfer of 1.2 Gbps. Up to 2 Gbps in

specific applications.

*The transmission characteristics depends on the

specific conditions and may vary. It is recommended

that verification be made with the actual device in use.

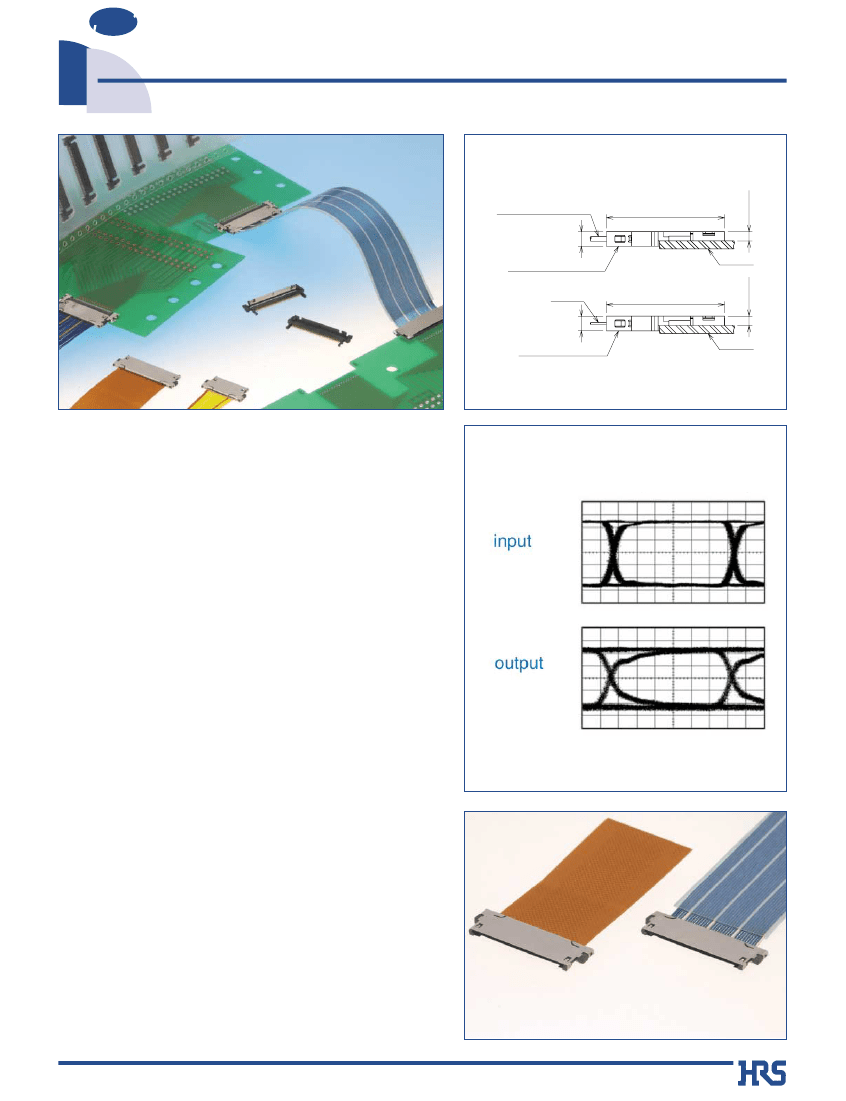

2 Gbps Eye Pattern

2. Small configuration and board space

0.5 mm contact pitch and body thickness of 1.1 mm. max.

3. Common Use of Receptacle

The board mounted receptacle assembly will accept

mating connectors terminated to FPC or Fine Coaxial

Cable Ribbon Cable.

4. Uniform External Dimensions

The Plug Assembly external dimensions remain the

same when it is terminated with FPC or the Fine Pitch

Coaxial Ribbon Cable.

5. Ground Connection

Metal Shield Covers connect with the common ground line.

6. Easy Termination of FFC or Fine Coaxial

Ribbon Cable

Hirose Electric's unique termination method allows

reduction of the number steps to terminate FFC or Fine

Coaxial Ribbon Cable. Termination can be performed in

any work environment since there is no need for the

electric power supply.

7. Environmental considerations

Plating compounds are lead-free.

Applications

LCD connections in small consumer devices, Digital

Cameras, Notebook computers, PDA's.

Any device requiring high density interconnection for

consistent high speed transmission data rates.

FPC Type

Fine Coaxial

Ribbon Cable Type

(0.7)

Fine Coaxial

Ribbon Cable

2003.5

DF25L-36P-0.5H(51) Related Products

	DF25L-36P-0.5H(51)	DF25L-20P-0.5H(51)	DF25L-30P-0.5H(51)
Description	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle
Maker	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	36	20	30
UL Flammability Code	94V-0	94V-0	94V-0
