DCM-13W6S-OL4-A197

Description
D Subminiature Connector, 13 Contact(s), Female, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size42KB,1 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Environmental Compliance
Download Datasheet Parametric View All

DCM-13W6S-OL4-A197 Overview

D Subminiature Connector, 13 Contact(s), Female, Solder Terminal, Receptacle,

DCM-13W6S-OL4-A197 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerITT
Reach Compliance Codecompliant
Factory Lead Time17 weeks
Other featuresEMI/RFI SHIELDED, PANEL MOUNT
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYESTER
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size4/C
Termination typeSOLDER
Total number of contacts13
UL Flammability Code94V-0
Base Number Matches1

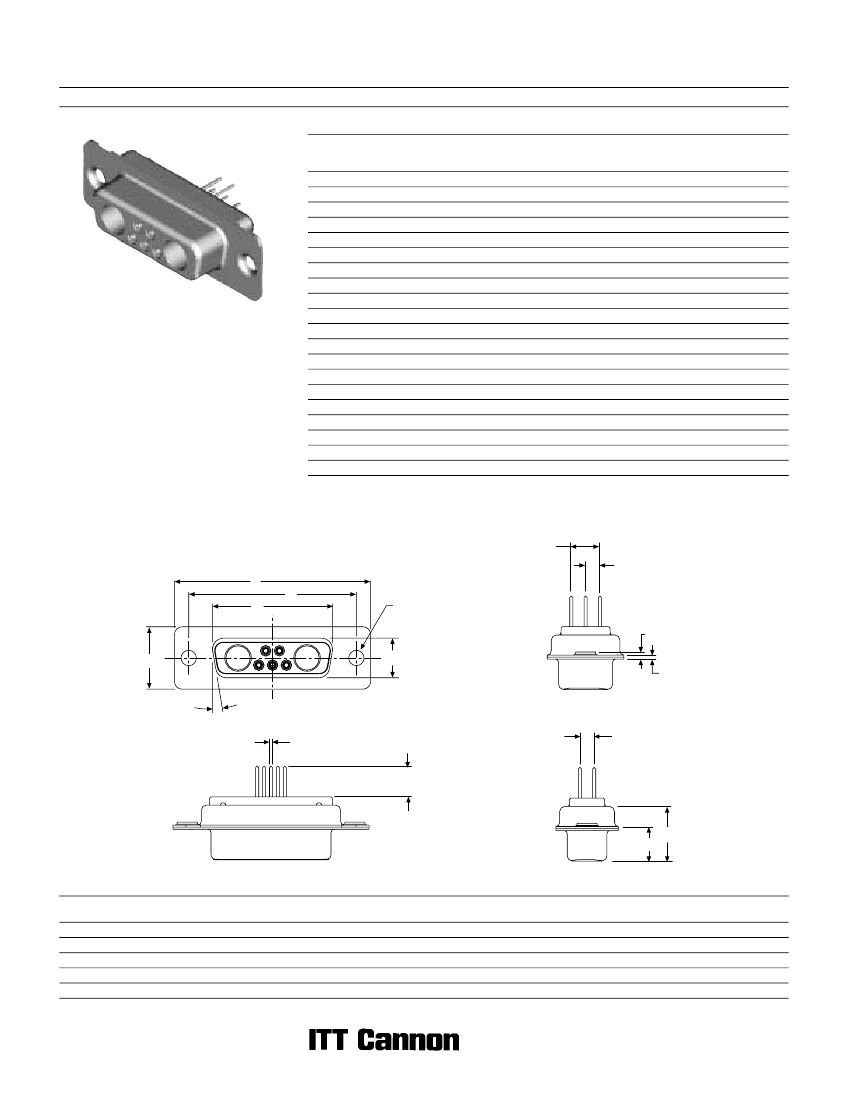

D Subminiature
Straight PC Tails — European (Sizes DE-DD)
Receptacle
Part Numbers
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
DD
DD
DD
DD
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Part Number
X
4.60 (.181)
DEM-5W1S-OL2-A197
DAM-7W2S-OL2-A197
DAM-11W1S-OL2-A197
DAM-3W3S-OL2-A197
DAM-3WK3S-OL2-A197
DBM-5W5S-OL2-A197
DBM-9W4S-OL2-A197
DBM-13W3S-OL2-A197
DBM-17W2S-OL2-A197
DBM-21W1S-OL2-A197
DCM-8W8S-OL2-A197
DCM-13W6S-OL2-A197
DCM-17W5S-OL2-A197
DCM-21WA4S-OL2-A197
DCM-25W3S-OL2-A197
DCM-27W2S-OL2-A197
DDM-24W7S-OL2-A197
DDM-36W4S-OL2-A197
DDM-43W2S-OL2-A197
DDM-47W1S-OL2-A197
Combo D
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see pages 269-271.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Part Number
X
6.05 (.238)
DEM-5W1S-OL4-A197
DAM-7W2S-OL4-A197
DAM-11W1S-OL4-A197
DAM-3W3S-OL4-A197
DAM-3WK3S-OL4-A197
DBM-5W5S-OL4-A197
DBM-9W4S-OL4-A197
DBM-13W3S-OL4-A197
DBM-17W2S-OL4-A197
DBM-21W1S-OL4-A197
DCM-8W8S-OL4-A197
DCM-13W6S-OL4-A197
DCM-17W5S-OL4-A197
DCM-21WA4S-OL4-A197
DCM-25W3S-OL4-A197
DCM-27W2S-OL4-A197
DDM-24W7S-OL4-A197
DDM-36W4S-OL4-A197
DDM-43W2S-OL4-A197
DDM-47W1S-OL4-A197
Note: Performance class 3 standard, for performance class 2 add -A191. Example: DEM-5W1S-OL2-A191-A197
Keyed.
DD Configuration
Engaging Face
A
C
B
Ø 3,05
(.120)
K
E
D
L
5,69
(.224)
2,84
(.112)
10°
Ø 0,60
(.024)
X
2,84
(.112)
F
W
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
52,42 (2.064)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
10,74 (.423)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
K
±0,318
(.0125)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
