54LS175LMQB: DescriptionD Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size209KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS175LMQB Overview

D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

54LS175LMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.004 A
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	18 mA
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	8.89 mm
minfmax	30 MHz
Base Number Matches	1

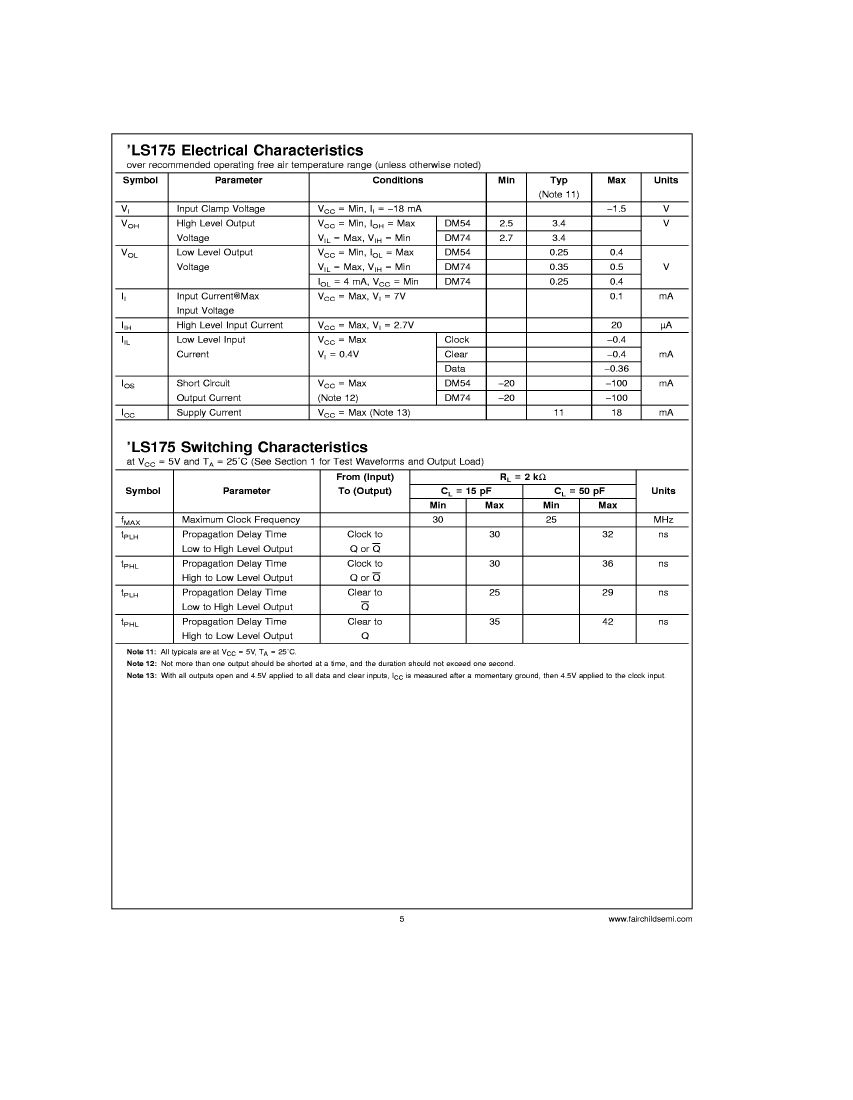

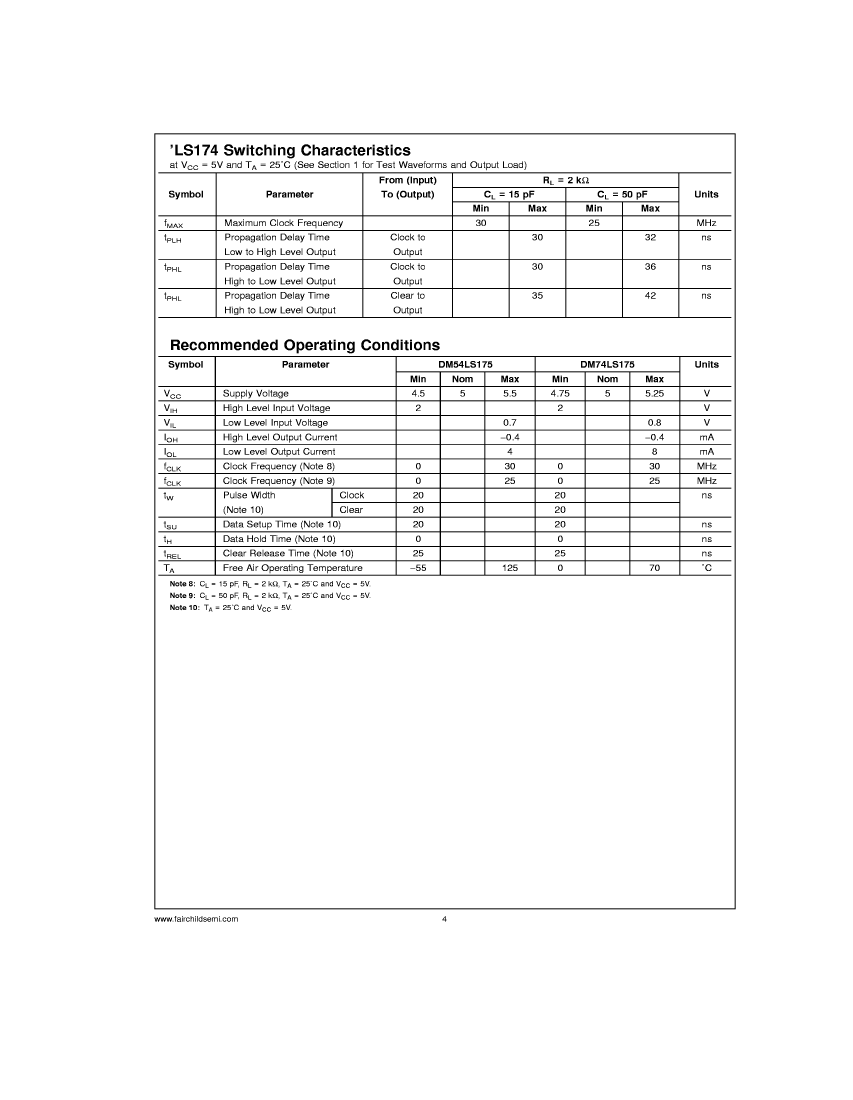

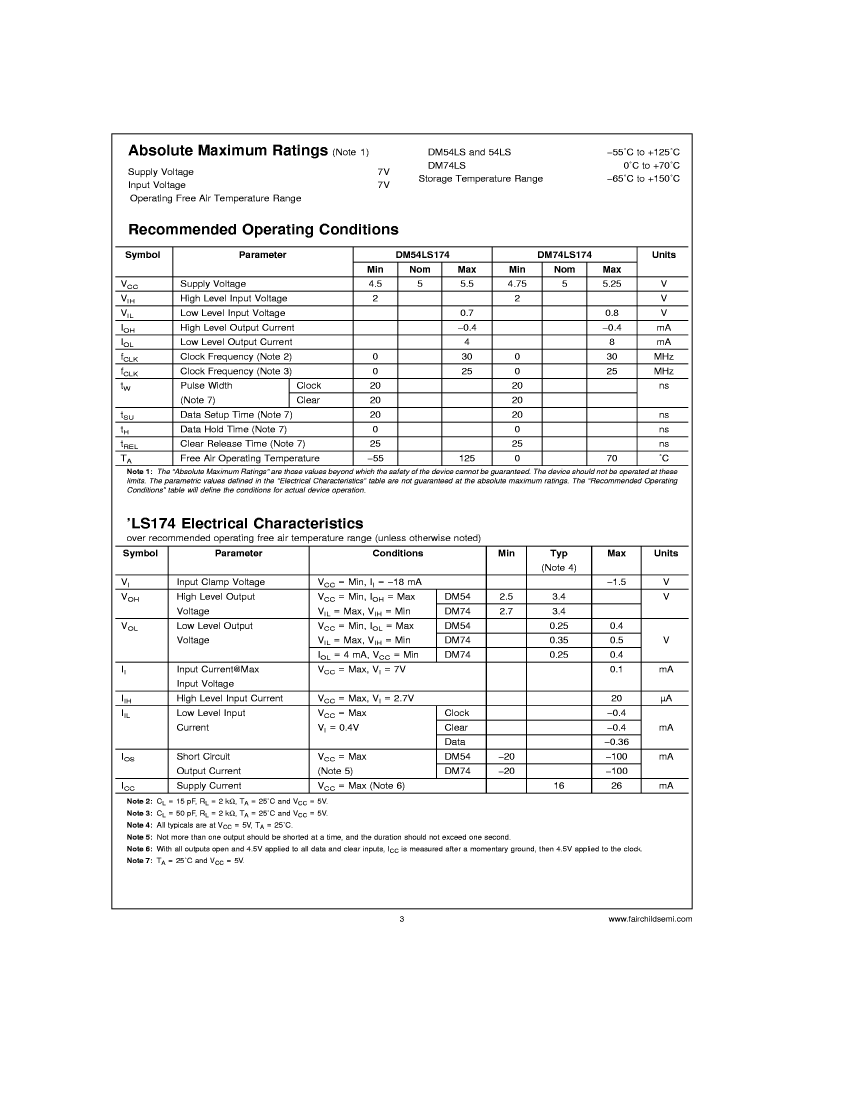

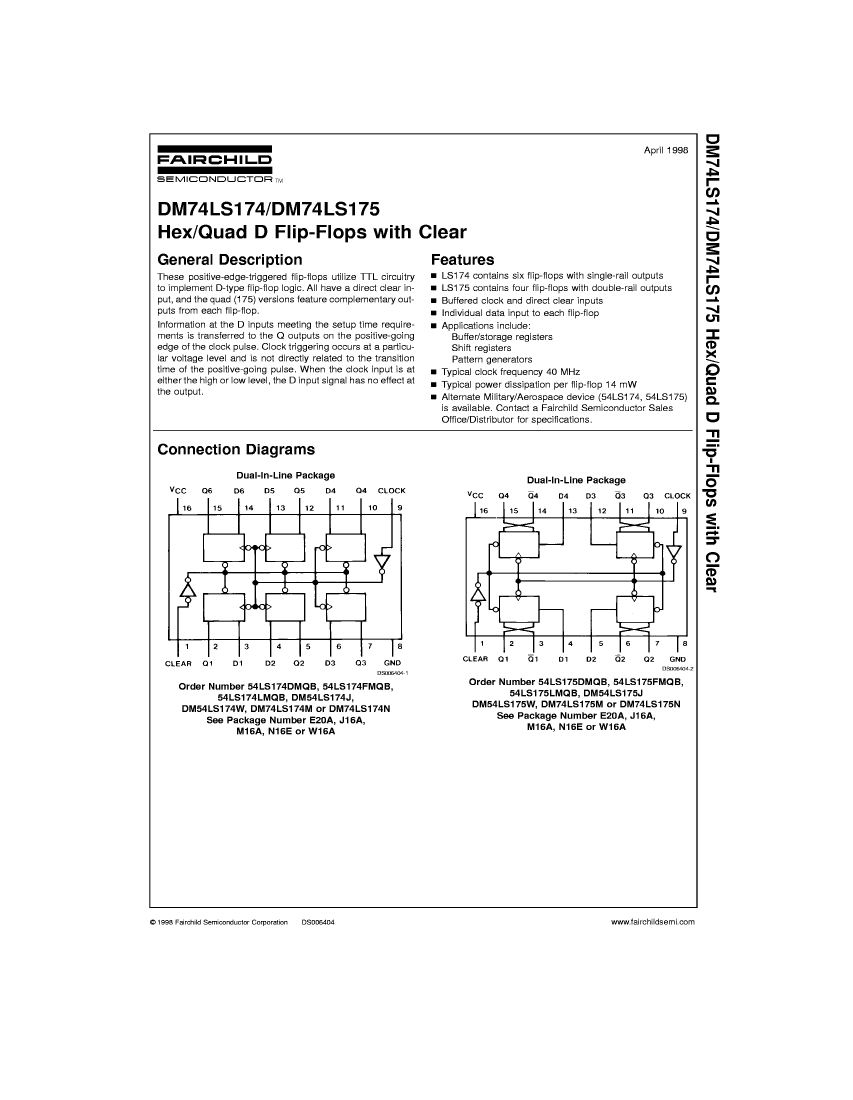

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS175LMQB Related Products

	54LS175LMQB	DM54LS174J	54LS174DMQB	54LS175DMQB	54LS175FMQB	54LS174LMQB	54LS174FMQB	DM54LS174W	DM54LS175J	DM54LS175W
Description	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DIP	DIP	DIP	DFP	QLCC	DFP	DFP	DIP	DFP
package instruction	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	CERAMIC, LCC-20	CERAMIC, FP-16	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3
Contacts	20	16	16	16	16	20	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS	LS	LS	LS	LS	-	LS
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16	S-CQCC-N20	R-GDFP-F16	R-GDFP-F16	-	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	-	e0
length	8.89 mm	19.304 mm	19.304 mm	19.304 mm	9.6645 mm	8.89 mm	9.6645 mm	9.6645 mm	-	9.6645 mm
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	-	D FLIP-FLOP
Maximum Frequency@Nom-Sup	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	-	25000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	-	0.004 A
Number of digits	4	6	6	4	4	6	6	6	-	4
Number of functions	1	1	1	1	1	1	1	1	-	1
Number of terminals	20	16	16	16	16	20	16	16	-	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	-	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	DIP	DIP	DFP	QCCN	DFP	DFP	-	DFP
Encapsulate equivalent code	LCC20,.35SQ	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	LCC20,.35SQ	FL16,.3	FL16,.3	-	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	-	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
Maximum supply current (ICC)	18 mA	26 mA	26 mA	18 mA	18 mA	26 mA	26 mA	26 mA	-	18 mA
propagation delay (tpd)	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns	36 ns	-	36 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Filter level	MIL-STD-883 Class B	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-	-	-
Maximum seat height	1.905 mm	5.08 mm	5.08 mm	5.08 mm	2.032 mm	1.905 mm	2.032 mm	2.032 mm	-	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
surface mount	YES	NO	NO	NO	YES	YES	YES	YES	-	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	-	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD	FLAT	FLAT	-	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE
width	8.89 mm	7.62 mm	7.62 mm	7.62 mm	6.604 mm	8.89 mm	6.604 mm	6.604 mm	-	6.604 mm
minfmax	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	-	30 MHz
Base Number Matches	1	1	1	1	1	1	1	1	-	-
