Advance Datasheet
1.5A High-side Power Distribution Switch with Enable and Flag
AP2815
General Description
The AP2815 is an integrated high-side power switch
that consists of N-Channel MOSFET, charge pump,
over current & temperature and other related protection
circuits. The switch’s low R
DS(ON)
, 60mΩ, is designed
to meet the USB voltage drop requirements. The IC
integrates soft-start to limit inrush current,
over-current protection, load short protection with
fold-back, and thermal shutdown to avoid switch
failure during hot plug-in. Under voltage lockout
(UVLO) function is used to ensure the device
remains off unless there is a valid input voltage
present. A FLAG output is available to indicate fault
conditions to the local USB controller.
The AP2815 is available in standard packages of
SOIC-8 and MSOP-8.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Low MOSFET on Resistance: 60mΩ @
V
IN
=5.0V
Compliant to USB Specifications
Operating Voltage Range: 2.7V to 5.5V
Low Supply Current: 65µA (Typ.)
Low Shutdown Current: 1.0µA (Max)
Guarantee 1.5A Continuous Load
Current Limit: 1.65A (Min), 2.8A (Max)
Under-voltage Lockout
Logic Level Enable Pin:
e
Available in Active-high or Active-low Version
Soft Start-up
Over-current Protection
Over Temperature Protection
Load Short Protection with Fold-back
No Reverse Current when Power Off
Deglitched FLAG Output with Open Drain
e
With Output Shutdown Pull-low Resistor for
e
A/C Versions
UL Approved (File No. E339337)
Nemko CB Scheme IEC60950-1, Ref. Certif
No. NO64001
Applications
•
•
•
•
•
USB Power Management
USB Bus/Self Powered Hubs
Hot-plug Power Supplies
Battery-Charger circuits
Notebook, Motherboard PCs
SOIC-8
MSOP-8

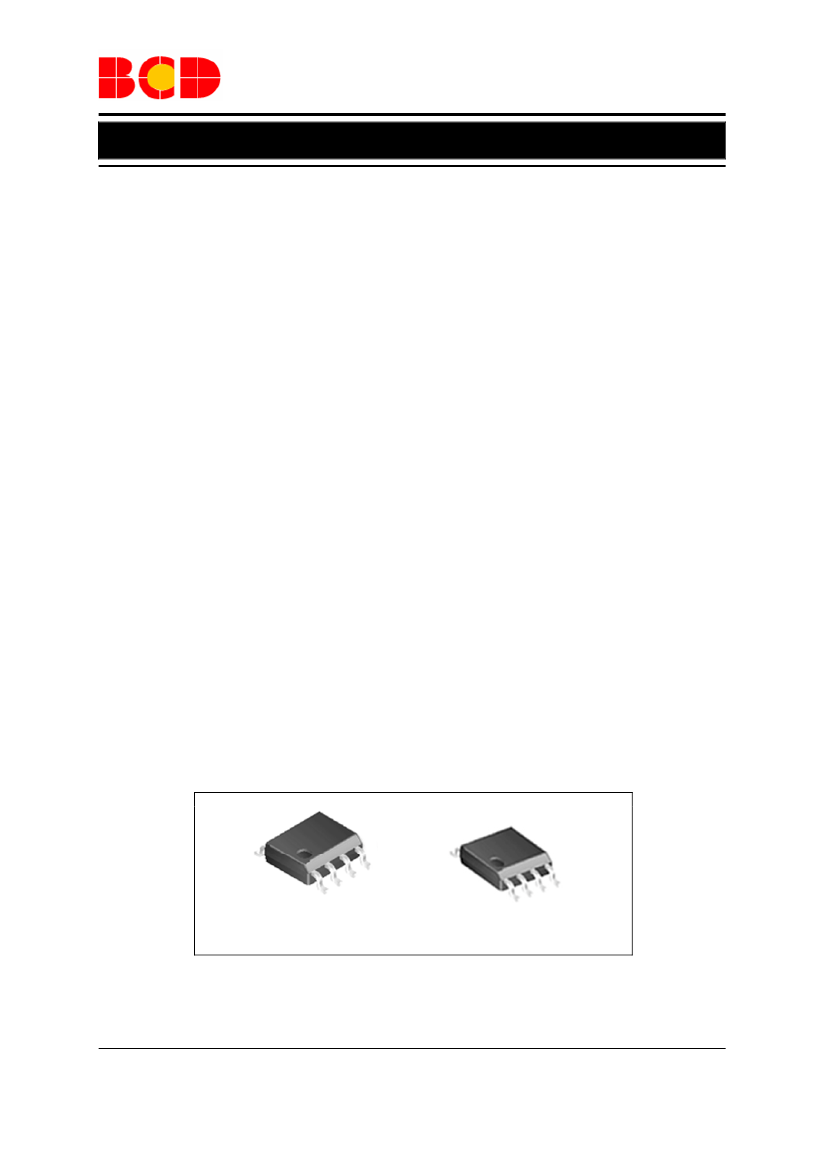

Figure 1. Package Types of AP2815
Apr. 2012
Rev 1. 7
1
BCD Semiconductor Manufacturing Limited
Advance Datasheet
1.5A High-side Power Distribution Switch with Enable and Flag
AP2815
Pin Configuration
M/MM Package
（SOIC-8/MSOP-8）
Figure 2. Pin Configuration of AP2815 (Top View)
Pin Descriptions
Pin No.
1
2, 3
4
5
6, 7, 8
VOUT
Name
GND
VIN
Descriptions
Ground
Supply Input Pin
Chip Enable, Control Input, Active Low or High
Fault FLAG Pin, output with open drain, need a pull-up resistor in
application, active low to indicate OCP or OTP.
Output Voltage
Apr. 2012
Rev 1. 7
2
BCD Semiconductor Manufacturing Limited
Advance Datasheet
1.5A High-side Power Distribution Switch with Enable and Flag
AP2815
Ordering Information
AP2815
Circuit Type
-
G1: Green
TR: Tape & Reel
Blank: Tube
Condition
A: Active High with Auto Discharge
B: Active High without Auto Discharge
C: Active Low with Auto Discharge
D: Active Low without Auto Discharge
Package
M: SOIC-8
MM: MSOP-8
Product
Package
SOIC-8
Temperature
Condition
Range
Active High
with Auto
Discharge
Part Number
AP2815AM-G1
Marking ID
2815AM-G1
2815AM-G1
2815AMM-G1
2815AMM-G1
2815BM-G1
2815BM-G1
2815BMM-G1
2815BMM-G1
2815CM-G1
2815CM-G1
2815CMM-G1
2815CMM-G1
2815DM-G1
2815DM-G1
2815DMM-G1
2815DMM-G1
Packing
Type
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
AP2815A
MSOP-8
-40 to 85°C
AP2815AMTR-G1
AP2815AMM-G1
AP2815AMMTR-G1
AP2815BM-G1
SOIC-8
AP2815B
MSOP-8
-40 to 85°C
Active High
without Auto
Discharge
AP2815BMTR-G1
AP2815BMM-G1
AP2815BMMTR-G1
AP2815CM-G1
SOIC-8
AP2815C
MSOP-8
-40 to 85°C
Active Low
with Auto
Discharge
AP2815CMTR-G1
AP2815CMM-G1
AP2815CMMTR-G1
AP2815DM-G1
SOIC-8
AP2815D
MSOP-8
-40 to 85°C
Active Low
without Auto
Discharge
AP2815DMTR-G1
AP2815DMM-G1
AP2815DMMTR-G1
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant
and Green.
Apr. 2012
Rev 1. 7
4
BCD Semiconductor Manufacturing Limited
Advance Datasheet
1.5A High-side Power Distribution Switch with Enable and Flag
AP2815
Absolute Maximum Ratings (Note 1)
Parameter
Power Supply Voltage
Operating Junction Temperature
Range
Storage Temperature Range
Lead Temperature (Soldering, 10sec)
Thermal Resistance
(Junction to Ambient)
Symbol
V
IN
T
J
T
STG
T
LEAD
θ
JA
SOIC-8
MSOP-8
Value
6.0
150
-65 to 150
260
135
150
200
2000
Unit
V
ºC
ºC
ºC
ºC/W
V
V
ESD (Machine Model)
ESD (Human Body Model)
Note 1: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute
Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter
Supply Voltage
Operating Ambient
Range
Temperature
Symbol
V
IN
T
A
Min
2.7
-40
Max
5.5
85
Unit
V
°C
Apr. 2012
Rev 1. 7
5
BCD Semiconductor Manufacturing Limited
