B061-1012-2B9-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-1012-2B9-Z

B061-1012-2B9-Z: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-1012-2B9-Z Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

B061-1012-2B9-Z Parametric

Parameter Name	Attribute value
Objectid	304392489
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.335 inch
body length	0.25 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

HOW TO ORDER:

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

04 thru 80

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

2 - TWO

Drawn Checked

A.M.

S.M.

B.S.

S.M.

HOUSING DIMESIONS:

Height - 8.50mm

Width - 5.00mm

Contact Tail - 3.00mm

CONTACT STYLE:

2 - TUNING FORK

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

RoHS COMPLIANT

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

Date

Appproved

09/02/03

S.M.

12/15/06

S.M.

SMP TECHNOLOGY, INC.

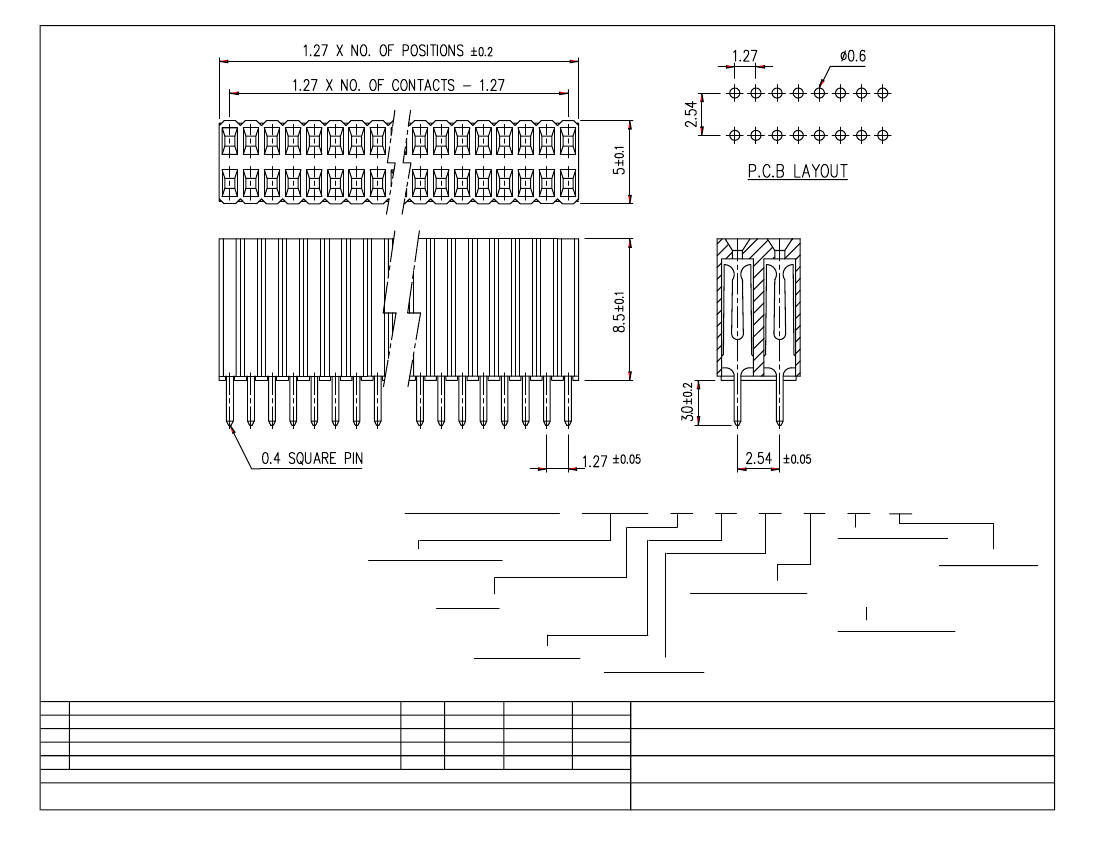

Receptacle Assembly, 2.54mm Pitch, Top Entry, Double Row, Straight

Tuning Fork Contact, 8.5mm Height, 3.00mm Tail Length

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
