DTA114EUARVG Overview

Small Signal Bipolar Transistor

DTA114EUARVG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
Reach Compliance Code	compliant
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

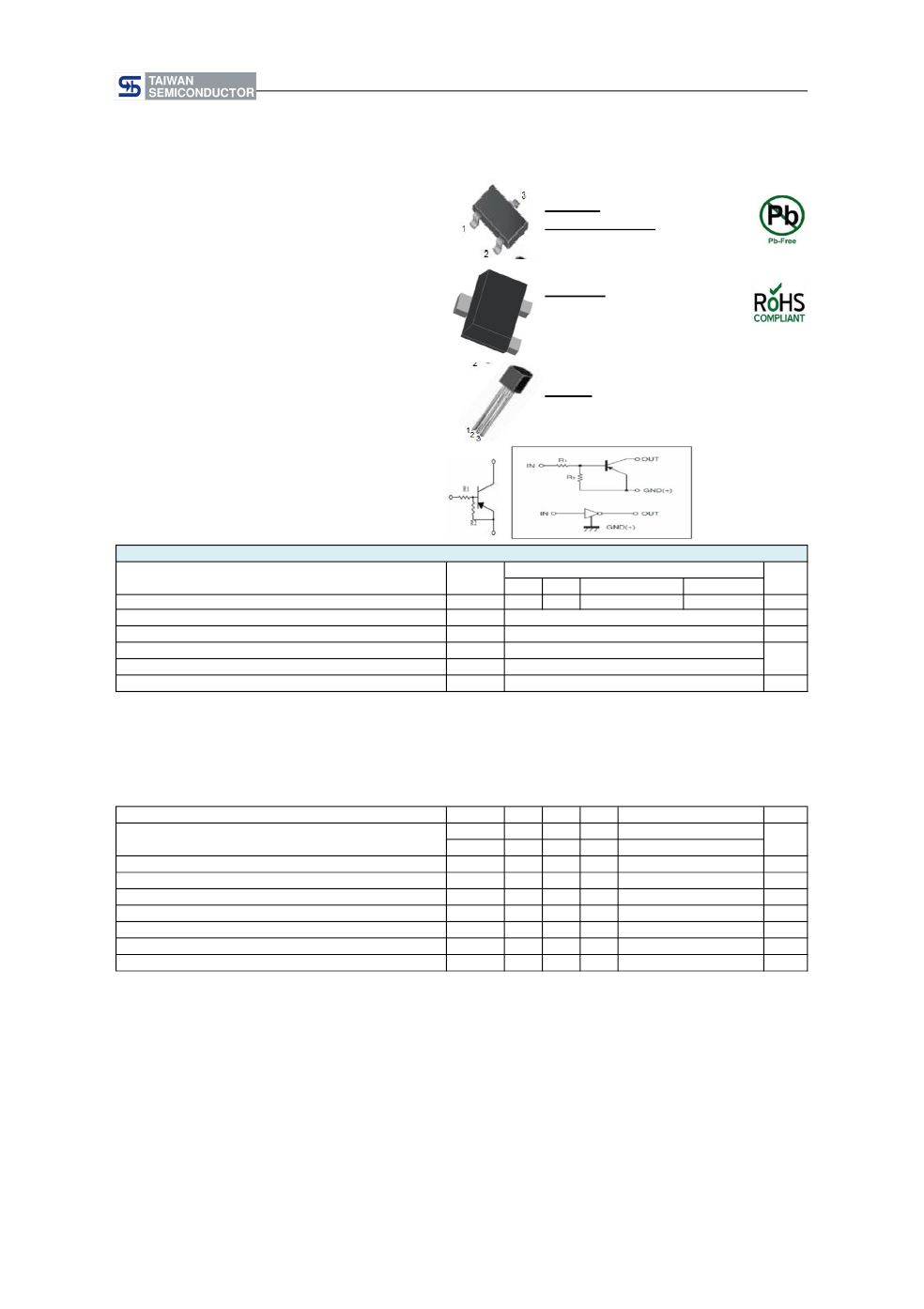

DTA114EM/EE/EUA/ECA/ESA

Taiwan Semiconductor

Small Signal Product

PNP Digital Transistor

FEATURES

- Built-in bias resistors enable the configuration of

an inverter circuit without connecting external input

resistor (see equivalent circuit).

- The bias resistors consist of thin -film resistors with

complete isolation to allow negative biasing of

the input.They also have the advantage of almost

completely eliminating parasitic effects.

- Only the on/off conditions need to be set for

operation,marking device design easy.

- Green compound (Halogen free) with suffix "G"

on packing code and prefix "G" on date code.

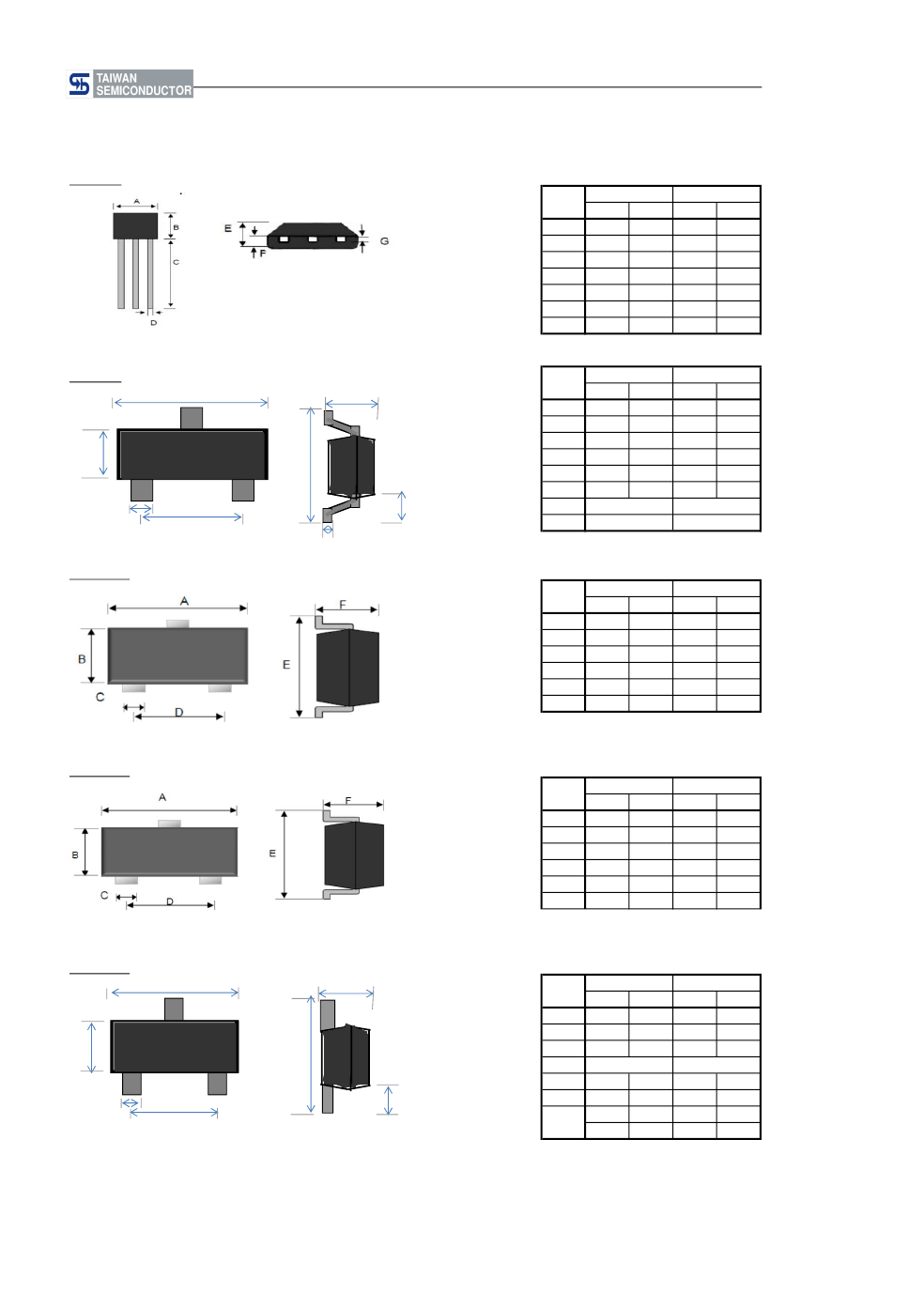

SOT523

/SOT323/SOT23

1. IN 2.GUD 3.OUT

3

SOT-723

1. BASE

2

2. EMITTER

3. COLLECTOR

1

TO92S

1.GUD 2.OUT 3.IN

Equivalent Circuit

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(T

A

=25℃ unless otherwise noted)

PARAMETER

Power Dissipation

Supply Voltage

Input Voltage

Output Current

PeakCollectoCurrent

Junction and Storage Temperature Range

Notes : 1. Valid provided that electrodes are kept at ambient temperature

SYMBOL

PD

V

CC

V

IN

I

O

I

C(MAX)

TJ, T

STG

VALUE

EM

100

EE

150

EUA ECA

200

-50

-40½10

-50

-100

-55 to + 150

ESA

300

UNIT

mW

V

mA

°C

PARAMETER

Input Voltage

Output Voltage

Input Current

Output Current

DC Current Gain

Input Resistance

Resistance Ratio

Transition Frequency

SYMBOL

V

I(on)

V

I(off)

V

O(on)

I

O（off)

G

I

R

1

R

2

/R

1

f

T

MIN

-0.5

TYP

MAX

-3

-0.3

-0.88

-0.5

CONDITION

V

O

=-0.3V,I

O

=-10mA

V

CC

=-5V,I

O

=-100μA

I

O

/I

I

=-10mA/-5mA

V

I

=-5V

V

CC=

-50V,V

I

=0

V

O

=-5V,I

O

=-5mA

UNIT

V

mA

μA

KΩ

30

7

0.8

10

1

250

13

1.2

V

O

=-10V,I

O

=-5mA,f=100MHz

MHz

Document Number：DS_S1402004

Version : C14

DTA114EUARVG Related Products

	DTA114EUARVG	DTA114EUA-M0RVG	DTA114ECA-M0RUG	DTA114ESA-M0A3G	DTA114ESAA3G
Description	Small Signal Bipolar Transistor	Small Signal Bipolar Transistor	Small Signal Bipolar Transistor	Small Signal Bipolar Transistor	Small Signal Bipolar Transistor
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
