TCK280UL150NF20%500VB datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TCK280UL150NF20%500VB

TCK280UL150NF20%500VB: DescriptionCeramic Capacitor, Multilayer, Ceramic, 500V, 20% +Tol, 20% -Tol, 0.15uF, 3212,; CategoryPassive components capacitor; File Size766KB，21 Pages; ManufacturerEXXELIA Group

Download Datasheet Parametric View All

TCK280UL150NF20%500VB Overview

Ceramic Capacitor, Multilayer, Ceramic, 500V, 20% +Tol, 20% -Tol, 0.15uF, 3212,

TCK280UL150NF20%500VB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	929248003
package instruction	, 3212
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.05
capacitance	0.15 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	8 mm
length	8 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	TR
positive tolerance	20%
Rated (DC) voltage (URdc)	500 V
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	5 mm

Preview

Download Datasheet

View All

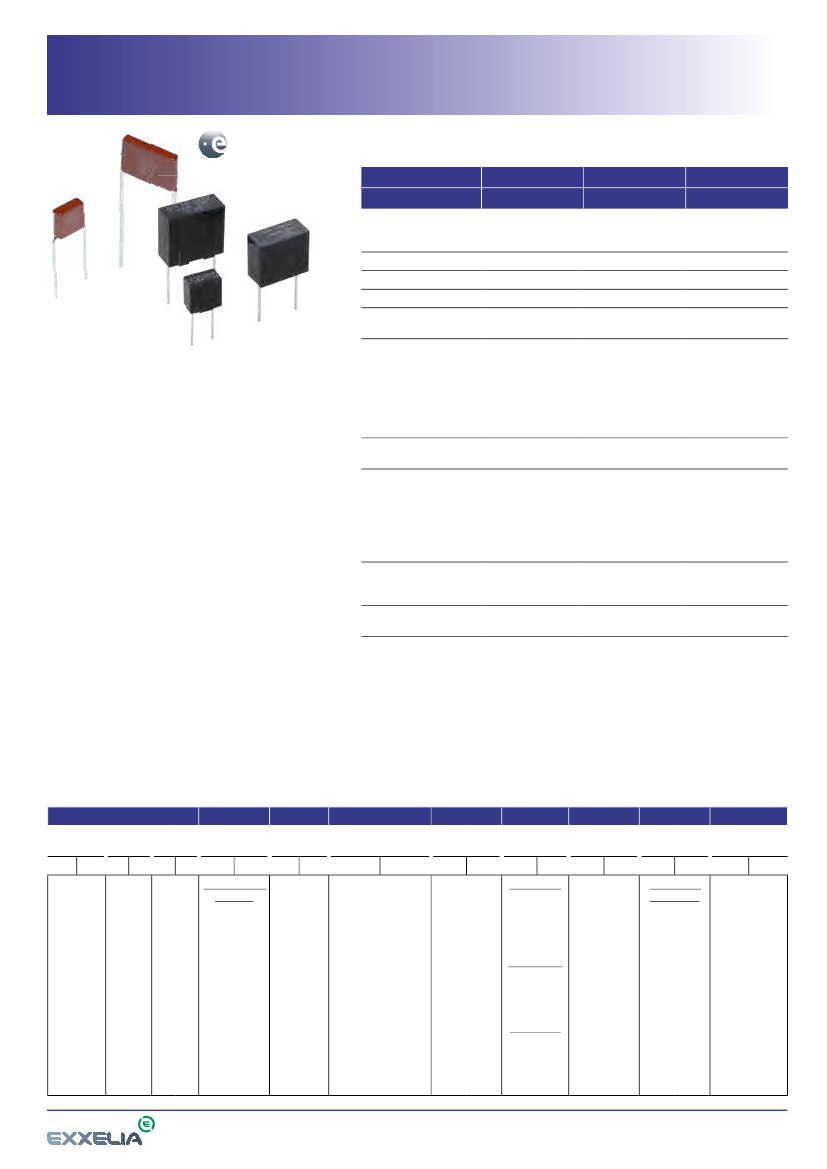

CERAMIC CAPACITORS

TCL / TCK Series

Taping : dimensions

According to (TCK)

ESA Qualiﬁed

High Voltage Molded & Varnished Leaded Capacitors

ELECTRICAL SPECIFICATIONS

DIELECTRIC

Dielectric code

Maximum ∆C/°C

over temperature range without

voltage

Temperature coefﬁcient

Aging

Operating temperature

Rated voltage (U

)

200 V

10,000 V

2.5 U

for U

≤ 500 V

1.6 U

for U

≥ 1,000 V

Extended range:

2 U

for U

≤ 500 V

1.3 U

for U

≥ 1,000 V

at 1MHz for C ≤ 1,000pf

at 1kHz for C > 1,000pf

≤ 0.015 (150/C + 7)% at 1MHz

for C ≤ 50pf

Dissipation factor

≤ 0.15% at 1MHz

for 50pf < C ≤ 1,000pf

≤ 0.15% at 1kHz

for C > 1,000pf

Insulation resistance at 25°C

under U

for U

≤ 500 V

under 500 V

for U

> 500 V

Voltage proof body

insulation

≥ 100,000 MΩ for C ≤ 10nf

≥ 1,000 MΩ.µF for C > 10nf

≥ 20,000 MΩ for C ≤ 25nf

≥ 500 MΩ.µF for C > 25nf

≤ 0.10% at 1kHz

≤ 2.5% at 1kHz

Available space ranges:

consult our detail

speciﬁcations

NPO

(0±30) ppm/°C

None

C4xx

(–2,200±500) ppm/°C

None

–55°C to +125°C

200 V

5,000 V

X7R

±15%

≤ 2.5% per decade hour

FEATURES

• Multilayer chip ceramic capacitors

• NPO, C4xx and X7R dielectrics

• Capacitance range: 10pf to 39

µF

• Voltage range: 200 V

to 10,000 V

Dielectric

withstanding voltage

200 V

10,000 V

2.5 U

for U

= 200 V

2.5 U

for U

= 200 V

2 U

for U

= 500 V

2 U

for U

= 500 V

1.5 U

for U

= 1,000 V

1.5 U

for U

= 1,000 V

1.4 U

for U

> 1,000 V

1.2 U

for U

> 1,000 V

Extended range:

1.5 U

for U

≤ 500 V

Extended range:

1.5 U

for U

≤ 500 V

1.2 U

for U

≥ 1,000 V

1.2 U

for U

≥ 1,000 V

Capacitance

at 1kHz

PHYSICAL CHARACTERISTICS

CONSTRUCTION

•

TCK Series:

molded (semi-hard epoxy resin) radial leaded

chip capacitors for through-hole circuits. Models suited for

harsh environmental conditions.

•

TCL Series:

varnished radial leaded chip capacitors for

through-hole circuits. Models suited to applications for re-

duced size is required with minimum exposure to external

constraint, or to assemblies potted by the user.

MARKING

Series, capacitance value, tolerance, rated voltage clear

or coded for TCK, date code.

Only for TCK Series: under U

for U

≤ 1,250 V

under 1,300 V

for U

> 1,250 V

HOW TO ORDER

TCK

Series

Dielectric

code

Exxelia

size code

UL94VO

compliant

RoHS

compliant

Quality level

680pF

Capacitance

10%

Tolerance

4,000 V

Rated voltage

Packaging

Reliability level

TCK

= Molded

radial leaded

capacitor

TCL

Varnished

radial leaded

capacitor

= NPO

= X7R

= C4xx

Only available for

TCK Series:

= not UL

compliant

= UL94VO

compliant

= No RoHS

= RoHS

compliant

= standard quality level

= Hi-Rel quality:

screening

in accordance with

Exxelia speciﬁcation

Capacitance value

in clear

NPO dielectric:

±1%

±2%

±5%

±10%

±20%

C4xx dielectric:

±2%

±5%

±10%

±20%

X7R dielectric:

±10%

±20%

200 V

500 V

1,000 V

1,500 V

2,000 V

3,000 V

4,000 V

5,000 V

7,500 V

10,000 V

Intermediary and

higher voltages

available: contact

your sales

representative.

For F parts only.

Acc. to Exxelia spec.

= Reel option:

Contact your sales

representative.

See page 15

Only available

for TCK Series:

www.exxelia.com

info@exxelia.com

Page revised 06/20
