TCK280W15NF10%200VB datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TCK280W15NF10%200VB

TCK280W15NF10%200VB: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, 0.015uF, 3212,; CategoryPassive components capacitor; File Size2MB，18 Pages; ManufacturerEXXELIA Group; Environmental Compliance

Download Datasheet Parametric View All

TCK280W15NF10%200VB Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, 0.015uF, 3212,

TCK280W15NF10%200VB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	929259935
package instruction	, 3212
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.05
capacitance	0.015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	8 mm
length	8 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	TR
positive tolerance	10%
Rated (DC) voltage (URdc)	200 V
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WIRE
width	5 mm

Preview

Download Datasheet

View All

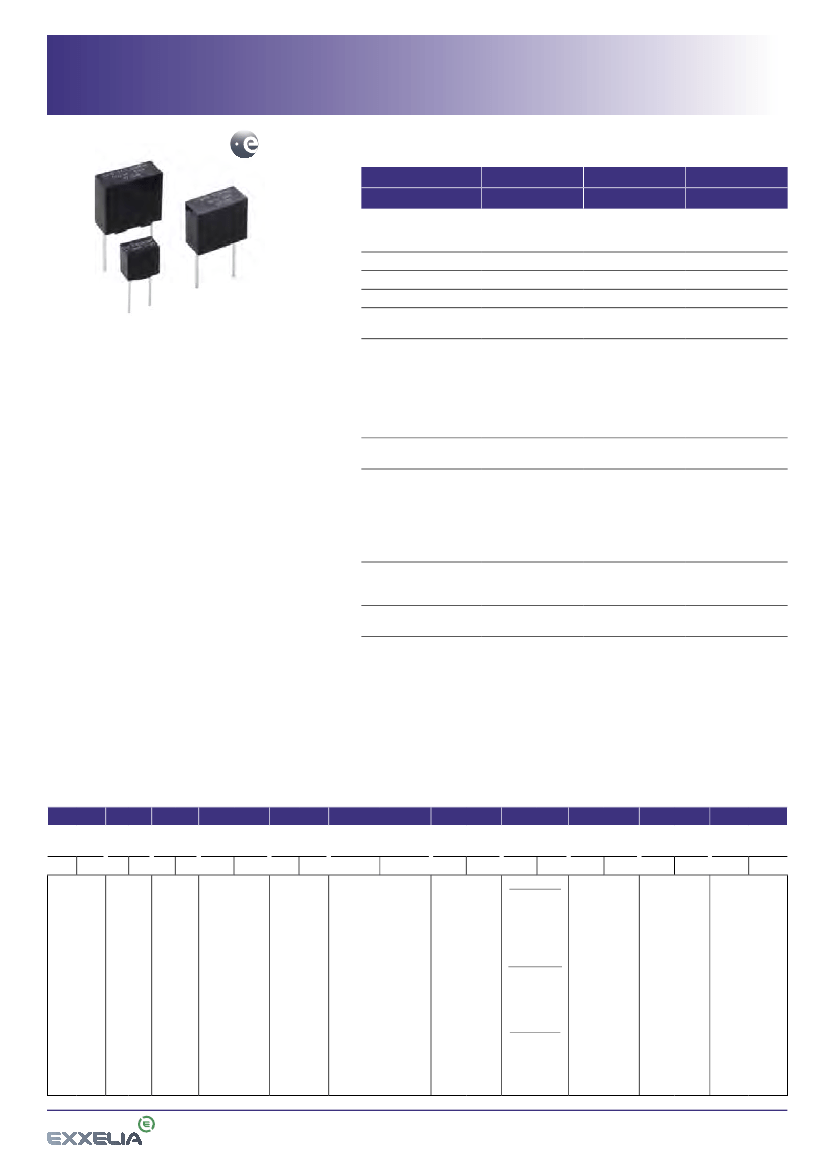

CERAMIC CAPACITORS

Taping : dimensions

TCK Series

According to

ESA Qualiﬁed

High Voltage Molded Leaded Capacitors

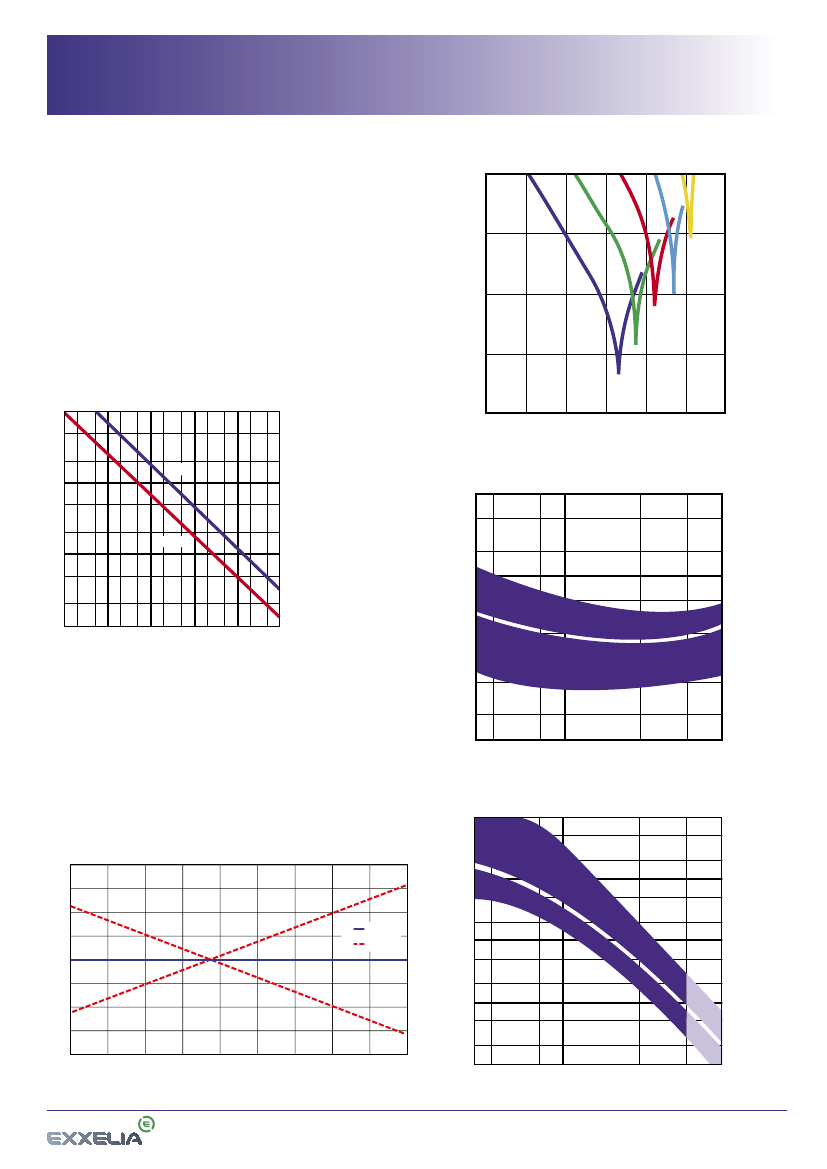

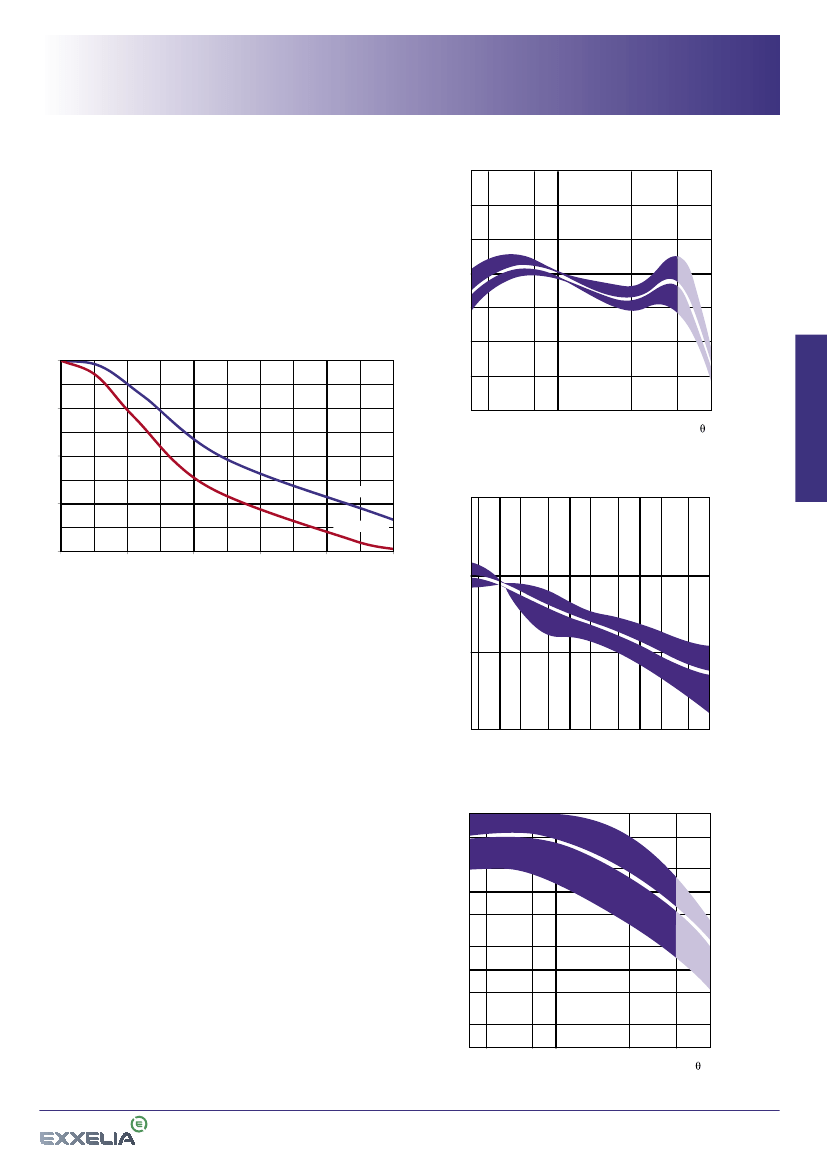

ELECTRICAL SPECIFICATIONS

DIELECTRIC

Dielectric code

Maximum ΔC/°C

over temperature range without

voltage

Temperature coefficient

Aging

Operating temperature

Rated voltage (U

)

200 V

5,000 V

2.5 U

for U

≤ 500 V

1.6 U

for U

≥ 1,000 V

Extended range:

2 U

for U

≤ 500 V

1.3 U

for U

≥ 1,000 V

at 1MHz for C ≤ 1,000pf

at 1kHz for C > 1,000pf

≤ 0.015 (150/C + 7)% at 1MHz

for C ≤ 50pf

Dissipation factor

≤ 0.15% at 1MHz

for 50pf < C ≤ 1,000pf

≤ 0.15% at 1kHz

for C > 1,000pf

Insulation resistance at 25°C

under U

for U

≤ 500 V

under 500 V

for U

> 500 V

Voltage proof body

insulation

≥ 100,000 MΩ for C ≤ 10nf

≥ 1,000 MΩ.µF for C > 10nf

≥ 20,000 MΩ for C ≤ 25nf

≥ 500 MΩ.µF for C > 25nf

≤ 0.10% at 1kHz

≤ 2.5% at 1kHz

Available space ranges:

consult our detail

specifications

NPO

(0±30) ppm/°C

None

C4xx

(–2,200±500) ppm/°C

None

–55°C to +125°C

200 V

5,000 V

X7R

±15%

≤ 2.5% per decade hour

FEATURES

• Multilayer chip ceramic capacitors

• NPO, C4xx and X7R dielectrics

• Capacitance range: 10pf to 39

µF

• Voltage range: 200 V

to 5,000 V

Dielectric

withstanding voltage

200 V

5,000 V

2.5 U

for U

= 200 V

2.5 U

for U

= 200 V

2 U

for U

= 500 V

2 U

for U

= 500 V

1.5 U

for U

= 1,000 V

1.5 U

for U

= 1,000 V

1.4 U

for U

> 1,000 V

1.2 U

for U

> 1,000 V

Extended range:

1.5 U

for U

≤ 500 V

Extended range:

1.5 U

for U

≤ 500 V

1.2 U

for U

≥ 1,000 V

1.2 U

for U

≥ 1,000 V

Capacitance

at 1kHz

PHYSICAL CHARACTERISTICS

CONSTRUCTION

Varnished radial leaded chip capacitors for through-hole

circuits. Models suited to applications for reduced size is

required with minimum exposure to external constraint, or

to assemblies potted by the user.

MARKING

Series, capacitance value, tolerance, rated voltage coded,

date code.

Under U

for U

≤ 1,250 V

Under 1,300 V

for U

> 1,250 V

HOW TO ORDER

TCK

Series

Dielectric

code

Exxelia

size code

UL94VO

compliant

RoHS

compliant

Quality level

680pF

Capacitance

10%

Tolerance

4,000 V

Rated voltage

Packaging

Reliability level

TCK

= Molded

radial leaded

capacitor

= NPO

= X7R

= C4xx

= not UL

compliant

= UL94VO

compliant

= No RoHS

= RoHS

compliant

= standard quality level

= Hi-Rel quality:

screening

in accordance with

Exxelia specification

Capacitance value

in clear

NPO dielectric:

±1%

±2%

±5%

±10%

±20%

C4xx dielectric:

±2%

±5%

±10%

±20%

X7R dielectric:

±10%

±20%

200 V

500 V

1,000 V

1,500 V

2,000 V

3,000 V

4,000 V

5,000 V

7,500 V

10,000 V

Intermediary and

higher voltages

available: contact

your sales

representative.

= Reel option:

For F parts only.

Contact your sales Acc. to Exxelia spec.

representative.

See page 15

www.exxelia.com

info@exxelia.com

Page revised 02/21
