2-801515-2012

Description
D Type Connector, 30 Contact(s), Male, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size315KB,3 Pages
ManufacturerI C C Inc
Download Datasheet Parametric View All

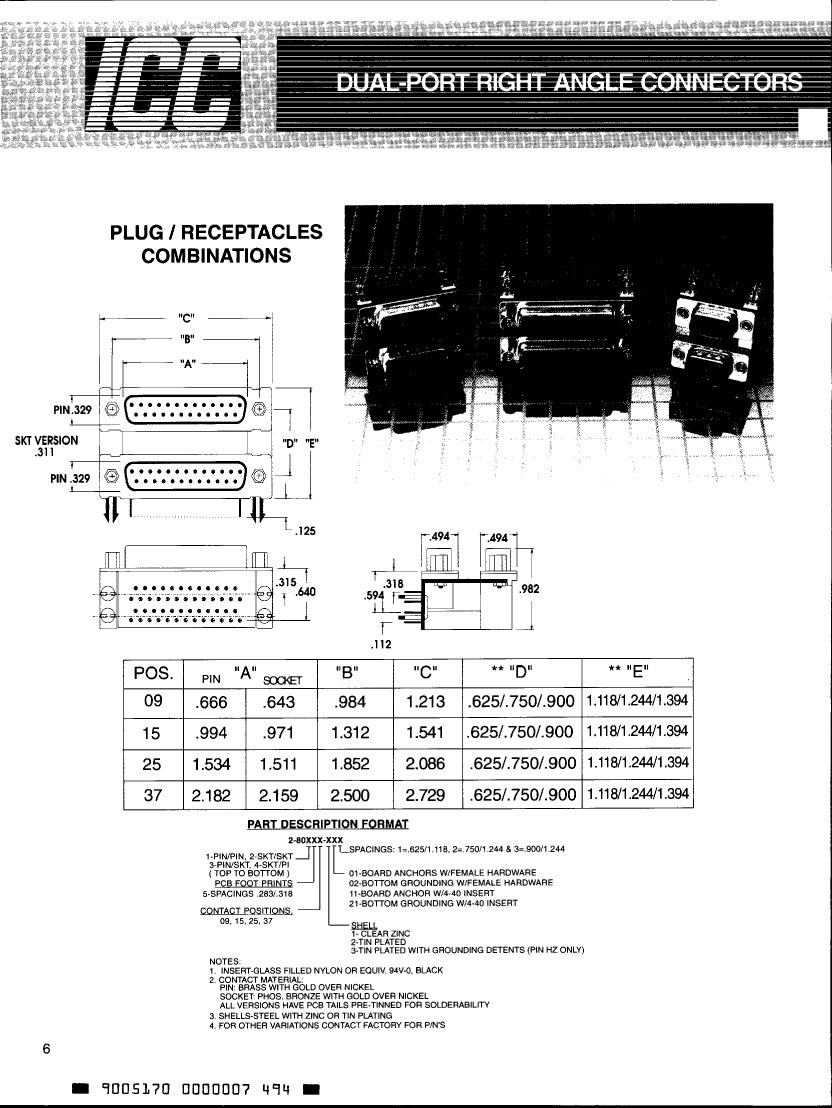

2-801515-2012 Overview

D Type Connector, 30 Contact(s), Male, Solder Terminal, Receptacle

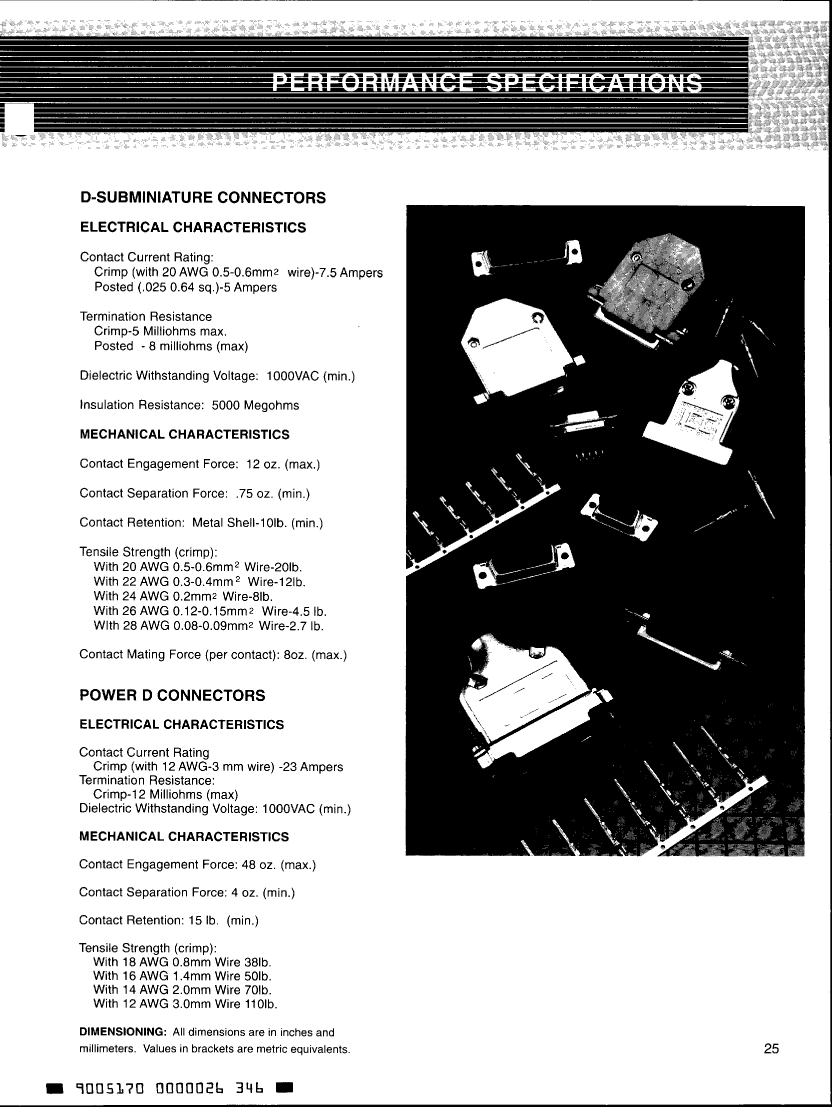

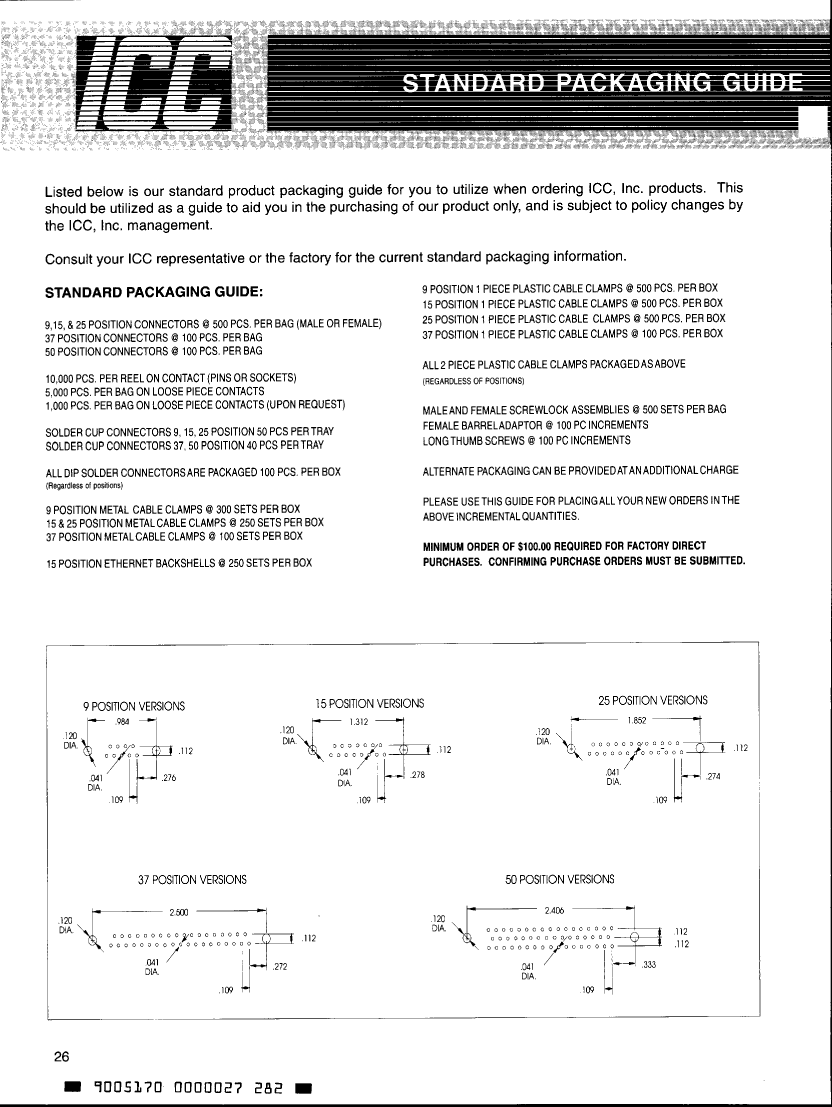

2-801515-2012 Parametric

Parameter NameAttribute value
Objectid1166330896
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Other featuresBOARD ANCHORS
body width1.244 inch
body length1.541 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance8 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYAMIDE
Installation option 2HEX HEAD
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number4
Number of rows loaded4
Rated current (signal)5 A
GuidelineUL, CSA
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.125 inch
Termination typeSOLDER
Total number of contacts30
Evacuation force-minimum value.1946 N
