54F194/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F194/B2A

54F194/B2A: DescriptionParallel In Parallel Out, F/FAST Series, 4-Bit, Bidirectional, True Output, TTL, CQCC20; Categorylogic logic; File Size237KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F194/B2A Overview

Parallel In Parallel Out, F/FAST Series, 4-Bit, Bidirectional, True Output, TTL, CQCC20

54F194/B2A Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	HOLD MODE
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	46 mA
propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Trigger type	POSITIVE EDGE
minfmax	150 MHz
Base Number Matches	1

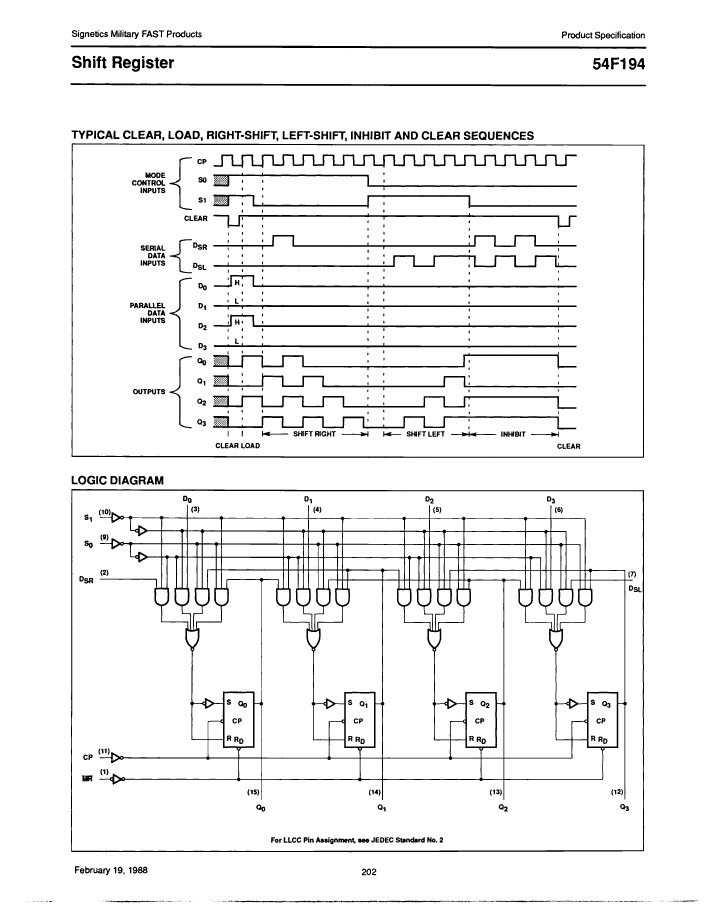

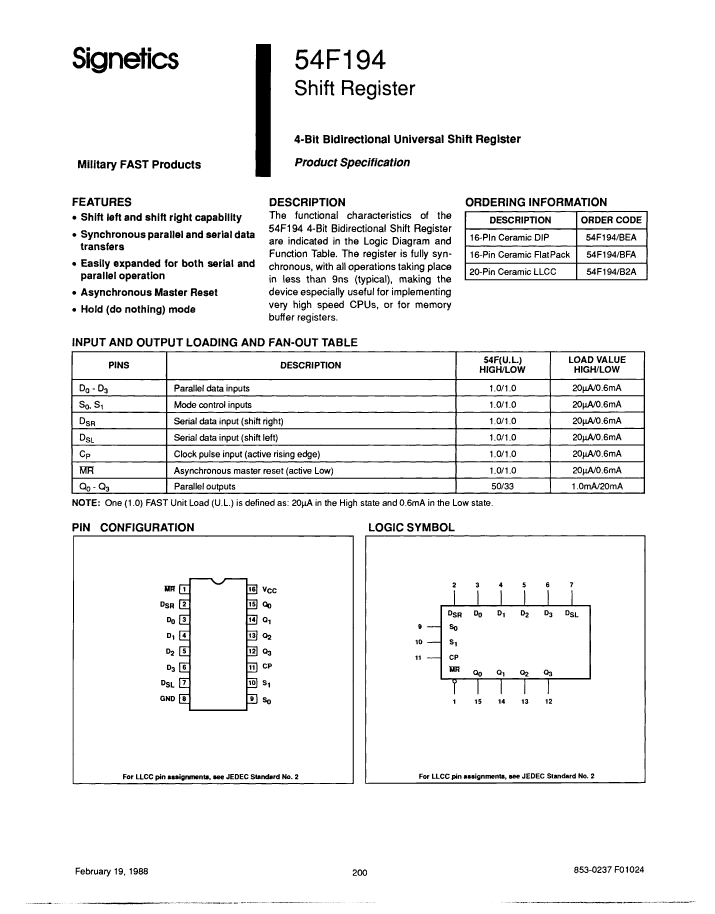

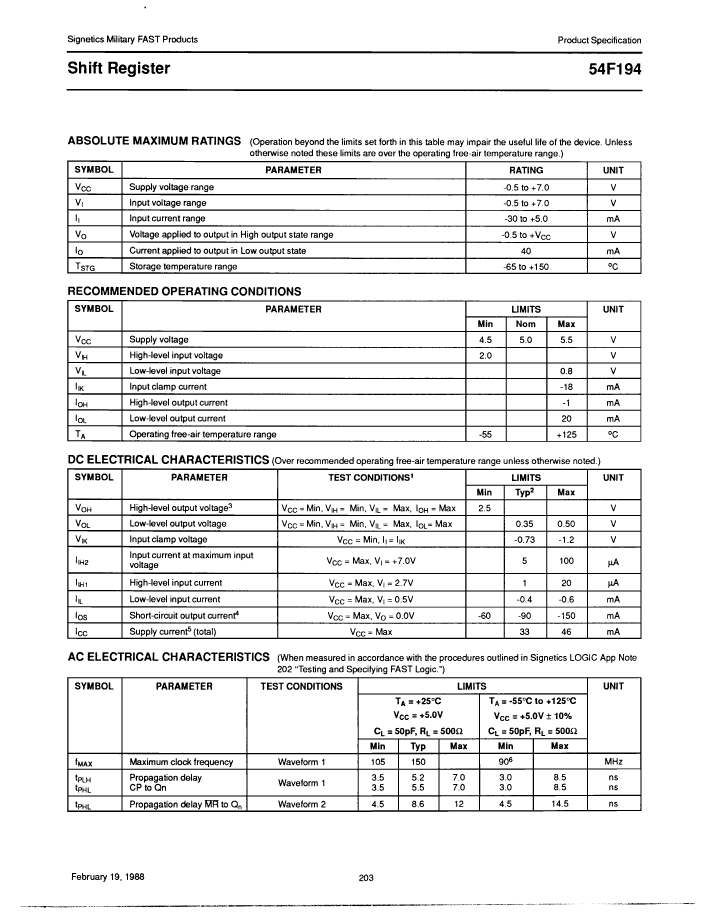

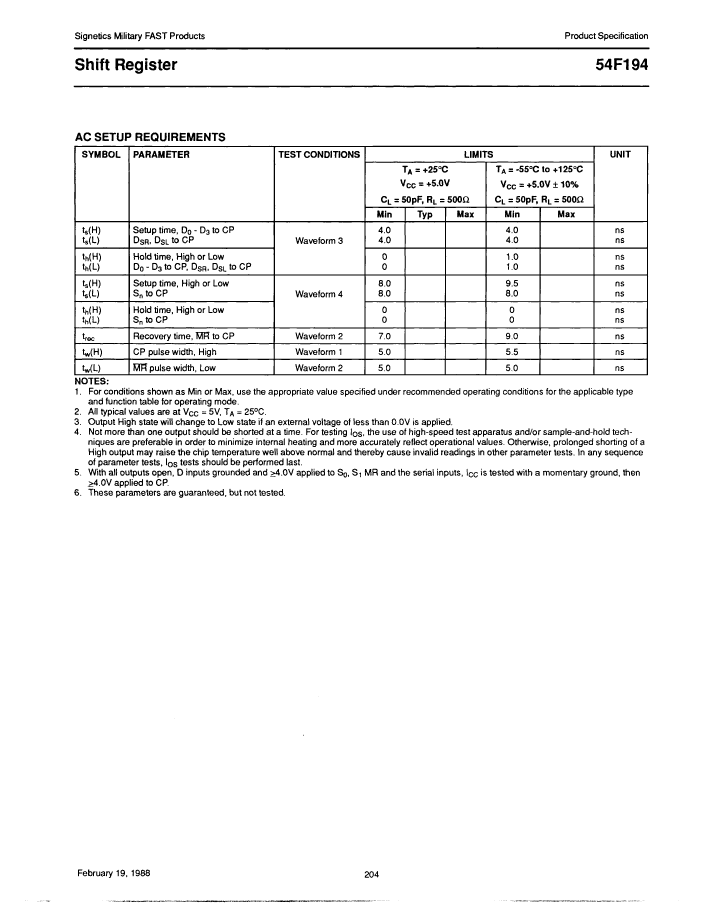

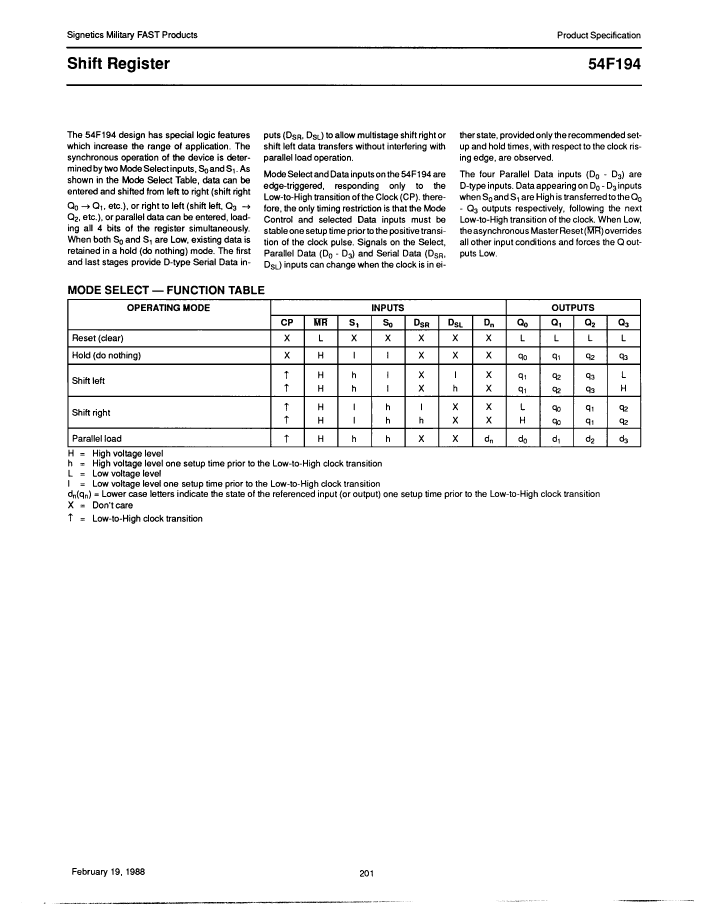

Preview

Download Datasheet

View All

54F194/B2A Related Products

	54F194/B2A	54F194/BFA	54F194/BEX	54F194/BEA
Description	Parallel In Parallel Out, F/FAST Series, 4-Bit, Bidirectional, True Output, TTL, CQCC20	Parallel In Parallel Out, F/FAST Series, 4-Bit, Bidirectional, True Output, TTL, CDFP16	Parallel In Parallel Out, F/FAST Series, 4-Bit, Bidirectional, True Output, TTL, CDIP16, CERAMIC, DIP-16	Parallel In Parallel Out, F/FAST Series, 4-Bit, Bidirectional, True Output, TTL, CDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	HOLD MODE	HOLD MODE	HOLD MODE	HOLD MODE
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	20	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE
propagation delay (tpd)	8.5 ns	8.5 ns	8.5 ns	8.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	150 MHz	150 MHz	150 MHz	150 MHz
Base Number Matches	1	1	1	1
Load capacitance (CL)	50 pF	50 pF	-	50 pF
Maximum supply current (ICC)	46 mA	46 mA	-	46 mA
Maker	-	YAGEO	YAGEO	YAGEO
