BK1/S506-32MAV

Description
TIME DELAY BLOW ELECTRIC FUSE, 0.032A, 250VAC, 35A (IR), THROUGH HOLE
CategoryCircuit protection    Circuit protection
File Size260KB,2 Pages
ManufacturerEaton
Download Datasheet Parametric View All

BK1/S506-32MAV Overview

TIME DELAY BLOW ELECTRIC FUSE, 0.032A, 250VAC, 35A (IR), THROUGH HOLE

BK1/S506-32MAV Parametric

Parameter NameAttribute value
MakerEaton
Reach Compliance Codeunknown
ECCN codeEAR99
Fusing characteristicsTIME DELAY
body height21.1 mm
Body length or diameter5.54 mm
Circuit protection typeELECTRIC FUSE
JESD-609 codee3
Joule integral nominal
Manufacturer's serial numberS506
Installation featuresTHROUGH HOLE
method of packingBAG
physical size5.54mm x 21.1mm
Rated breaking capacity35 A
Rated current0.032 A
Rated voltage (AC)250 V
GuidelineBSI; CSA; IMQ; MITI; SEMKO; UL; VDE
surface mountNO
Terminal surfaceTIN
Terminal shapePIN WIRE
Base Number Matches1
5mm x 20mm Fuses
S506 Series, Time Delay, Glass Tube
Description
• Time delay, low breaking capacity
• Optional axial leads available
• 5mm x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Designed to IEC 60127-2 (32mA-10A)
S506 ELECTRICAL CHARACTERISTICS
2.1 In
2.75 In
4 In
10 In
In
max
min
max
min
max
min
max
32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec 10 ms 300 ms
125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms
8A-12.5A
2 min 600 ms 10 sec 150 ms 3 sec 20 ms 300 ms
RoHS
2002/95/EC

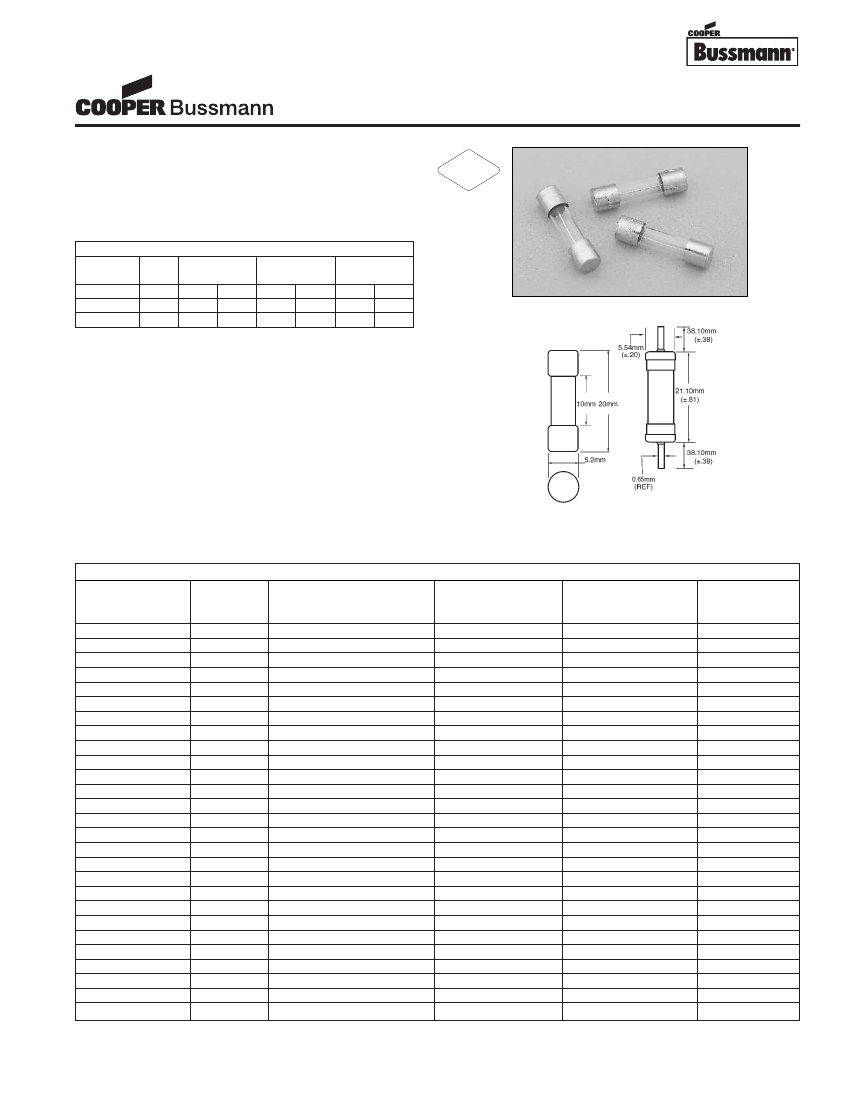

Dimensions
Drawing Not to Scale
Agency Information
• UL Recognized Card: (32mA-10A) Guide JDYX2,
File E19180
• CSA Component Acceptance: File 53787
• cURus Recognition: Guide JDYX8, File E19180
• Semko Approval, 32mA-10A
• VDE Approval, 32mA-10A
• BSI Approval, 32mA-10A
• IMQ Approval, 32mA-10A
• MITI Approval, 32mA-10A
Ordering
• Specify packaging, product, and option code
• For -R option, drop mA or A from product code
(i.e. S506-2-R)
• Ratings above 6.3A have a 0.8mm diameter lead
• With TR2 packaging code, lead wire length is 19.05mm
SPECIFICATIONS
Product Code
S506-32mA
S506-40mA
S506-50mA
S506-63mA
S506-80mA
S506-100mA
S506-125mA
S506-160mA
S506-200mA
S506-250mA
S506-315mA
S506-400mA
S506-500mA
S506-630mA
S506-800mA
S506-1A
S506-1.25A
S506-1.6A
S506-2A
S506-2.5A
S506-3.15A
S506-4A
S506-5A
S506-6.3A
S506-8A
S506-10A
S506-12.5A
Voltage
Rating
AC
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
Interrupting Rating
at Rated Voltage (50Hz)
AC
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
35A
40A
50A
63A
80A
100A
125A
Typical DC
Cold Resistance
(ohms)*
21.7
14.2
9.5
7.1
4.5
2.8
2.0
1.3
1.0
0.66
0.46
0.37
0.268
0.191
0.131
0.064
0.046
0.039
0.029
0.024
0.018
0.013
0.010
0.009
0.007
0.005
0.004
Minimum
Pre-Arching I
2
t
(A
2
Sec) AC†
0.0014
0.0034
0.006
0.012
0.015
0.022
0.034
0.052
0.078
0.17
0.41
0.61
0.67
1.0
2.2
2.7
6.7
9.7
15
25
51
88
150
214
192
420
812
Maximum
Voltage
Drop (mV)‡
1050
920
800
760
580
490
390
320
340
270
250
210
190
170
150
90
85
85
85
85
80
80
75
75
80
75
75
* DC Cold Resistance (Measured at <10% of rated current)
† Minimum Pre-Arching I
2
t (Measured at 10 In and rated voltage)
‡ Maximum Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
