050-356 PRODUCT BRIEF
PCB Mount CWDM Dual-Transmitter
100 Mbps – 2.5 Gbps SMF, 3.3V
PCB Mount CWDM Dual-Transmitter, 100Mbps-2.5Gbps, SMF, 3.3V
Glenair 050-356, is a ruggedized harsh environment PC Board Mount Dual-
transmitter with electrical and optical functionality similar to transmitters in SFP
transceivers but with mechanical design that is suited to the harsh temperature and
vibration environments found in Military, Aerospace, Railway, Oil and Gas, and
Industrial applications. The board mount optical dual-transmitters also support Digital
Monitoring Interface (DMI) features in accordance with SFF 8472. The dual-transmitter
interfaces with a host board through a high speed electrical connector.
Each transmitter includes a Transmitter Optical Subassembly (TOSA) and
laser driver circuitry. The TOSA incorporates ITU CWDM wavelength DFB lasers to
convert electrical signals to fiber optic signals; the output of the TOSA mates with the
GC optical connector. The laser driver circuitry regulates the optical output power at
relatively constant levels over operating conditions for signals data patterns that are
DC balanced (for example 8B10B encoding).
KEY FEATURES/BENEFITS
SFP Compatible Electrical I/O signal levels
Industry standard CML input and outputs that make
for simple integration on customer host PCB
CWDM DFB Lasers to support up to 2.5 Gbps
Glenair Rugged GC Optical connector withstand
high shock and vibration
Dual-transmitter is securely mounted with screws to
PCB to ensure excellent shock and vibration
performance
High-Speed Electrical plug-in connector eliminates
the need for soldering & enables ease of servicing
Captive screws to simplify assembly operations
Compact size: ~ 0.8” x 0.9” x 0.5”
-40°C to +85°C Operating Case Temperature
Glenair fiber jumpers, FA02454, connect from dual-
transmitter to any Glenair Mil/Aero Fiber Optic
Connector
Evaluation fixtures available
Digital Diagnostic and Monitoring (DMI) based on
SFF-8472, enables monitoring of:
o
TX optical power for each channel, Laser
bias current, Temperature, Supply Voltage
APPLICATIONS
Harsh Environment such as: Airborne, Tactical,
Railway, Industrial, Oil and Gas and Shipboard
applications
o
Ethernet, FC 1x, 2x, SFPDP
Example:

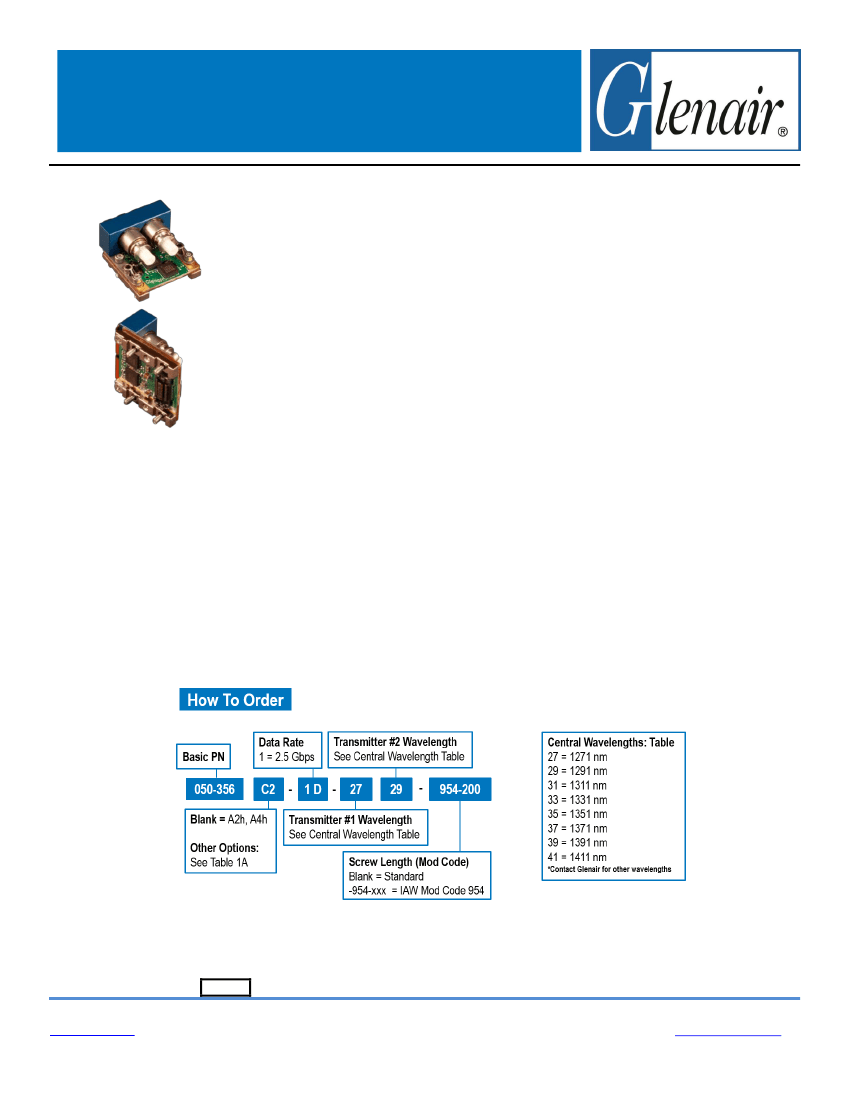

050-356C2-1D-2729
PCB Mount CWDM Transceiver, SMF, 1271nm & 1291nm, Two Wire Address = C2h & C4h, Data Rate = 100 Mbps – 2.5 Gbps,
Standard Temperature Range, Standard Screw Length
**Temperature and Screw Length Mod Codes will not be added onto Digital Memory ID (See Table 9)
©2015 Glenair, Inc.
REV: 5
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 2 of 17
050-356 PRODUCT BRIEF
PCB Mount CWDM Dual-Transmitter
100 Mbps – 2.5 Gbps SMF, 3.3V
T
ABLE
1A TWO WIRE ADDRESS –IDENTIFIER OPTIONS
Transceiver #1
Transceiver #2
Address
Address
A2h
A4h
A6h
A8h
B2h
B4h
B6h
B8h
C2h
C4h
C6h
C8h
D2h
D4h
D6h
D8h
E2h
E4h
E6h
E8h
*Contact Glenair if additional addresses required
PN Identifier
Blank
A6
B2
B6
C2
C6
D2
D6
E2
E6
©2015 Glenair, Inc.
REV: 5
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 3 of 17
050-356 PRODUCT BRIEF
PCB Mount CWDM Dual-Transmitter
100 Mbps – 2.5 Gbps SMF, 3.3V
Ratings and Specifications
T
ABLE
2 A
BSOLUTE
M
AXIMUM
R
ATINGS
Parameter
Storage Temperature
Supply Voltage
Symbol
Ts
V
cc
Min
-55
-0.4
Typ
Max
+100
3.8
Units
°C
V
VccT may not differ by more than
0.5V
Notes
T
ABLE
3 O
PERATING
C
ONDITIONS
Parameter
Operating Temperature, Case
Supply Voltage
Supply Current
Power Supply Noise (Peak-Peak)
Symbol
T
op
V
cc
Icc
V
cc_ripple
Min
-40
3.135
3.3
180
Typ
Max
+85
3.465
250
100
Units
°C
V
mA
mV
Typical @ +85°C
Notes
T
ABLE
4 E
LECTRO
-O
PTICAL
C
HARACTERISTICS
– T
RANSMITTER
Parameter
Optical Output Power
Extinction Ratio, 1.25Gbps
Optical Wavelength, “27”, 1271 nm
Optical Wavelength, “29”, 1291 nm
Optical Wavelength, “31”, 1311 nm
Optical Wavelength, “33”, 1331 nm
Optical Wavelength, “35”, 1350 nm
Optical Wavelength, “37”, 1370 nm
Optical Wavelength, “39”, 1399 nm
Optical Wavelength, “41”, 1410 nm
Spectral Width, rms
Side Mode Suppression Ratio
Relative Intensity Noise
Transmitter Differential Input Impedance
Differential Input Voltage
Δλ
SMSR
RIN
Zin
Vin_d
250
100
2200
30
-117
Symbol
P
OUT
Er
λ
OUT
Min
-1
5
1261
1281
1301
1321
1341
1361
1381
1401
Typ
1.5
10
1271
1291
1311
1331
1351
1371
1391
1411
1278.5
1298.5
1318.5
1338.5
1358.5
1378.5
1398.5
1418.5
1
nm
dB
dB/Hz
Ohms
mV
p-p
AC coupled Internally
CML, 100 ohm
Max
+3.5
Units
dBm
dB
nm
Notes
100Mbps – 2.5 Gbps
Exceeds OMA for GbE, 1FC
T
ABLE
6 C
OMPLIANCE
S
PECIFICATIONS
CHARACTERISTIC
Mechanical Shock
Mechanical Vibration
ESD
Flame Resistance
Damp Heat
Eye Safety
Standard
MIL-STD-810
MIL-STD-810
MIL-STD-883
MIL-STD-1344
MIL-STD-1344
CDRH and IEC-825
Method 1012, Cond. B
Method 1002.2, Cond. B
Class 1 Laser Product
Condition
Para. 516.6, proc. I, 650g
Para. 514.6,
40g rms
Notes
0.9 ms operating
Random, operating
1000V HBM
30 seconds
10 cycles , 24 hours
©2015 Glenair, Inc.
REV: 5
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 4 of 17
050-356 PRODUCT BRIEF
PCB Mount CWDM Dual-Transmitter
100 Mbps – 2.5 Gbps SMF, 3.3V
Ratings and Specifications (continued)
T
ABLE
7 M
ATERIAL
/F
INISH
Item
PCB
PCB flex
Railings
Screws
Optical Ferrules & Sleeves
Solder type
Material/Finish
FR4
FR4 & Polyimide
Aluminum 6061-T6 per ASTM-B221/B211M or Equivalent
CRES Type, 302, 303, 304, 305, or 316
Zirconia, Ceramic
RoHS compliant Sn95/Sb5 (232°C melting temp) &
RoHS compliant Sn96.5/Ag3.0/Cu0.5 (217° melting)
