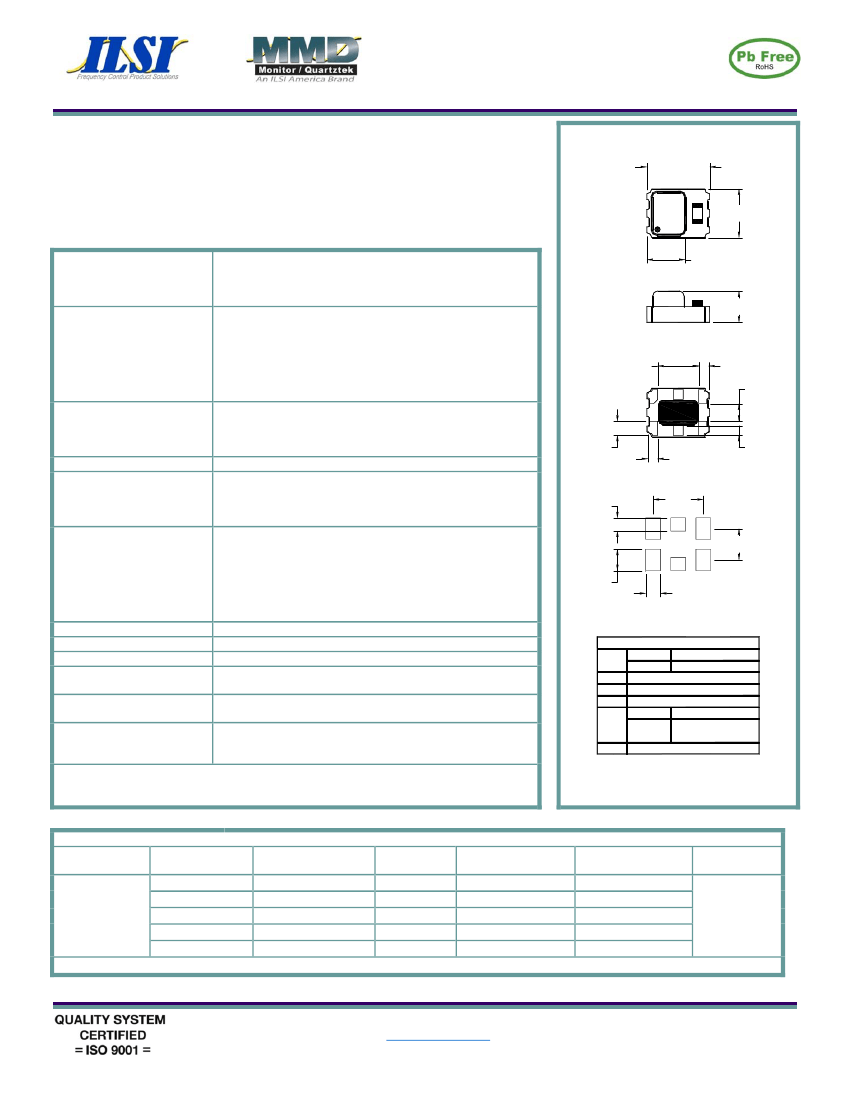

3.2 mm x 2.5 mm 6 Pads SMD TCXO or TC/VCXO Oscillator
Product Features:
Advanced PLL Technology
0.8 pSec Phase Jitter typ.
Fast Delivery
RoHS and Lead Free Compliant
Applications:
Server & Storage
CDMA / WCDMA
802.11 / Wifi
T1/E1. T3/E3
I595 / I795 Series
3.20±0.10
Marking
2.50±0.10
Frequency
LVCMOS
LVPECL
LVDS
Output Levels
LVCMOS
LVPECL
LVDS
Load
LVCMOS
LVPECL
LVDS
Duty Cycle
Rise / Fall Time
LVCMOS
LVPECL
LVDS
Frequency Stability
Initial Calibration Tolerance
vs. Temperature
vs. Aging
vs. Voltage
vs. Load
vs. Reflow
Start-up Time
Supply Voltage (±5%)
Current
Current with Output
Disabled
Phase Noise (RMS)
2.00±0.20
10.000 MHz to 245.000 MHz
10.000 MHz to 1450.000 MHz
10.000 MHz to 1450.000 MHz
Logic
Logic
Logic
Logic
Logic
Logic
“0”
“1”
“0”
“1”
“0”
“1”
=
=
=
=
=
=
10% of Vcc max
90% of Vcc min
Vcc – 1.85 Vmin, Vcc – 1.60 V max
Vcc – 1.03 V min, Vcc -0.60 V max
1.10 V typ, 0.90 V min
1.40 V typ, 1.60 V max
1.60±0.10
2.10
2
.50
.90
1
3
15pF
Differential
Differential
50% ±5% (Ref to 50% of waveform)
1.5 nSec typ, 3.0 nSec max (10% to 90% of waveform)
0.2 nSec typ, 0.5 nSec max (20% to 80% of waveform)
0.2 nSec typ, 0.4 nSec max (20% to 80% of waveform)
±1.0 ppm max at +25ºC ±2ºC at time of shipment
See Stability in Part Number Guide
±1.0 ppm max per year at +25ºC
±0.2 ppm max for a ±5% change in Supply Voltage (Vcc)
±0.2 ppm max for a ±10% change in load
±1.0 ppm max after 1 reflow and measured 24 hours after.
5 mSec max
+2.50 VDC , +3.30 VDC See Part Number Guide
See table 1 sheet 2
18 mA typ
0.8 pSec typ (12.000 kHz to 20.000 MHz)
Less than 400nSec (1.875 kHz to 21.000 MHz)
6
.72
5
.50
4
.50
.68
2.56
1.60
1.10
.75
Suggested
Land Pattern
Pin Connections
Voltage Control
TCVCXO
N/C or Ground
TCXO
N/C or Enable / Disable
Ground
Output
N/C
LVCMOS
LVPECL
Complementary Output
LVDS
Supply Voltage (Vcc)
Dimensions in mm
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Temperature Range
Operating
See Operating Temperature in Part Number Guide
Storage
-55ºC to +150ºC
Notes:
1. An 0.01 µF and 10 µF bypass capacitors are recommended between Vcc (Pin 6) and GND
(Pin 3) to minimize power supply noise
Part Number Guide
Package
Input Voltage
3 = +3.3 V
6 = +2.5 V
1
2
3
5
=
=
=
=
Operating
Temperature
0ºC to +70ºC
-40ºC to =85ºC
-20ºC to +70ºC
-30ºC to +85ºC
Stability
(in ppm)
0 = ±1.5*
P = ±2.0*
Q = ±2.5*
R = ±3.0
J = ±5.0
Output
3 = LVCMOS
8 = LVDS
9 = LVPECL
I595 = TCXO
I795 = TCVCXO
Sample Part Number: I595-63Q8H-20.000
Enable / Disable
Frequency
(Pin 2)
H = Enable
O = N/C
20.000 MHz
* Not
available for all temperature ranges
ILSI America Phone 775-851-8880
●
Fax 775-851-8882
●email:
e-mail@ilsiamerica.com
●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 3/28/15_D
Page 1 of 3

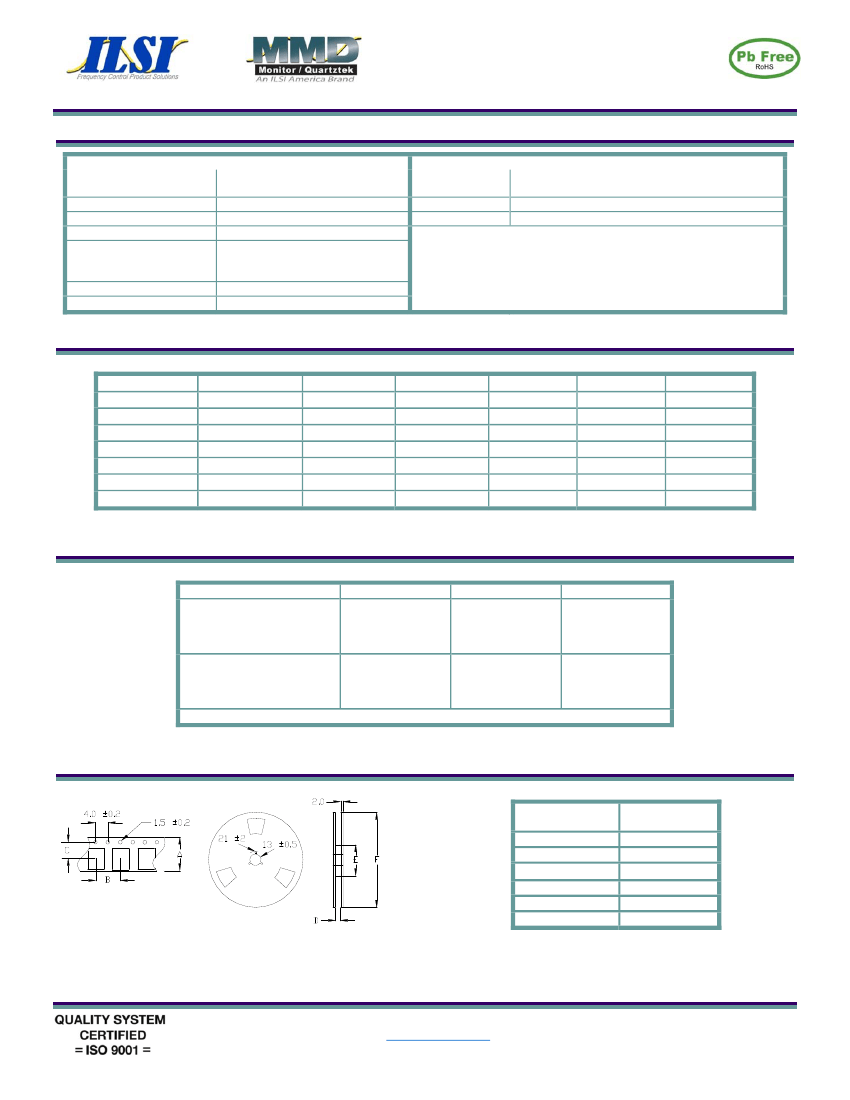

3.2 mm x 2.5 mm 6 Pads SMD TCXO or TC/VCXO Oscillator
Pin Select Funtions
Voltage Control Function (Pin 1) I795 only
+1.5 V ±1.0 V for both Vcc = +2.5
VC Voltage Center & Range
V & +3.3 V
Frequency Pull Range
±8.0 ppm
Linearity
±1% typ, ±10% max
Transfer Function
Positive
Absolute Voltage
+3.63 V max
Vcc = +3.3 V
+2.63 V max
Vcc = +2.5 V
Input Impedance
770 kΩ typ
Harmonics
-5.0 dBc max
SSB Phase Noise
I595 / I795 Series
E/D Function (Pin 2)
0.7% of Vcc min or no connection enable output
E/D Control
0.3% of Vcc max to disable output (high impedance)
E/D Time
200 nSec max
Disable Time
50 nSec max
Offset
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
Supply Current
77.76
-62 dBc/Hz
-100 dBc/Hz
-116 dBc/Hz
-122 dBc/Hz
-124 dBc/Hz
-144 dBc/Hz
-152 dBc/Hz
156.25
-65 dBc/Hz
-92 dBc/Hz
-108 dBc/Hz
-114 dBc/Hz
-117 dBc/Hz
-139 dBc/Hz
-147 dBc/Hz
212.50
-61 dBc/Hz
-90 dBc/Hz
-106 dBc/Hz
-110 dBc/Hz
-112 dBc/Hz
-133 dBc/Hz
-142 dBc/Hz
622.08
-51 dBc/Hz
-79 dBc/Hz
-97 dBc/Hz
-102 dBc/Hz
-103 dBc/Hz
-125 dBc/Hz
-134 dBc/Hz
1000.00
-40 dBc/Hz
-73 dBc/Hz
-91 dBc/Hz
-99 dBc/Hz
-99 dBc/Hz
-121 dBc/Hz
-129 dBc/Hz
1250.00
-43 dBc/Hz
-75 dBc/Hz
-89 dBc/Hz
-95 dBc/Hz
-96 dBc/Hz
-117 dBc/Hz
-127 dBc/Hz
Current Consumption
Vcc = +2.50 VDC
All values are typical an over
the operating temperature.
Vcc = +3.30 VDC
All values are typical an over
the operating temperature.
LVCMOS
50 MHz = 24mA
125 MHz = 28 mA
200 MHz = 30 mA
50 MHz = 26mA
125 MHz = 30 mA
200 MHz = 34 mA
Table 1
LVPECL
156 MHZ = 36mA
600 MHz = 40mA
800 MHz = 46mA
1.0G Hz = 50mA
156 MHZ = 40mA
600 MHz = 45mA
800 MHz = 48mA
1.0G Hz = 52mA
LVDS
156 MHZ = 22mA
600 MHz = 28mA
800 MHz = 30mA
1.0G Hz = 34mA
156 MHZ = 25mA
600 MHz = 30mA
800 MHz = 32mA
1.0G Hz = 36mA
Tape and Reel Information:
Quantity per
Reel
A
B
C
D
E
F
3000
8.0 ±0.2
4.0 ±0.1
3.5 ±0.05
9.0 ±0.3
60 / 80
180 / 250
ILSI America Phone 775-851-8880
●
Fax 775-851-8882
●email:
e-mail@ilsiamerica.com
●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 3/28/15_D
Page 2 of 3

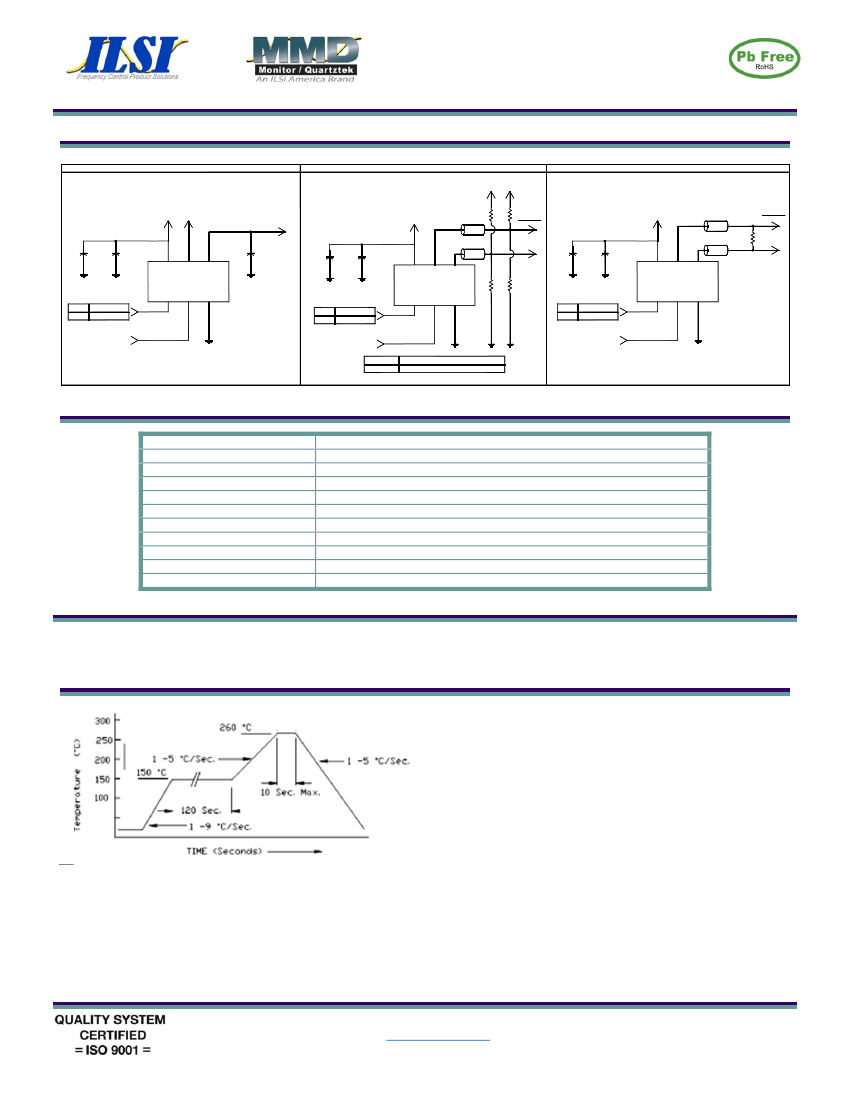

3.2 mm x 2.5 mm 6 Pads SMD TCXO or TC/VCXO Oscillator
Typical Applications:
LVPECL
LVPECL
Vcc
Vcc
I595 / I795 Series
LVDS
Vcc
N/C
OUTPUT
Vcc
Zo = 50?
R1
R3
OUTPUT
Vcc
Zo = 50?
OUTPUT
R1
10 uF
0.01
uF
Zo = 50?
6
5
4
15 pF
10 uF
0.01
uF
6
5
4
OUTPUT
Zo = 50?
10 uF
0.01
uF
6
5
4
OUTPUT
Oscillator
Oscillator
R2
R4
Oscillator
I595
I795
N/C or Ground
Voltage Control
1
2
3
I595
I795
N/C or Ground
Voltage Control
1
2
3
I595
I795
N/C or Ground
Voltage Control
1
2
3
Enable / Disable or
N/C
Enable / Disable or
N/C
Vcc = +3.3 V R1 and R3 = 127? , R2 and R4 = 825?
Vcc = +2.5 V R1 and R3 = 250? , R2 and R4 = 625?
Enable / Disable or
N/C
Environmental Specifications:
Thermal Shock
Moisture Resistance
Mechanical Shock
Mechanical Vibration
Resistance to Soldering Heat
Hazardous Substance
Solderability
Terminal Strength
Gross Leak
Fine Leak
Solvent Resistance
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
J-STD-020C, Table 5-2 Pb-free devices (except 2 cycles max)
Pb-Free / RoHS / Green Compliant
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Test Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s
MIL-STD-202, Method 215
Package Information:
MSL – N.A. (package does not contain plastic, storage life is unlimited under normal room conditions)
Termination = e4 (Au over Ni over W base metallization)
Pb Free Solder Reflow Profile:
Marking:
Line 1: I - Date Code (yww)
Line 2: Frequency
Units are backward compatible with 240ºC reflow process.
PROPRIETARY AND CONFIDENTIAL
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION, AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY
PURPOSE NOR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM ILSI America.
ILSI America Phone 775-851-8880
●
Fax 775-851-8882
●email:
e-mail@ilsiamerica.com
●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 3/28/15_D
Page 3 of 3
