5449-5-60-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5449-5-60-0

5449-5-60-0: DescriptionCard Edge Connector, 60 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5449-5-60-0 Overview

Card Edge Connector, 60 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking

5449-5-60-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.394 inch
subject depth	0.669 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
JESD-609 code	e4
Manufacturer's serial number	5449
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	60
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

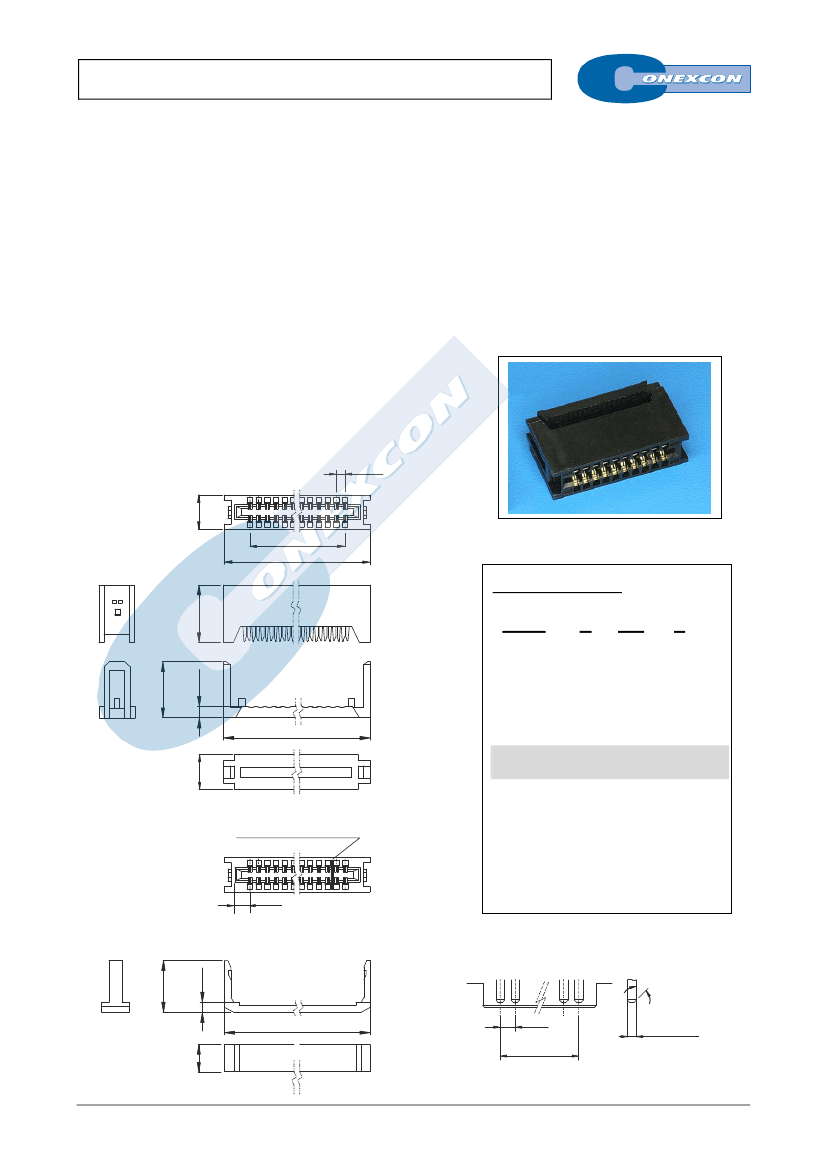

FLAT CABLE IDC EDGE CARD

5449 SERIES.

2.54 mm. (0.100”) pitch.

General Features

Electrical Features



Available in 10, 14, 16, 20, 26, 34, 40, 44, 50, 56, 60,

62 and 64 circuits

Accept edge card 1.57 mm thickness

Wires range : 28 AWG O.D max. 0.85 mm

Use flat cable 1.27 mm pitch 9127 series

With strain relief



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Materials

Insulator: PBT glass reinforced UL 94V-0

Contact: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Mechanical features



Durability: 50 cycles

Dimension Information

2.54

.100

.394

.669

.122

10.0

Ordering Information:

17.0

5449 -

T-

XX-

.642

.610

3.1

16.3

15.5

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

.394

.311

Strain Relief

RECOMMENDED PCB

IMENSIONS

10.0

5449 - Txx1(Polarizator position)

3. (XX) Number of circuits

2.35

.092



Available in 10 through 64 circuits

Available Narrow version (7.62 mm. )

In 28 circuits (5448-T282)

2.8

.079

7.9

2.54

.100

A±0.08

1.60±0.15

.063±.006

Recommended PCB

thickness

A-XX

FULL LINE CATALOGUE
