52975-1163

Description
Card Edge Connector, 11 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size308KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

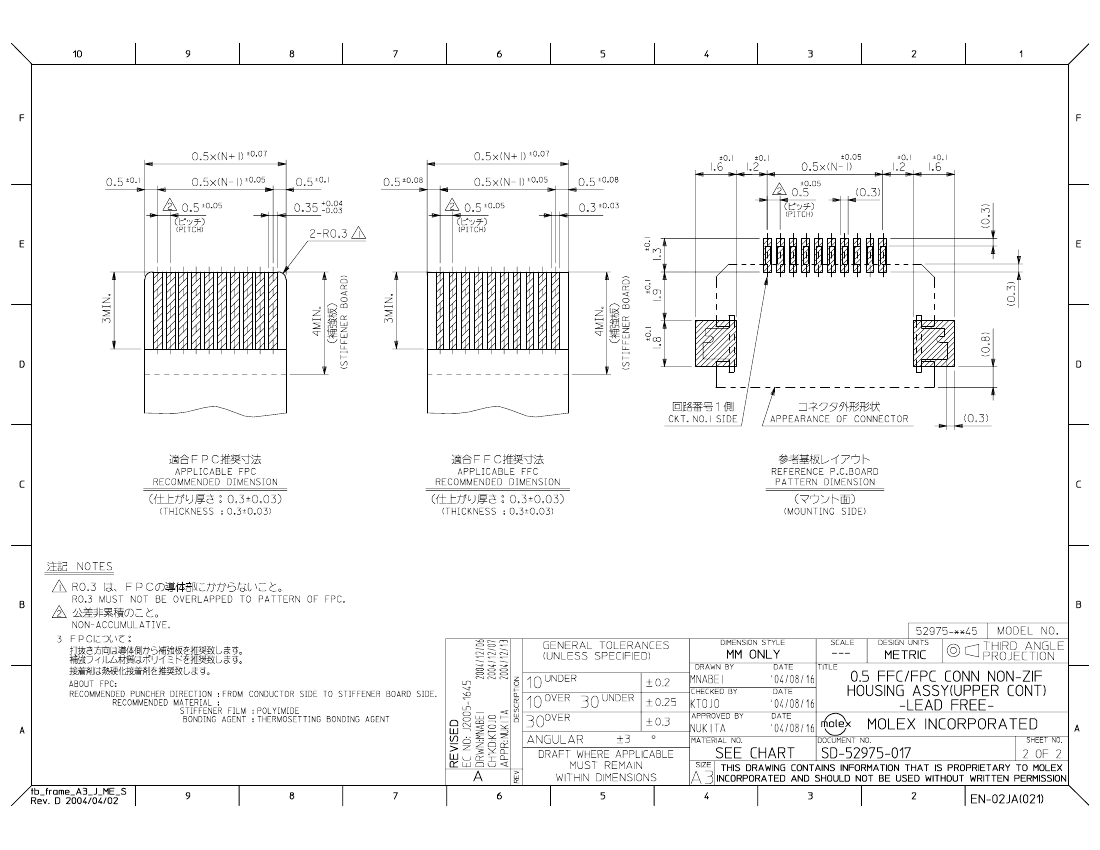

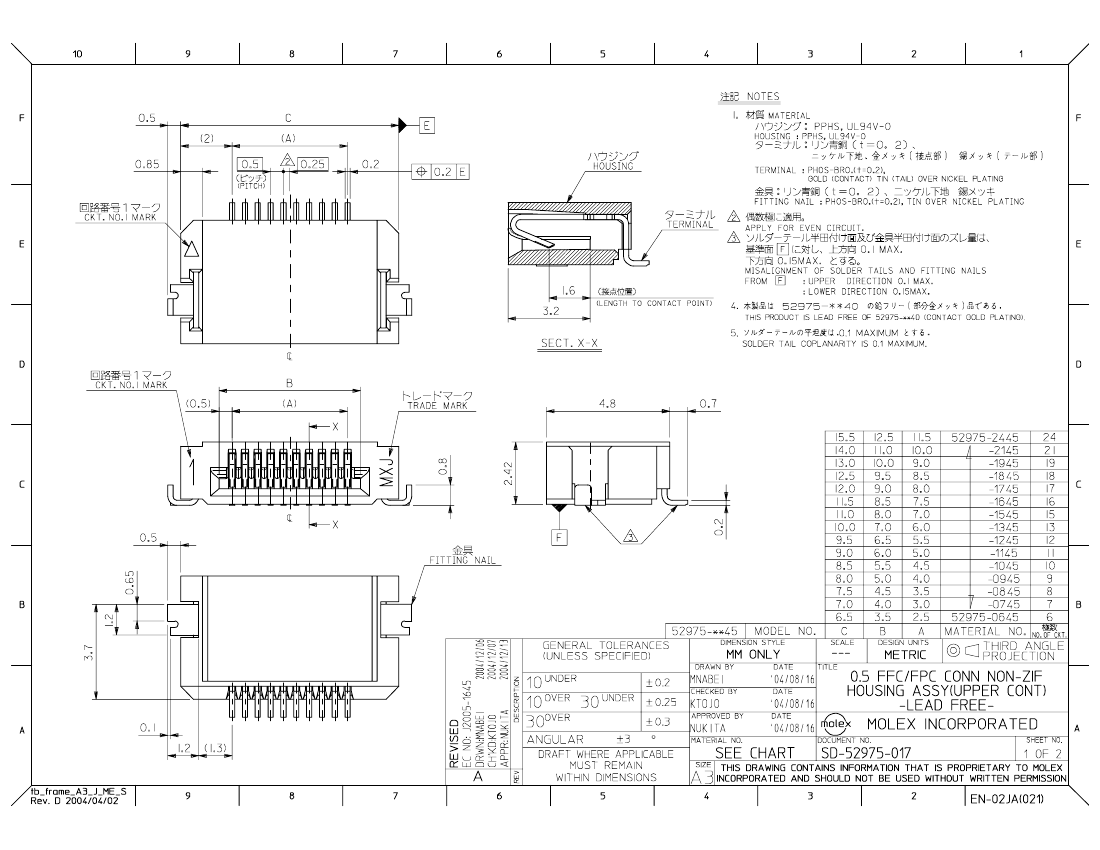

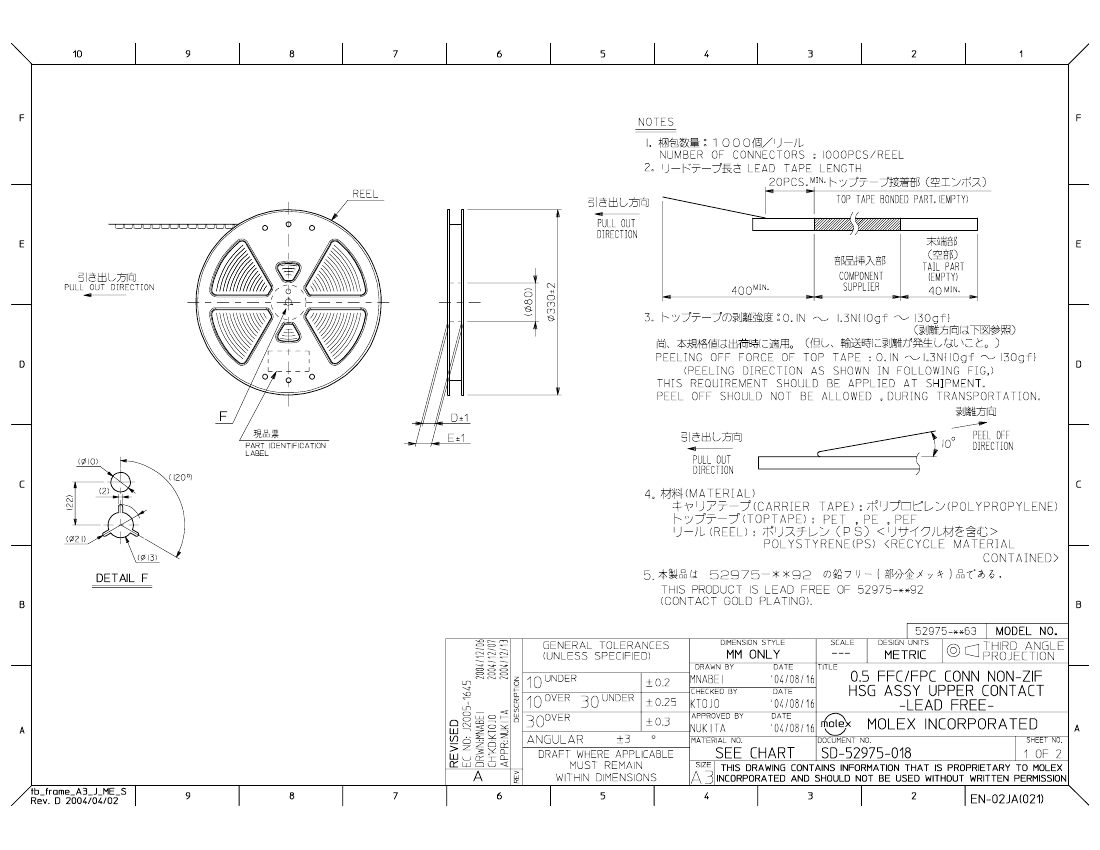

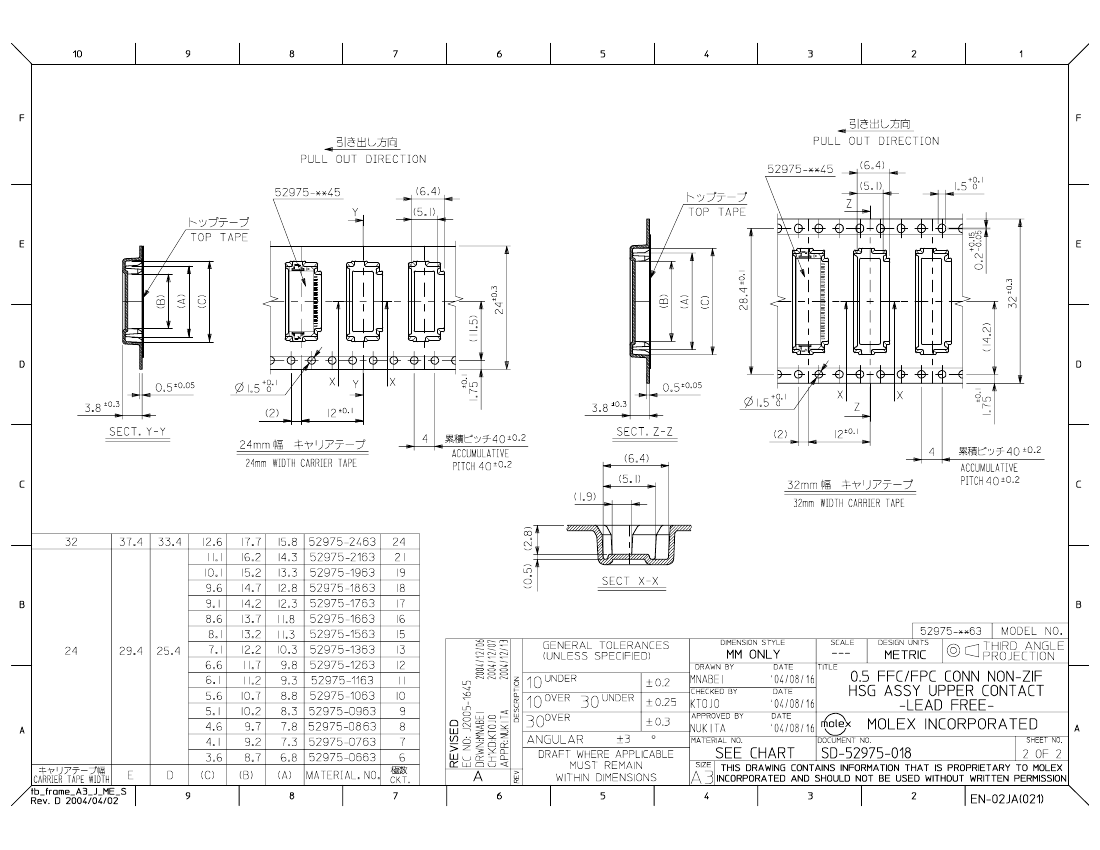

52975-1163 Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

52975-1163 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304029403
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys ManufacturerMolex
Samacsys Modified On2022-06-14 20:41:16
YTEOL0
Other featuresELV, ROHS COMPL. & EMBSTP PKG
Board mount optionsFITTING NAIL
body width0.095 inch
subject depth0.189 inch
body length0.354 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Durability10 Cycles
Filter functionNO
Insulation resistance50000000 Ω
insulator materialPOLYPHENYLENE SULFIDE
Plug contact pitch0.02 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
PCB contact patternRECTANGULAR
Rated current (signal)0.4 A
GuidelineUL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts11
