SAW Components
SAW Filter
BC10 UpLink Filter
Series/type:
Ordering code:
Date:
Version:
B8304
B39831B8304P810
September 11,2012
2.1
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW Filter
Data sheet
Application
s
s
s
s
s
B8304
833.0 MHz
Low-loss filter for CDMA smallcells applications.
Unbalanced operation (50 Ohm)
Low insertion attenuation
High Rx suppression
Useable passband 32 MHz
Features
s
s
s
s
s
s
s
Package size 1.4 x 1.1 x 0.4 mm
3
RoHS compatible
Approximate weight 0.003 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitive Level
3
Pin configuration
s
1
s
4
s
2,3,5
Input unbalanced
Output unbalanced
To be grounded
1
4
2,5
3
Please read
cautions and warnings and
important notes
at the end of this document.
2
September 11,2012
SAW Components
SAW Filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –30 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
Maximum insertion attenuation
817.0 ... 849.0
Amplitude ripple
(p-p)
817.0 ...
Input VSWR
817.0
Output VSWR
817.0
Attenuation
50
855.5
862.0
1574.42
1624.0
1930.0
2110.0
2441.0
3258.0
3500.0
...
...
...
...
...
...
...
...
...
...
800.0
862.0
894.0
1576.42
1708.0
1990.0
2170.0
2557.0
3406.0
6000.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
...
849.0
MHz
α
30
2
33
35
30
35
32
20
20
20
43
8
37
47
44
39
38
36
33
26
––
––
––
––
––
––
––
––
––
––
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
––
1.9
2.2
...
849.0
MHz
––
1.9
2.2
849.0
f
C
α
max
MHz
∆α
MHz
––
1.2
2.5
dB
––
2.3
3.5
dB
––
typ.
@ 25˚C
833.0
max.
––
MHz
B8304
833.0 MHz
Maximum ratings
Operable temperature range T
Storage temperature range
DC voltage
ESD voltage
Input Power
1)
–30/+85
–40/+85
0
50
1)
13
˚C
˚C
V
V
dBm
machine model, 10 pulses
cw signal
T
stg
V
DC
V
ESD
P
IN
acc. to JESD22-A115A (machine model), 10 negative & 10 positive pulses.
Please read
cautions and warnings and
important notes
at the end of this document.
3
September 11,2012
SAW Components
SAW Filter
Data sheet

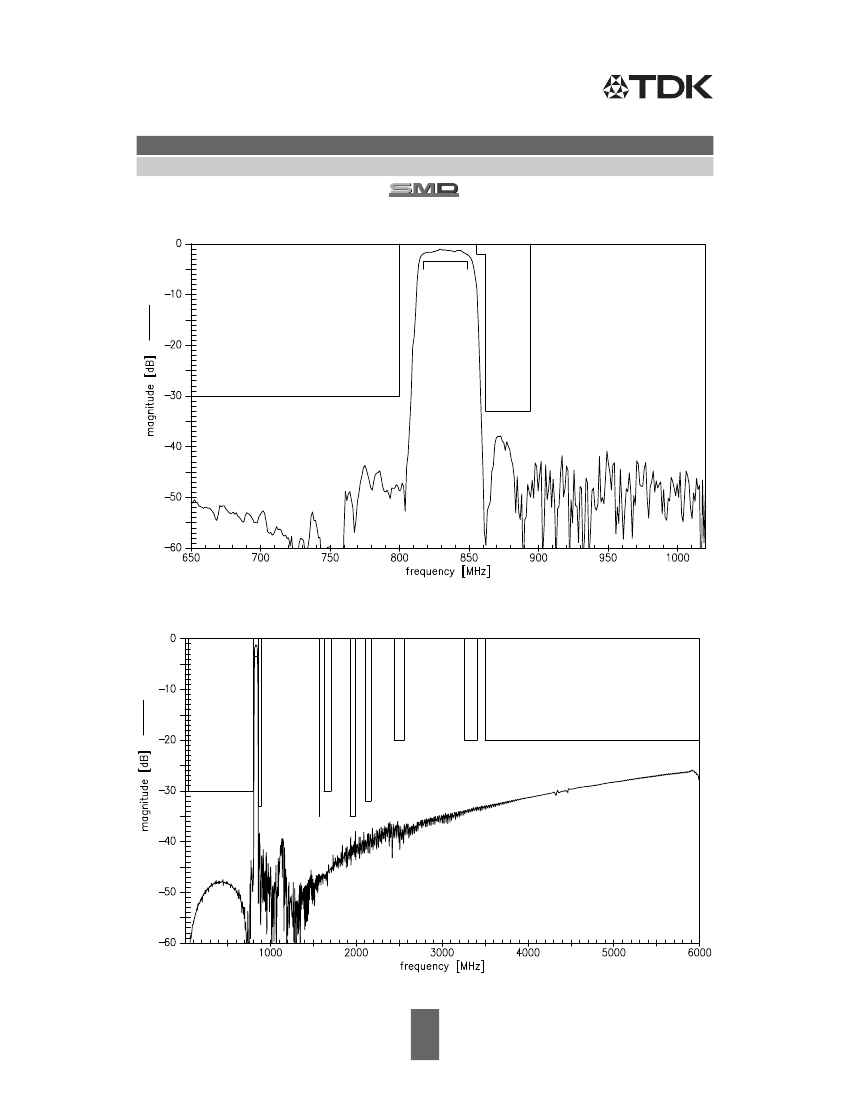

Transfer function
(narrowband)
B8304
833.0 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
4
September 11,2012
SAW Components
SAW Filter
Data sheet

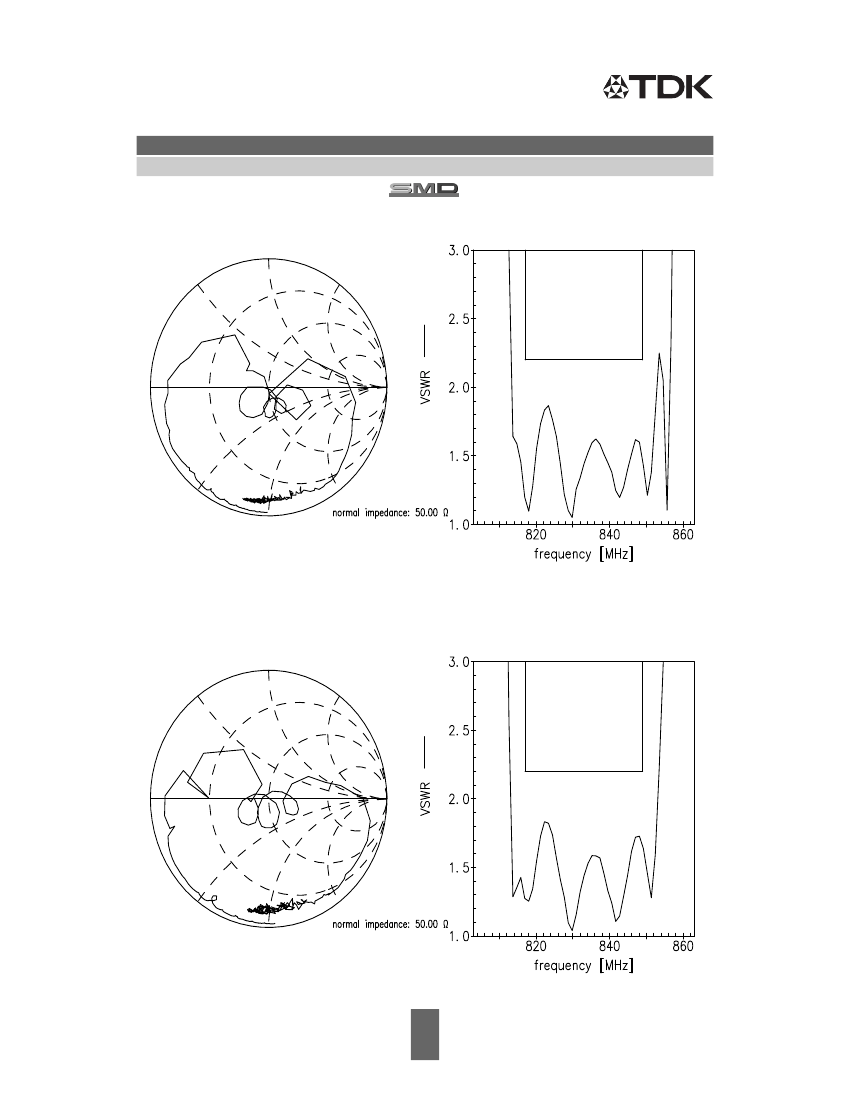

Smith Charts
S
11
function
B8304
833.0 MHz
S
22
function
Please read
cautions and warnings and
important notes
at the end of this document.
5
September 11,2012
