54HCT620FK/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54HCT620FK/B

54HCT620FK/B: DescriptionBus Transceiver; Categorylogic logic; File Size954KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54HCT620FK/B Overview

Bus Transceiver

54HCT620FK/B Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	BUS TRANSCEIVER
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

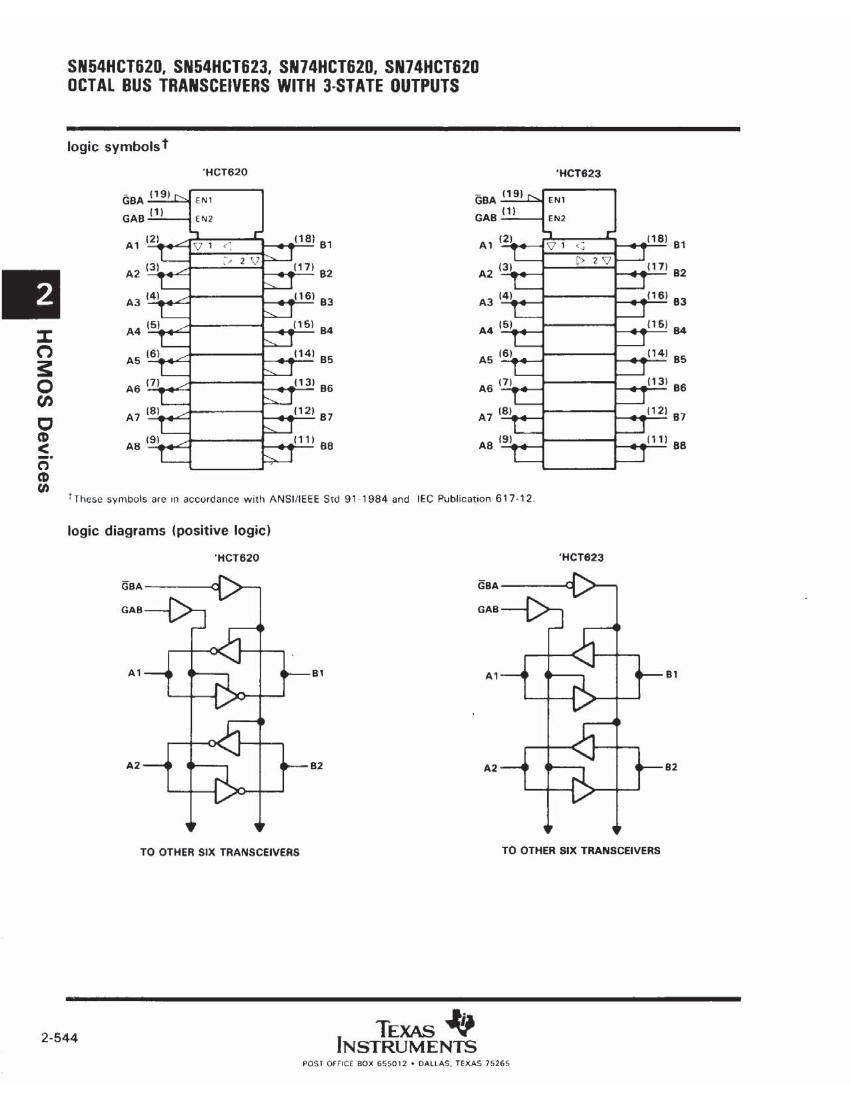

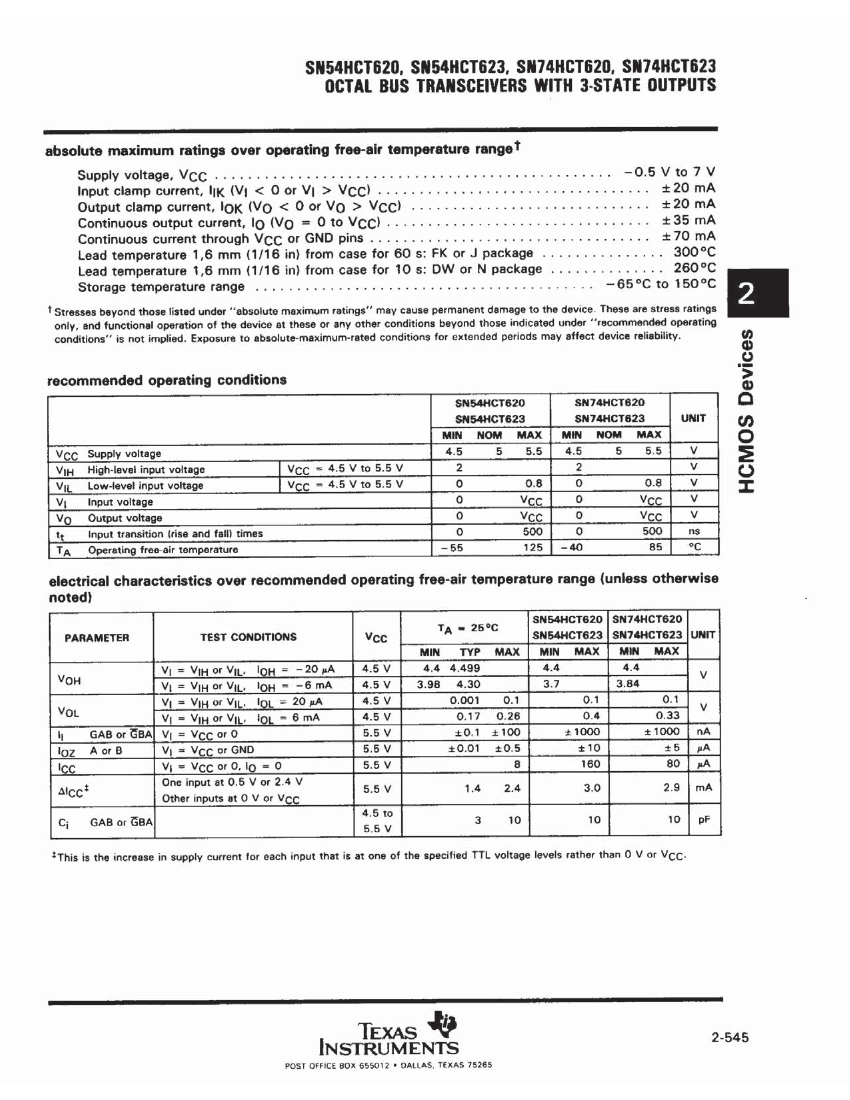

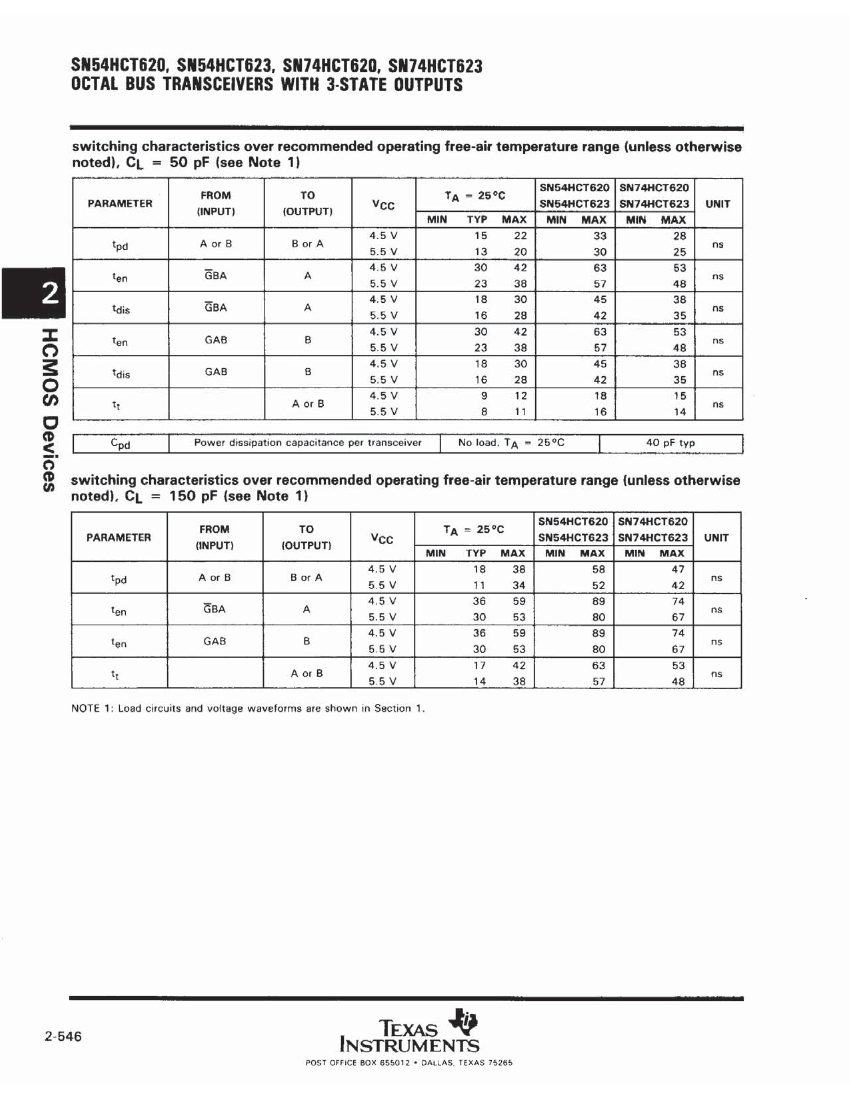

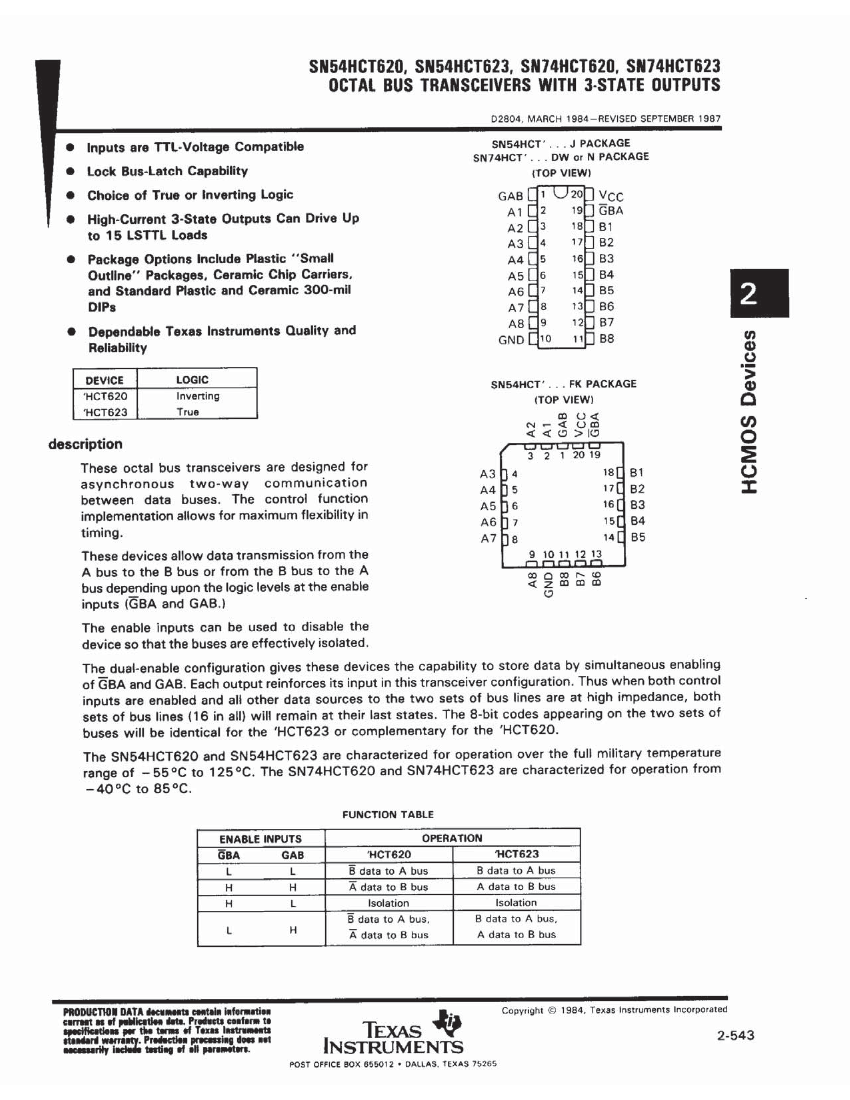

SN54HCT620, SN54HCT623, SN74HCT620, SN74HCT623

Octal Bus Transceivers with 3-STATE Outputs

These octal bus transceivers are designed for asynchronous two-way communication between data

buses. The control function implementation allows for maximum flexibility in timing. These devices

allow data transmission from the A bus to the B bus or from the B bus to the A bus depending upon

the logic levels at the enable inputs (GBA and GAB). The enable inputs can be used to disable the

device so that the buses are effectively isolated.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

54HCT620FK/B Related Products

	54HCT620FK/B	54HCT620J/B	74HCT620DW
Description	Bus Transceiver	Bus Transceiver	Bus Transceiver
Reach Compliance Code	unknown	unknown	unknown
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Base Number Matches	1	1	-
