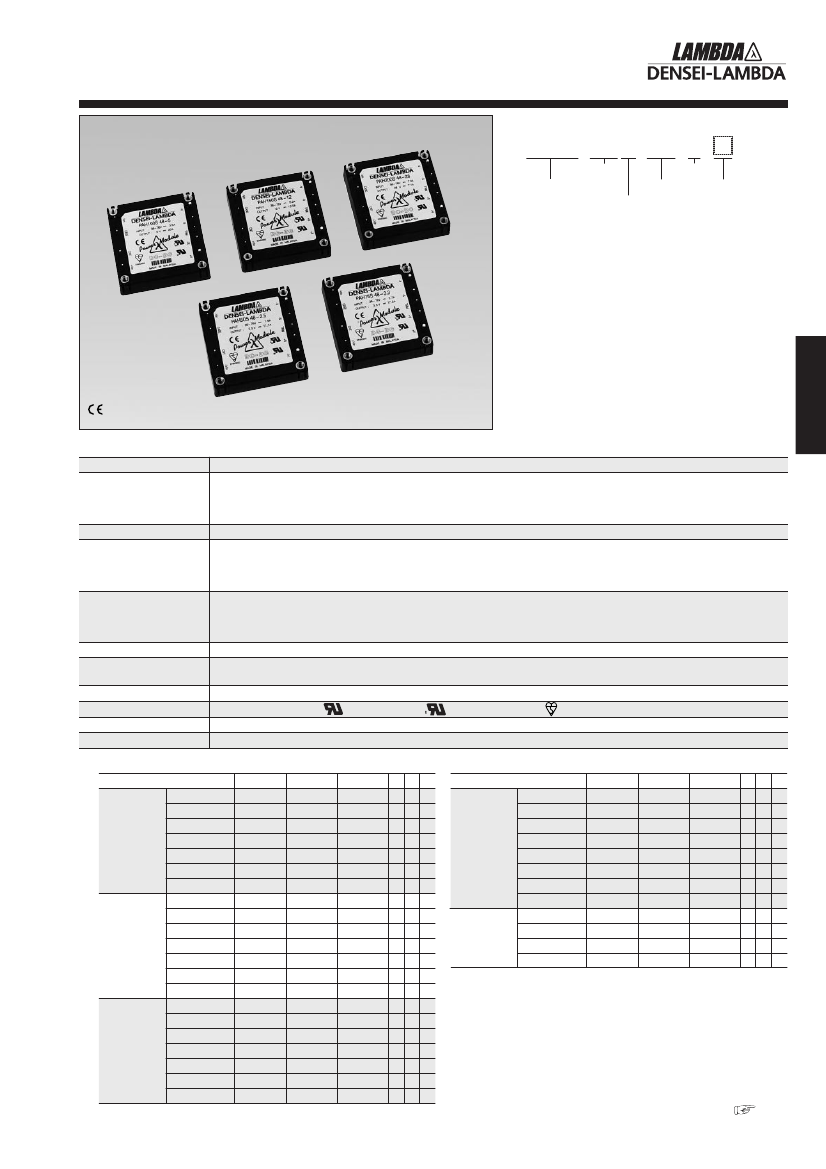

PAH
-SERIES
PAH150S
PAH100S
Single output 50W ~ 200W
DC-DC power module
Model name
PAH200S
PAH 50S 48-5/
Series Name
Output
Wattage
Rated output
voltage
Rated input
Option:
voltage
blank: On/Off control minus logic
OVP manual reset
Function
P: On/Off control plus logic
OVP manual reset
V: On/Off control minus logic
OVP auto-recovery
PV: On/Off control plus logic
OVP auto-recovery
S: Simple function
PAH75S
PAH50S
(Low Voltage Directive)
2 year warranty
Half-brick DC-DC Power Module

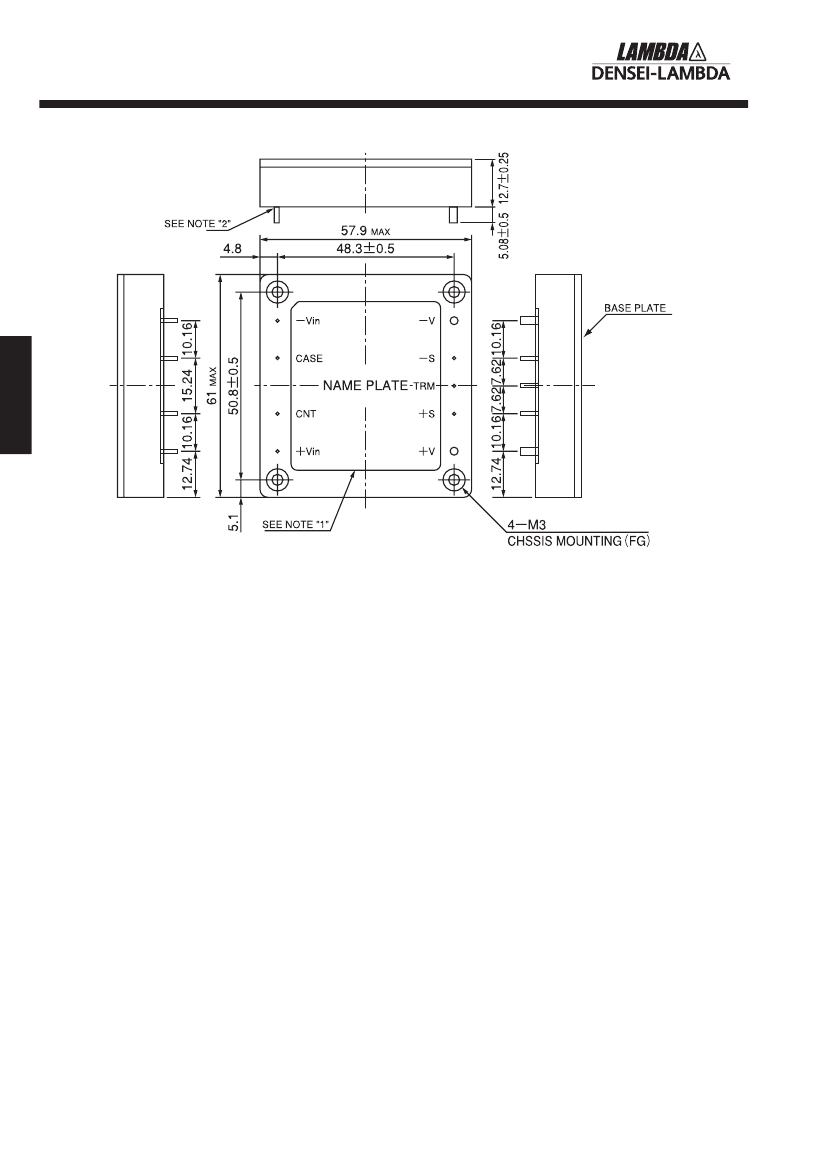

Standardized pin disposition and size for "Half-Brick"DC-DC
Converter applied in European and American telecom industries
1) High power density: 4.46W/cc3 (73W/inch3)
with 200W type achieved
2) Common package size among all models enables common
mounting board Current capacity selection available suited
to the actual load
3) Enriched lineup, all kinds of function selectable;
128 models in 5 types
Wide input voltage range: DC36~76V, non-load operation available
Wide operation temperature range
1) Base plate temperature range: -40~+100°C
2) Conduction cooling system available for adjusting
radiating method conforming to the shape of the devices
2 year warranty
Features
Power Module
Specifications
1. Input voltage range
2. Output voltage
range
3. Parallel operation
4. Line regulation
36 ~ 76VDC
PAH50S ~ 150S
PAH200S
Output:2.5V,3.3V = 10%
Output:5V = -40% ~ +15%
Output:12V,15V,24V,28V = -40% ~ +10%
-40% ~ +10%
-
Output:2.5V,3.3V = 10mV
Output:5V ~ 28V = 0.2%, 48V=56mV
*within nominal input voltage range at constant load
*For -40% ~ -20°C operation, the regulation for output 2.5V,3.3V,5V,12V,15V of PAH50,75 is 40mV
Output:2.5V,3.3V = 10mV
Output:5V ~ 28V = 0.2%, 48V=56mV
*No load to full load at constant input voltage
*For -40% ~ -20°C operation, the regulation for output 2.5V,3.3V,5V,12V,15V of PAH50,75 is 40mV
Conduction cooling
-40°C ~ +100°C (Baseplate) Ambient temperature min=-40°C
Output Derating : -40 ~ +100°C (Baseplate) 100% (PAH200S -40 ~ +80°C: 100%, 100°C: 90%)
Input-output : 1.5kVAC (20mA) , Input-chassis : 1.5kVAC (20mA) , Output-chassis : 500VDC for 1 min
Approved by UL1950
, CSA950(C-UL)
and EN60950(BSI)
Conforms to low voltage directive
Over voltage protection,Over current protection,Remote on/off control
5. Load regulation
6. Cooling
7. Operating ambient
temperature
8. Withstand voltage
9. Safety standard
10. CE marking
11. Functions
Product lineup
Model name
PAH50S48-2.5
PAH50S48-3.3
PAH50S48-5
PAH50S48
(input 48VDC)
PAH50S48-12
PAH50S48-15
PAH50S48-24
PAH50S48-28
PAH75S48-2.5
PAH75S48-3.3
PAH75S48-5
PAH75S48
(input 48VDC)
PAH75S48-12
PAH75S48-15
PAH75S48-24
PAH75S48-28
PAH100S48-2.5
PAH100S48-3.3
PAH100S48-5
PAH100S48
(input 48VDC)
PAH100S48-12
PAH100S48-15
PAH100S48-24
PAH100S48-28
Output voltage Output current Output power UL CSA EN
2.5V
3.3V
5V
12V
15V
24V
28V
2.5V
3.3V
5V
12V
15V
24V
28V
2.5V
3.3V
5V
12V
15V
24V
28V
11.7A
11.7A
10.0A
4.2A
3.4A
2.1A
1.8A
17.5A
17.5A
15.0A
6.3A
5.0A
3.2A
2.7A
23.4A
23.4A
20.0A
8.4A
6.7A
4.2A
3.6A
29.25W
38.61W
50.0W
50.4W
51.0W
50.4W
50.4W
43.75W
57.75W
75.0W
75.6W
75.0W
76.8W
75.6W
58.5W
77.22W
100.0W
100.8W
100.5W
100.8W
100.8W
Request customer specification for further details of specifications, outline,
characteristics, etc.Read the instruction manual before usage.
Contact us about delivery before ordering.
PAH200S48
(input 48VDC)
PAH150S48
(input 48VDC)
Model name
PAH150S48-2.5
PAH150S48-3.3
PAH150S48-5
PAH150S48-12
PAH150S48-15
PAH150S48-24
PAH150S48-28
PAH150S48-48
PAH200S48-12
PAH200S48-15
PAH200S48-24
PAH200S48-28
Output voltage Output current Output power UL CSA EN
2.5V
3.3V
5V
12V
15V
24V
28V
48V
12V
15V
24V
28V
35.0A
35.0A
30.0A
12.5A
10.0A
6.3A
5.4A
3.2A
16.7A
13.4A
8.4A
7.2A
87.5W
115.5W
150.0W
150.0W
150.0W
151.2W
151.2W
153.6W
200.4W
201.0W
201.6W
201.6W
: Safety standard approved
Recommended Heatsink
