EF
Series
Compact RFI Filter with
IEC Connectors
UL Recognized
CSA Certified
VDE, SEMKO*, and BSI* Approved
EF Series

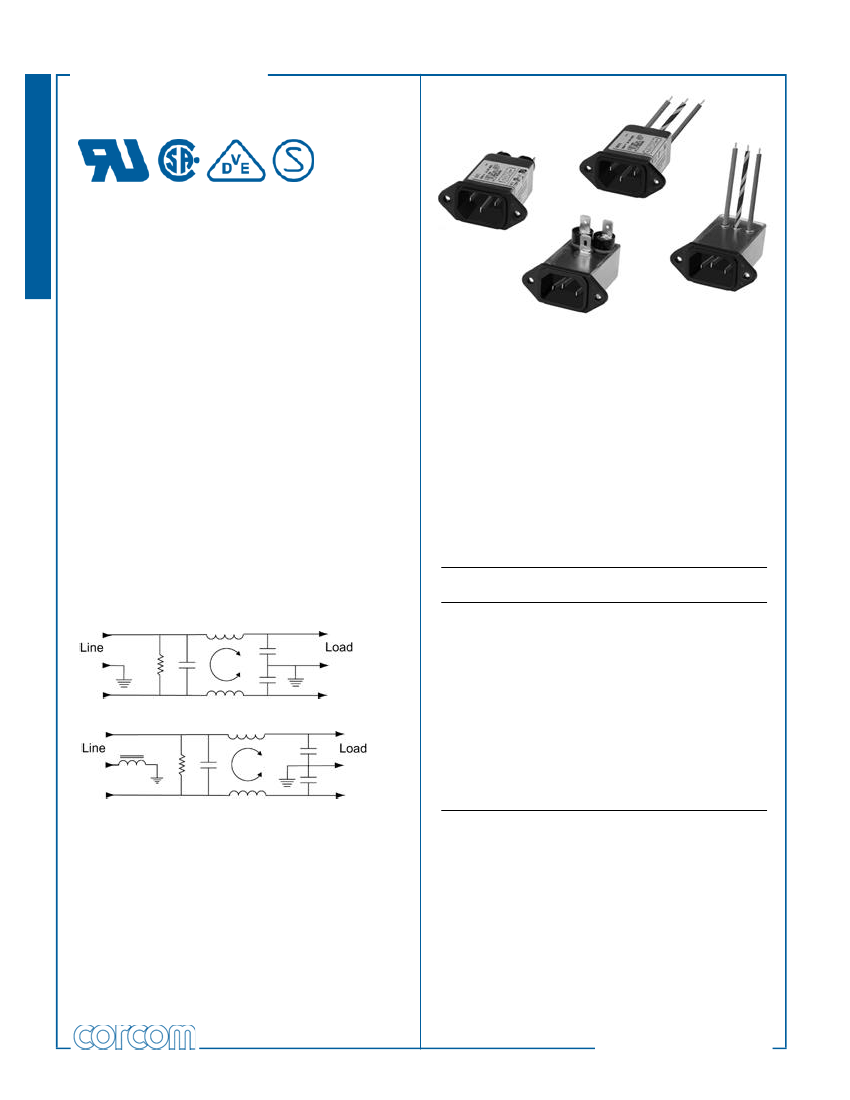

This rugged international series of RFI filters incorporates
the special IEC power line connector. They are UL
recognized, CSA certified, and VDE approved. Models
with F suffix are SEMKO approved and comply with BSI
standards.
Electrically the EF international series are general
purpose fllters effectively providing RFI control of line-to-
ground noise. The design is compact and meets the
very low leakage current requirements of VDE portable
equipment as well as (120 Volt) UL544 nonpatient
medical equipment. Models with F suffix have .250”
terminals on load side; EF4 and EF8 have wire leads.
Model 10EF1FC additionally incorporates a separate
ground-circuit inductor to isolate the equipment chassis
from power line ground at RF frequencies.
EF4
EF2F
EF8
EF1F/EF1FC
Specifications
Maximum leakage current, each
line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage:
Minimum
insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Rating
EF1F, EF2F
1A
3A
6A
10A
15A
EF4, EF8
1A
3A
6A
EF1FC
10A
.15
22
15
9
8
–
22
15
9
8
Frequency-MHz
.5
1
5
35
25
20
15
6
35
25
20
15
40
30
25
20
12
40
30
25
20
46
45
41
34
20
46
45
41
34
10
50
50
45
39
25
50
50
45
39
30
49
54
50
44
25
49
54
47
44
.21 mA
.36 mA
2250 VDC
1450 VDC
50/60 Hz
120/250 VAC
Electrical Schematics
EF & EF-F Models
EF1FC Model
Resistor location for reference only.
EF
34
Line Cord
Line Cord No. GA400:
7
1/2
foot, 3-conductor line cord to mate with EF series.
* 1A, 3A, 6A, and 15A EF-F models only.
EEA models supersede EF series.
Libertyville, IL (847) 680-7400
Series
EF

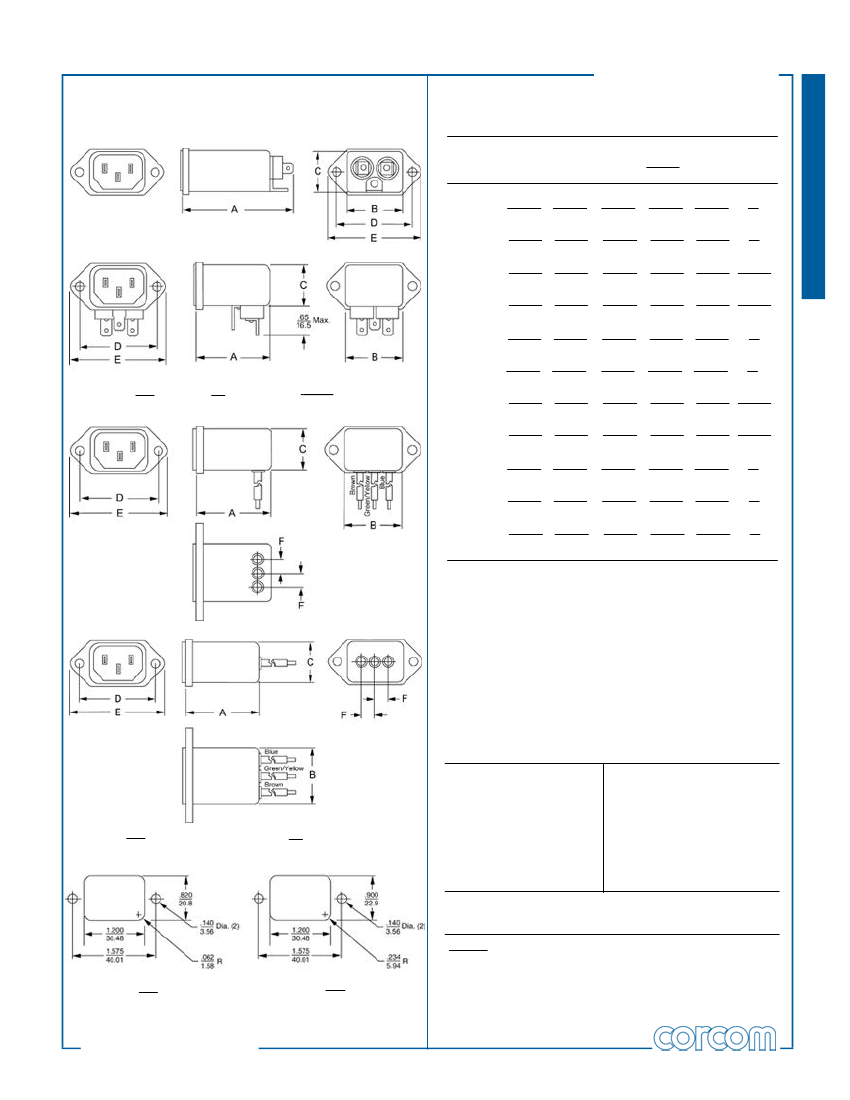

Case Styles
Metric shown in italics.
Case Dimensions
Metric shown in italics.
EF1F & EF1FC
Part No.
1EF1F,
3EF1F
1EF2F,
3EF2F
1EF4,
3EF4
1EF8,
3EF8
A
(max)
B
(max)
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
1.19
30.2
C
(max)
0.81
20.6
0.85
21.6
0.85
21.6
0.81
20.6
0.81
20.6
0.85
21.6
0.85
21.6
0.81
20.6
0.81
20.6
0.81
20.6
0.81
20.6
D
E
± .015 (max)
± .38
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.575
40.01
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
1.98
50.3
F
(ref)
EF2F
Typical dimensions
Terminals:
.250
(3)
6.35
Holes:
.
07
Dia.(2)
1.8
Slot: .
07 x .16
1.8 x 4.1
EF4
2.2
55.9
1.55
39.4
1.55
39.4
1.55
39.4
2.2
6EF1F
55.9
1.55
6EF2F
39.4
1.55
6EF4
39.4
1.55
6EF8
39.4
2.62
10EF1F
66.5
10EF1FC 2.62
66.5
2.62
* 15EF1F
66.5
.295
7.5
.295
7.5
.295
7.5
.295
7.5
Ordering Information
Consult your local Corcom sales representative for pricing.
EF8
Part No.
1EF1F
1EF2F
1EF4
1EF8
3EF1F
3EF2F
3EF4
3EF8
Line Cord No. GA400
Insulating Boot No. FA601
*15 EFIF
UL, CSA
Panel cutout (Front mount)
Tolerance ±
.005
0.13
Part No
6EF1F
6EF2F
6EF4
6EF8
10EF1F
10EF1FC
15EF1F
Typical dimensions
4.0
Wire leads:
101.6
Min. 18 AWG
.
132
Mounting holes:
Dia.(2)
3.35
Recommended Panel Cutouts
EF
35
15 Amps/250VAC
10 Amps/250VAC
Panel cutout (Back mount)
Tolerance ±
.005
0.13
VDE
Note 1: EF1F, EF1FC and EF8 allow front or back mounting.
Note 2: EF2F and EF4 allow back mounting only.
Libertyville, IL (847) 680-7400
