5530841-3 datasheet, PDF - EEWORLD Datasheet

5530841-3: DescriptionCard Edge Connector, 60 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size153KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5530841-3 Overview

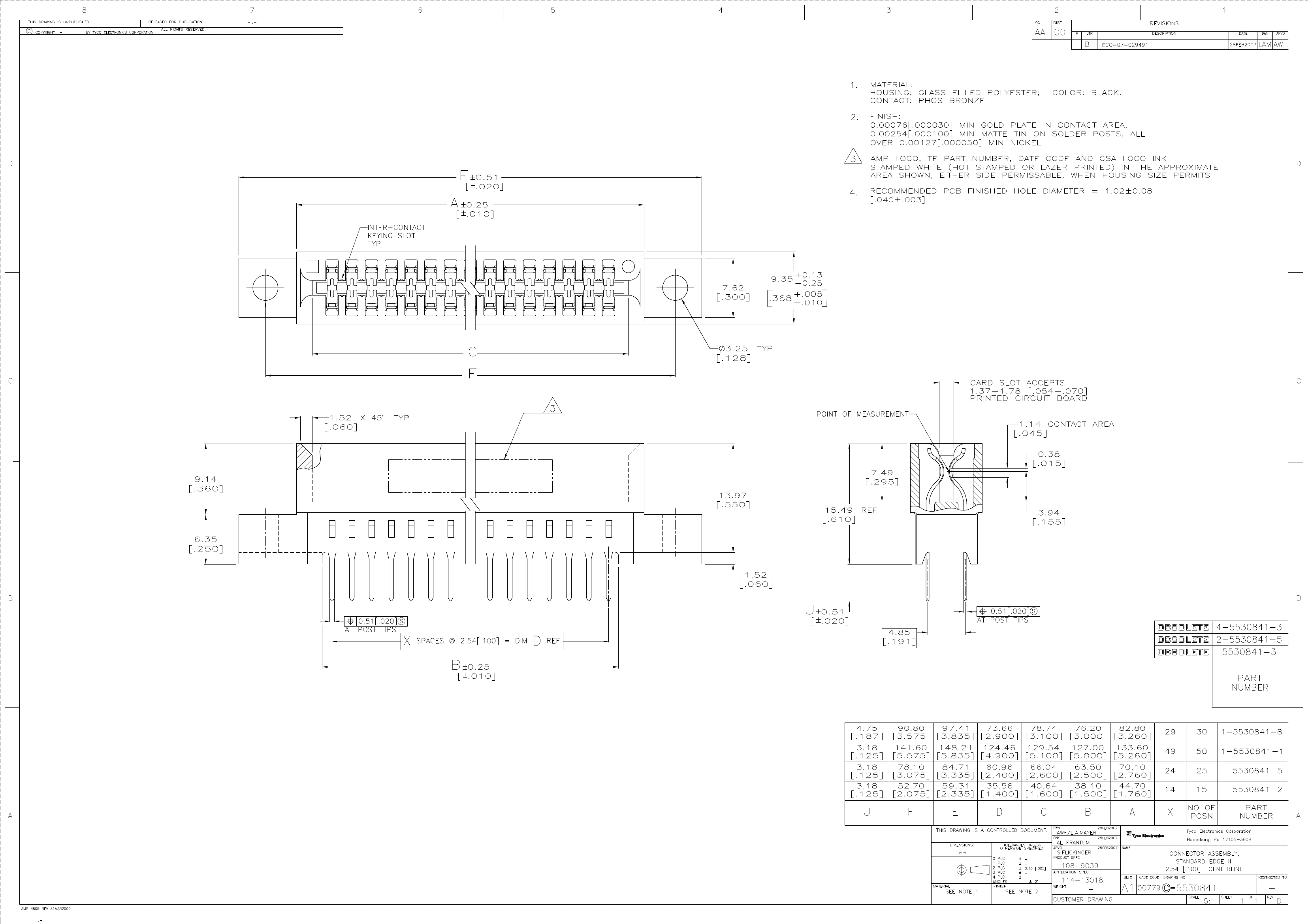

Card Edge Connector, 60 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.368 inch
subject depth	0.61 inch
body length	6.845 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
Evacuation force-minimum value	.556 N
Base Number Matches	1

	5530841-3	4-5530841-3	2-5530841-5
Description	Card Edge Connector, 60 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Card Edge Connector	Card Edge Connector
Reach Compliance Code	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Base Number Matches	1	1	-
