DFOS1-LHV13MHZC258 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> DFOS1-LHV13MHZC258

Preview

DFOS1-LHV13MHZC258: DescriptionHCMOS/TTL Output Clock Oscillator, 13MHz Nom; CategoryPassive components oscillator; File Size49KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFOS1-LHV13MHZC258 Overview

HCMOS/TTL Output Clock Oscillator, 13MHz Nom

DFOS1-LHV13MHZC258 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compliant
Ageing	0.5 PPM/FIRST YEAR
Maximum control voltage	3 V
Minimum control voltage	0.3 V
Frequency Adjustment - Mechanical	NO
frequency stability	0.25%
Frequency Stability - Voltage	0.02 ppm
input power	0.4 W
Manufacturer's serial number	DFOS1-LHV
Installation features	SURFACE MOUNT
Nominal operating frequency	13 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Output load	2 TTL, 15 pF
Oven power supply voltage	3.3V
physical size	14.0mm x 9.1mm x 5.9mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Preheating power	1.9 W
Maximum warm-up time	5 Minute
Base Number Matches	1

Preview

Download Datasheet

View All

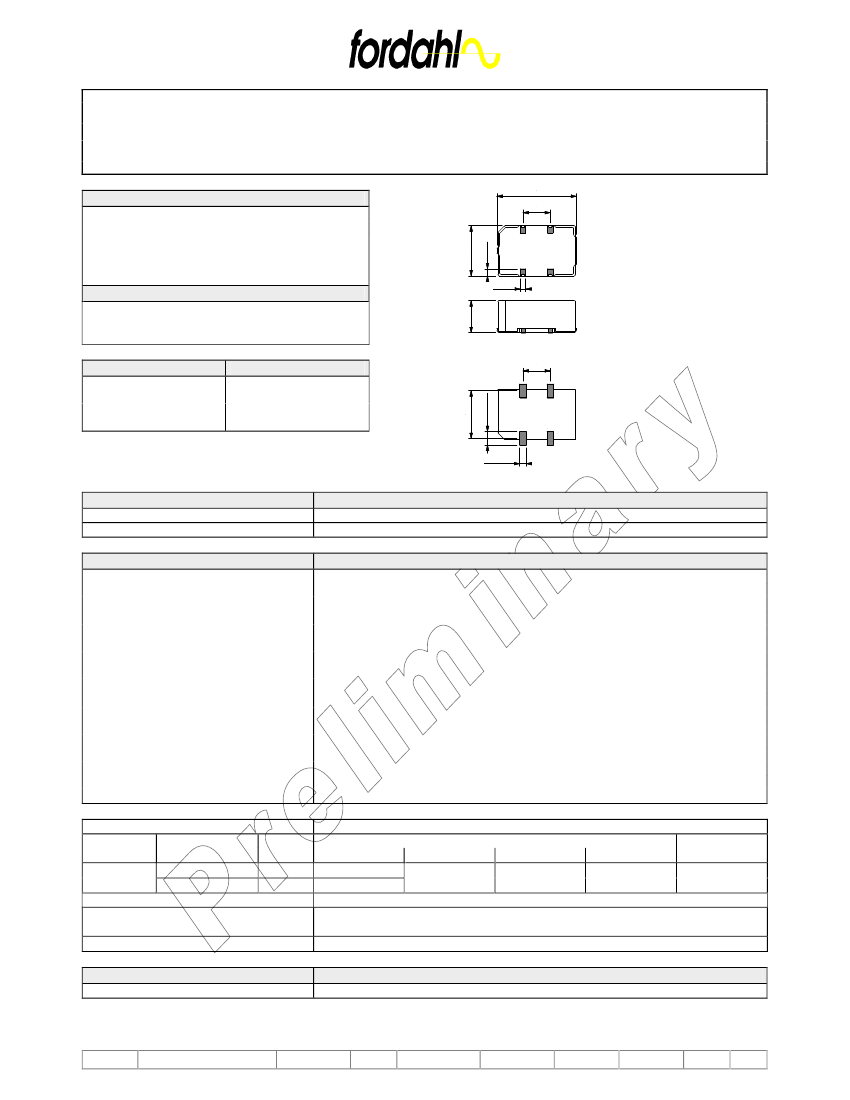

FREQUENCY CONTROL PRODUCTS

MINIATURE SURFACE MOUNT OCXO

DFO S1-LHV (3.3 V)

KEY FEATURES

9.1±0.2

14.8±0.3

5.08

10 to 26 MHz

± 0.25 ppm over -20 to 70° up to 26 MHz

C

APPLICATIONS

Bases stations, frequency reference

1.4

1.0

5.9

+0.1

-0.2

Function

V control

GND

Output

Vcc

DFO S1

1

2

3

4

2.54

8.9

4

1

5.08

3

PC board footprint

2

Please consult our application note about PCB design

1.27

TYPE

Frequency Range

Standard Frequencies

DFO S1-LHV

10 to 26 MHz

12.8, 13, 19.2, 20 & 26 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply power ( warm-up) @ 25°

C

supply power ( steady state) @ - 20°C

supply power ( steady state) @ 25°

C

output load

duty cycle @ 50% level

rise/fall times (10 to 90 %)

high/low levels or output amplitude

SSB phase noise (1 Hz B.W.)

(Typical values at 19.2 MHz)

3.3 V ± 5 %

≤

1.9 W; 1.7 W typ

0.7 W typ.

0.4 W typ.

HCMOS 15 pF or 2 TTL

45/55...55/45 %

≤

5 ns

≥

2.8 V/

≤

0.3 V

-85 dBc/Hz

-115 dBc/Hz

-140 dBc/Hz

-150 dBc/Hz

@ 10 Hz

@ 100 Hz

@ 1 kHz

@ 10 kHz

warm-up time @ 25°

C

FREQUENCY STABILITY

temperature

model

type

range

code

0 to 70° B27

C

all types

-20 to 70°

C* C258

remark

voltage control on pin 1 (positive slope )

sufficient for 5 years calibration

Input impedance

≤

5 min to reach ± 100 ppb

detailed tolerances [ ppm ]

stability versus:

Vcc ± 1 %

load ± 10 %

ageing

≤

± 0.02

≤

± 0.01

st

temperature

≤

± 0.2

≤

± 0.25

≤

± 0.5

calibration

@ 25°C

by control

voltage

ageing is 1 year at 25°

C

≥

± 4 ppm,

≤ ±

10 ppm relative to frequency at Vco = 1.65 V

1.65 V ± 1.35 V

≥

50 kΩ,

ORDERING CODE

Example

type + option code + frequency + model code

DFO S1-LHV 20.000 MHz C17

TYPE

DFO S1

REVISION

PL01

CHECKED

NE

DATE

10.04.2008

PAGE
