FSC-5001BKP-SG15 datasheet, PDF

FSC-5001BKP-SG15: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Black Insulator, Plug; CategoryThe connector The connector; File Size132KB，2 Pages; ManufacturerKeltron Connector Company

Download Datasheet Parametric View All

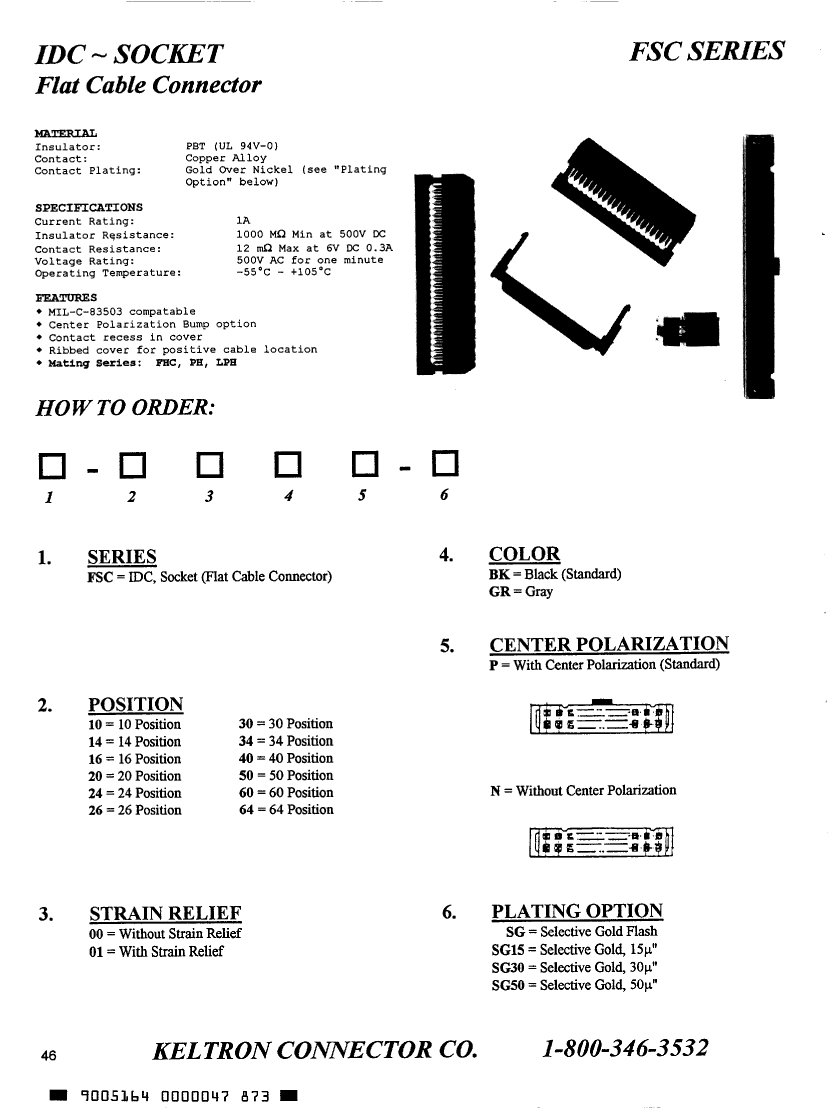

FSC-5001BKP-SG15 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Black Insulator, Plug

Parameter Name	Attribute value
Maker	Keltron Connector Company
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STRAIN RELIEF

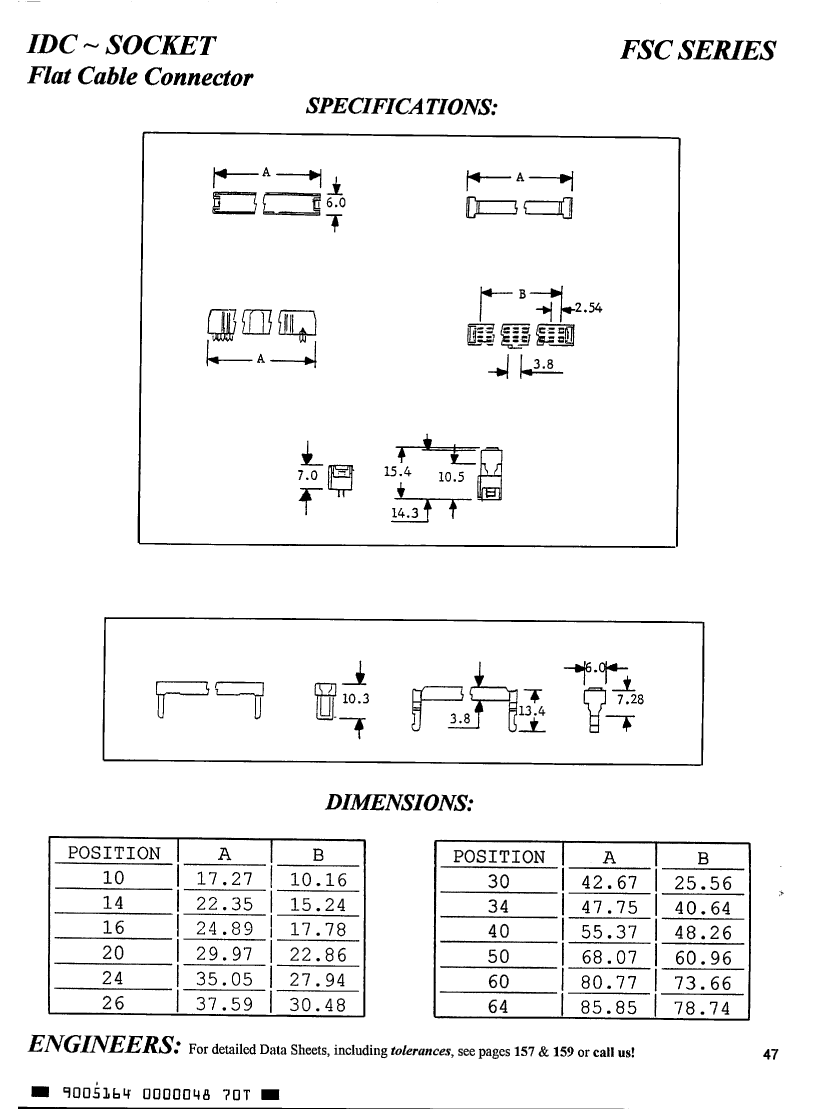

body width	0.236 inch
subject depth	0.756 inch
body length	2.68 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	FSC
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	50
Base Number Matches	1
