HCTS374T
Data Sheet
July 1999
File Number
4627.1
Radiation Hardened Octal D-Type
Flip-Flop, Three-State, Positive Edge
Triggered
Intersil’s Satellite Applications Flow
TM
(SAF) devices are fully
tested and guaranteed to 100kRAD total dose. These QML
Class T devices are processed to a standard flow intended
to meet the cost and shorter lead-time needs of large
volume satellite manufacturers, while maintaining a high
level of reliability.
The Intersil HCTS374T is a Radiation Hardened Non-
Inverting Octal D-type, Positive Edge Triggered Flip-Flop
with three-state outputs. The eight flip-flops enter data into
their registers on the LOW-to-HIGH transition of the clock
(CP). Data is also transferred to the outputs during this
transition. The output enable (OE) controls the three-state
outputs and is independent of the register operation. When
the output enable is high, the outputs are in the high
impedance state.
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- Latch-Up Free Under Any Conditions
- SEP Effective LET No Upsets: >100 MEV-cm
2
/mg
- Single Event Upset (SEU) Immunity < 2 x 10
-9
Errors/Bit-Day (Typ)
• 3 Micron Radiation Hardened SOS CMOS
• Fanout (Over Temperature Range)
- Bus Driver Outputs - 15 LSTTL Loads
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Compatibility
- V
IL
= 0.8V Max
- V
IH
= V
CC/2
Min
• Input Current Levels Ii
≤
5mA at V
OL
, V
OH
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the HCTS374T are
contained in SMD 5962-95748.
A “hot-link” is provided from
our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil’s Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
Pinouts
HCTS374T (SBDIP), CDIP2-T20
TOP VIEW
OE
Q0
D0
D1
Q1
Q2
D2
D3
1
2
3
4
5
6
7
8
9
20 V
CC
19 Q7
18 D7
17 D6
16 Q6
15 Q5
14 D5
13 D4
12 Q4
11 CP
Ordering Information
ORDERING
NUMBER
5962R9574801TRC
5962R9574801TXC
PART
NUMBER
HCTS374DTR
HCTS374KTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
OE
Q0
D0
D1
Q1
Q2
D2
D3
Q3
GND
Q3
GND 10
HCTS374T (FLATPACK), CDFP4-F20
TOP VIEW
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
Q7
D7
D6
Q6
Q5
D5
D4
Q4
CP
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
HCTS374T
Functional Diagram
1 OF 8
(3, 4, 7, 8, 13, 14, 17, 18)
D
COMMON CONTROLS
CP
11
FF
D
Q
OE
Q
(2, 5, 6, 9, 12, 15, 16, 19)
CP
OE
1
TRUTH TABLE
INPUTS
OE
L
L
L
H
L
X
CP
Dn
H
L
X
X
OUTPUTS
Qn
H
L
Q0
Z
H =High Level (Steady State).
L =Low Level (Steady State).
X =Immaterial.
Z =High Impedance.
= Transition from Low to High Level.
Q0 =The level of Q before the indicated input conditions were established.
2
HCTS374T
Die Characteristics
DIE DIMENSIONS:
(2743µm x 2692µm x 533µm
±51µm)
108 x 106 x 21mils
±2mil
METALLIZATION:
Type: Al Si
Thickness: 11k
Å
±1k
Å
SUBSTRATE POTENTIAL:
Unbiased (Silicon on Sapphire)
BACKSIDE FINISH:
Sapphire
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 13k
Å
±2.6k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
TRANSISTOR COUNT:
468
PROCESS:
CMOS SOS

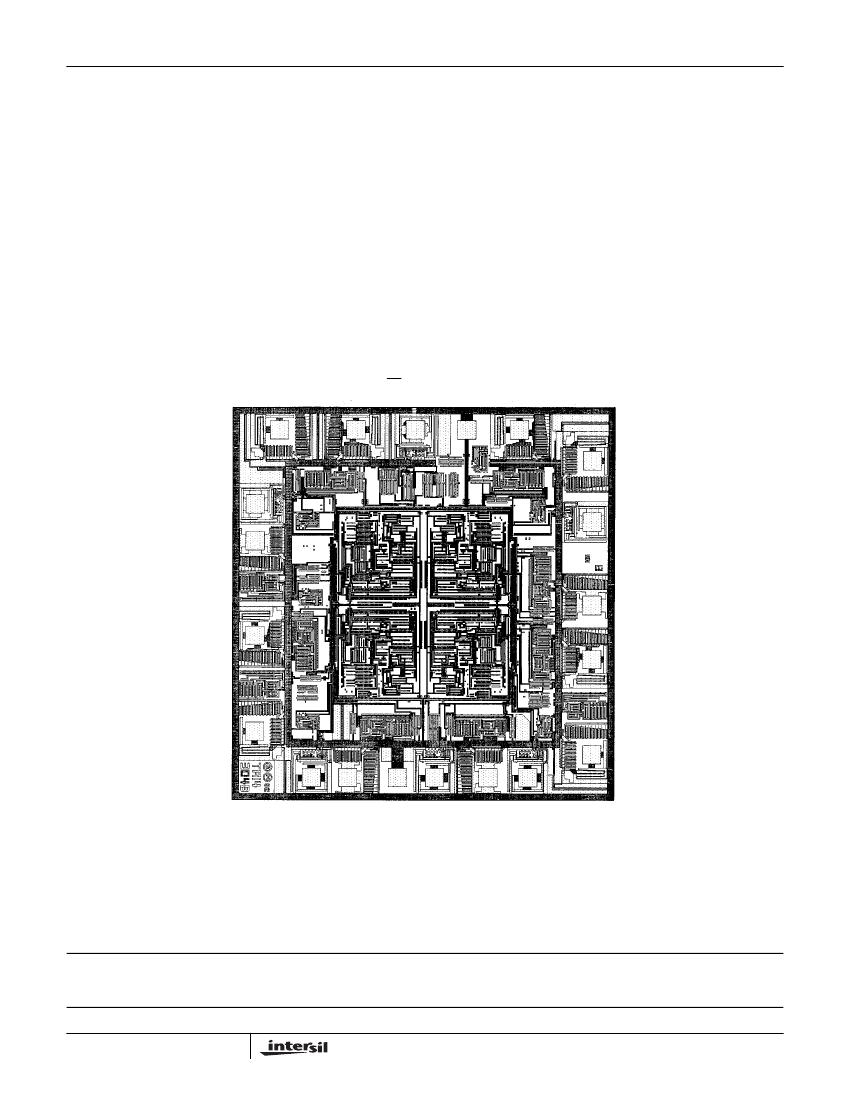

Metallization Mask Layout
HCTS374T
D0
(3)
Q0
(2)
OE
(1)
V
CC
(20)
Q7
(19)
(18) D7
D1 (4)
(17) D6
Q1 (5)
(16) Q6
Q2 (6)
(15) Q5
D2 (7)
(14) D5
(8)
D3
(9)
Q3
(10)
GND
(11)
CP
(12)
Q4
(13)
D4
NOTE: The die diagram is a generic plot from a similar HCS device. It is intended to indicate approximate die size and bond pad location. The mask
series for the HCTS374 is TA14404A.
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time with-
out notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site
http://www.intersil.com
