Intel’s 2-Mbit Flash Memory Family is an extension of the Boot Block Architecture which includes block-selec-
tive erasure automated write and erase operations and standard microprocessor interface The 2-Mbit Flash
Memory Family enhances the Boot Block Architecture by adding more density and blocks x8 x16 input out-
put control very high speed low power an industry-standard ROM compatible pinout and surface mount
packaging The 2-Mbit flash family allows for an easy upgrade to Intel’s 4-Mbit Boot Block Flash Memory
Family
The Intel 28F200BX-T B are 16-bit wide flash memory offerings These high-density flash memories provide
user selectable bus operation for either 8-bit or 16-bit applications The 28F200BX-T and 28F200BX-B are
2 097 152-bit nonvolatile memories organized as either 262 144 bytes or 131 072 words of information They
are offered in 44-Lead plastic SOP and 56-Lead TSOP packages The x8 x16 pinout conforms to the industry-
standard ROM EPROM pinout
The Intel 28F002BX-T B are 8-bit wide flash memories with 2 097 152 bits organized as 262 144 bytes of
information They are offered in a 40-lead TSOP package which is ideal for space-constrained portable
systems
These devices use an integrated Command User Interface (CUI) and Write State Machine (WSM) for simplified
word byte write and block erasure The 28F200BX-T 28F002BX-T provide block locations compatible with
Intel’s MCS -186 family 80286 i386
TM
i486
TM
i860
TM
and 80960CA microprocessors The 28F200BX-B
28F002BX-B provide compatibility with Intel’s 80960KX and 80960SX families as well as other embedded
microprocessors
The boot block includes a data protection feature to protect the boot code in critical applications With a
maximum access time of 60 ns these 2-Mbit flash devices are very high-performance memories which inter-
face at zero wait-state to a wide range of microprocessors and microcontrollers A deep power-down mode
lowers the total V
CC
power consumption to 1
mW
typical This is critical in handheld battery-powered systems
For very low-power applications using a 3 3V supply refer to the Intel 28F200BX-TL BL 28F002BX-TL BL
2-Mbit Boot Block Flash Memory Family datasheet
Manufactured on Intel’s 0 8 micron ETOX III process the 2-Mbit flash memory family provides world-class
quality reliability and cost-effectiveness at the 2-Mbit density level
2
28F200BX-T B 28F002BX-T B
10
PRODUCT FAMILY OVERVIEW
1 2 Main Features
The 28F200BX 28F002BX boot block flash memory
family is a very high performance 2-Mbit (2 097 152
bit) memory family organized as either 128 KWords
(131 072 words) of 16 bits each or 256 Kbytes
(262 144 bytes) of 8 bits each
Five Separately Erasable Blocks
including a
hard-
ware-lockable boot block
(16 384 Bytes)
two pa-
rameter blocks
(8 192 Bytes each) and
two main
blocks
(1 block of 98 304 Bytes and 1 block of
131 072 Bytes) are included on the 2-Mbit family An
erase operation erases one of the main blocks in
typically 2 4 seconds and the boot or parameter
blocks in typically 1 0 second Each block can be
independently erased and programmed 100 000
times
The Boot Block
is located at either the top
(28F200BX-T
28F002BX-T) or the bottom
(28F200BX-B 28F002BX-B) of the address map in
order to accommodate different microprocessor pro-
tocols for boot code location The
hardware locka-
ble boot block
provides the most secure code stor-
age The boot block is intended to store the kernel
code required for booting-up a system When the
RP
pin is between 11 4V and 12 6V the boot block
is unlocked and program and erase operations can
be performed When the RP pin is at or below 6 5V
the boot block is locked and program and erase op-
erations to the boot block are ignored
The 28F200BX products are available in the ROM
EPROM compatible pinout and housed in the 44-
Lead PSOP (Plastic Small Outline) package and the
56-Lead TSOP (Thin Small Outline 1 2mm thick)
package as shown in Figures 3 and 4 The
28F002BX products are available in the 40-Lead
TSOP (1 2mm thick) package as shown in Figure 5
The
Command User Interface (CUI)
serves as the
interface between the microprocessor or microcon-
troller and the internal operation of the 28F200BX
and 28F002BX flash memory products
Program and Erase Automation
allows program
and erase operations to be executed using a two-
write command sequence to the CUI The internal
Write State Machine (WSM) automatically executes
the algorithms and timings necessary for program
and erase operations including verifications there-
by unburdening the microprocessor or microcontrol-
ler Writing of memory data is performed in word or
byte increments for the 28F200BX family and in byte
increments for the 28F002BX family typically within
9
ms
which is a 100% improvement over current
flash memory products
Throughout this datasheet the 28F200BX refers to
both the 28F200BX-T and 28F200BX-B devices and
28F002BX refers to both the 28F002BX-T and
28F002BX-B devices The 2-Mbit flash memory fam-
ily refers to both the 28F200BX and 28F002BX prod-
ucts This datasheet comprises the specifications for
four separate products in the 2-Mbit flash memory
family Section 1 provides an overview of the 2-Mbit
flash memory family including applications pinouts
and pin descriptions Sections 2 and 3 describe in
detail the specific memory organizations for the
28F200BX and 28F002BX products respectively
Section 4 combines a description of the family’s
principles of operations Finally Section 5 describes
the family’s operating specifications
PRODUCT FAMILY
x8 x16 Products
28F200BX-T
28F200BX-B
x8-Only Products
28F002BX-T
28F002BX-B
1 1 Designing for Upgrade to
SmartVoltage Products
Today’s high volume boot block products are up-
gradable to Intel’s SmartVoltage boot block prod-
ucts that provide program and erase operation at 5V
or 12V V
PP
and read operation at 3V or 5V V
CC
Intel’s SmartVoltage boot block products provide the
following enhancements to the boot block products
described in this data sheet
1 DU pin is replaced by WP to provide a means
to lock and unlock the boot block with logic sig-
nals
2 5V Program Erase operation uses proven pro-
gram and erase techniques with 5V
g
10% ap-
plied to VPP
3 Enhanced circuits optimize performance at 3 3V
V
CC
Refer to the 2 4 or 8 Mbit SmartVoltage Boot Block
Flash Memory Data Sheets for complete specifica-
tions
When you design with 12V V
PP
boot block products
you should provide the capability in your board de-
sign to upgrade to SmartVoltage products
Follow these guidelines to ensure compatibility
1 Connect DU (WP on SmartVoltage products) to
a control signal or to V
CC
or GND
2 If adding a switch on V
PP
for write protection
switch to GND for complete write protection
3 Allow for connecting 5V to V
PP
and disconnect
12V from the V
PP
line if desired
3
28F200BX-T B 28F002BX-T B
The
Status Register (SR)
indicates the status of the
WSM and whether the WSM successfully completed
the desired program or erase operation
Maximum Access Time of
60 ns (t
ACC
)
is achieved
over the commercial temperature range (0 C to
70 C) 5% V
CC
supply voltage range (4 75V to
5 25V) and 30 pF output load Refer to Figure 19
t
ACC
vs Output Load Capacitance for larger output
loads Maximum Access Time of
80 ns (t
ACC
)
is
achieved over the commercial temperature range
10% V
CC
supply range (4 5V to 5 5V) and 100 pF
output load
I
PP
maximum Program current is 40 mA for x16
operation and 30 mA for x8 operation I
PP
Erase
current is 30 mA maximum V
PP
erase and pro-
gramming voltage is 11 4V to 12 6V (V
PP
e
12V
g
5%) under all operating conditions
As an op-
tion V
PP
can also vary between 10 8V to 13 2V (V
PP
e
12V
g
10%) with a guaranteed number of 100
block erase cycles
Typical I
CC
Active Current of 25 mA
is achieved
for the x16 products (28F200BX)
typical I
CC
Active
Current of 20 mA
is achieved for the x8 products
(28F200BX 28F002BX) Refer to the I
CC
active cur-
rent derating curves in this datasheet
The 2-Mbit boot block flash family is also designed
with an Automatic Power Savings (APS) feature to
minimize system battery current drain and allow for
very low power designs Once the device is ac-
cessed to read array data APS mode will immedi-
ately put the memory in static mode of operation
where I
CC
active current is typically 1 mA until the
next read is initiated
When the CE and RP pins are at V
CC
and the
BYTE pin (28F200BX-only) is at either V
CC
or
GND the
CMOS Standby
mode is enabled where
I
CC
is typically 50
mA
A
Deep Power-Down Mode
is enabled when the
RP pin is at ground minimizing power consumption
and providing write protection during power-up con-
ditions
I
CC
current
during deep power-down mode
is
0 20
mA
typical
An initial maximum access time
or Reset Time of 300 ns is required from RP
switching until outputs are valid Equivalently the
device has a maximum wake-up time of 215 ns until
writes to the Command User Interface are recog-
nized When RP is at ground the WSM is reset the
Status Register is cleared and the entire device is
protected from being written to This feature pre-
vents data corruption and protects the code stored
in the device during system reset The system Reset
pin can be tied to RP to reset the memory to nor-
mal read mode upon activation of the Reset pin
With on-chip program erase automation in the
2-Mbit family and the RP functionality for data pro-
4
tection when the CPU is reset and even if a program
or erase command is issued the device will not rec-
ognize any operation until RP returns to its normal
state
For the 28F200BX Byte-wide or Word-wide In-
put Output Control
is possible by controlling the
BYTE pin When the BYTE pin is at a logic low
the device is in the byte-wide mode (x8) and data is
read and written through DQ 0 7 During the byte-
wide mode DQ 8 14 are tri-stated and DQ15 A
b
1
becomes the lowest order address pin When the
BYTE pin is at a logic high the device is in the
word-wide mode (x16) and data is read and written
through DQ 0 15
1 3 Applications
The 2-Mbit boot block flash family combines high
density high performance cost-effective flash mem-
ories with blocking and hardware protection capabili-
ties Its flexibility and versatility will reduce costs
throughout the product life cycle Flash memory is
ideal for Just-In-Time production flow reducing sys-
tem inventory and costs and eliminating component
handling during the production phase During the
product life cycle when code updates or feature en-
hancements become necessary flash memory will
reduce the update costs by allowing either a user-
performed code change via floppy disk or a remote
code change via a serial link The 2-Mbit boot block
flash family provides full function blocked flash
memories suitable for a wide range of applications
These applications include
Extended PC BIOS
Digital Cellular Phone
program and data storage
Telecommunication
boot firmware and various
other embedded applications where both program
and data storage are required
Reprogrammable systems such as personal com-
puters are ideal applications for the 2-Mbit flash
products Portable and handheld personal computer
applications are becoming more complex with the
addition of power management software to take ad-
vantage of the latest microprocessor technology
the availability of ROM-based application software
pen tablet code for electronic hand writing and diag-
nostic code Figure 1 shows an example of a
28F200BX-T application
This increase in software sophistication augments
the probability that a code update will be required
after the PC is shipped The 2-Mbit flash products
provide an inexpensive update solution for the note-
book and handheld personal computers while ex-
tending their product lifetime Furthermore the
2-Mbit flash products’ power-down mode provides
added flexibility for these battery-operated portable
designs which require operation at very low power
levels
28F200BX-T B 28F002BX-T B
The 2-Mbit flash products also provide excellent de-
sign solutions for Digital Cellular Phone and Tele-
communication switching applications requiring high
performance high density storage capability cou-
pled with modular software designs and a small
form factor package (x8-only bus) The 2-Mbit’s
blocking scheme allows for an easy segmentation of
the embedded code with 16 Kbytes of Hardware-
Protected Boot code 2 Main Blocks of program
code and 2 Parameter Blocks of 8 Kbytes each for
frequently updatable data storage and diagnostic
messages (e g phone numbers authorization
codes) Figure 2 is an example of such an applica-
tion with the 28F002BX-T
These are a few actual examples of the wide range
of applications for the 2-Mbit Boot Block flash mem-
ory family which enable system designers to achieve
the best possible product design Only your imagina-
tion limits the applicability of such a versatile product
family
290448– 4

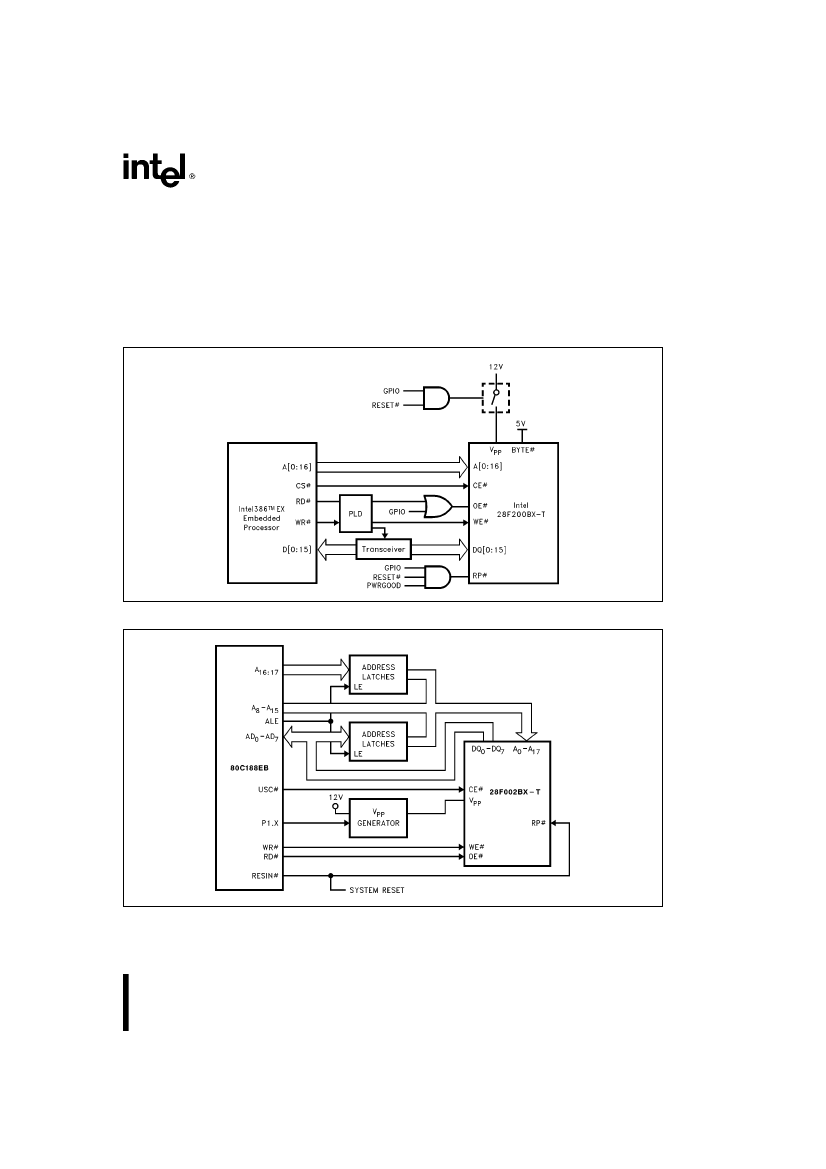

Figure 1 28F200BX Interface to Intel386
TM
EX Embedded Processor
290448– 24
Figure 2 28F002BX Interface to INTEL 80C188EB 8-Bit Embedded Microprocessor
[url]http://hack42.com/post/63803238824/v8[/url] Keith has completed a 1/4 scale [url=http://en.wikipedia.org/wiki/V8_engine]V8 engine[/url], the entire project was completed using a manual milling ma...
[b][font=宋体]1. Application Requirements Analysis[/font] [/b] [font=宋体]With the development of computer industry and the widespread application of computer technology, how to ensure the normal operatio...
[size=5]Hello friends, I want to make the simplest boost circuit to drive a 12V 0.07A small fan to blow the router. I made a small circuit with a single tube boost (the battery was changed to 5V and o...
I am now 28 years old, a junior college student, majoring in mechatronics, and have just switched to electronic energy-saving lamps. I have previously learned single-chip microcomputer C51, and can do...
1. There are two microcontrollers inside the cc2640, one m3 is responsible for the core, and the other is a 16-bit microcontroller, which should be msp430, which can replace the host to complete some ...
Microcontrollers (MCUs), which are widely used in automotive electronics, are rapidly facing time and cost pressures. The main advantage of using MCUs has always been to create high-level system in...[Details]
Analog engineers have traditionally struggled with complexity when designing power supplies that required multiple outputs, dynamic load sharing, hot-swap, or extensive fault-handling capabilities....[Details]
The reason for the light decay of white LEDs: the decline of phosphor performance
So far, the rapid decline of the luminous performance of white light LEDs, especially low-power white light LE...[Details]
When choosing a laptop battery, you should consider several factors, such as power, appearance, and quality.
Regarding power, we often see that a manufacturer uses values such as the number ...[Details]
introduction
For the voltage regulator modules (VRMs) that power the latest computer central processing units (CPUs), power supply designers have historically used multiphase interleaved b...[Details]
Battery life is critical for portable applications. For applications such as smoke detectors, security devices, and thermostats, factory-installed batteries need to last for more than 10 years. The...[Details]
With the continuous improvement of the requirements of intelligent building security systems and the continuous improvement of people's safety awareness, indoor anti-theft has gradually attracted peop...[Details]
With the rapid development of urban economy, elevators are increasingly used as a vertical transportation tool. However, elevator fault detection and maintenance, especially the role of elevator remot...[Details]
0 Introduction
With the development of society, people pay more and more attention to security work. Monitoring products have been used in various fields instead of being used only in importan...[Details]
A standard cell
is an electrochemical
cell
used as a voltage reference standard in many electrical standards laboratories
. If properly maintained, standard cells are very stable. The ...[Details]
LED is the abbreviation of light emitting diode, which is an electric light source made of semiconductor technology. The core part of LED is a chip composed of P-type semiconductor and N-type semi...[Details]
12v Lead Acid batteries used in trucks, cars, RVs and uninterruptible power supplies are usually rated at 12V. This circuit monitors the battery, the charge and discharge curves, gives the cu...[Details]
It is well known to automotive suppliers that automakers are demanding more from their supply base. For connector suppliers, this means stricter requirements for product performance, stability and ...[Details]
The era of mobile access to the Internet has arrived, and it will rapidly change the business and infrastructure needs of mobile operators under a whole new trend of requirements. We need 4G LTE to...[Details]
LED technology has made rapid progress, and improvements in chip design and materials have promoted the development of brighter and more durable light sources, and the scope of light source applica...[Details]
Talking
京公网安备 11010802033920号
EEWORLD
