PA1220
800-1000 MHz.
PRELIMINARY
Low Noise High Dynamic Range Linear Amplifier
Features
(typical values)
Low Cost Ceramic Surface Mount Package
NF ............................................................. 0.9 dB.
Pout ....................................................... +26 dBm
IP3 ........................................................... +40dBm
Typical
Value
-
18.0
+/- 0.5
- 23. 0
26
0.9
1.3/1.5:1
40
+12V/160
M in.
Value
800
16.0
-
-
24
-
-
37
-
M a x.
Value
10 0 0
-
+/- 0.6
-
-
1.4
1.5/1.8:1
-
+12V/180
Typical Performance
--u-- 25°C --n-- -40°C --∆-- +70°C
∆
G a in (d B ) v s . F r e q u e n c y
Parame te r
Frequency
Gain
Gain Flatness
Reverse Isolation
Pout @ 1dB. comp.
Noise Figure
VSWR (Input/Output)
IP3
Supply Required
Units
MHz
dB
dB
dB
dBm
dB
Ratio
dBm
v./mA.
20
19
18
17
16
800
900
1000
N F (d B ) v s . F re q u e n c y
1 .2 5
0 .7 5
0 .2 5
800
900
1000
P o u t (d B m ) v s . F re q u e n c y
2 6 .5
26
2 5 .5
25
800
900
1000
IP3 measured with 2 tones @+10 dB @ 1 Mhz apart
Min and max values from -40 to +85 degrees C
V S W R v s . F re q u e n c y
Outline Drawings
1 .5
1 .2 5
1
800
900
1000
IP 3 (d B m ) v s . F r e q u e n c y

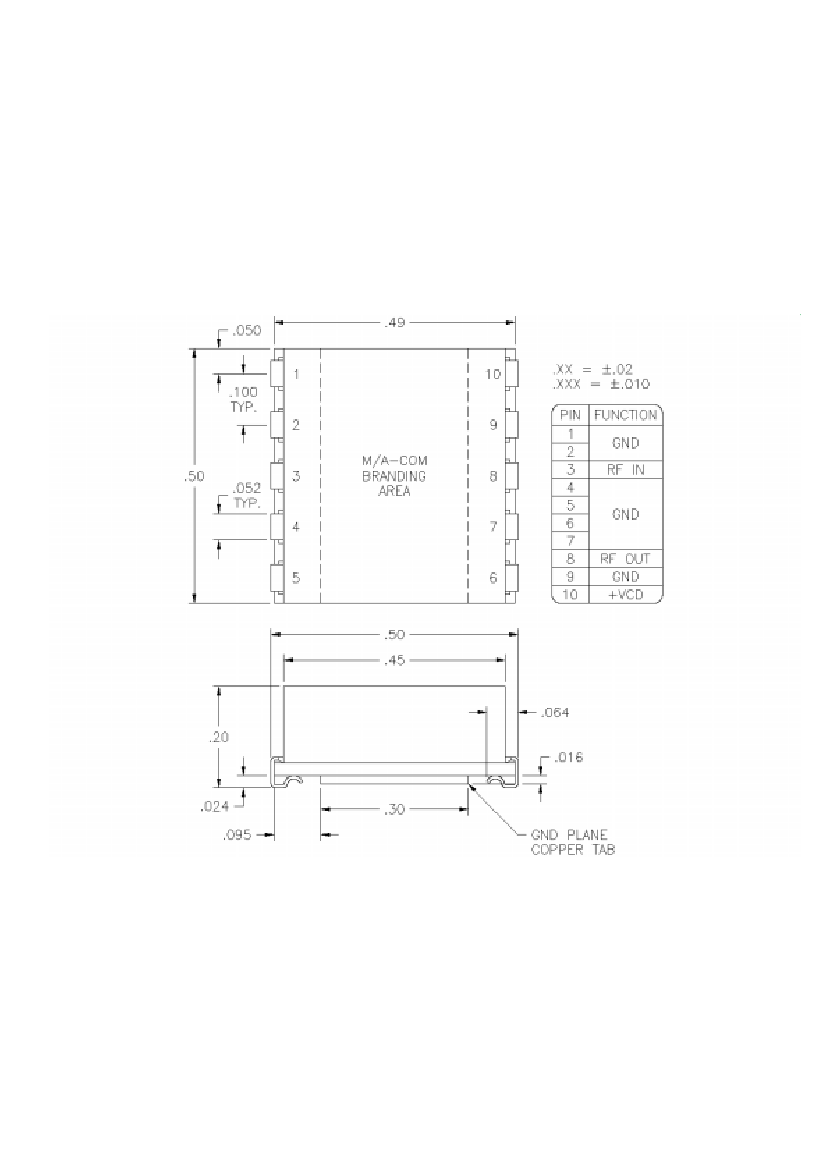

SEE ATTACHED DRAWING
60
40
20
0
800
900
F re q u e n c y in M H z .
1000
Maximum Ratings
Storage Temperature ....... -65°C to +150°C
DC Voltage .................................. +15 volts
RF Input Power .......................... +23 dBm.
Heat Spreader Temperature .......... +100°C
Rev: 08012001
Specifications subject to change without notice
