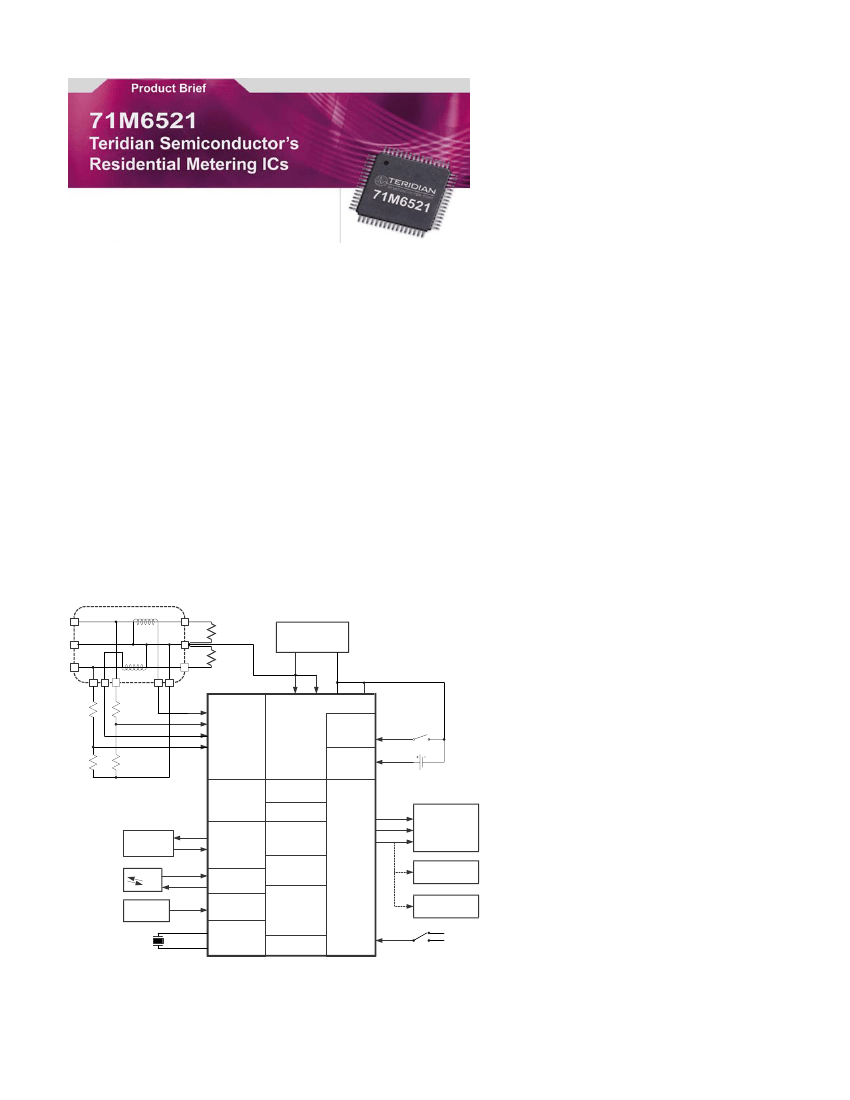

FEATURES
•
< 0.4% Wh accuracy over industrial
temperature and 2000:1 current range
•
Four analog inputs
The new 71M6521 product family represents Teridian’s second
generation electricity metering technology for cost sensitive
residential applications. This SOC device is footprint compatible
with 71M6511, integrates AFE, MCU, RTC, FLASH and LCD driver
but offers lower cost 8/16/32 KB FLASH options, more I/O,
advanced power management and tamper detection. Teridian’s
patented Single Converter Technology
TM
with a 22bit 2
nd
order
delta-sigma converter, 4 analog inputs, digital temperature
compensation, voltage reference and flexible 32-bit computation
engine meet all current and evolving metering requirements
worldwide with minimal external components.
Low system cost is supported with 2 UARTs, I C/µWire EEPROM
interface, battery monitor, power fail monitor, neutral current or
magnetic tamper detection, program/data FLASH, mask ROM
option and operation with capacitive power supply.
Teridian’s large portfolio of solutions for residential, commercial and
industrial metering offers OEMs a comprehensive array of ICs,
tools, reference designs and above all a unique ability to
differentiate their products in the market.
A
NEUT
B
LOAD
CT/SHUNT
LOAD
POWER SUPPLY
•
Exceeds IEC62053 / ANSIC12.20
•
Voltage reference < 40ppm/°C
•
CT, Shunt or combination
•
Wh and VARh pulse outputs, up to 10kHz
•
Internal pulse counting
•
40-70Hz frequency range with phase
compensation (±7°)
•
8-bit MPU (80515), 1 instruction/cycle
•
2kB MPU Data RAM
•
0.5KB CE Data RAM
•
8, 16 or 32 KB FLASH with Security
•
Mask ROM option
•
Real Time Clock (6521D/F models)
•
Temp. sensor for RTC compensation
•
Battery backup for RTC w/ Battery monitor
•
Sleep, LCD and Brownout power modes
w/ wake-up on push-button or timer
•
Fast wakeup into brownout mode
(<400µs)
•
Internal battery monitor
•
32Khz or 4.19Mhz crystal options
•
Two event counter/timers
2
CONVERTER
IA
VA
IB
VB
TERIDIAN
V3.3
V3.3A
GNDA GNDD
SYS
PWR MODE
CONTROL
WAKE-UP
REGULATOR
VBAT
V2.5
BATTERY
•
Watchdog timer, power fail monitor
•
3.3 Volt LCD driver
•
Up to 152 pixels (in 68 pin package)
•
Up to 18 DIO (in 68 pin package)
•
32kHz or 4.2MHz selectable crystal
3.3V LCD
71M6521
TEMP
SENSOR
VOLTAGE REF
VREF
VBIAS
SERIAL PORTS
DIO, PULSE
RAM
FLASH/
ROM
COMPUTE
ENGINE
COM0..3
SEG0..18
SEG 24..31/
DIO 4..11
SEG 34..37/
DIO 14..17
SEG 32,33,
38/ICE
•
Two UARTs for IR and AMR
•
38KHz IR modulation option
•
64-lead LQFP or 68-pin QFN package
•
Lead Free package option
•
Modular S/W library with additional
options/features
88.88.8888
IIC or uWire
EEPROM
TEST PULSES
V3P3D
GNDD
AMR
RX/DIO1
TX/DIO2
TX
RX
SENSE
DRIVE/MOD
COMPARATOR
V1
OSC/PLL
XIN
XOUT
IR
POWER
FAULT
32 kHz or
4.1943MHz
MPU
RTC
TIMERS
ICE
ICE_E
04/29/2005
DESCRIPTION
ORDERING
NUMBER
71M6521B-IGT
71M6521B-IGT/F
71M6521D-IGT
71M6521D-IGT/F
71M6521D-IM
71M6521D-IM/F
71M6521F-IGT
71M6521F-IGT/F
71M6521F-IM
71M6521F-IM/F
PACKAGE
MARKING
71M6521B-IGT
71M6521B-IGT
71M6521D-IGT
71M6521D-IGT
71M6521D-IM
71M6521D-IM
71M6521F-IGT
71M6521F-IGT
71M6521F-IM
71M6521F-IM
71M6521B
64 pin LQFP, 8K
71M6521B
64 pin LQFP Lead Free, 8K
71M6521D
64 pin LQFP, 16K
71M6521D
64 pin LQFP Lead Free, 16K
71M6521D
68 pin MLF, 16K
71M6521D
68 pin MLF, Lead Free, 16K
71M6521F
64 pin LQFP, 32K
71M6521F
64 pin LQFP Lead Free, 32K
71M6521F
68 pin MLF, 32K
71M6521F
68 pin MLF, Lead Free, 32K
For immediate technical information and the name of a local representative or
distributor,
visit
www.teridian.com,
send an email to
support@teridian.com
or call
(714) 508-8800.
6440 Oak Canyon, Irvine, CA 92618-5201
(714) 508-8800 (Tel)
(714) 508-8878 (Fax)
No responsibility is assumed by Teridian Semiconductor Corporation for use of this product nor for any
infringements of patents and trademarks or other rights of third parties resulting from its use. No license is
granted under any patents, patent rights or trademarks of Teridian Semiconductor Corporation, and the
company reserves the right to make changes in specifications at any time without notice. Accordingly, the
reader is cautioned to verify that the data sheet is current before placing orders.
2005 Teridian Semiconductor Corporation
5/06 – rev 1.0
