5P4J-AZ: DescriptionSilicon Controlled Rectifier, 7.85A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3; CategoryAnalog mixed-signal IC Trigger device; File Size1MB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

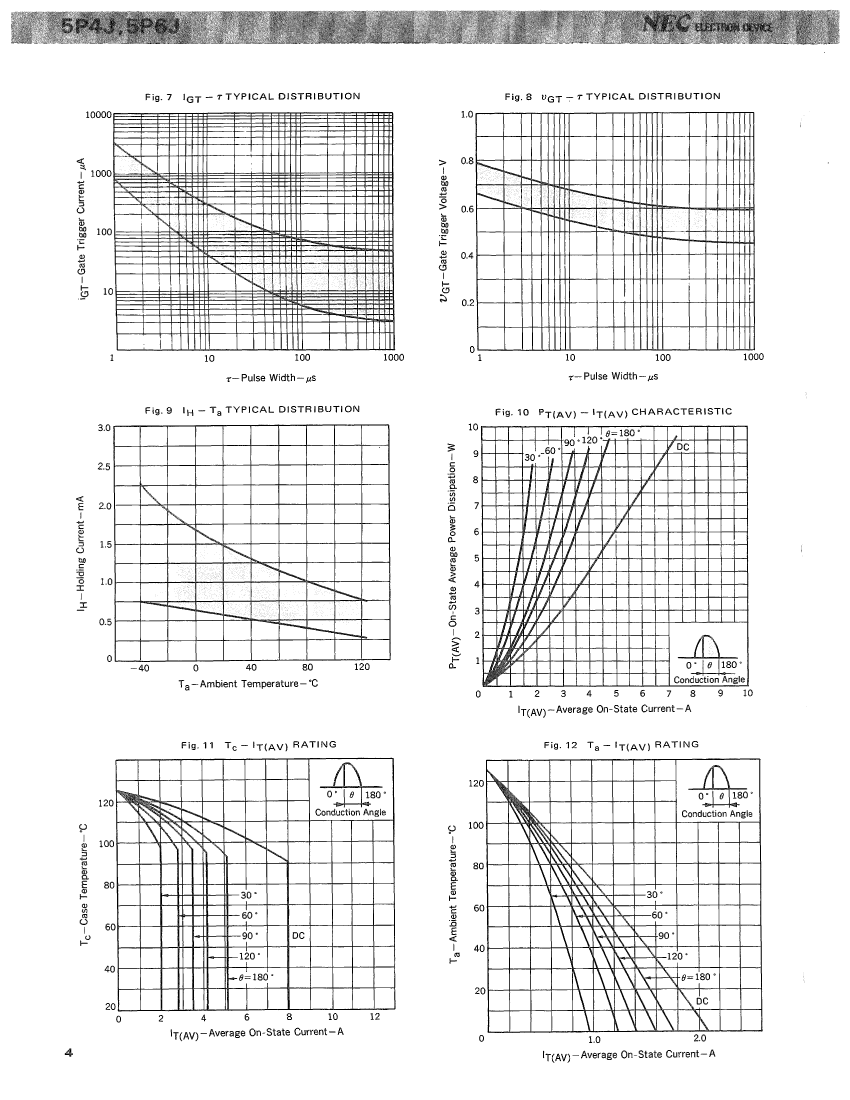

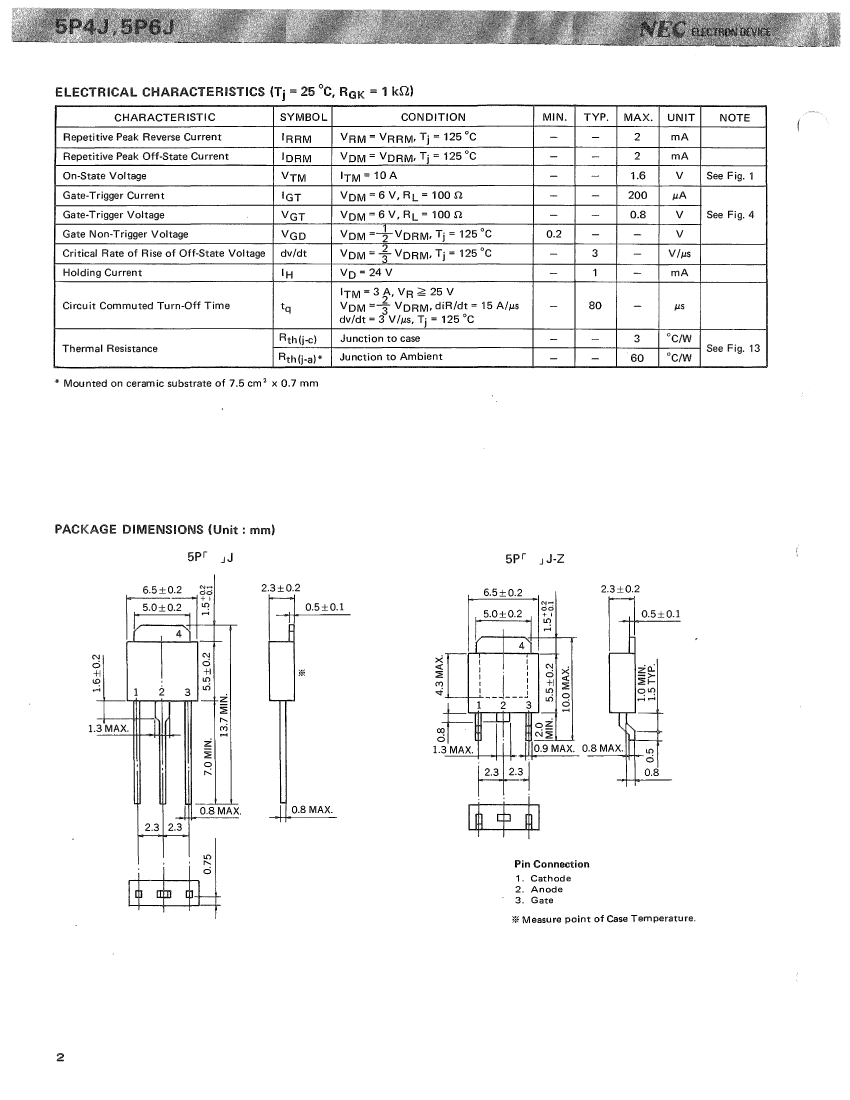

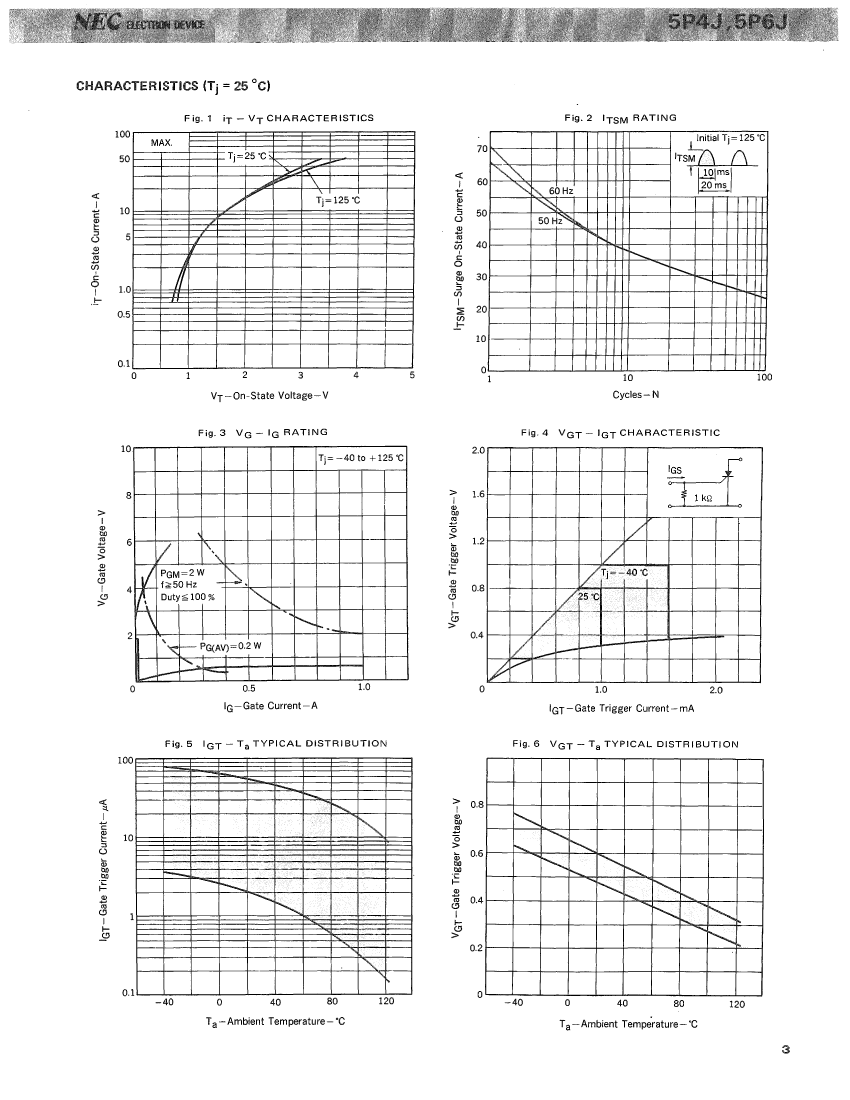

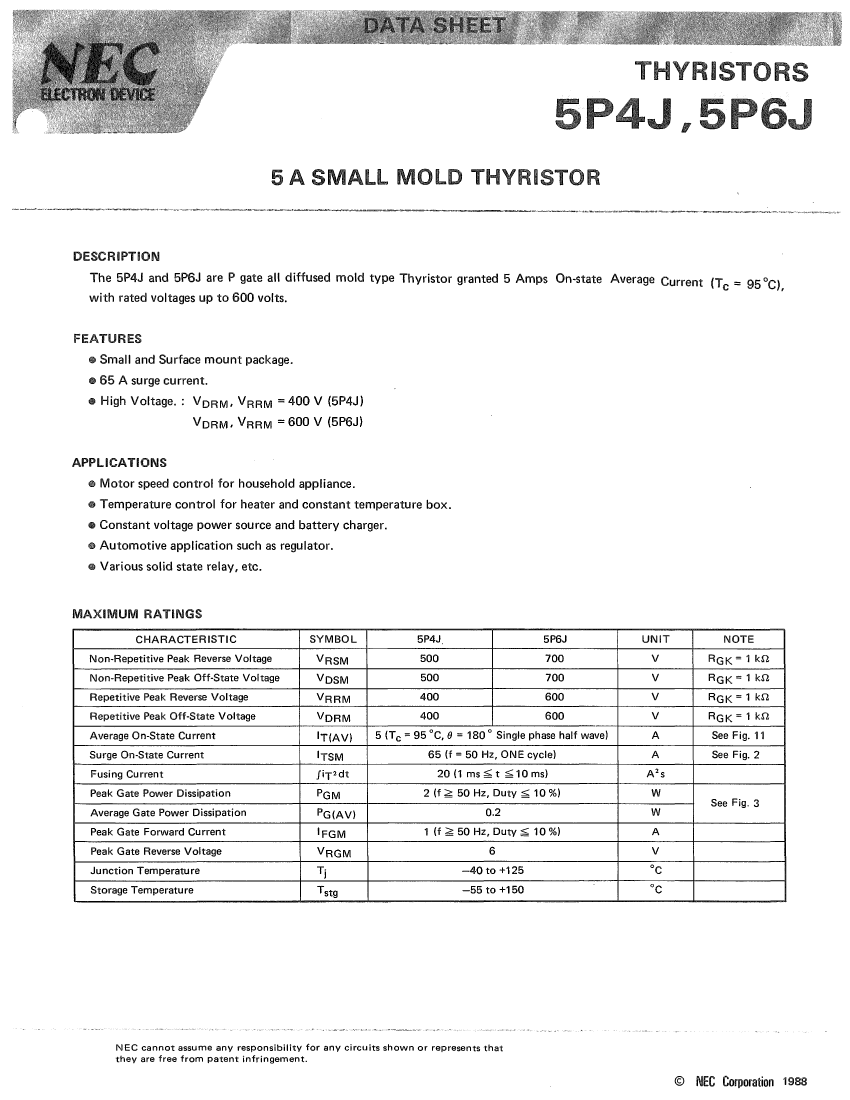

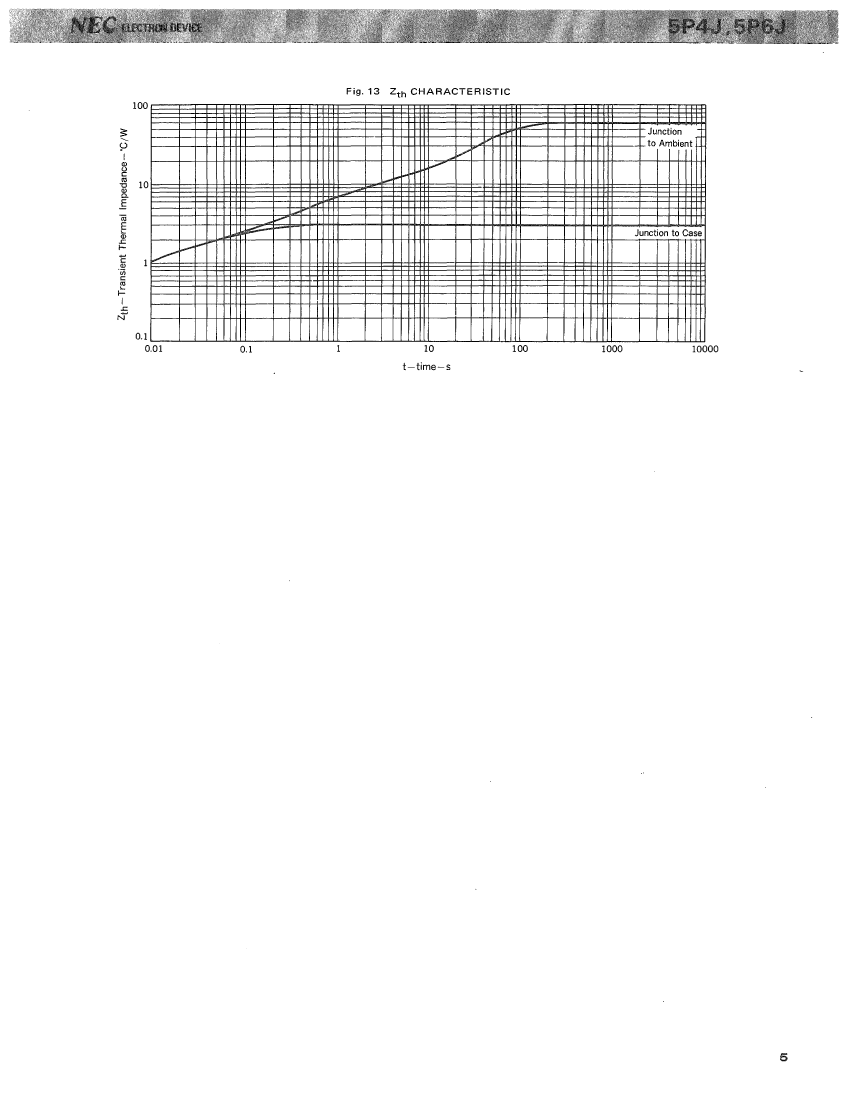

5P4J-AZ Overview

Silicon Controlled Rectifier, 7.85A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	7.85 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

	5P4J-AZ	5P6J-AZ
Description	Silicon Controlled Rectifier, 7.85A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3	Silicon Controlled Rectifier, 7.85A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, PLASTIC PACKAGE-3
Maker	NEC Electronics	NEC Electronics
package instruction	IN-LINE, R-PSIP-T3	PLASTIC PACKAGE-3
Contacts	3	3
Reach Compliance Code	unknown	unknown
Shell connection	ANODE	ANODE
Configuration	SINGLE	SINGLE
Maximum DC gate trigger current	0.2 mA	0.2 mA
JESD-30 code	R-PSIP-T3	R-PSIP-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	7.85 A	7.85 A
Off-state repetitive peak voltage	400 V	600 V
Repeated peak reverse voltage	400 V	600 V
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR
Base Number Matches	1	1
